Fillet/radius gauge
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial

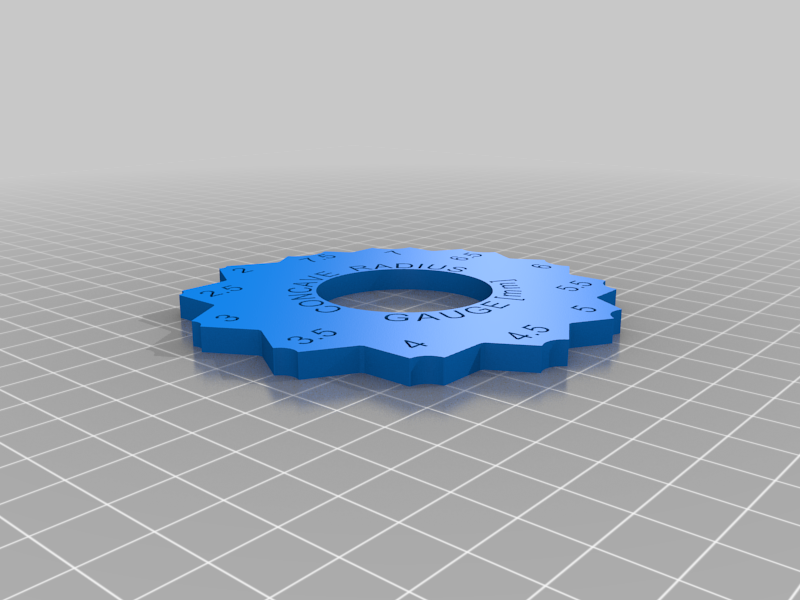

Here, I designed a convex radius gauge to quickly assess radii of objects I intend to design in CAD. Overall, it has taken much of the "guesswork" or awkward measurements depending on overall item geometry. The radii range from 2 to 7.5 mm; e.g., diameters of 4-15 mm.
Print Settings
Printer Brand:
Prusa
Printer:
I3 MK3S
No
Supports:
No
0.2
Infill:
20%
Filament:
Filamentone PLA Grey
Notes:
Any material does the trick. Make sure to prevent elephant footing, since it will slightly affect the radius of the arcs.
Category: Tools
