Switchwire TVM Edition
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
List of parts used with my build series - Modified from originals
- Rating
- 0 / 5
- Likes
- 15
- Downloads
- 40
- Makes
- 0
- Views
- 512
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Voron Parts & Upgrades
- License
- GNU General Public License v3.0

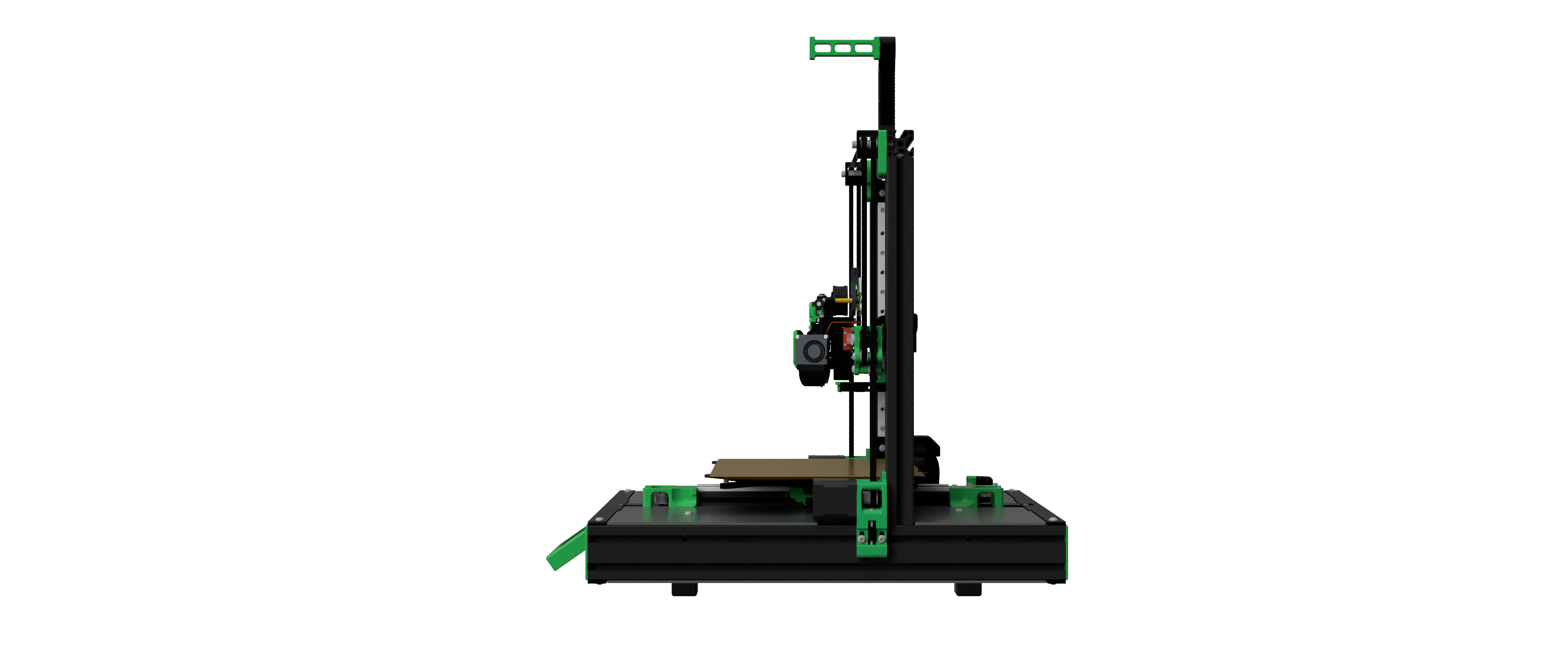

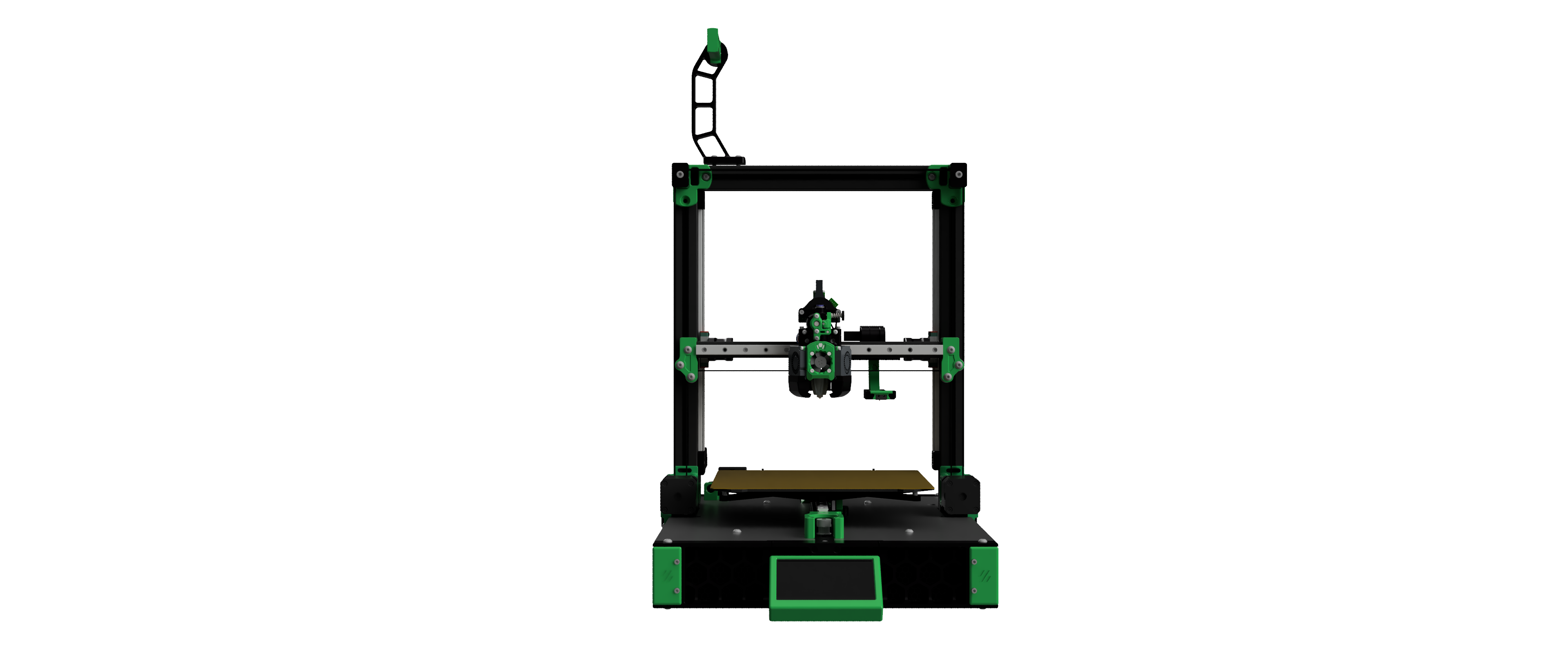

These are the parts I utilized for my YT series on revitalizing the Voron SwitchWire.
Please note, these are modifications of original parts and work well for me however they might not work for you, I am utilizing a Rapido 2 UHF nozzle for this build.
Voron Skirts modified to be as simple as possible, if you are looking for the screen mount I utilized a BTT TFT43 which is made by FizzyTech and found here: Voron Switchwire/2.4 BTT Pi TFT43 screen mount by Fizzy | Download free STL model | Printables.com
The XOL Toolhead was modified for my project to utilize Klicky servo mount due to the bed having built in magnets which creates issues for eddy current probes such as Beacon, Cartographer, BTT Eddy.
If you want to utilize DUAL Y motors simply print another rear Y lower tensioner plate and the included UPPER for the front endstop point and you are good to go.
The Raspberry PI + Octopus mount was modified moving the pi 4mm outward due to the breadboard being too close for my personal preferences.
MAKE SURE YOU ENABLE SUPPORT! - There is a cutout for the XZ motor wires so the panel does not lift up or cause potential damage to your wires.
Use standard Voron Print Standards
These are the recommended settings from Sourcing Information | Voron Documentation
- Layer height: 0.2mm
- Extrusion width: 0.4mm, forced
- Infill percentage: 40%
- Infill type: grid, gyroid, honeycomb, triangle, or cubic
- Wall count: 4
- Solid top/bottom layers: 5
- Supports: NONE
Happy Printing!
