While I love my original model I always felt it could benefit from a moving head, which is the case with this upgrade.



Printing Information:

There are 4 pieces that need to be printed individually: the body, the neck, the base and the head

  • Print the neck upright on its flat face (ball up), add a brim to help with stability
  • Print the body on its back and use regular supports to support the overhangs.
  • The head should be printed flat on the bed with regular supports for the eyes and the neck hole. for the colors you can use a MMU or you do it without by simply pause the print at the different layers to change colors as needed. By default if should be done at: 8mm, 9mm and 10mm. The color order is black-white/gray-red and finally black again.
  • The base can simply be printed upright

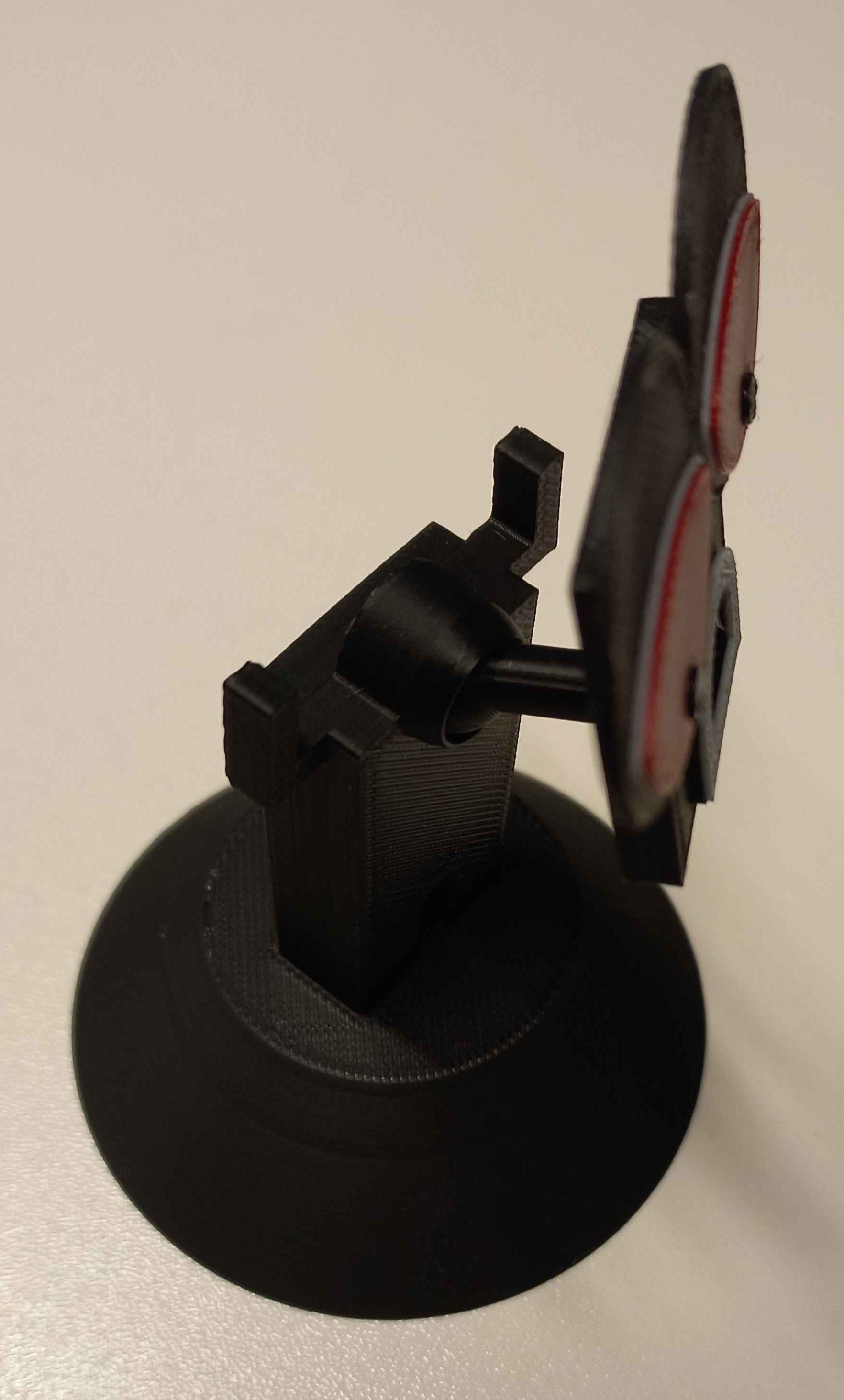

Once all pieces are printed, they should simply press together. The neck and the body assembly should require a bit of force, but once done, the head should be able to rotate with minimal force but should also hold in position when untouched.

The fusion360 file is provided would you want to make some changes, for example in terms of tolerances.
