Ender2Pro-BlTouch

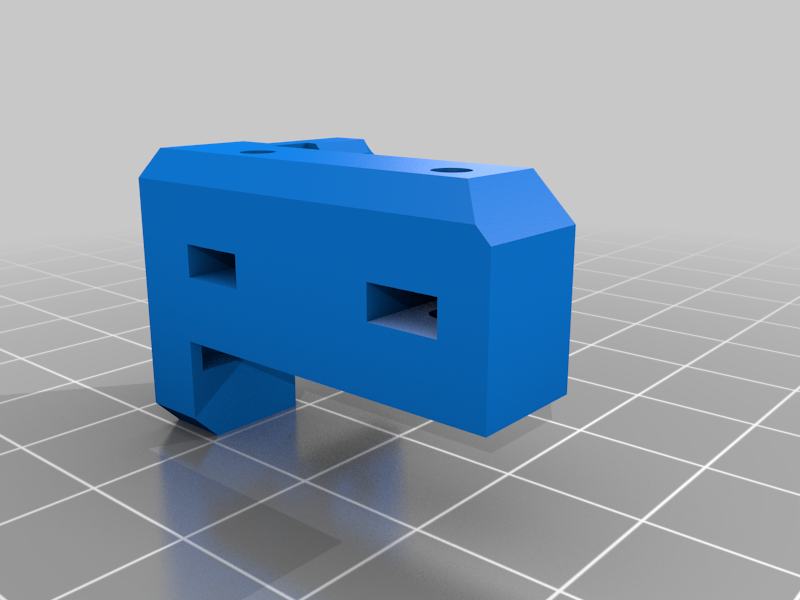

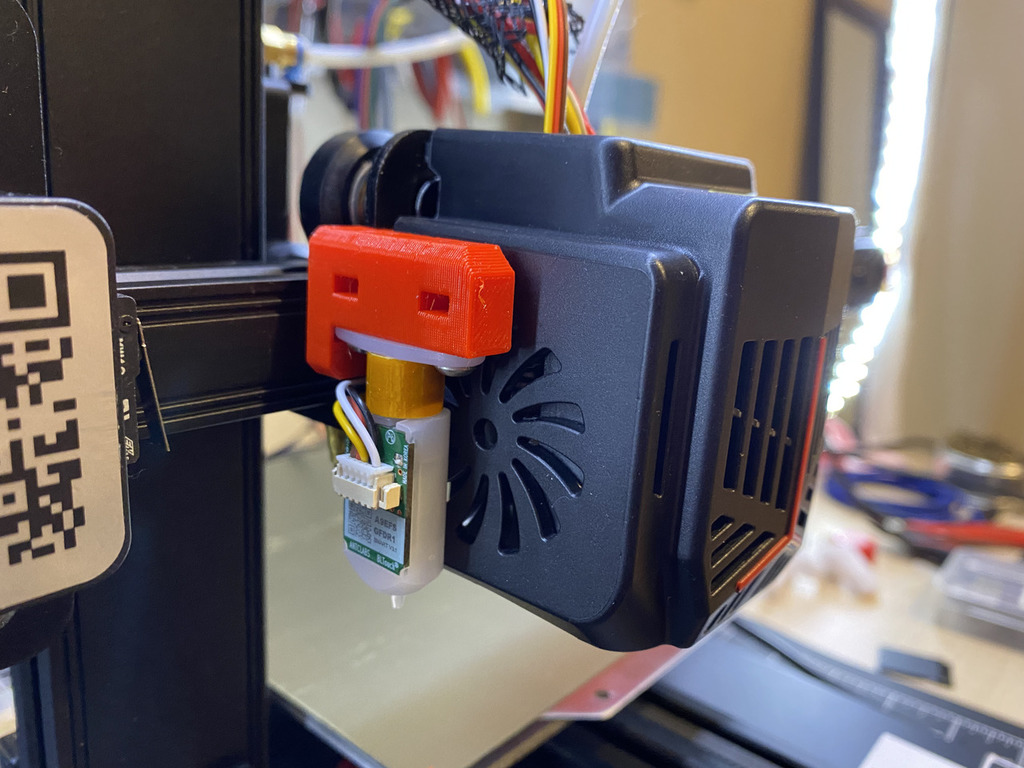

BLTouch bracket for the Ender2 Pro

Installation

This should work with the M2.5 nuts/screws provided with the BLTouchor you can use M3 screws (with no nuts).
Note: When using M3 screws, you will be tapping directly into the plastic. It works well and that is how I installed mine

  1. Remove the Z-Sense plug from the board

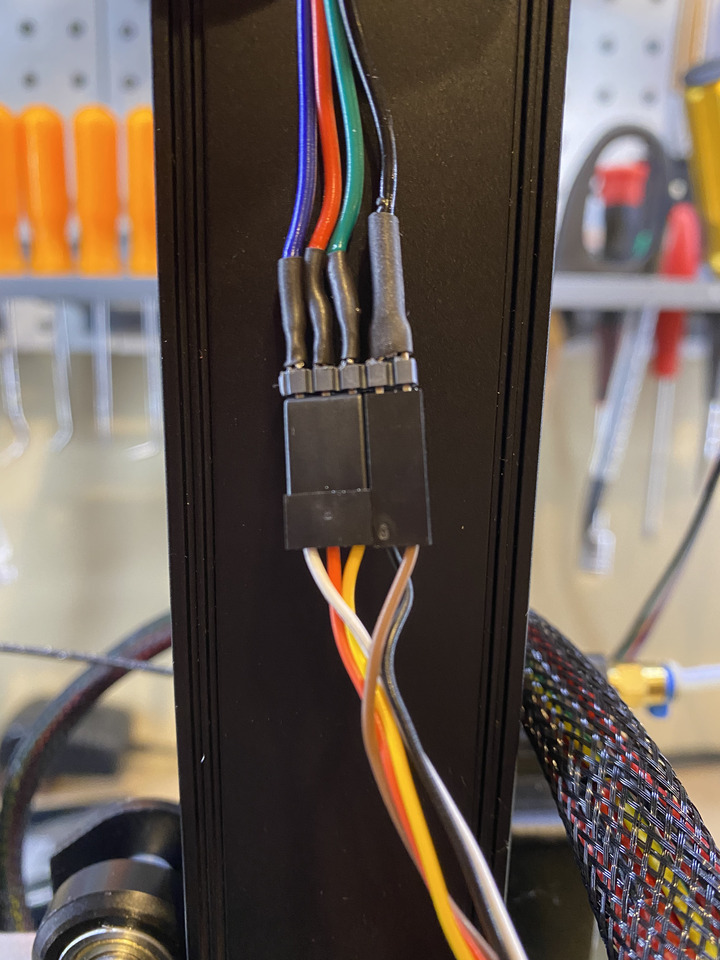

  2. Wire up the BLTouch to the 5 port header on main board
    The Brown and Black wires are both ground, you can join them to make wiring simpler
    I used a proper JST from Amazon
    Marlin firmware should automatically detect the BLTouch.
    You will then need to calibrate the Z offset. On my machine the Z offset is -2.1mm

    Installing a BLTouch with this bracket will shift your X axis by 10mm.
    Creality has not yet released official configuration files so you can compile a new config.
    Until they do you can modify the reverse engineered configs from github

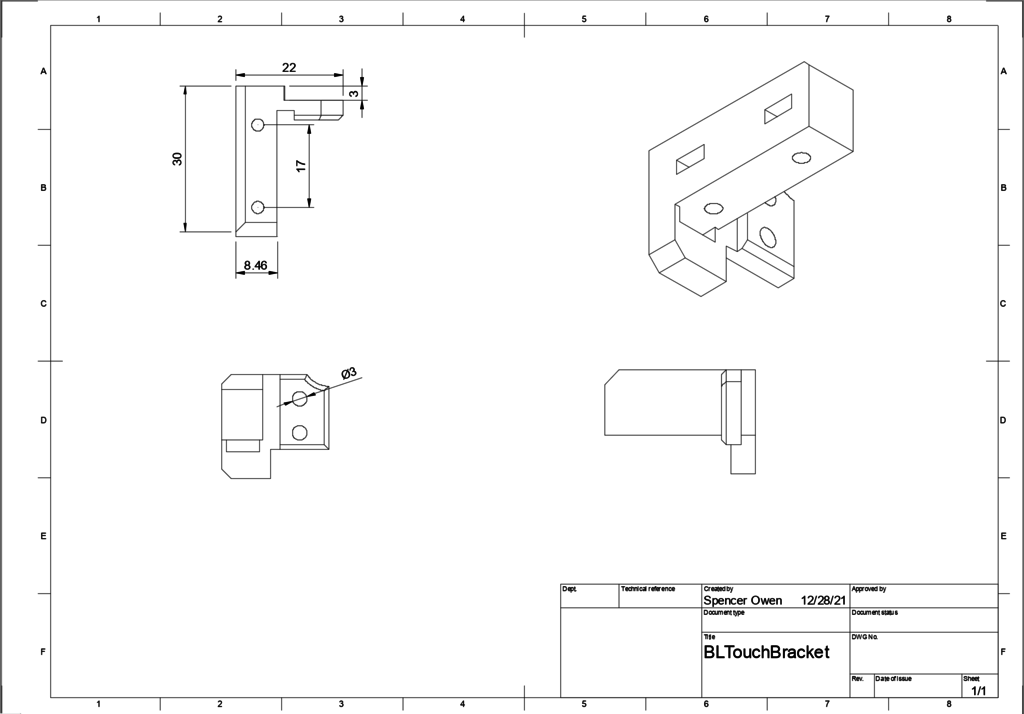

CAD Files available on github

*Github: https://github.com/spuder/ender2pro-bltouch
