Paramotor Strobe
Version 1 isn't as bright as I'd like. Checkout Version2
Flight video
Video of strobes in action
Warning

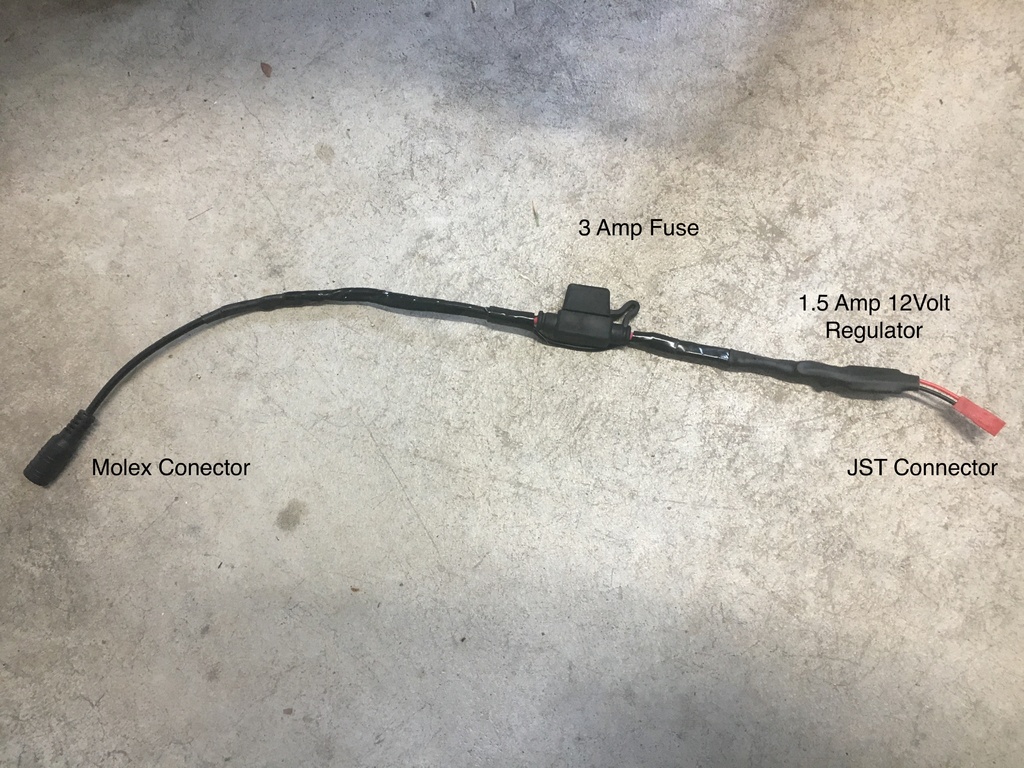

- Use a 5 amp automotive fuze to prevent short circuits from causing a fire
- LiPo Batteries will swell when over-discharged, always use a battery checker and never let a lipo battery drop below ~3.5volts per cell Parts
- Strobes

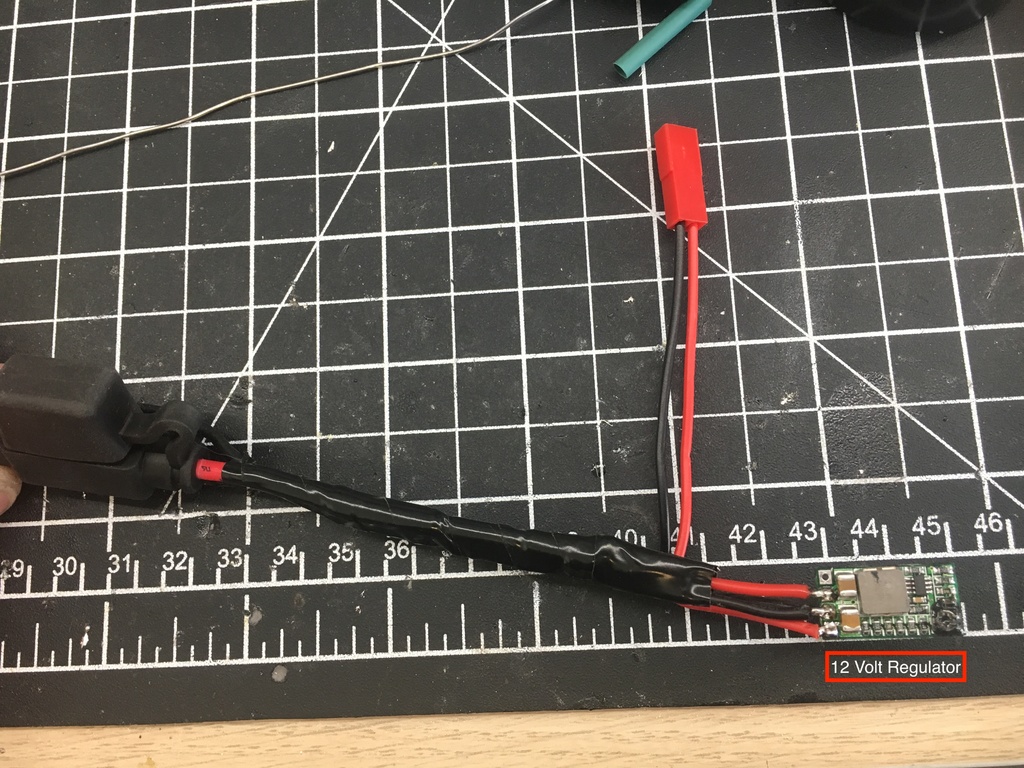

- 12v regulator (large)
- 12v regulator (small)
- Fuse
- LiPo Buzzer

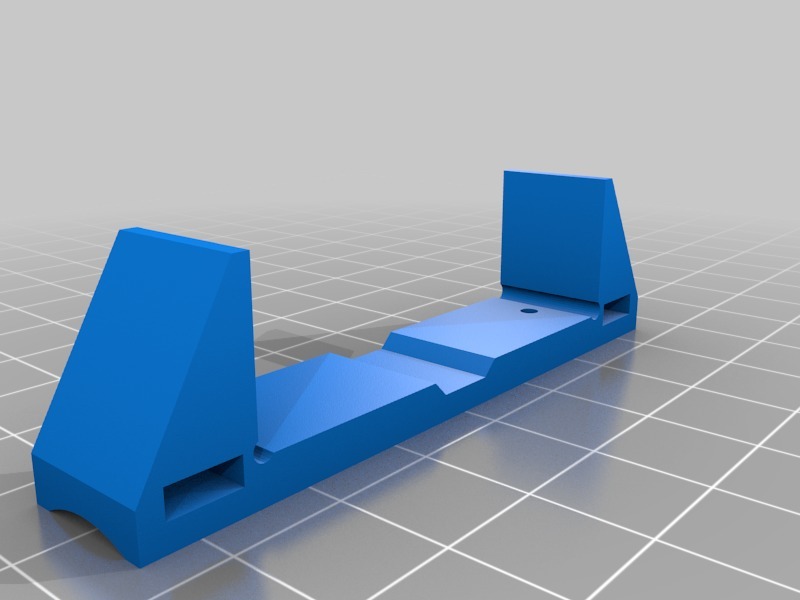

JST connectors (optional) Print the parts in TPU or Flex material for best result.

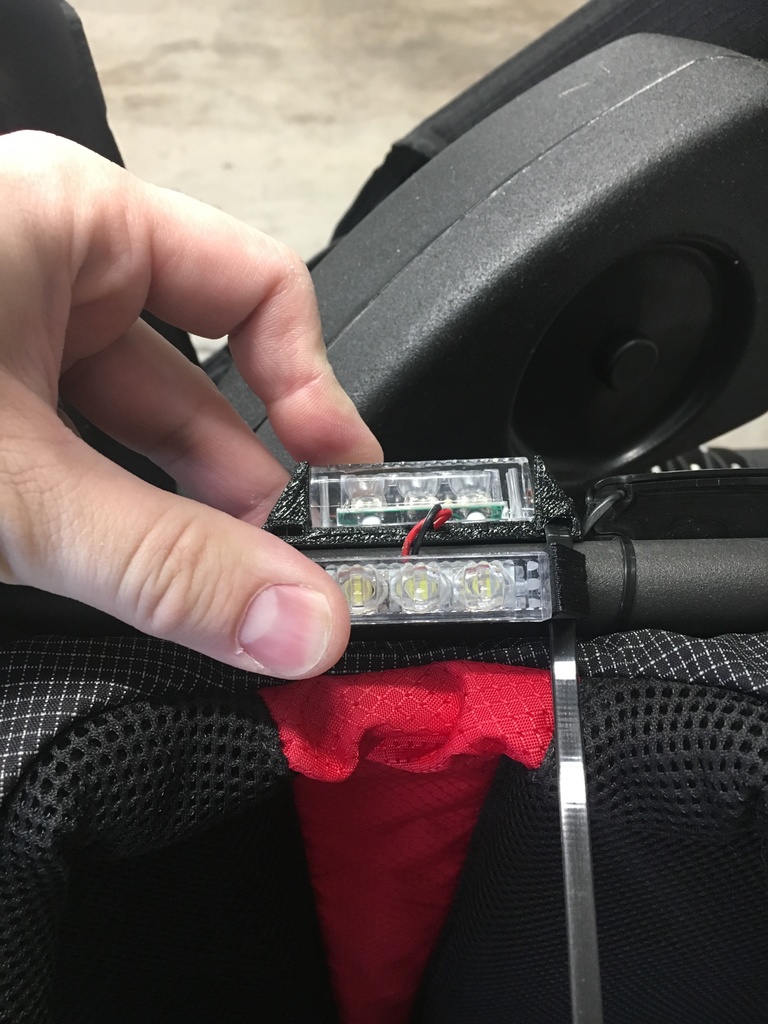

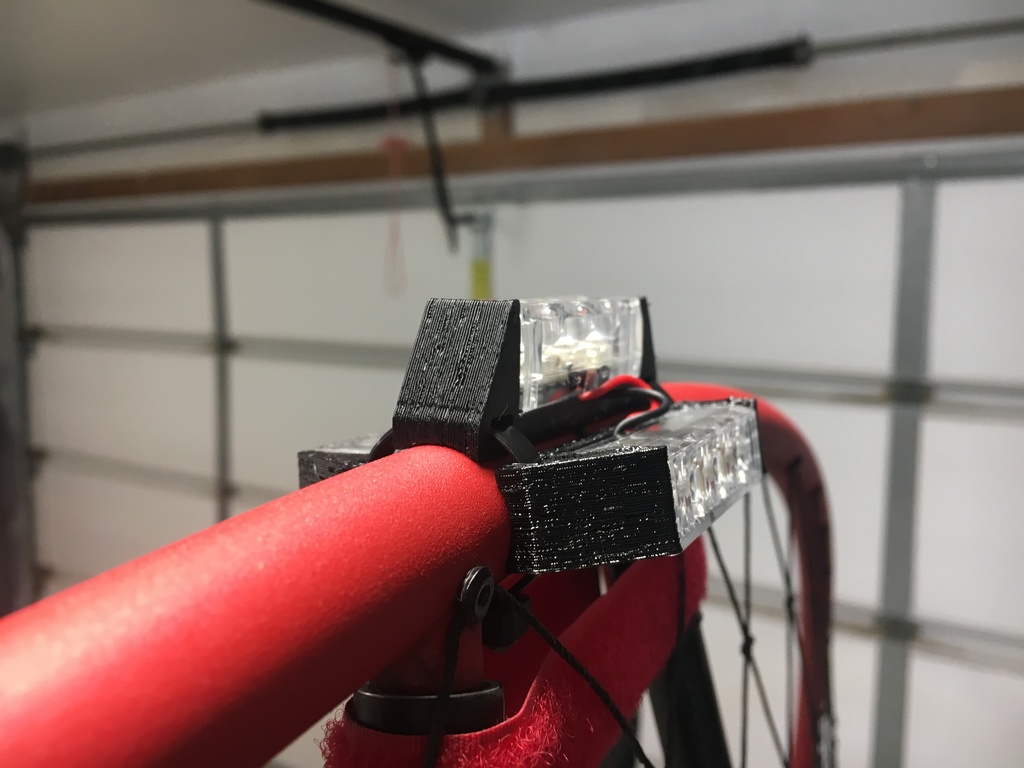

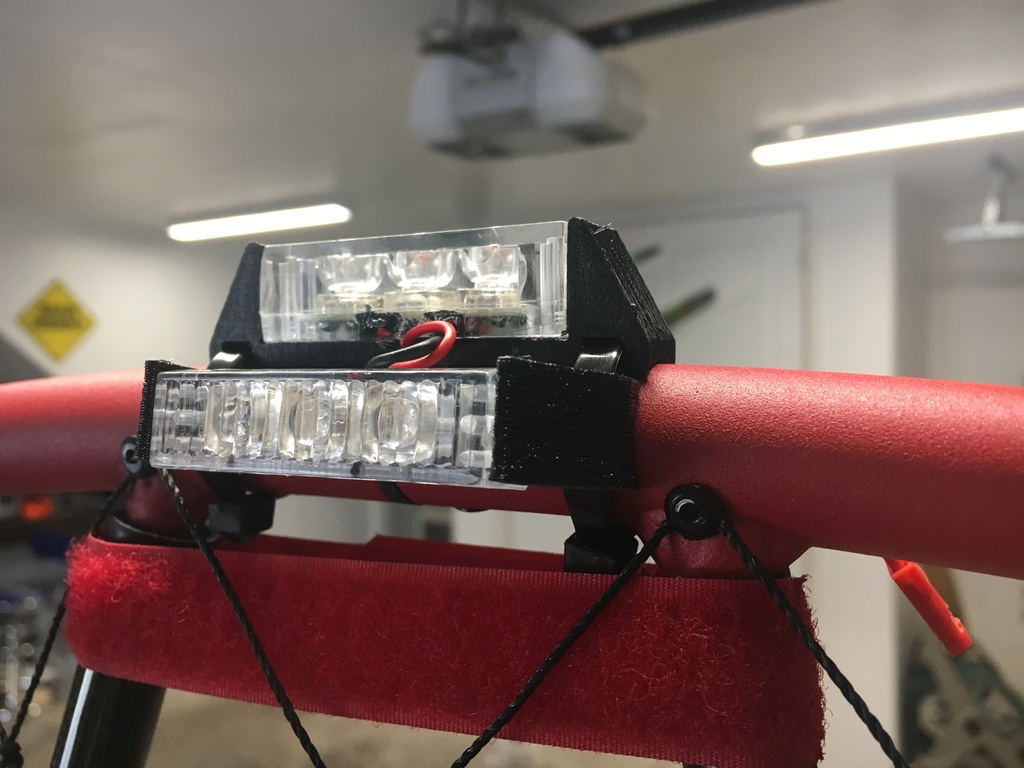

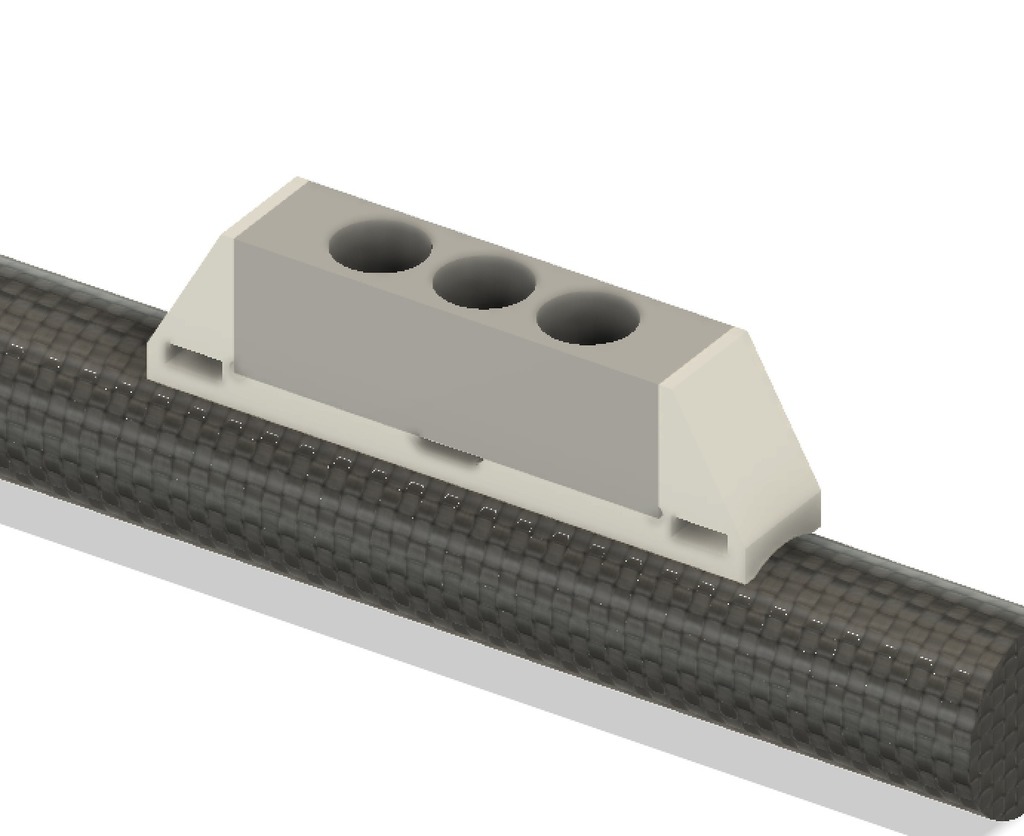

You can put 1, 2 or 3 strobes around most tubes on a paramotor frame. Tested with an Airconception Nitro 200 Delta frame.
While you can use the connectors that came with the strobe kit, I opted to replace them with the red JST connectors since they are smaller and I didn't need all the connectors that were included.

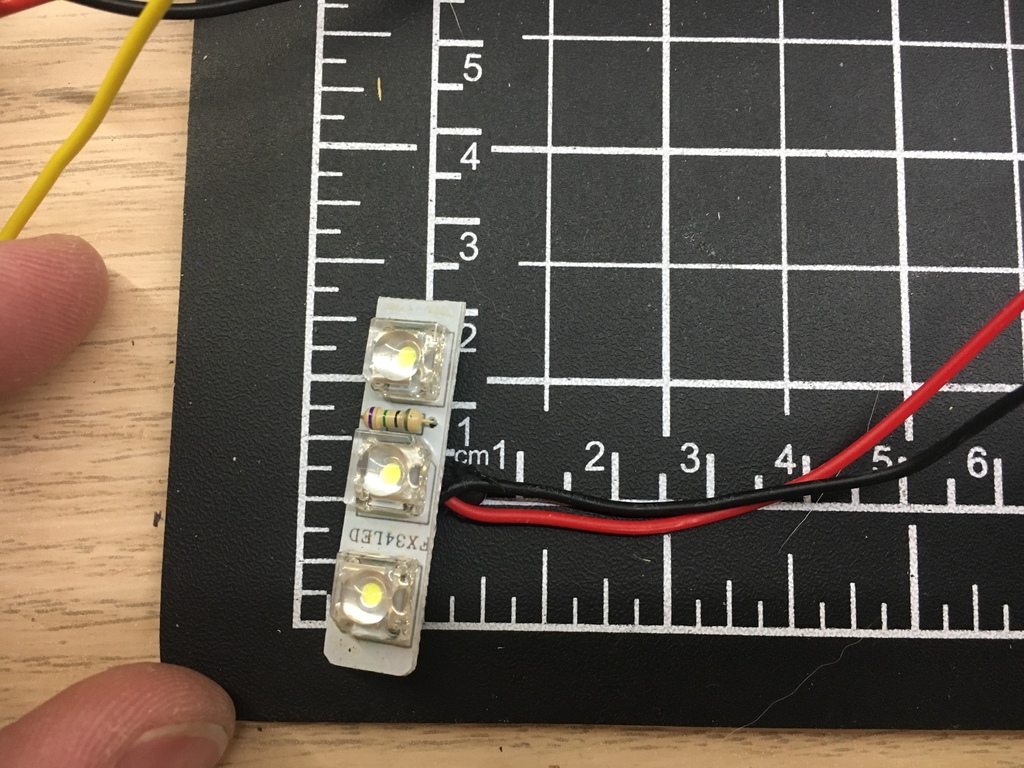

The strobe leds came with poor quality solder connections. I re-tinned all the solder joints.
Box Attachment
The controller box doesn't have attachment points. You can glue these ziptie adapters to the box to allow for easier mounting.
https://www.thingiverse.com/thing:3525269
Power Switch
https://www.thingiverse.com/thing:3471327
