A body/shell/armor cover made for the OSEPP (osepp.com) triangular tank arduino kit.
(if you decide to get one of these realize that the mechanical kit doesn't come with the electronics and you have to order the electronics kit as well…stupid me didn't realize that)
V1 was designed with no coverage (just an opening for the ultrasonic sensors).

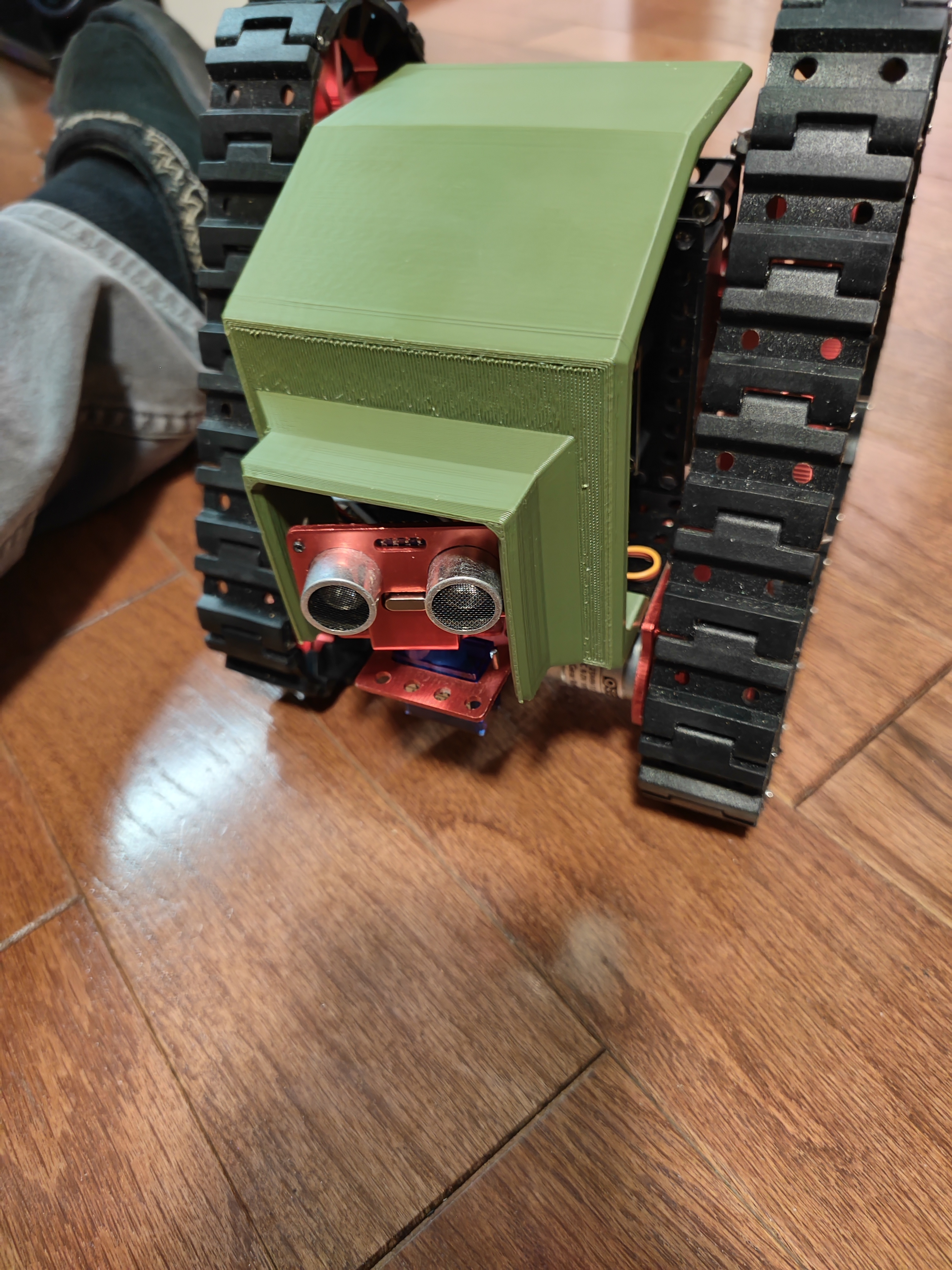

V2 is designed with protective coverage for the ultrasonic sensors in case it flips they should be protected from breaking.

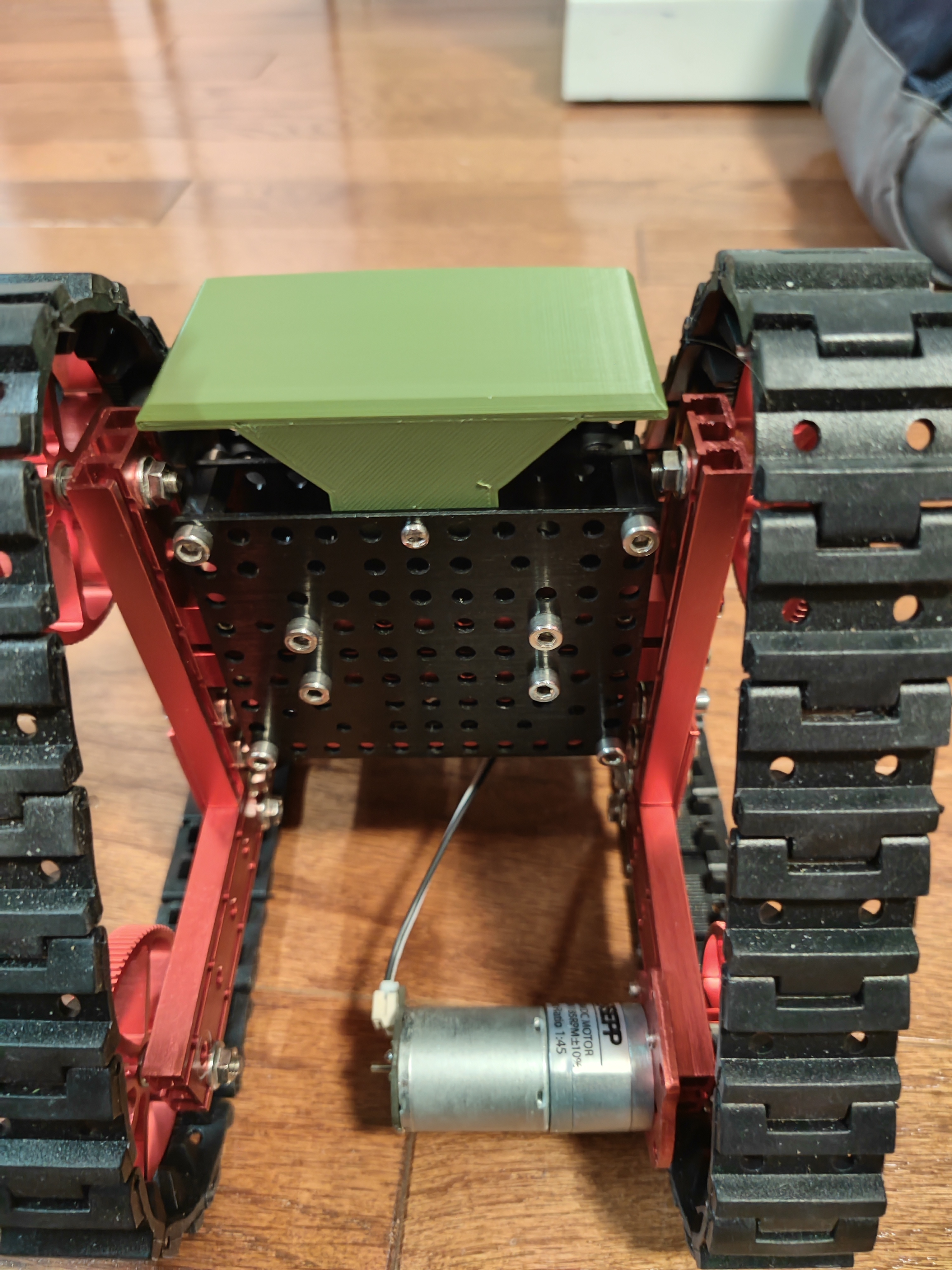

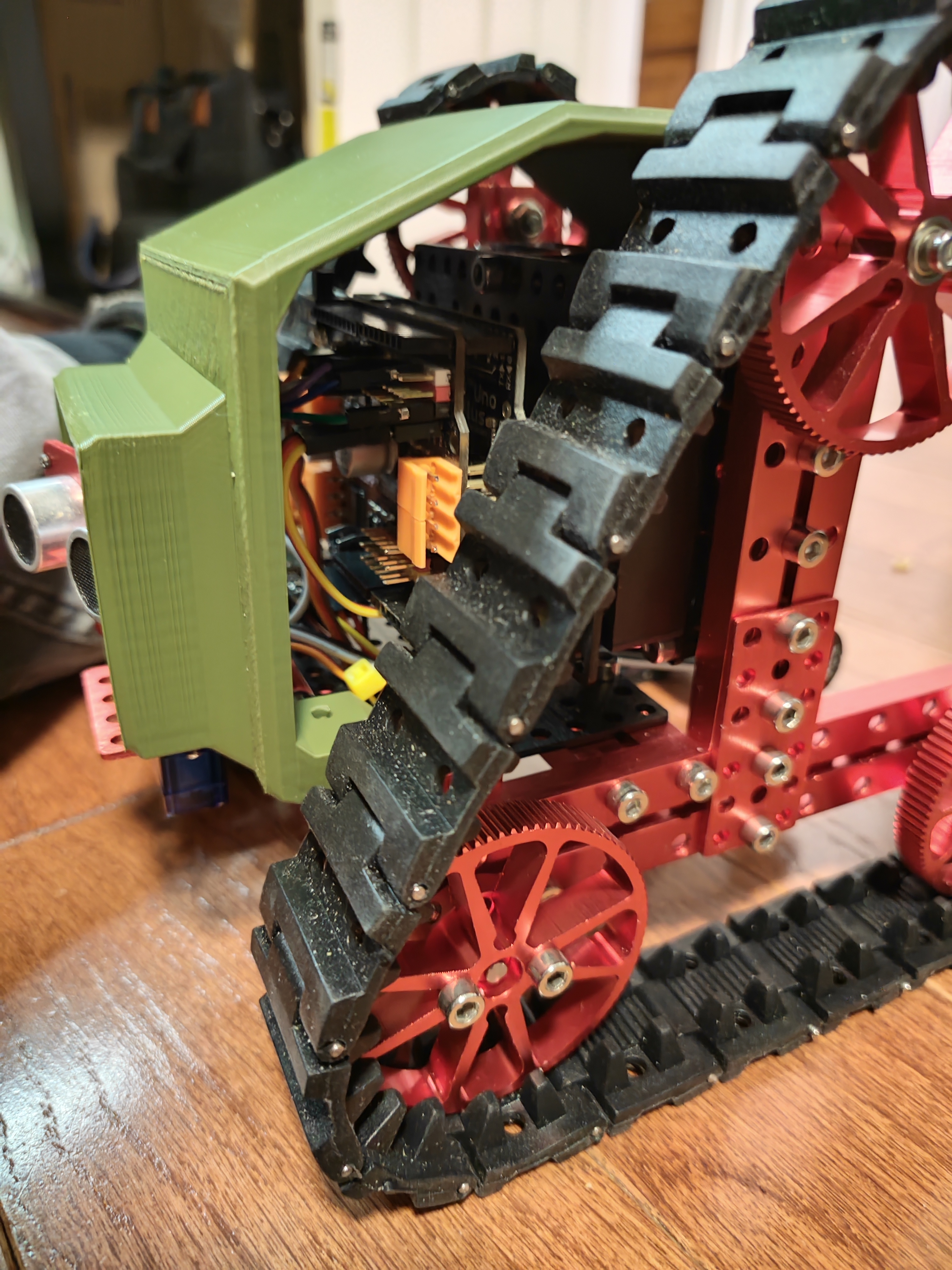

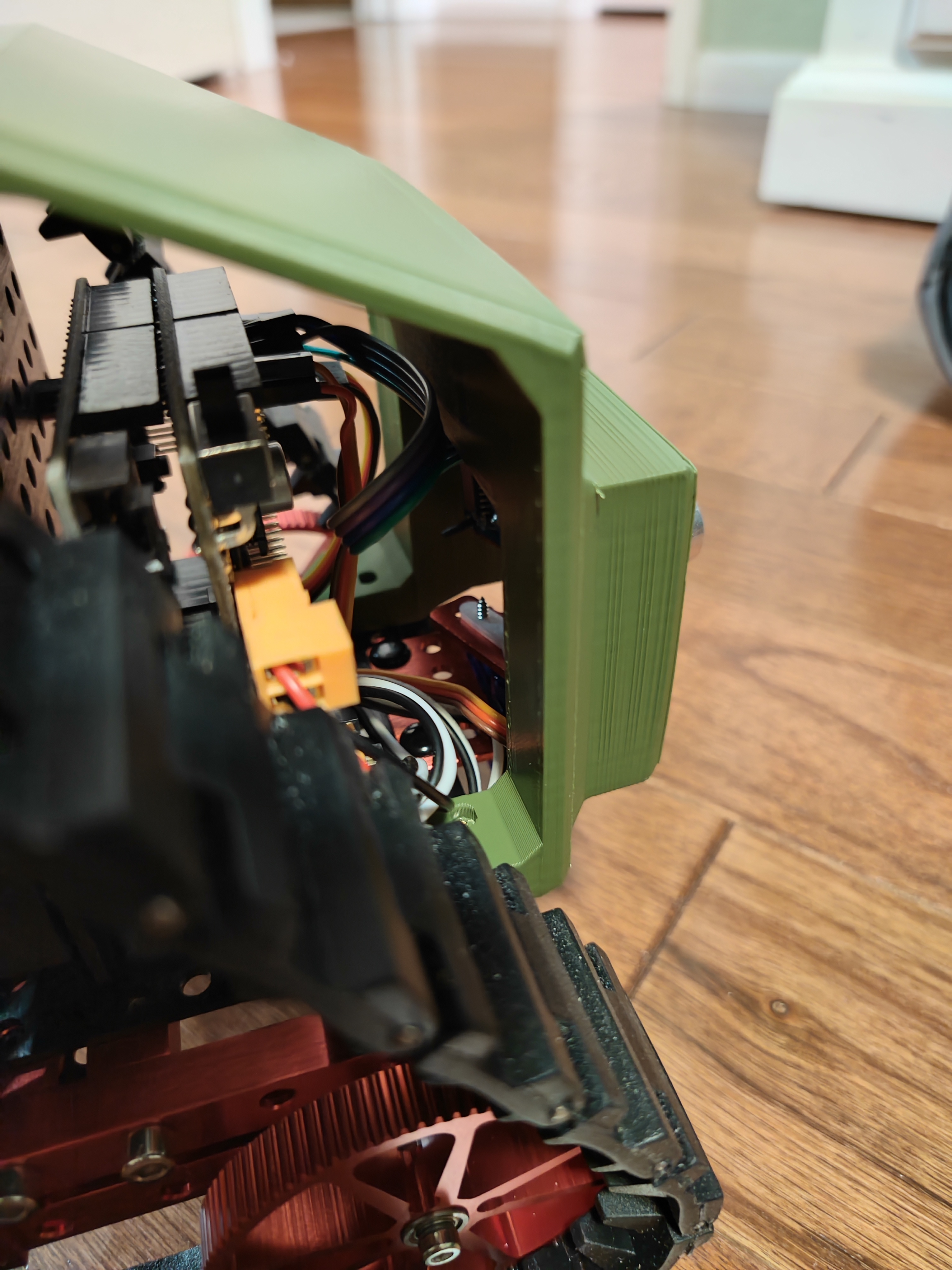

Designed to cover the electronics and keep them from getting unintentionally smashed during a roll over. Won't protect the ultrasonic sensors (eyes) but those need to move from side to side, so there we are. Protects the Arduino UNO, Motor Controller board, and the bluetooth adapter (if you mount the bluetooth adapter to the bottom plate with a ribbon cable).
Requires M3 heat inserts for the three holes an will require some 8mm or so M3 screws.
