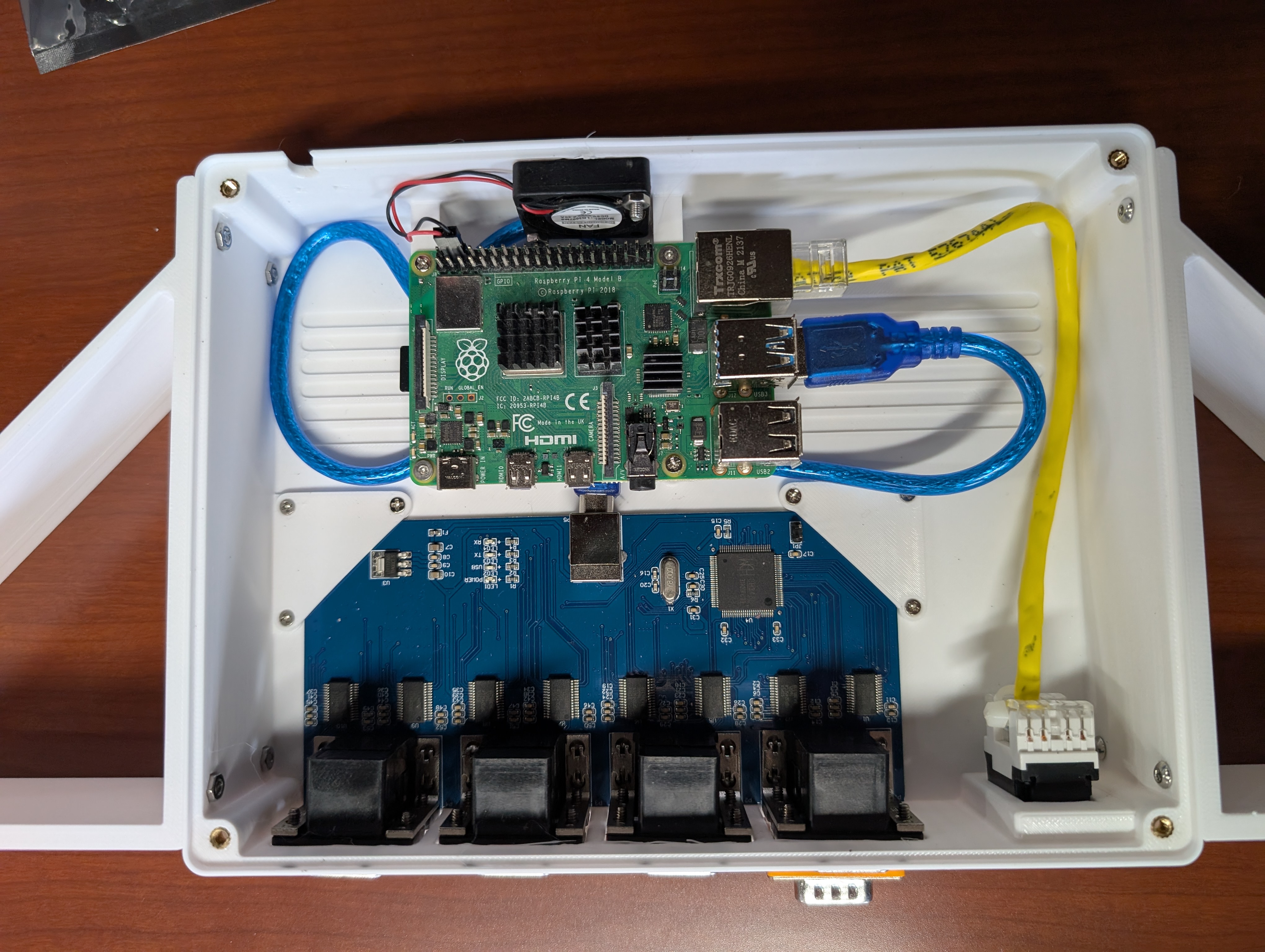

PiTTY (Pie-tee-tee-why) is rackmount console server made from cheap parts. It leverages Raspberry Pi to run ConsolePi and a cheap 8 channel RS232 USB adaptor.
ConsolePi: https://github.com/Pack3tL0ss/ConsolePi
CH348 Development Board: https://www.aliexpress.us/item/3256806624451958.html
Additional Parts needed:
- 10x M2.5 Heat Set Inserts
- 4x M3 Heat set inserts
- 4x M3 Countersunk screws
- 8x M3 12mmScrews and Nuts (to attach rack ears)
- 6x M2.5x5mm Countersunk Screws
- 4x M2.5 screws (can be longer than 5mm, or use the 5mm ones)
- 1x small zip tie
- Short ethernet cable with one end using a keystone
- Raspberry Pi 4
- 30mm fan and connecting screws
More software setup instructions are at: https://mkroa.org/consolepi
