Autodarts Electronic Case
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Indoor Sports
- License
- Creative Commons — Attribution — Noncommercial

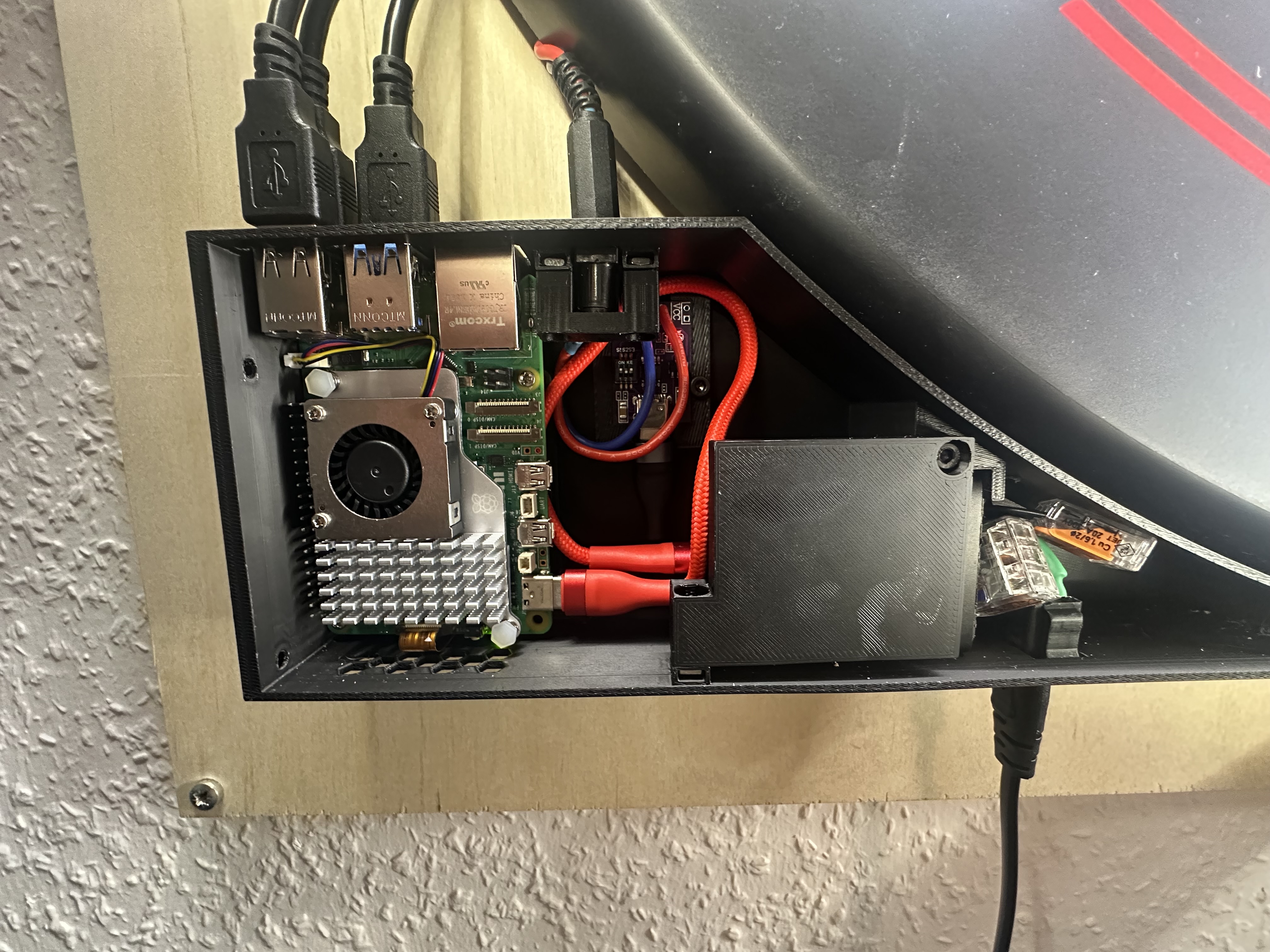

This case stores the following:
Raspberry Pi 5
PSU ( Essager 67W GaN USB Typ C, Link )

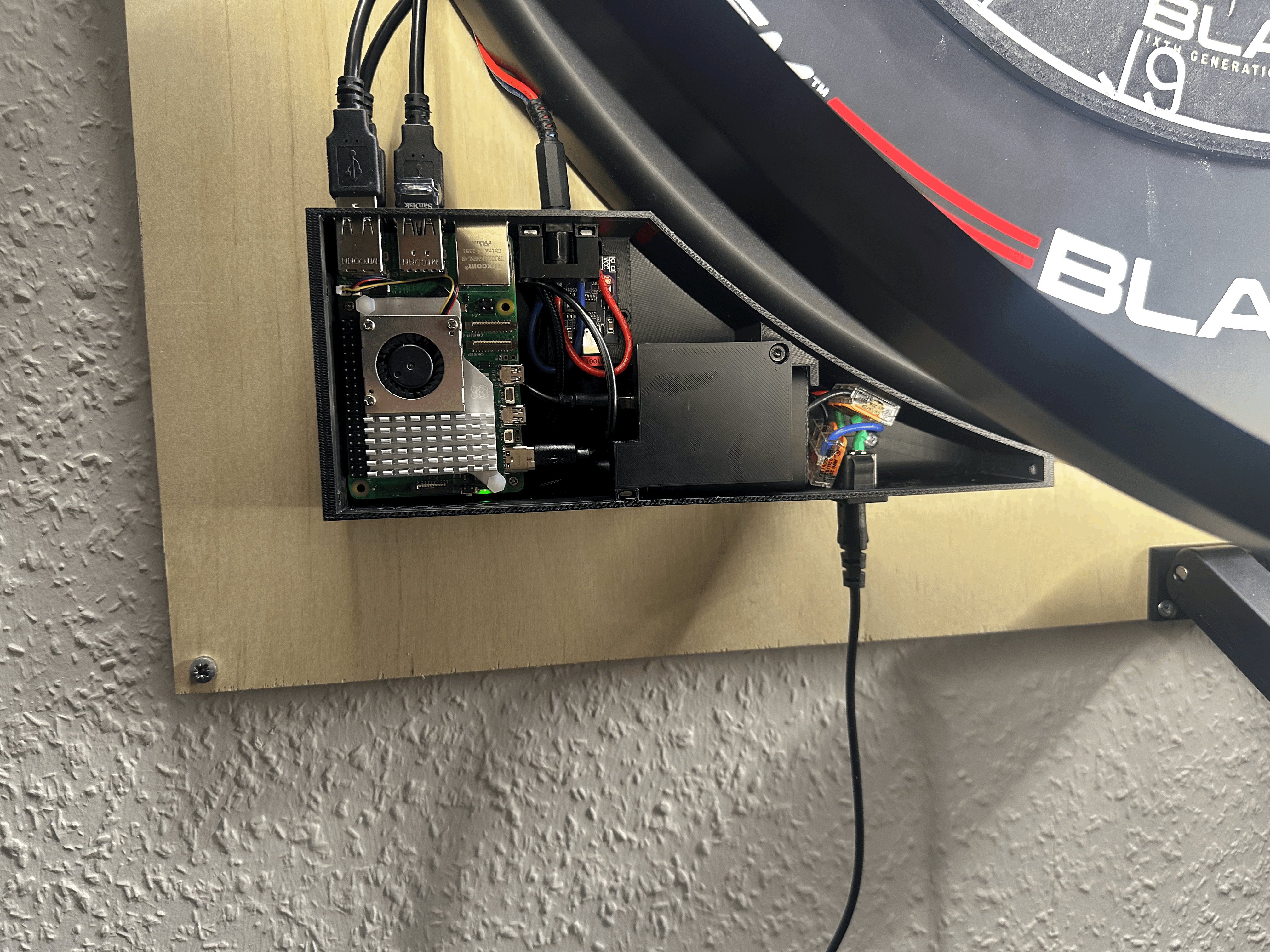

Here I opened it partially to expose the mains wire
USB PD Converter ( Link )
2x USB-C to USB-C 10cm ( Link )
C8 Main Voltage adapter ( Link )
Barrel Jack ( Link … I am not 100% percent sure if that one fits the case, but I used a similar one)
[optional] M.2 NVME Hat ( Link )
I used M2x10 self tapping screws for mounting the Pi
For the rest I used M3 Screws in combination with Square Nuts ( 5.5mm x 5.5mm )

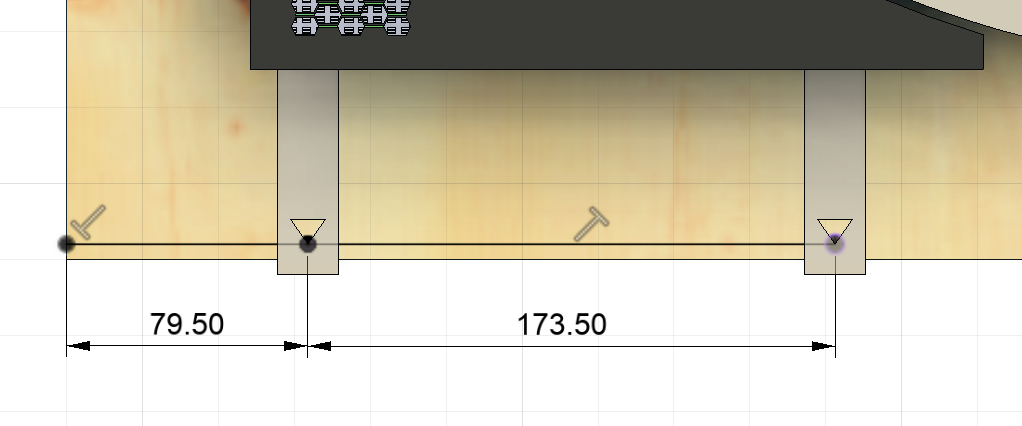

if you are using an 800mm x 800mm panel for mounting these are the distances for the drill guides
