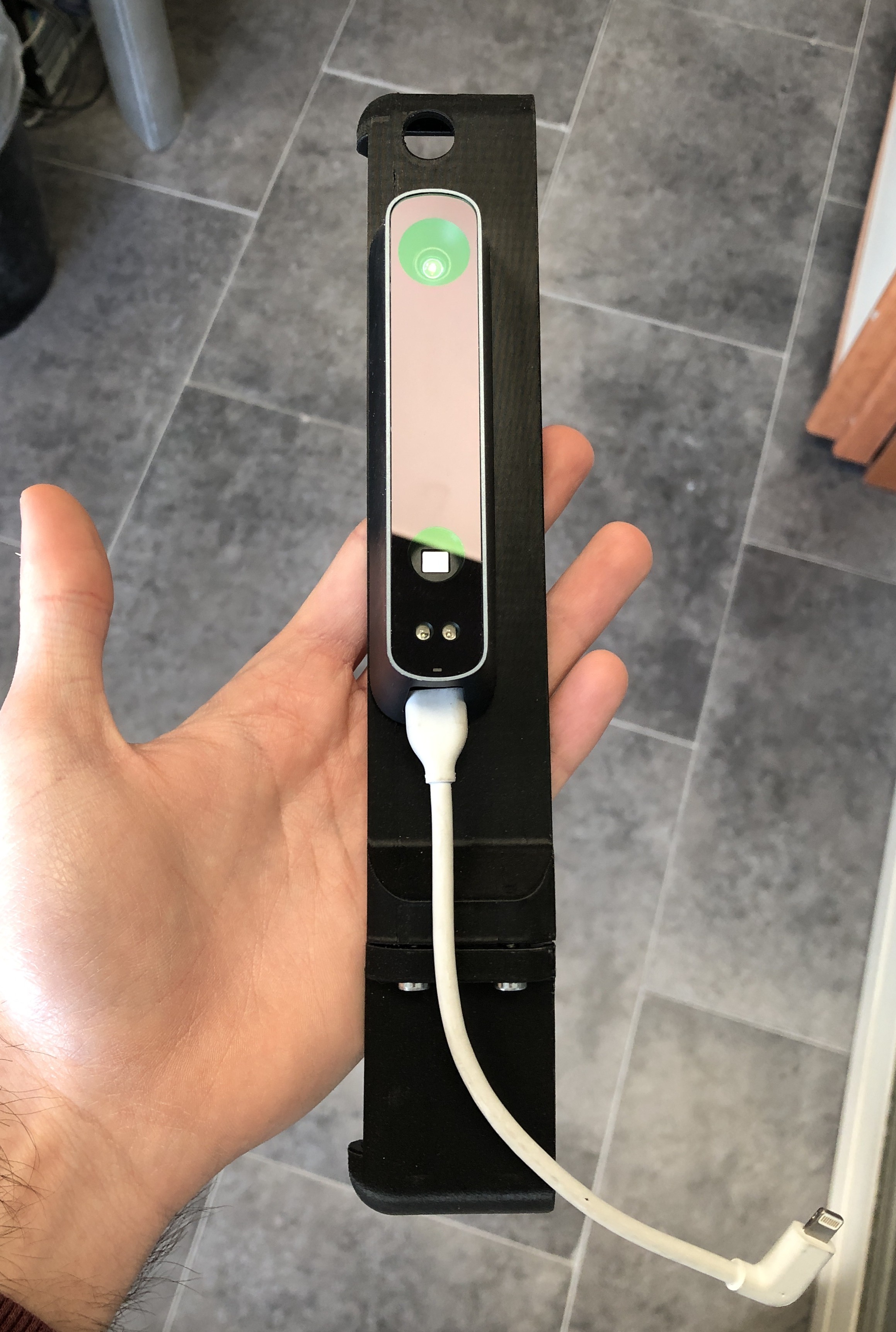

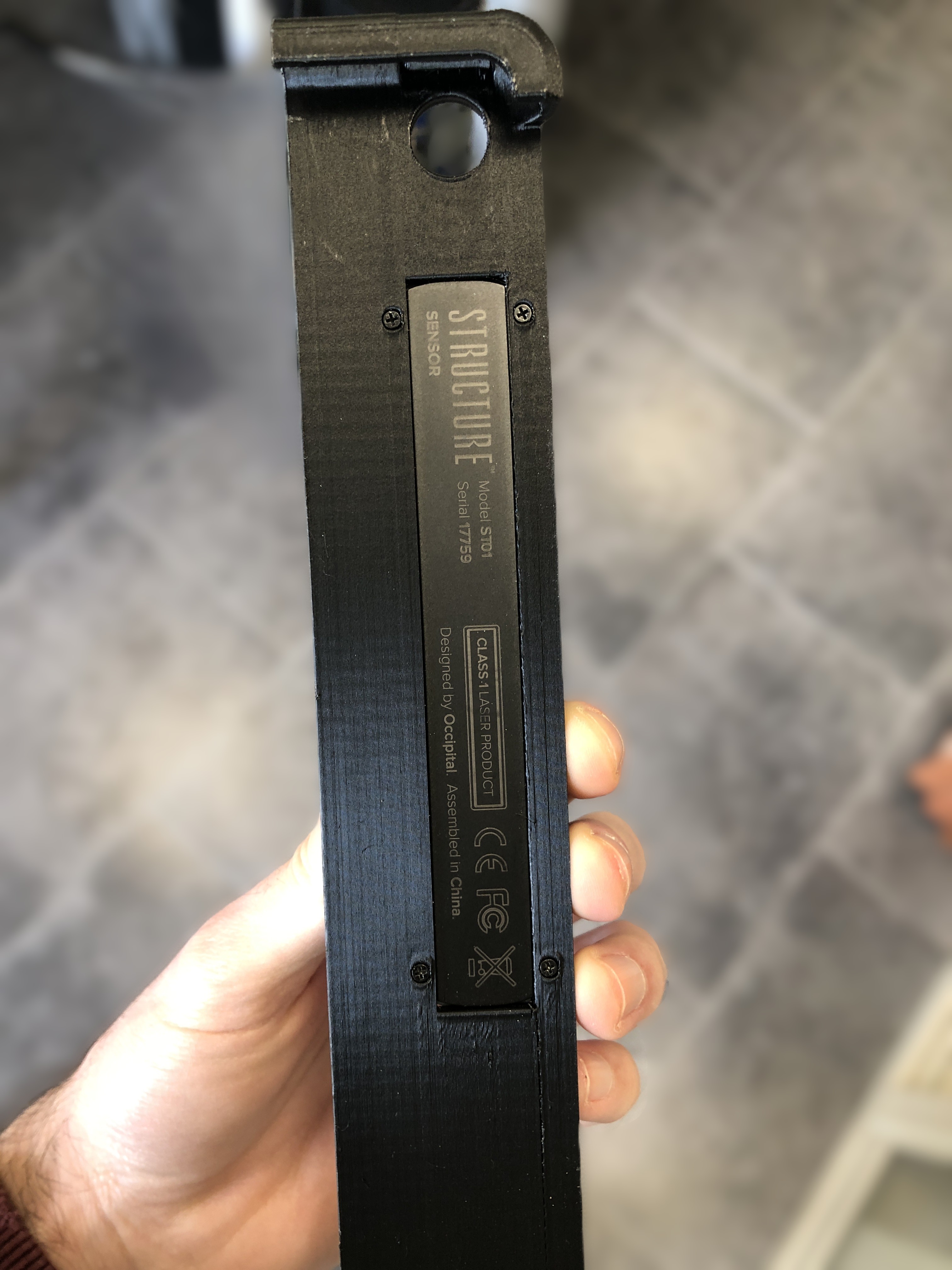

Structure Sensor ST01 Bracket for iPad (8th gen) - 2020
Design based from the original one for the IPad Air (3rd gen)

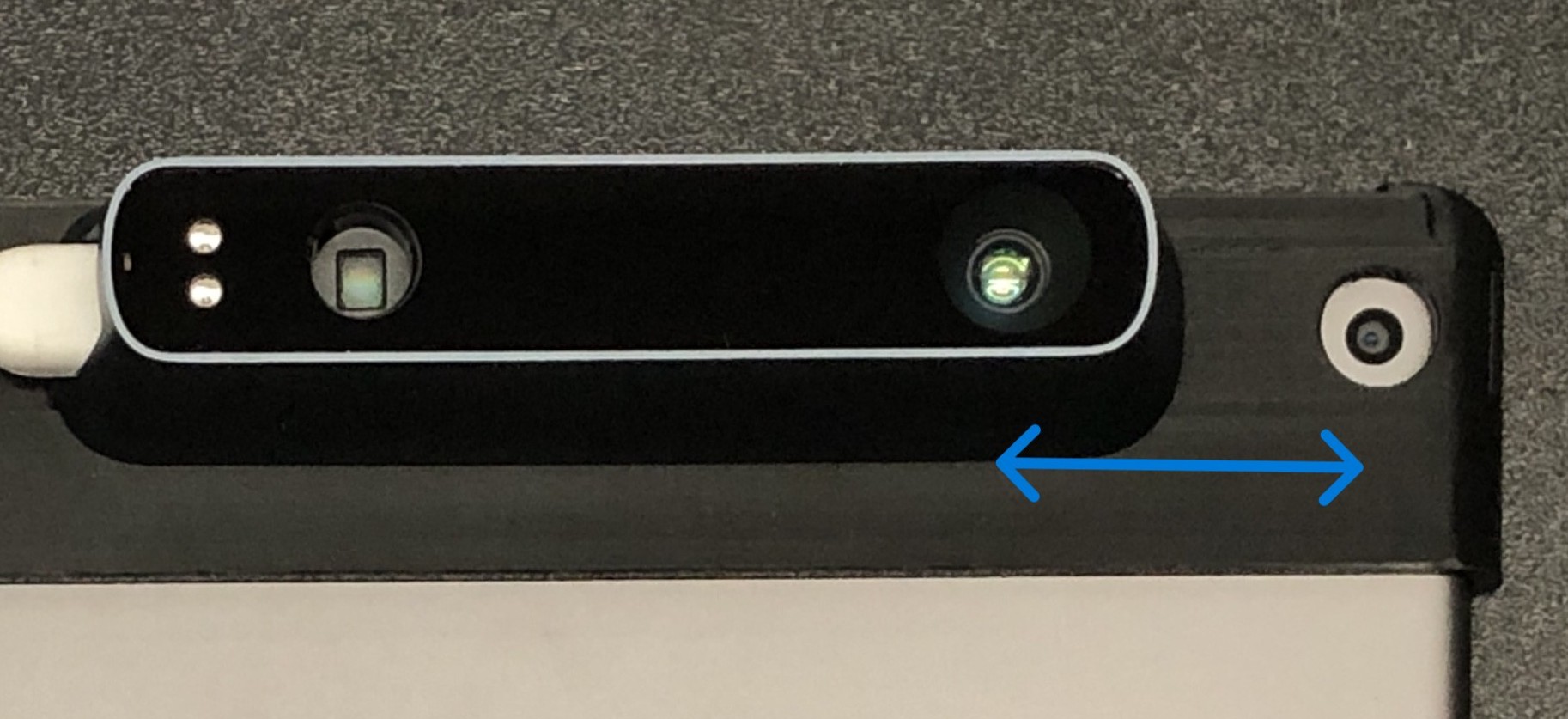

The distance between the center of Structure sensor camera and the iPad camera 4 cm.
This model require:
2X brass M4 thread insert (L: 6 mm, OD: 6 mm, D2 :+- 5.3 mm)
2X M4 Hex Socket Head Cap screws ( k: 4 mm, L: 12 mm, d: 4 mm, dk: 6,8 mm) or any similar M4 bolt in size
Supports

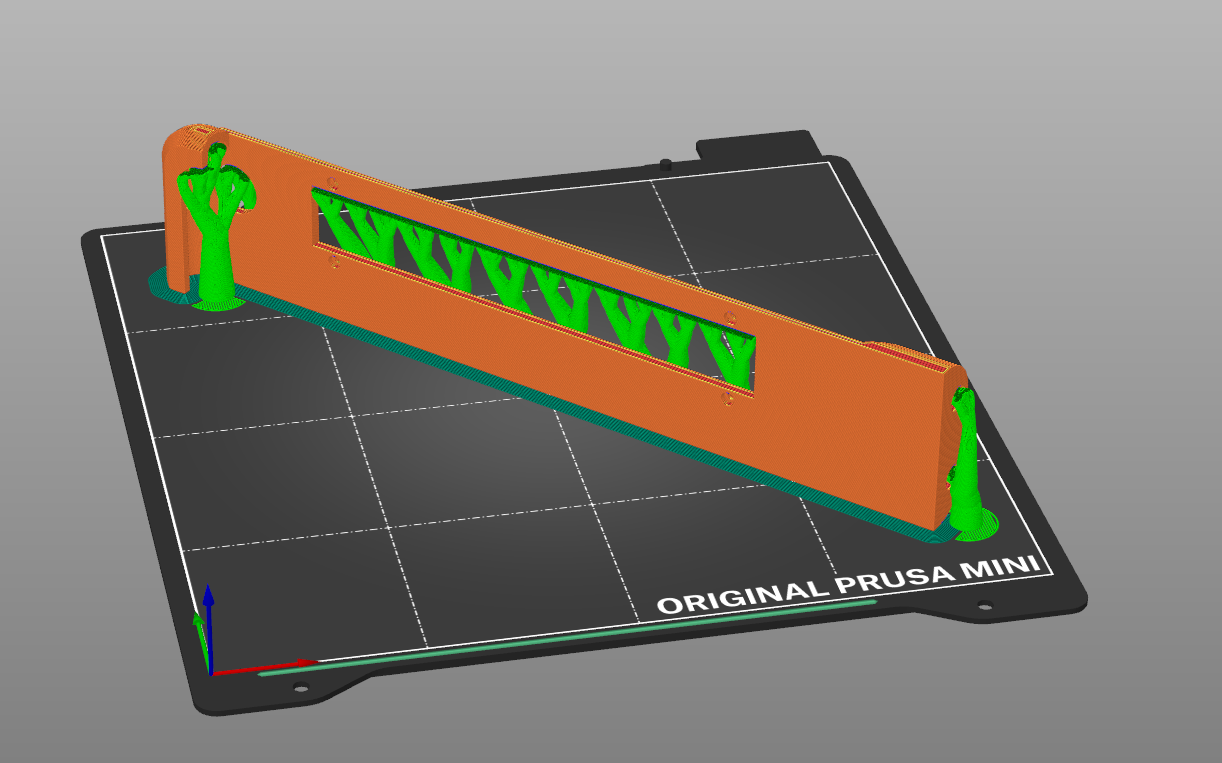

Structure sensor holder

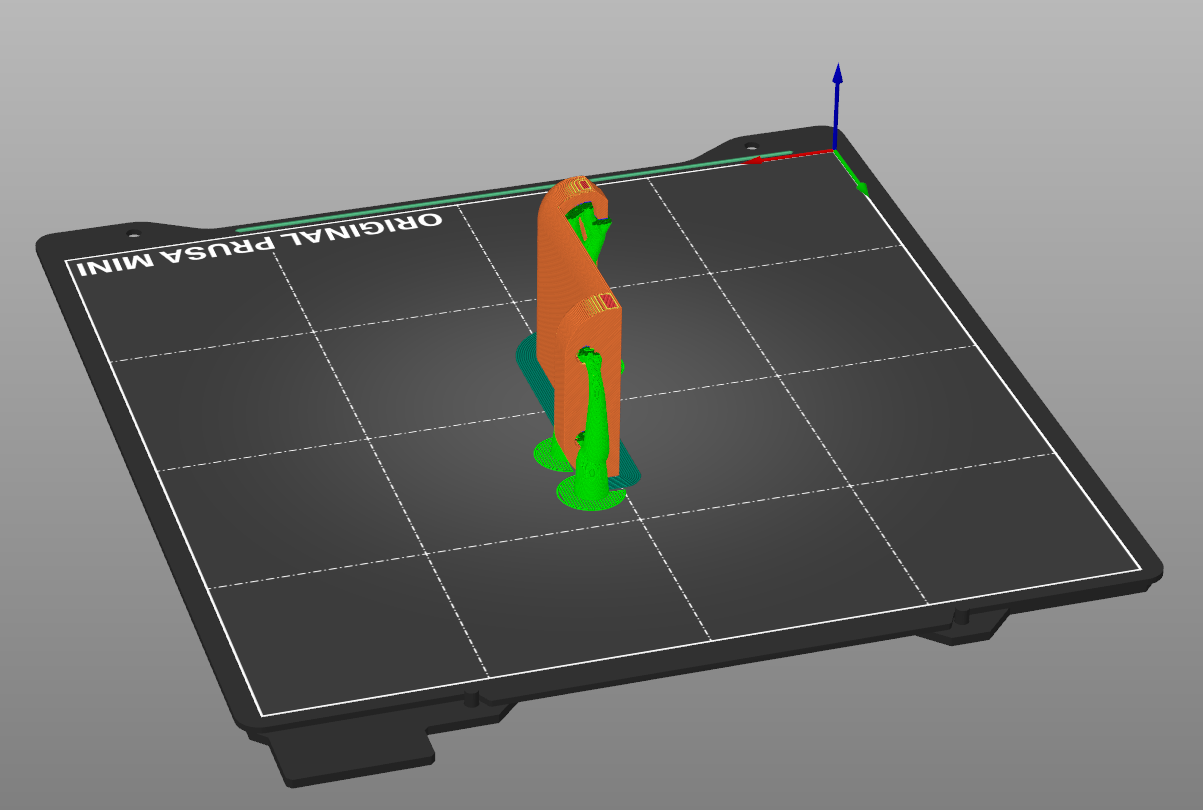

Right support
