Both parts contain a hidden 10mm diameter pocket (0.2mm clearance all around) designed to fit a 10mm diameter / 5mm thickness neodymium magnet. The g-code contains a pause at 6mm height, i.e. just before the pockets gets printed over, to allow for the insertion of those magnets. I guess any 10x5 cylindrical strong magnet would work.
Each part is fitted with two M2 countersunk holes for screws and when plating the models yourself, make sure to orient both parts with their pockets vertical, i.e. the flat part with he countersunk hole on top, and the angled part face down with the face without bore holes, so that the tops of both pockets are accessible at the same time when paused.
Make sure to position both your magnets in the right way, i.e. pointing down!

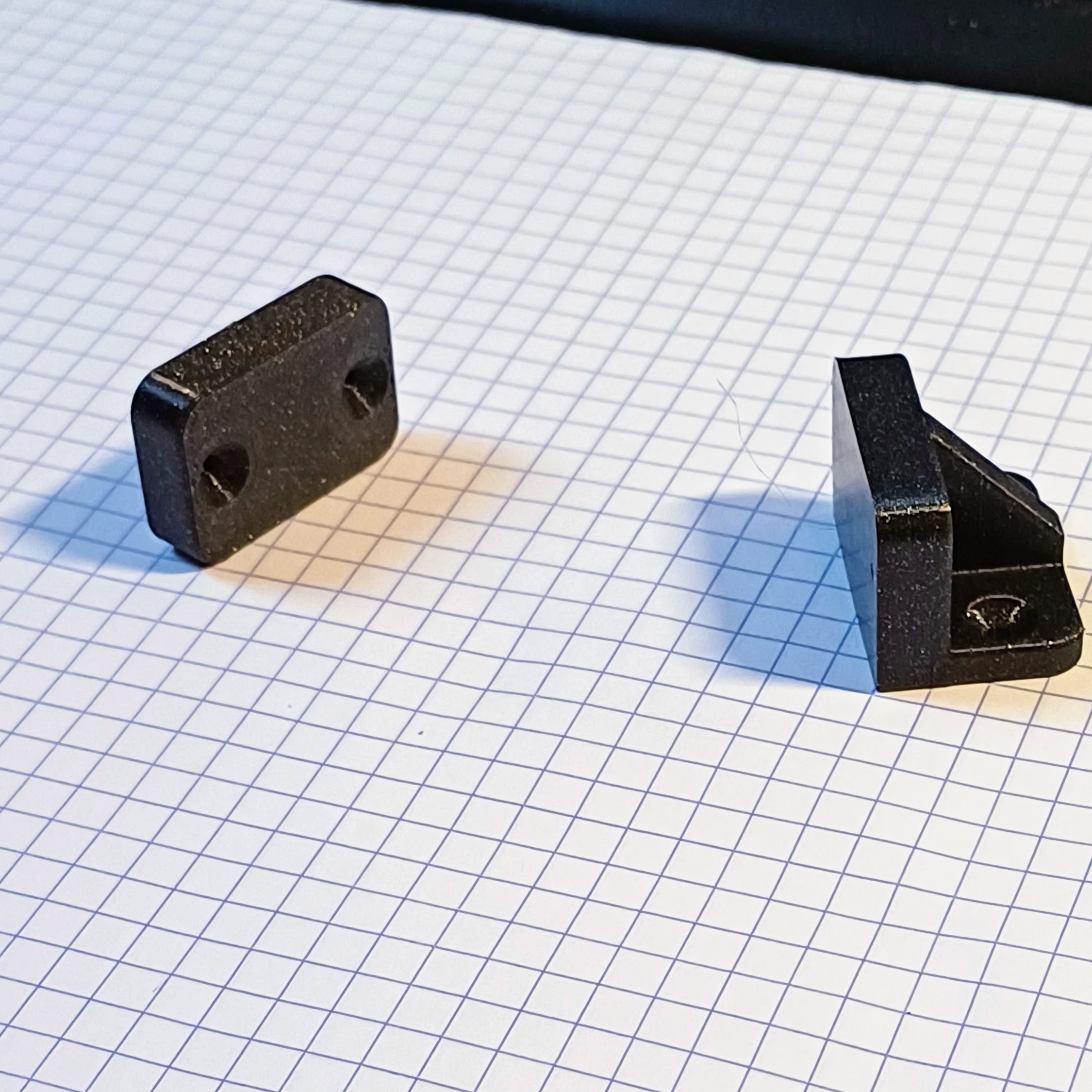

The models as shown in the photos are printed with Prusament Galaxy Black PLA at .4mm on a MK4/S (shown on 5mm graph paper, left one snapped together, right one with both parts far apart)
