MagWLED-1 Enclosure w/ Power Button
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- BSD License
I tried using the file on the MagWLED website for the power button model by ‘James’, but it had a lot of build errors when sliced. Unclear if the issue is the file or my download, but it doesn't seem to be published anywhere else to compare.

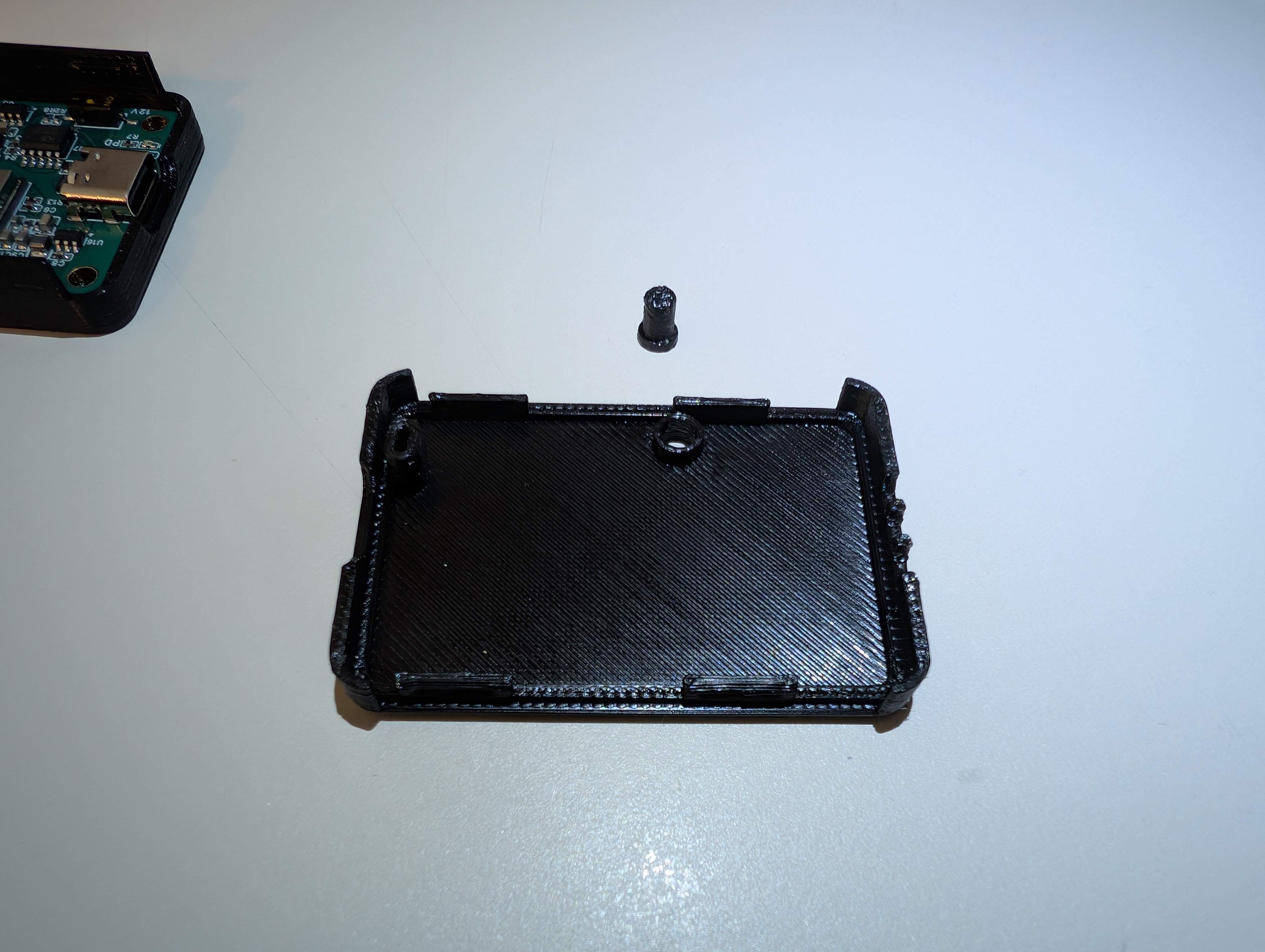

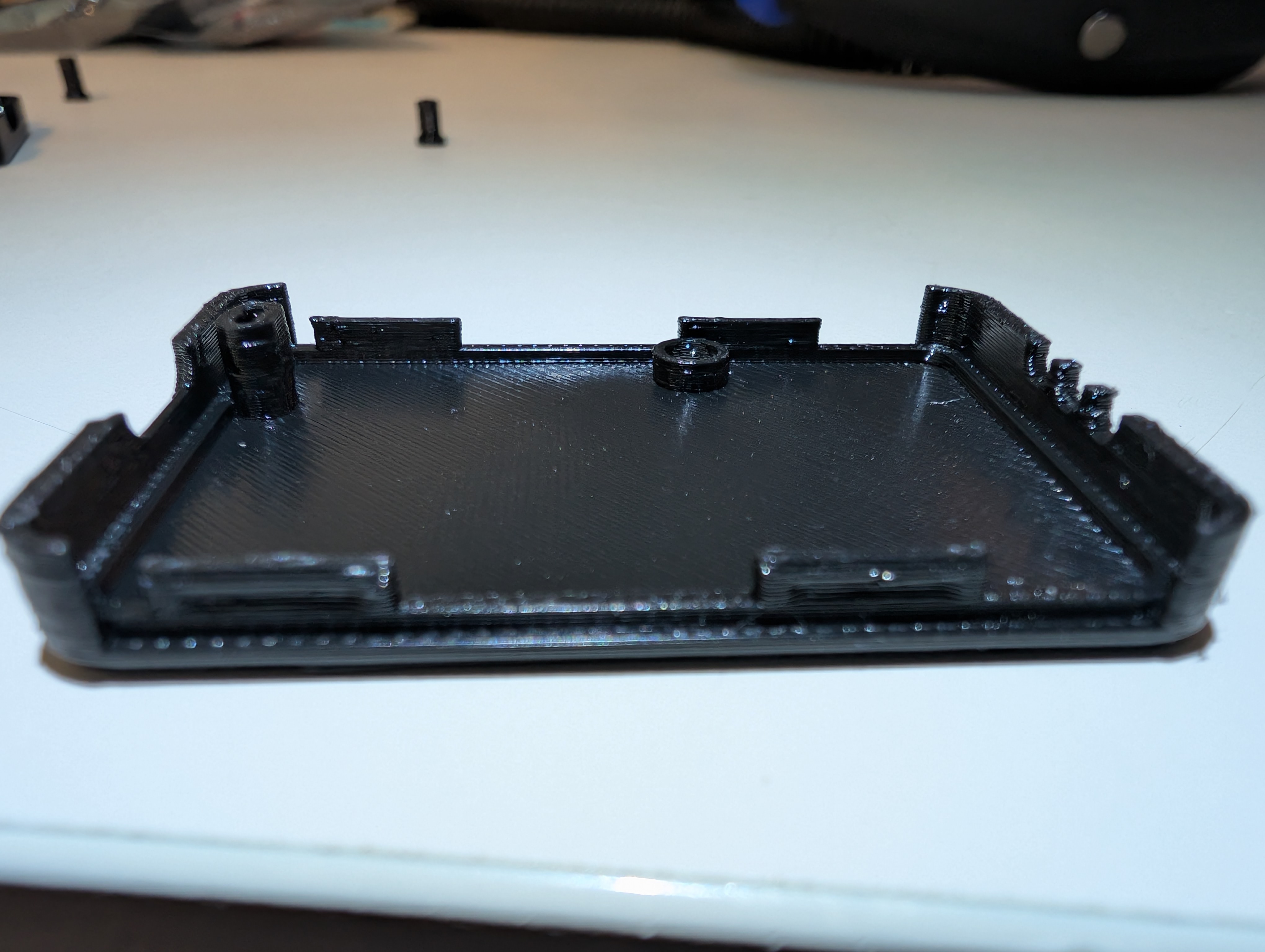

I started over from the base model and added a 4mm hole with 2mm extrusion for support and guidance of the button.
Three different height buttons are also supplied - 6mm, 6.5mm, and 7mm - because I couldn't make up my mind which one I liked best.
6mm is nearly flush with the case for reference.
Full case print includes 6.5mm button by default.
I printed everything in PETG HS, but PLA should be fine since this is intended for indoor use only.
