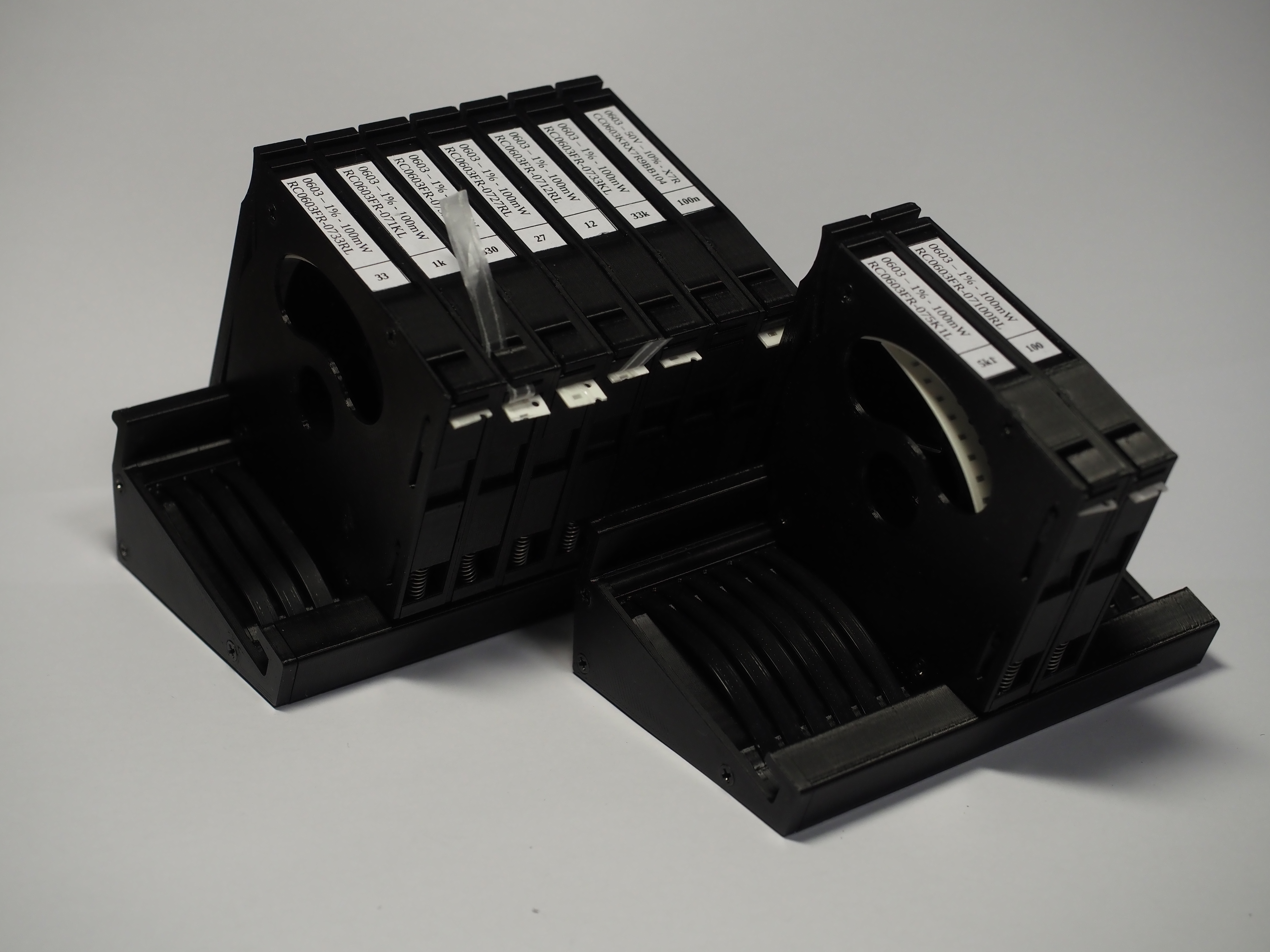

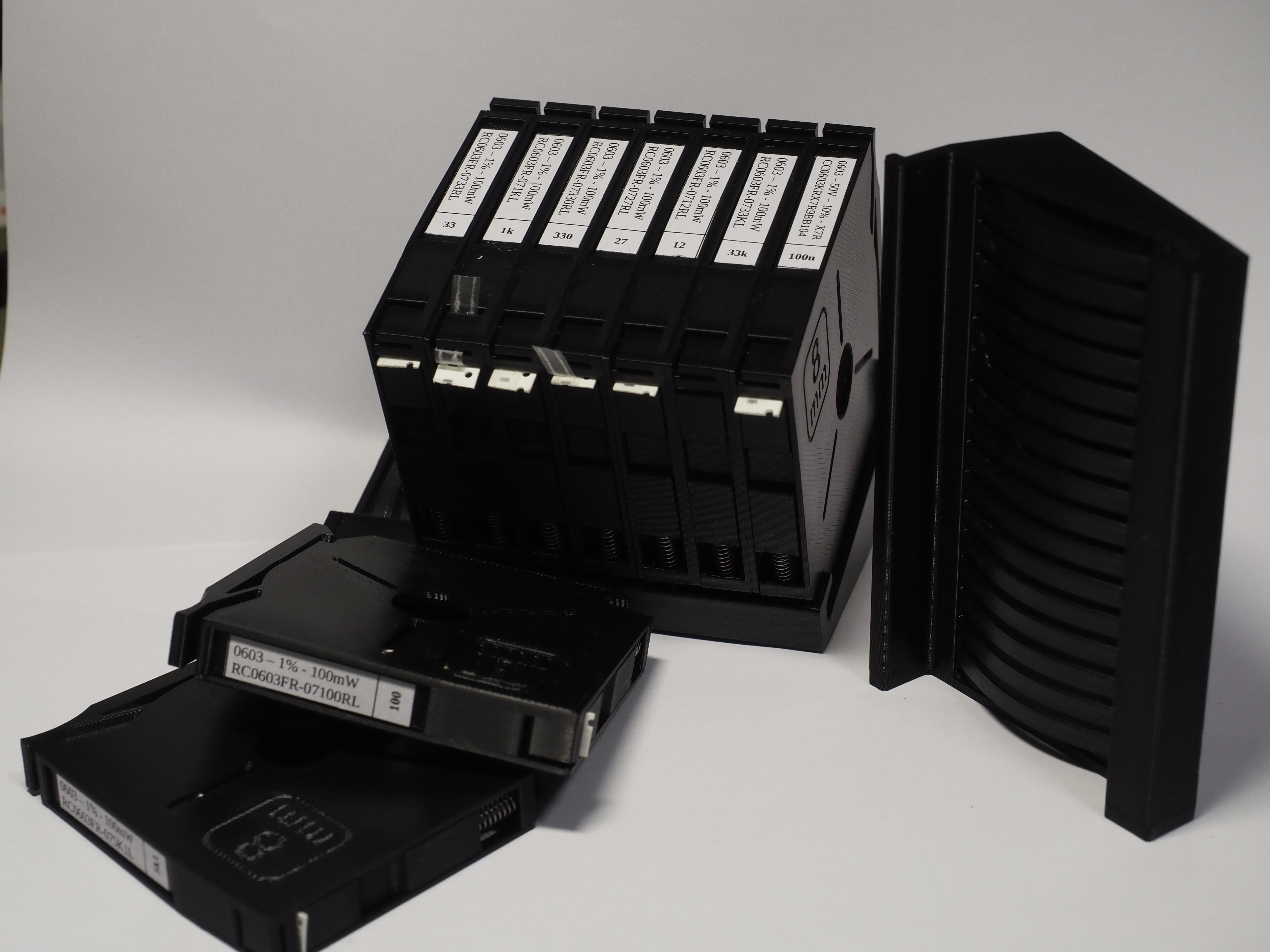

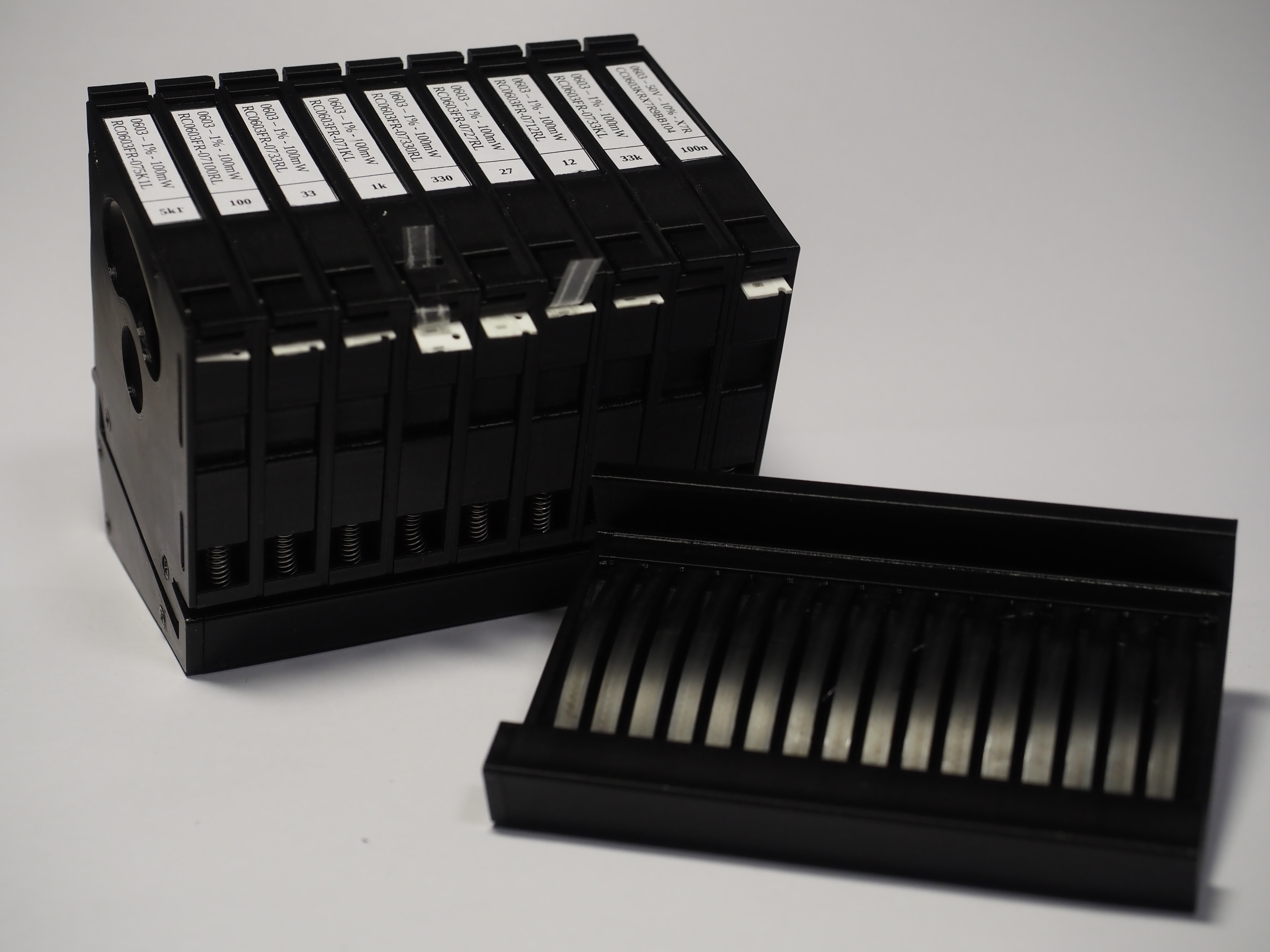

Parametric SMD Component Magazine
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution — Share Alike
Required parts
M2.5 x 6mm countersunk screws
Metric screws are not ideal for this purpose, but they are working really well here. If you have suitable self-tapping screws, use those.
Cheap 8mm and 10mm round stock
Mild steel, nothing fancy
Cut to the length of your rail
Spring (Wire 0.3mm, OD: 4mm, Length=20mm)
Maybe 0.4mm wire would be better but I could not test it yet
Printing
Use a flat bed for printing
.2mm layers
.4 nozzle
I used PETG (PLA+ might be fine as well)

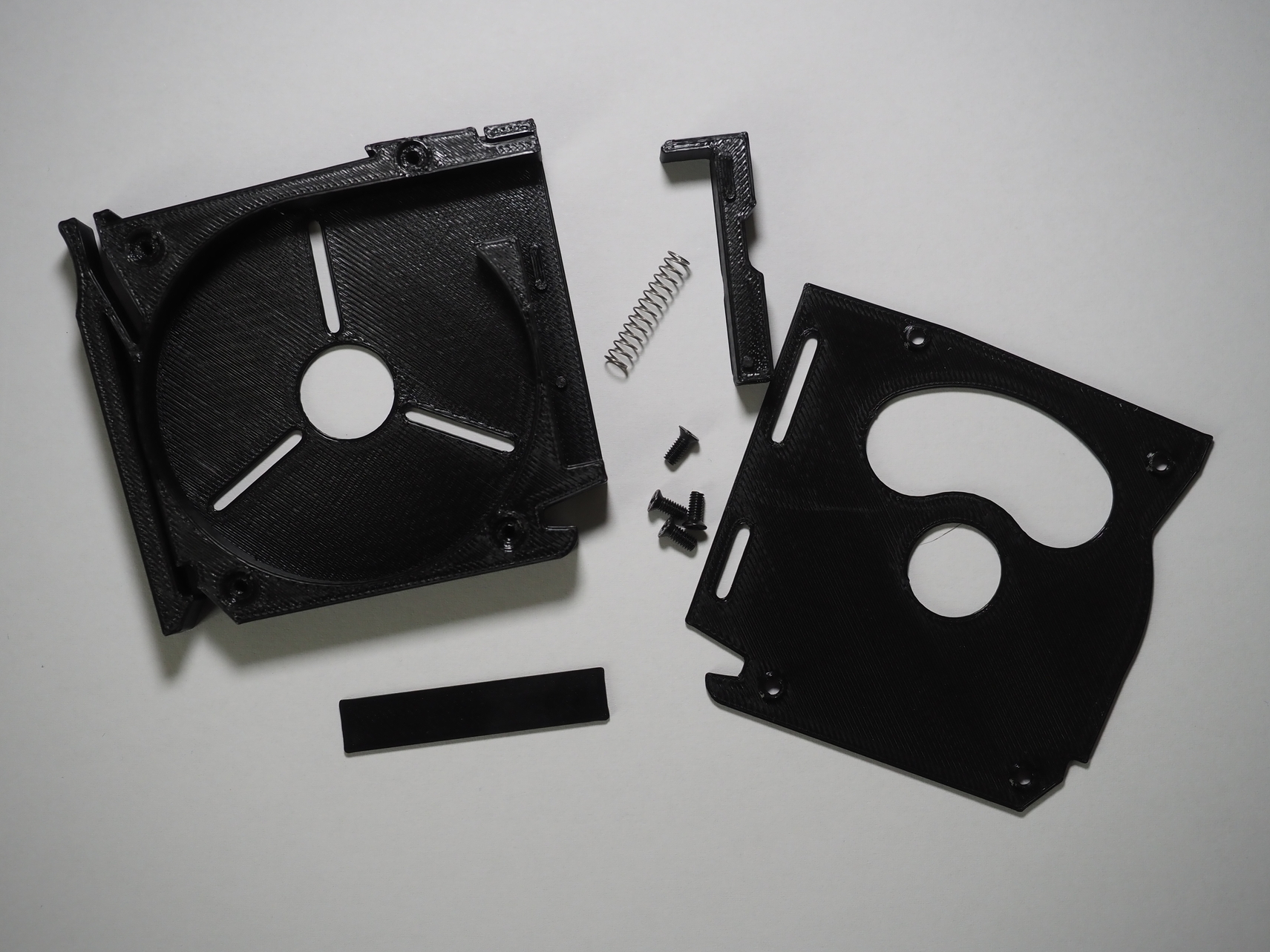

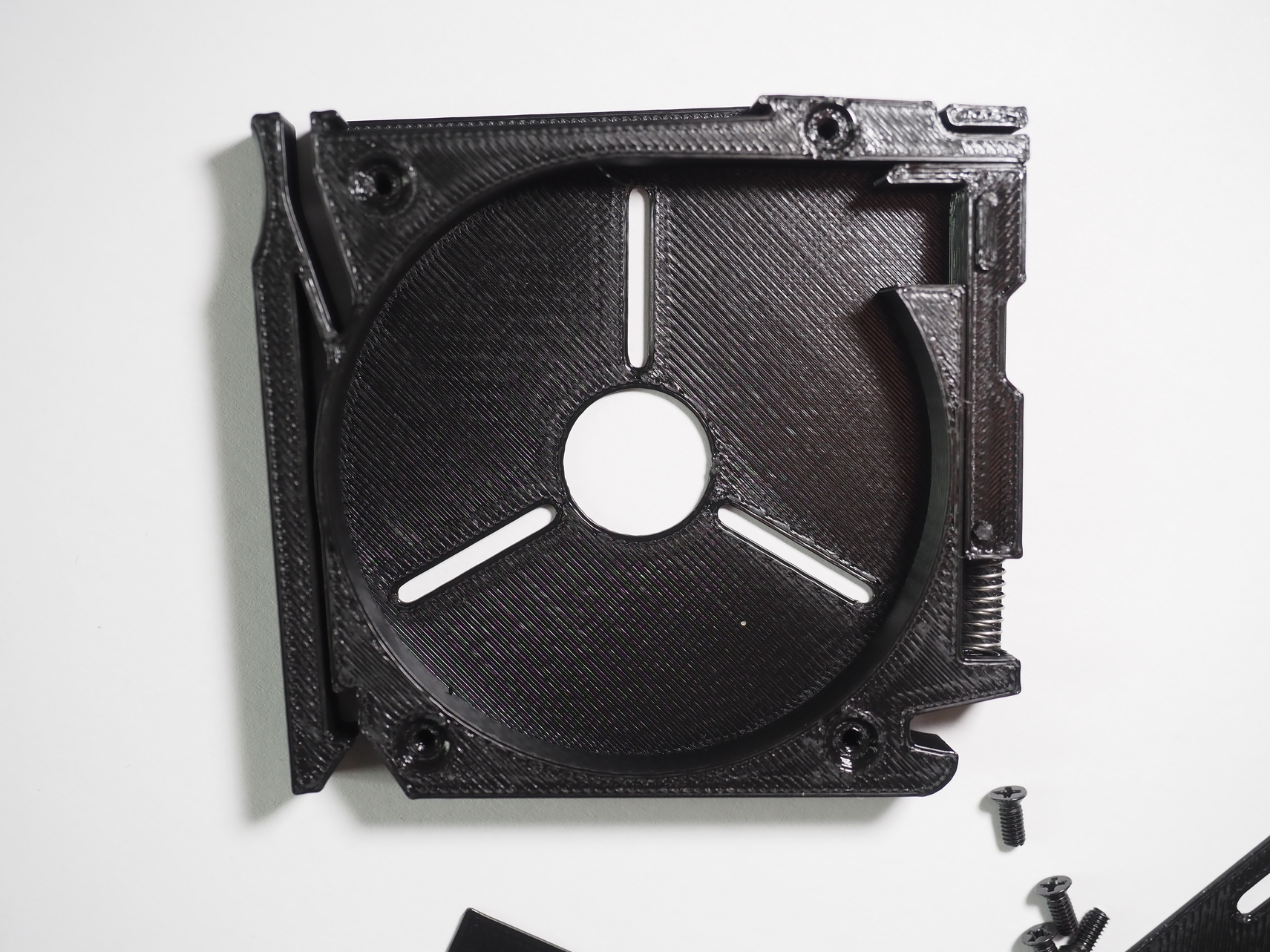

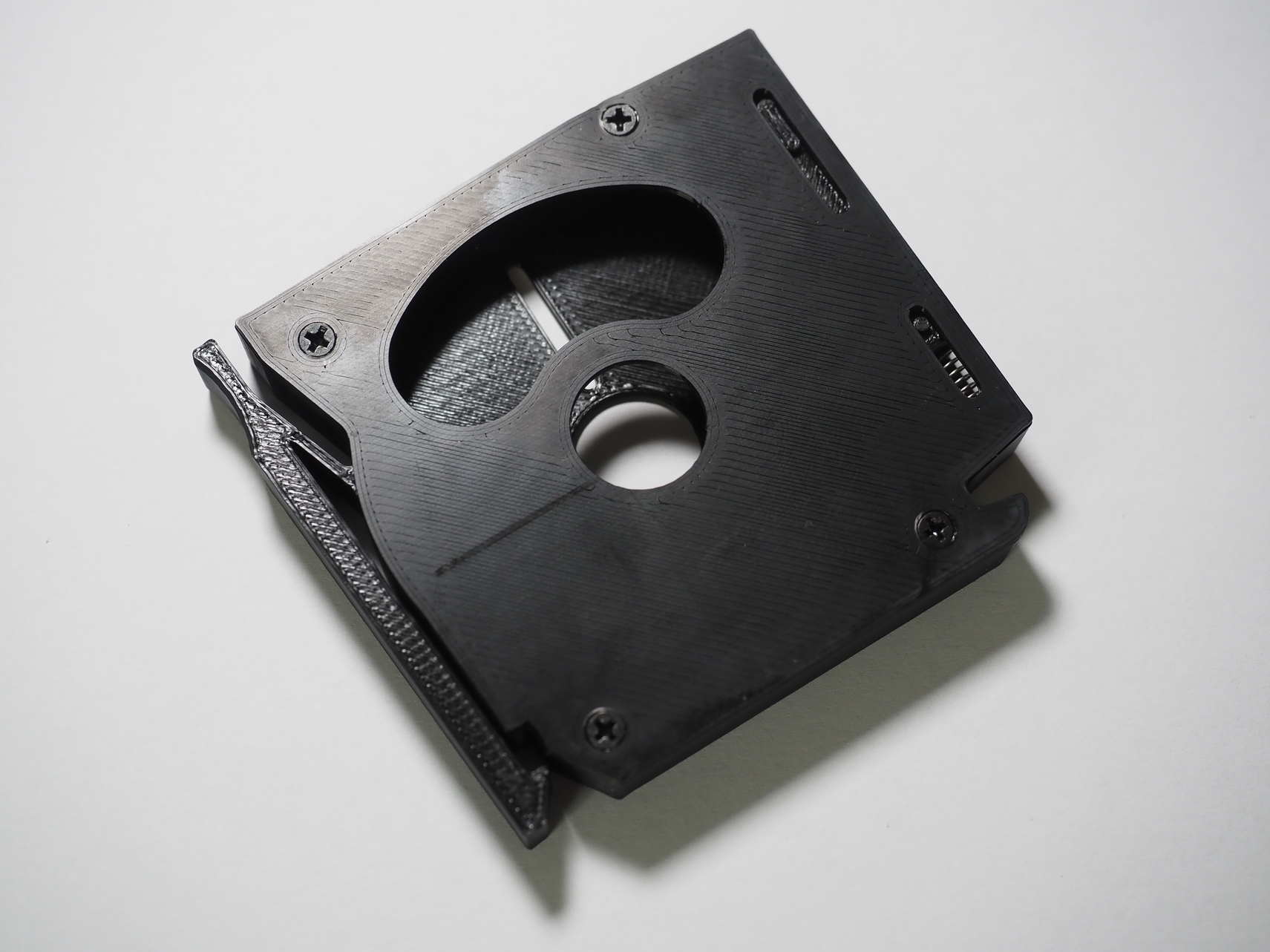

Container Assembly

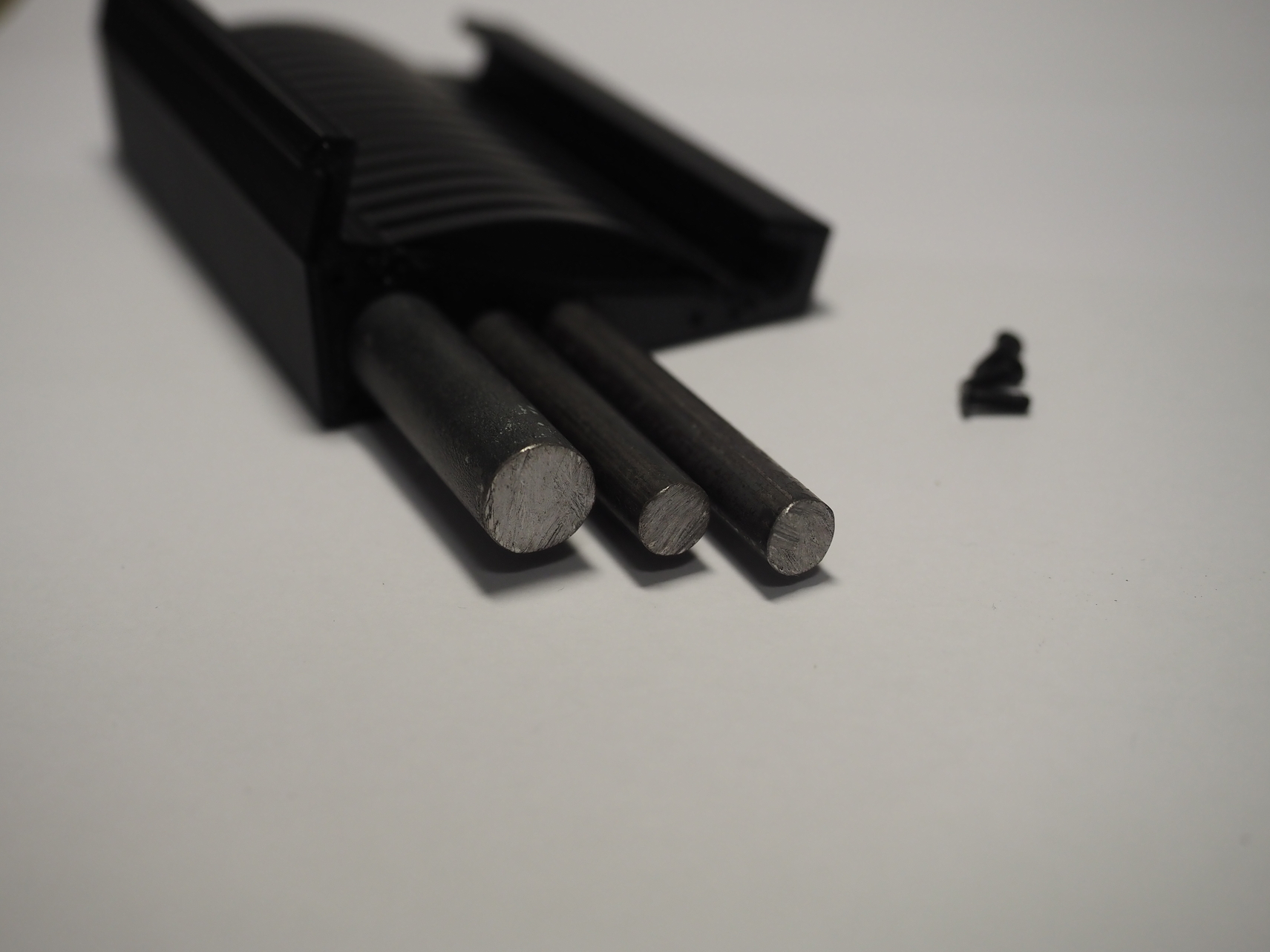

Rail Assembly
