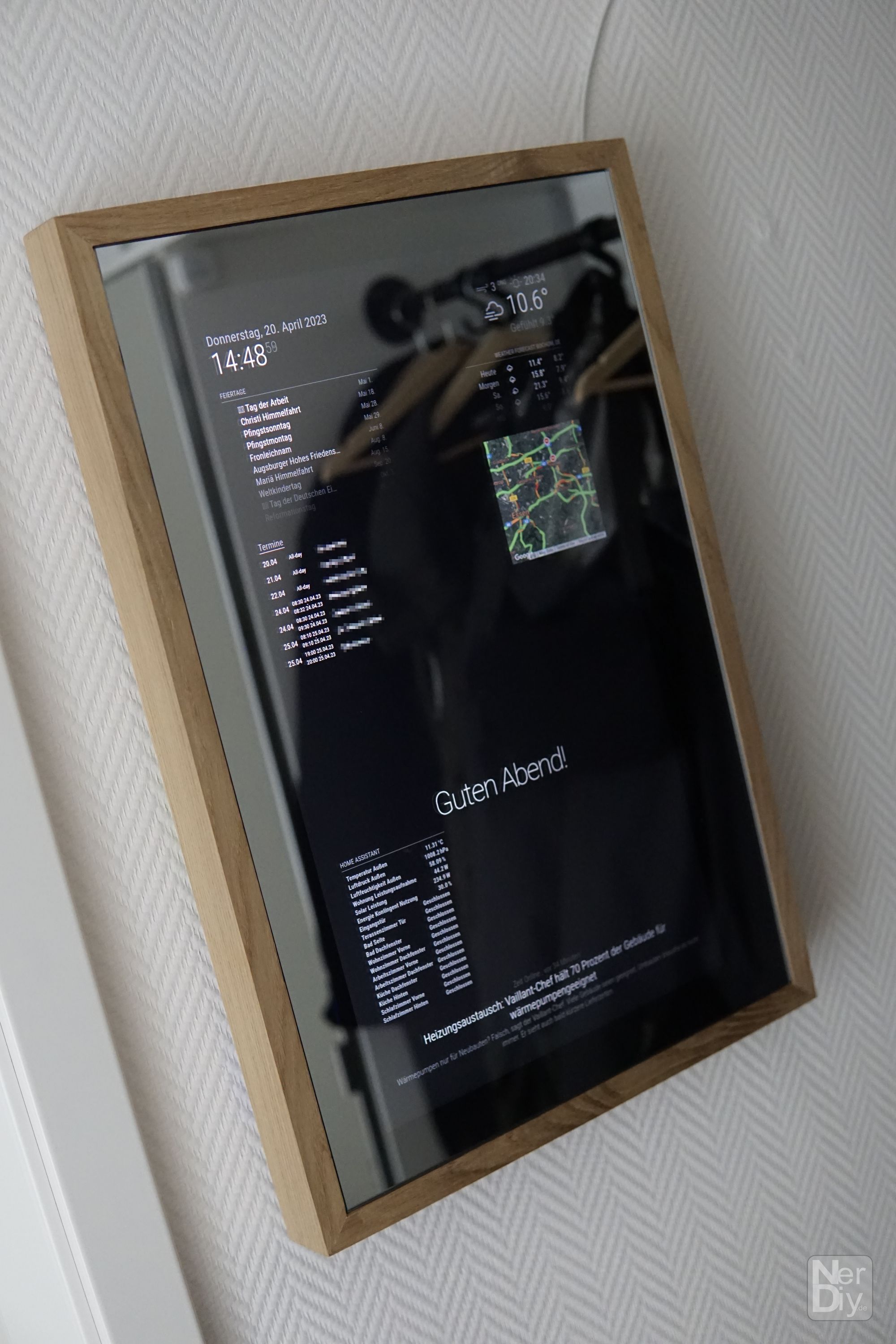

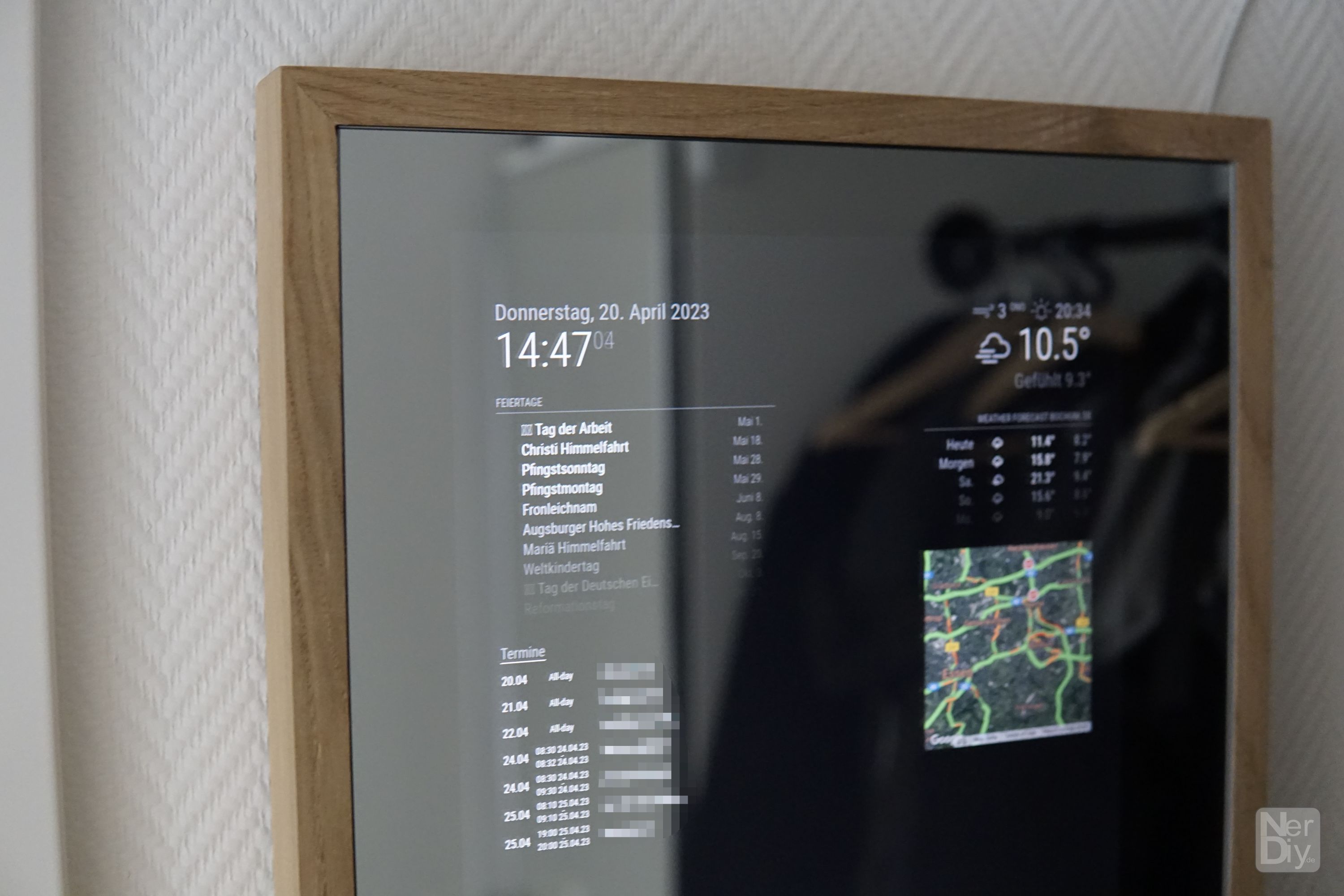

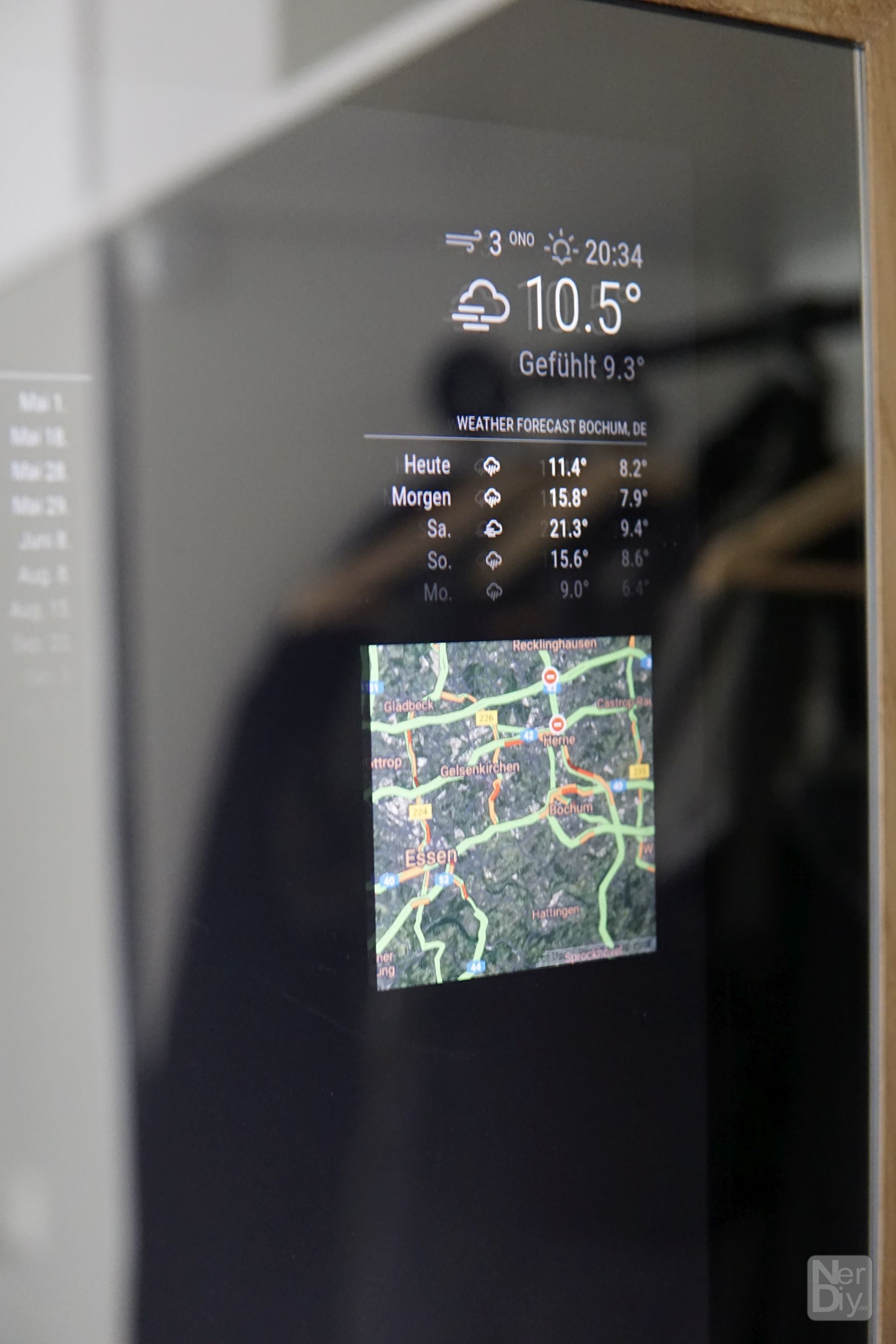

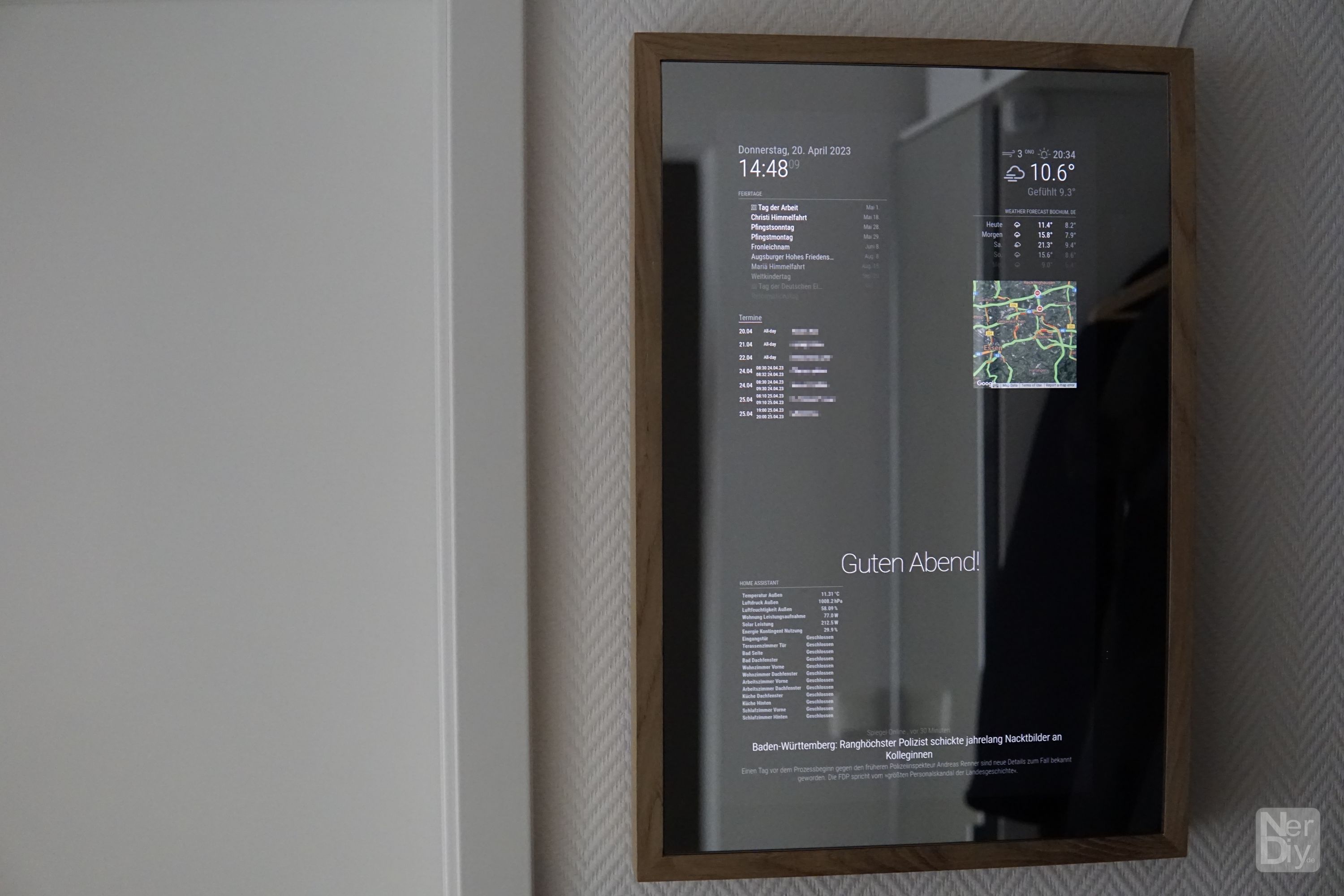

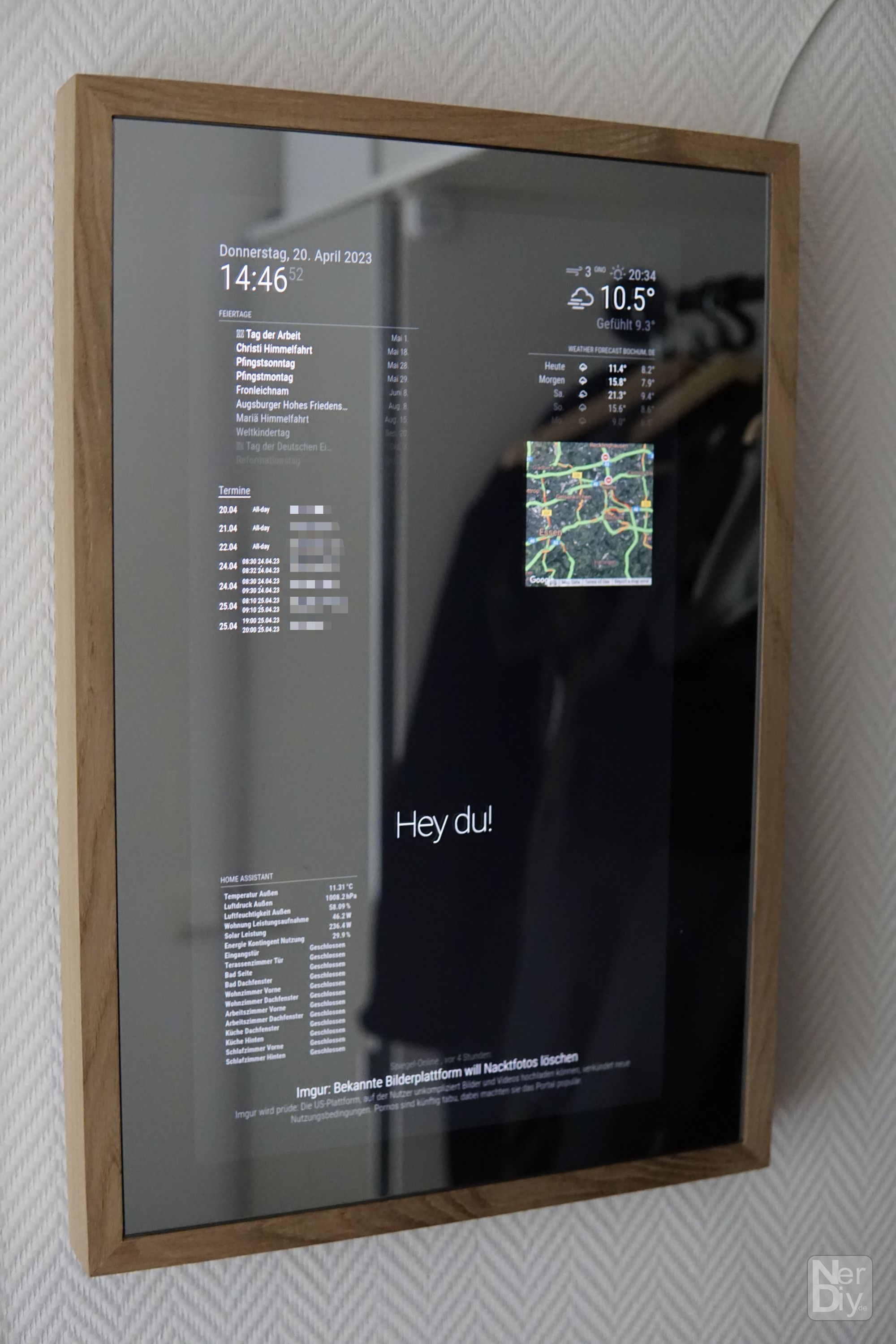

Create a professionally assembled MagicMirror with this high-quality 3D-printable frame parts.

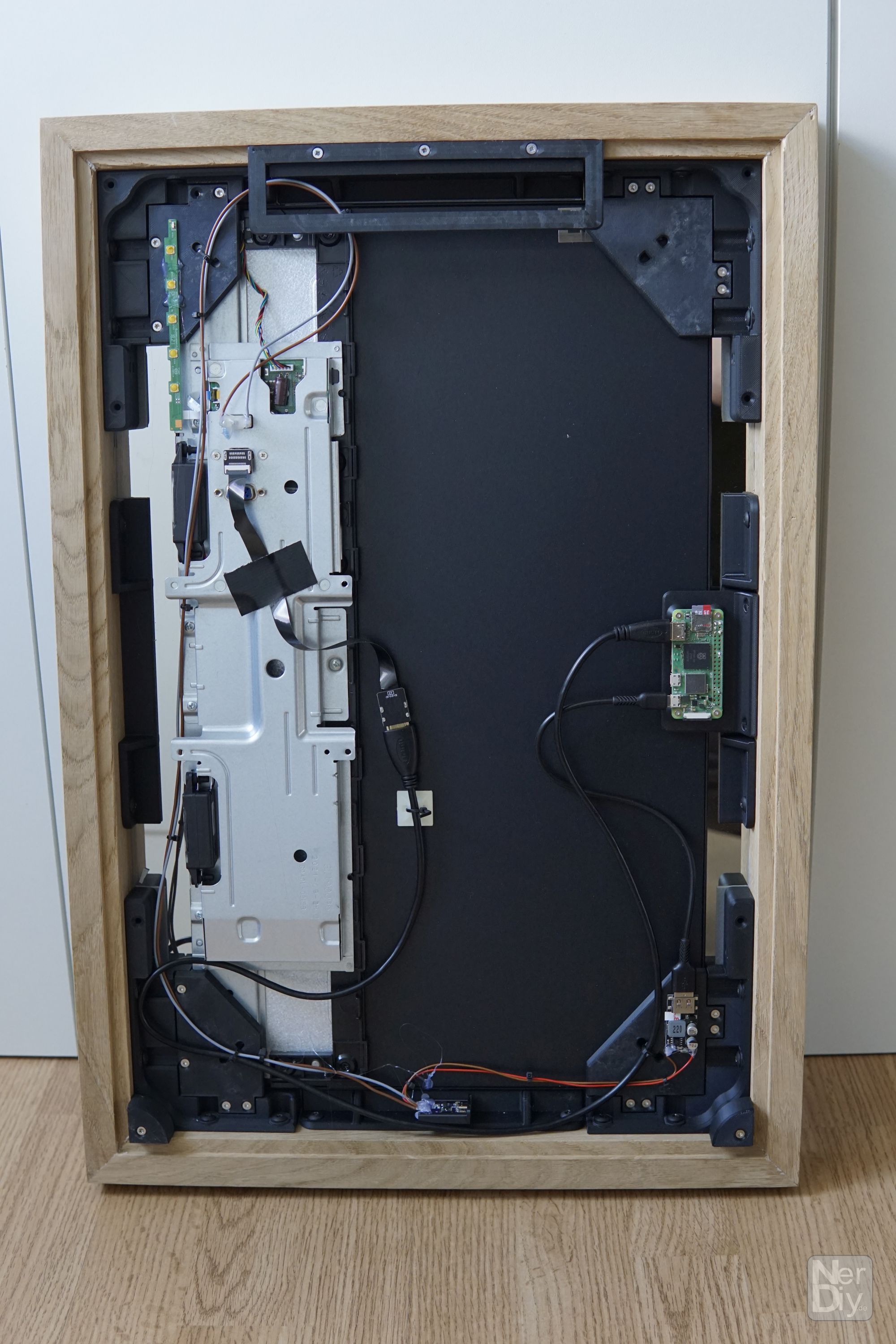

This set contains the STL files for the frame parts, which were specially designed to hold the Lenovo Q24i-1L TFT display, a Raspberry Pi 4B, and other components precisely in the self-made wooden frame.

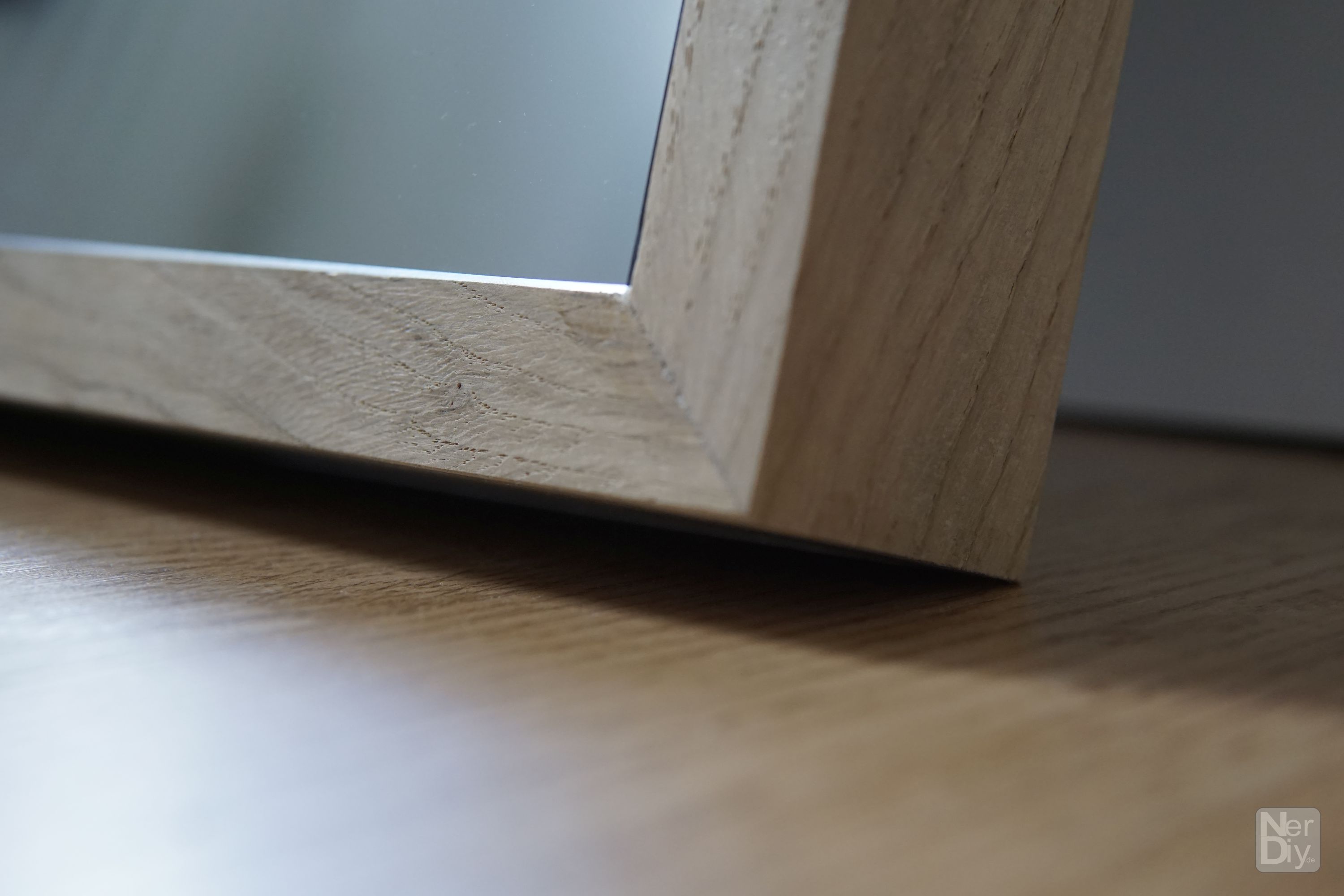

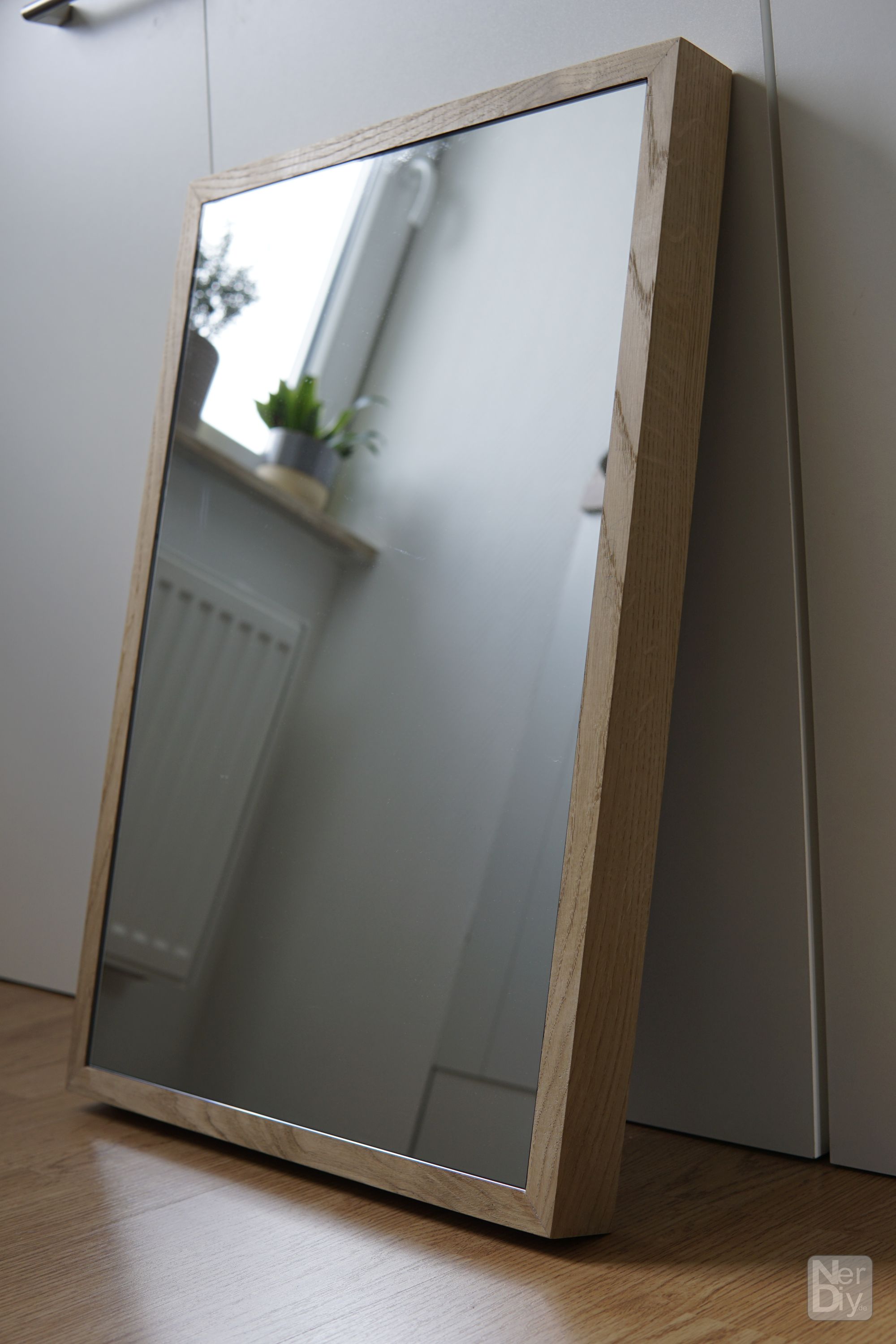

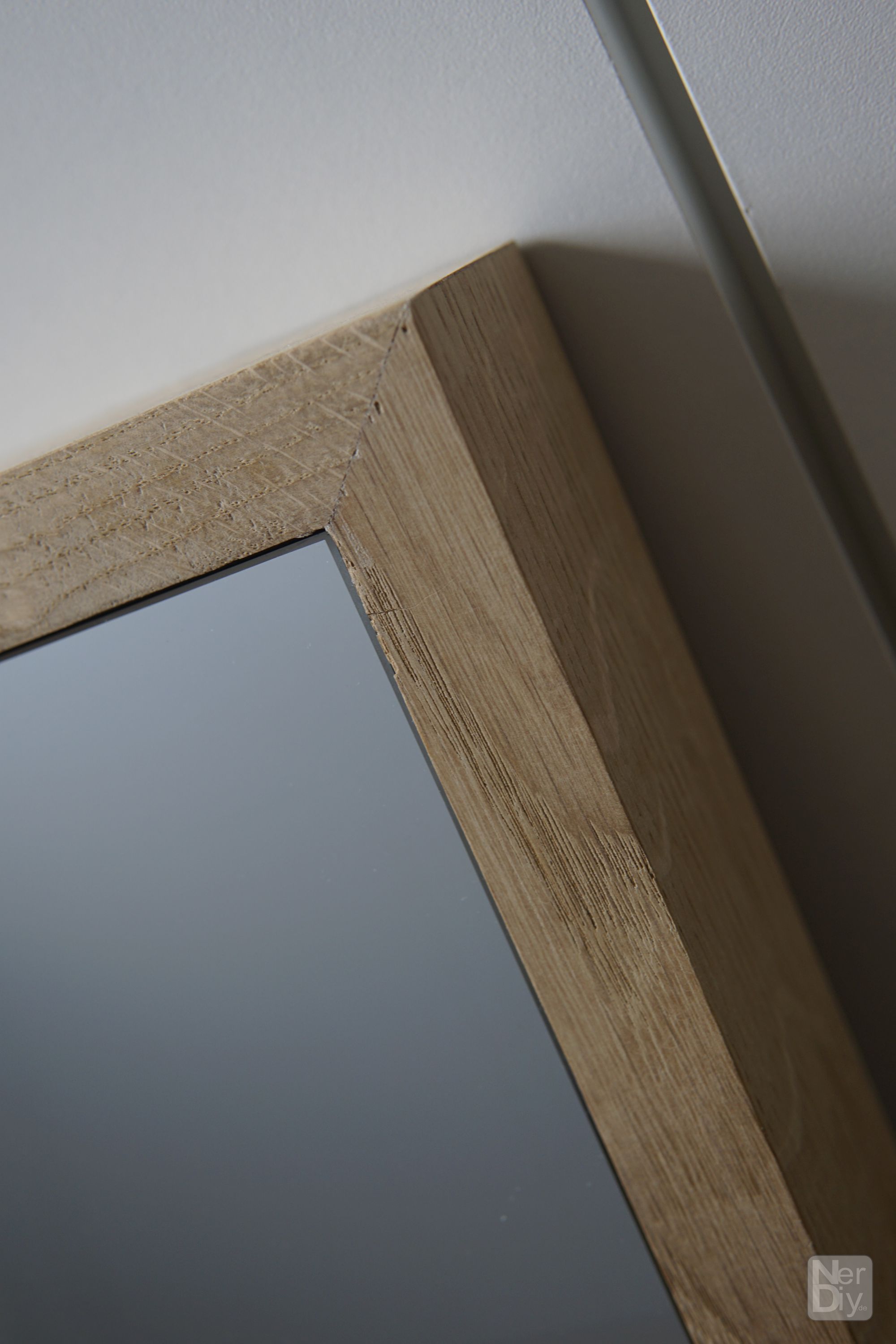

With the STL files provided, you can easily create your own frame parts on your 3D printer and integrate them into your self-made oak frame.
Note: It looks like the Lenovo Q24i-1L TFT display is hardly available. I designed alternative holders for the Xiaomi A24i TFT display. You can find the STL files for it here: MagicMirror frame parts for Xiaomi A24i TFT display by Nerdiy.de von Nerdiy.de | Kostenloses STL-Modell herunterladen | Printables.com
Features:
The STL files allow you to 3D-print frame parts that are precisely tailored to the Lenovo Q24i-1L TFT display.

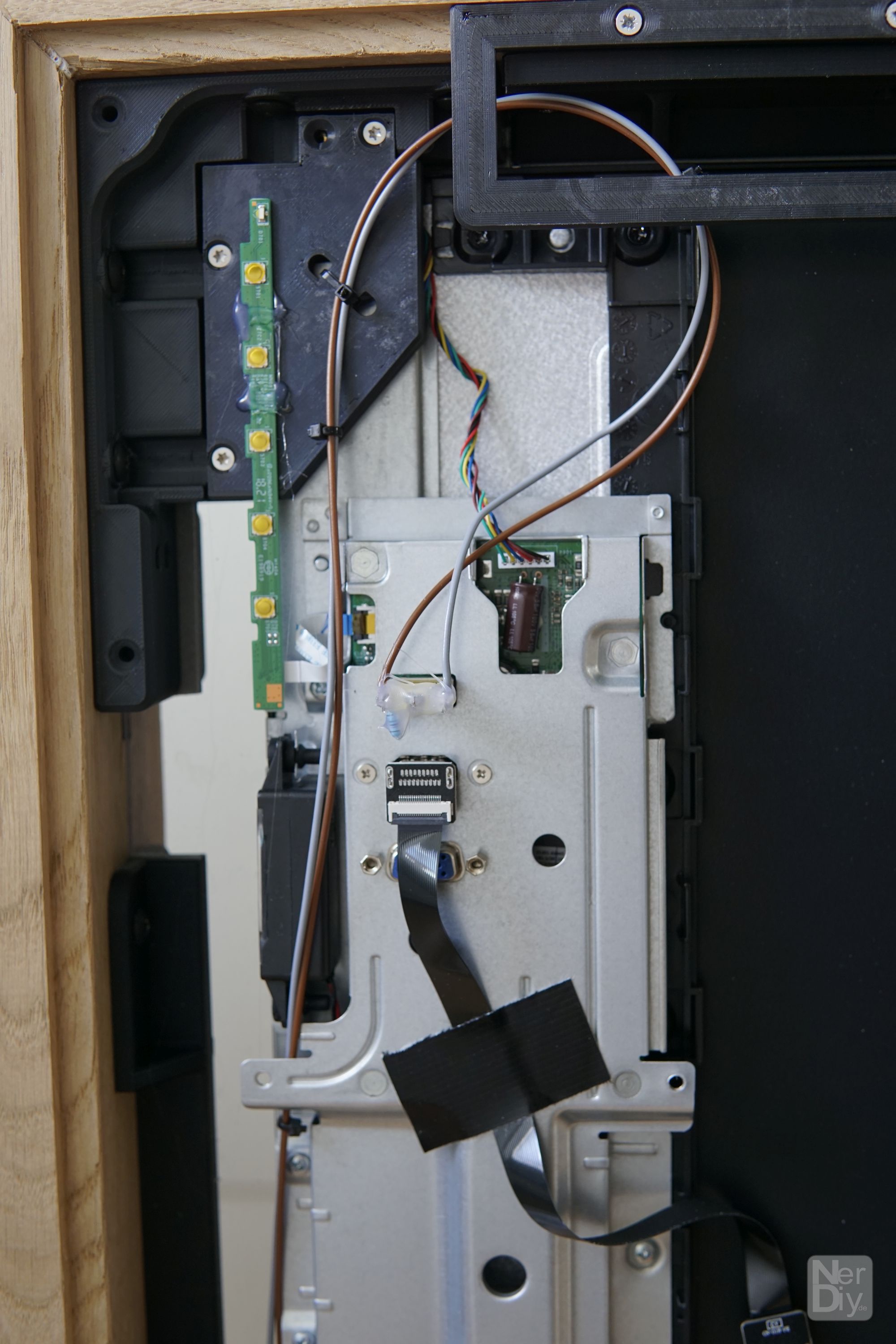

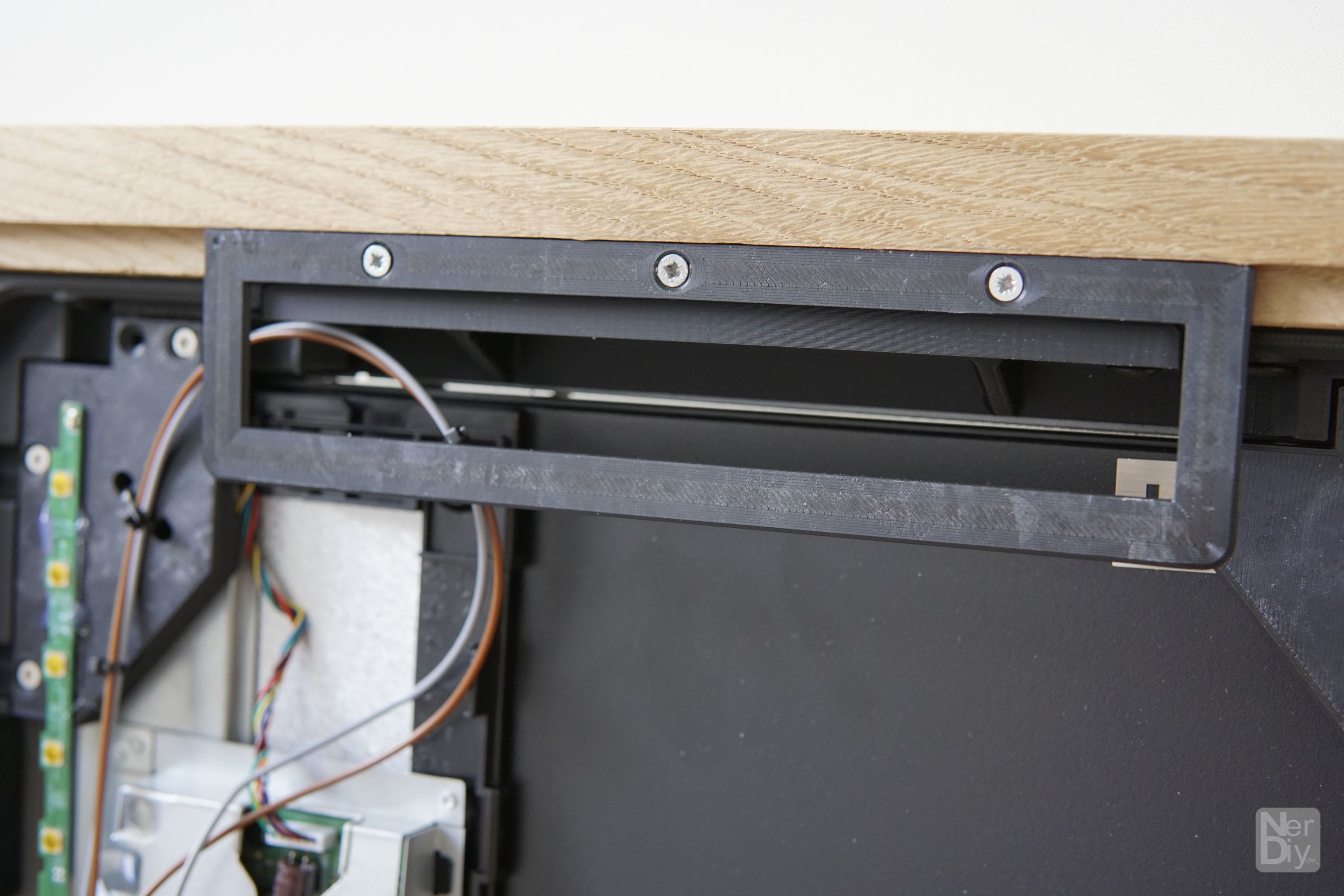

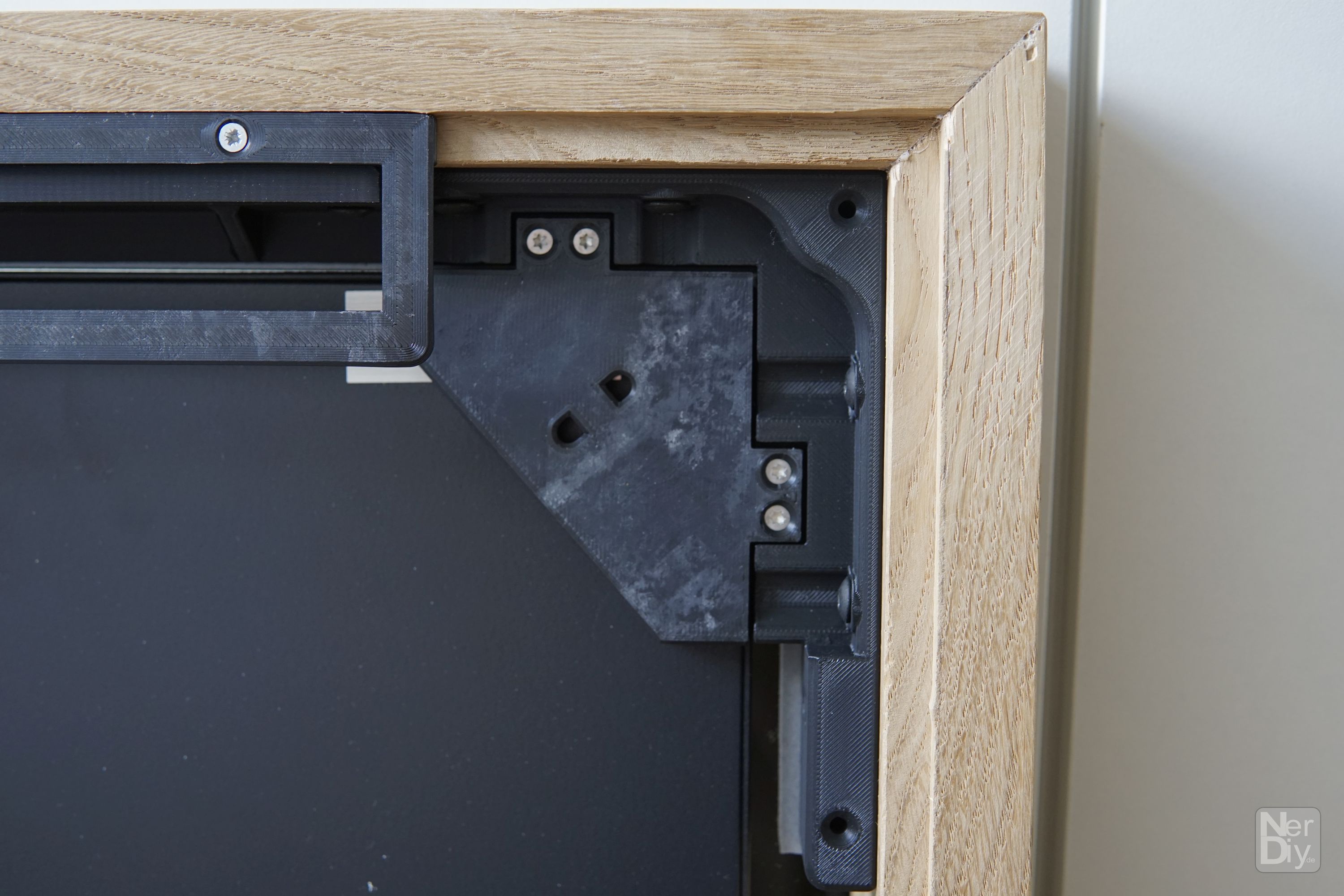

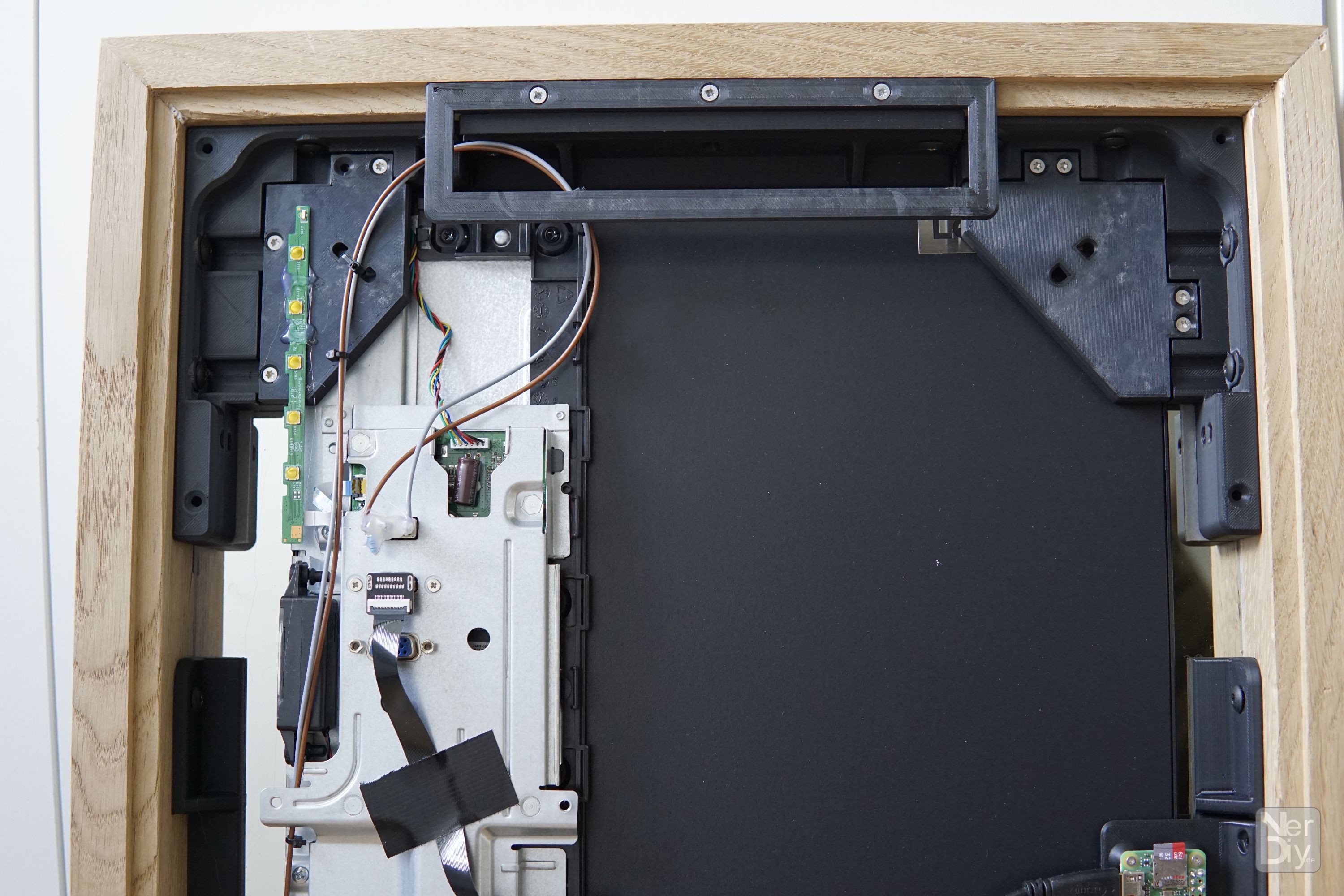

The frame parts not only support the Lenovo display, but also the Raspberry Pi, the Power Delivery Breakout Board, and the Step-Down-to-USB converter.
The frame parts give your MagicMirror not only a robust structure but also an aesthetically pleasing and professionally appealing appearance.
Material list, Assembly instructions & more:
Wooden strip set:
Print settings:
I recommend the following print settings.
Layer thickness: 0,2mm
Infill: 20%
Perimeters: 3x
Support: yes
Filament: PLA

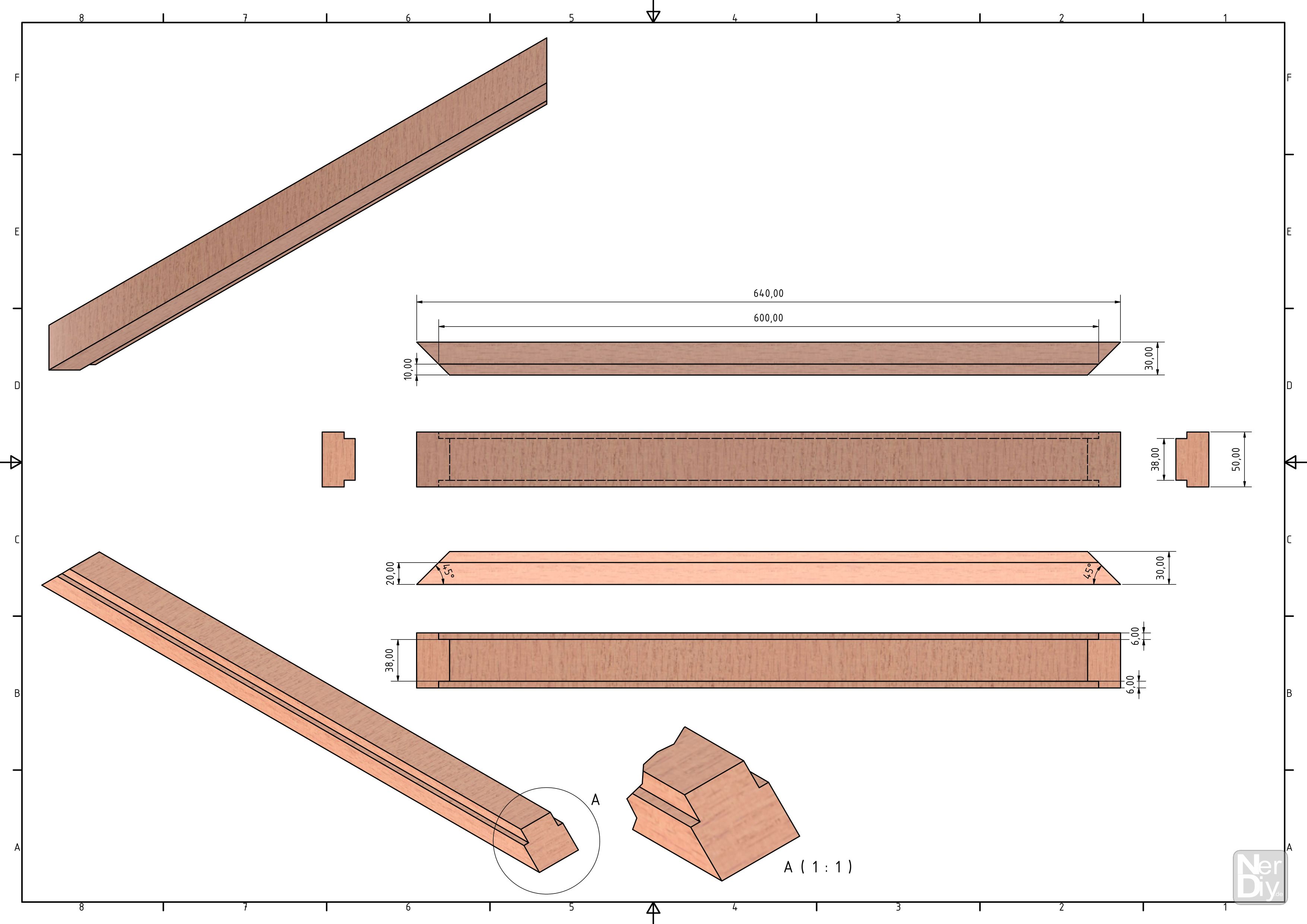

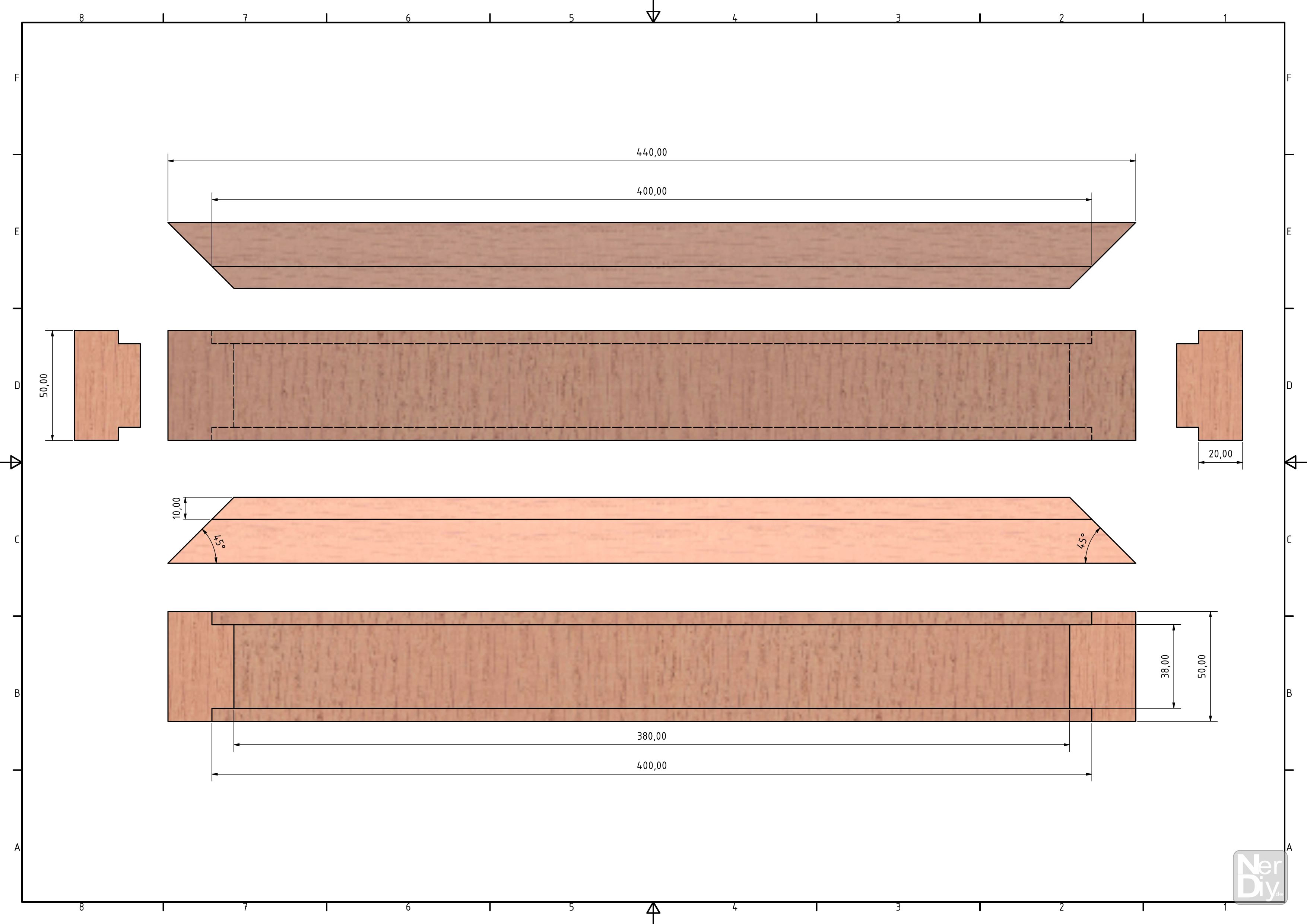

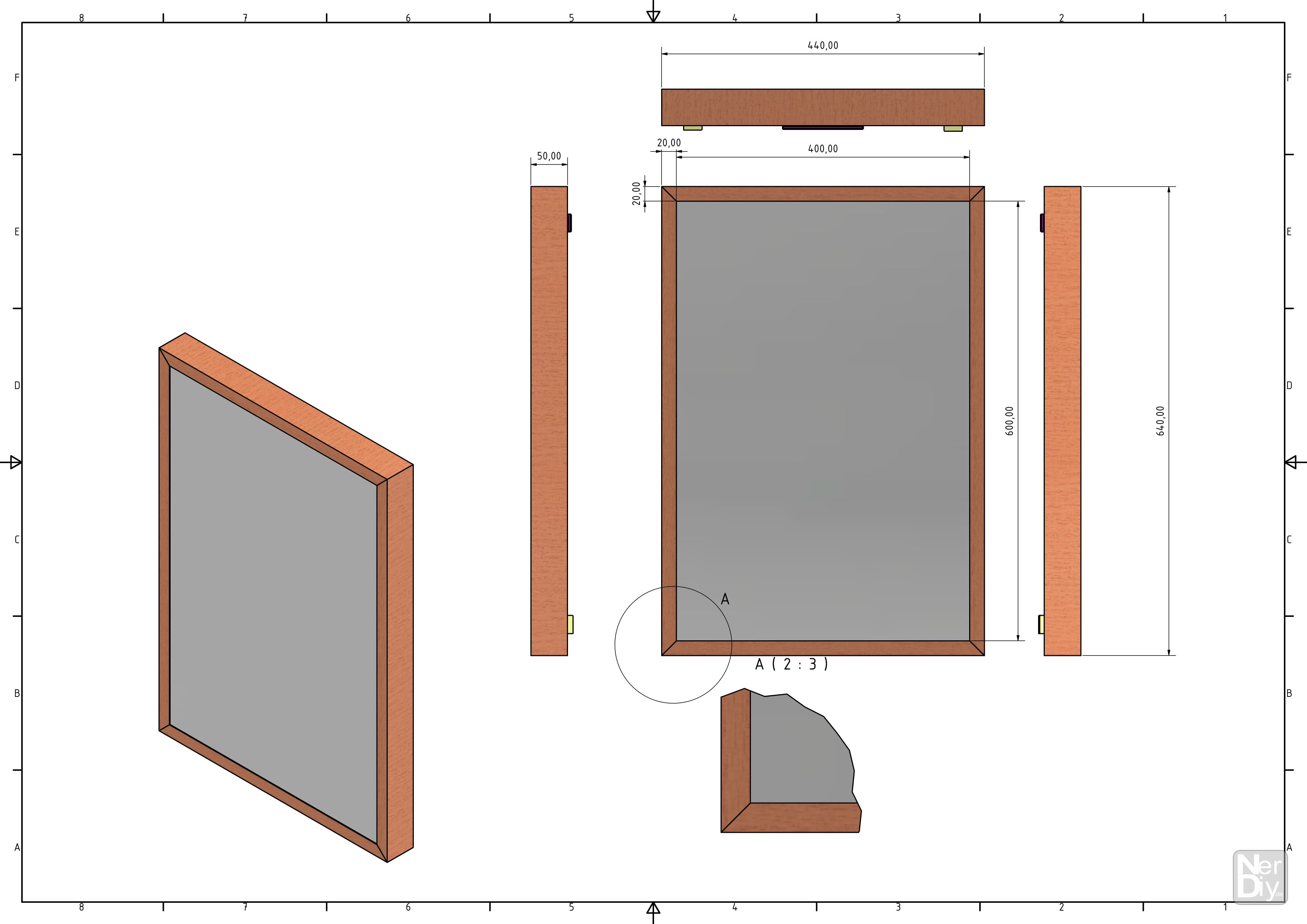

Mechanical drawing:
The following picture shows all dimensions.
