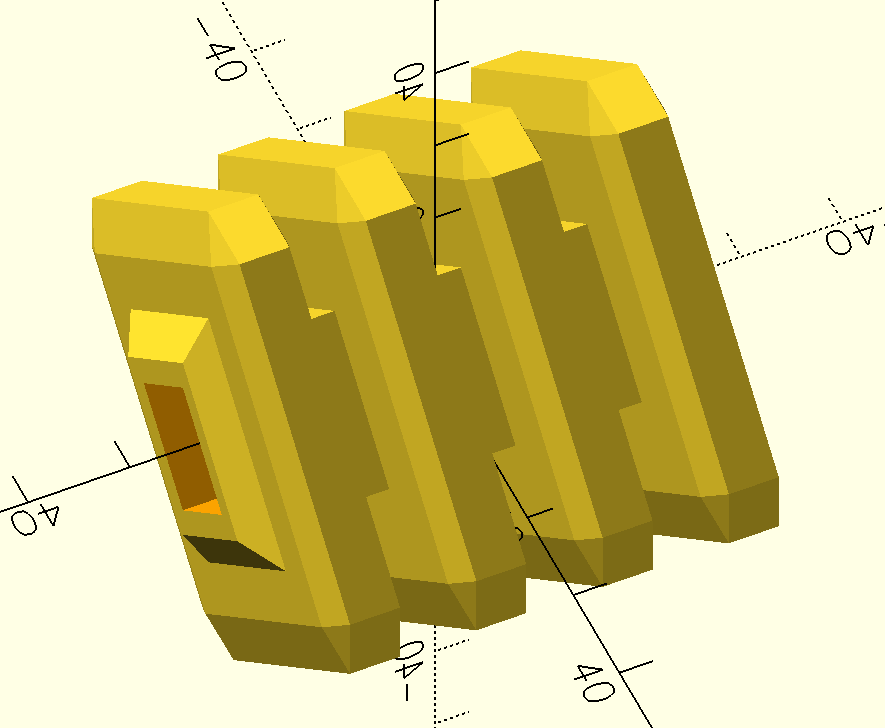

Square Bellow Chamfered

Description:
Just an experimental bellow for sideways printing avoiding overhangs
Status: not yet testprinted

Printing: use plenty of brim
print it on dhe edge as in the stl files orientation
Material: use some a bit harder rubber to
allow for easier & faster printing (or even nylon?)
the geometry makes up for less base flex of the material;
avoid really stiff stuff that dislikes even sight
repetitive bending => no PLA

Possible improvements with some efforts:
– make the top a sharp spike to avert all internal bridging even short range
– make the bellow doubel droplet shaped (standing eye shape)
– oprimize for some application case (spring / air-pumping / … )

– – – –
Inspired by …
– my previous bellow experiments and …
– coming across the below linked metal bellow 3D printing video:

https://www.printables.com/model/430603-experimental-rectangular-flexbellow
https://www.printables.com/model/430602-experimental-circular-flexbellow

AM Media | The Cool Parts Show
2024 – Flexible Bellows Made Through Metal 3D Printing | The Cool Parts Show #64
https://www.youtube.com/watch?v=qpJND_EDKi4
associated short: https://www.youtube.com/shorts/0LXF9WrA3y0

– – – –
The angularity, the few simple directions, and the lack of overhangs may make this design possibly also into a good design for a future nanoscale nanomechanical machine elements made from a superelastic flawless single crystals.
http://apm.bplaced.net/w/index.php?title=Superelasticity
Here is a different mechanism made from to-spec-shaped
nanoscale diamond single crystals (crystolecules):
http://apm.bplaced.net/w/index.php?title=Examples_of_diamondoid_molecular_machine_elements#Flexing_universal_joint
http://apm.bplaced.net/w/index.php?title=Crystolecule
http://apm.bplaced.net/w/index.php?title=Force_applying_mechanosynthesis
