LabStack Orange Pi Zero 3 module
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Computers
- License
- Creative Commons — Attribution
This is a fairly polished “draft” module for LabStack rack mounts.

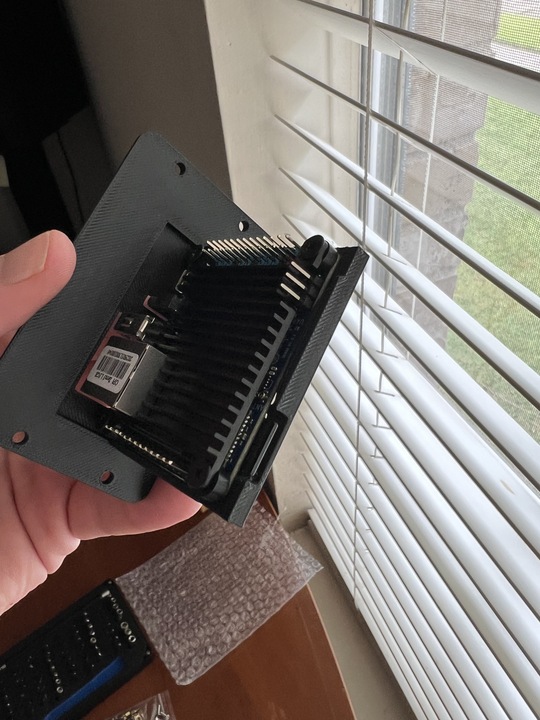

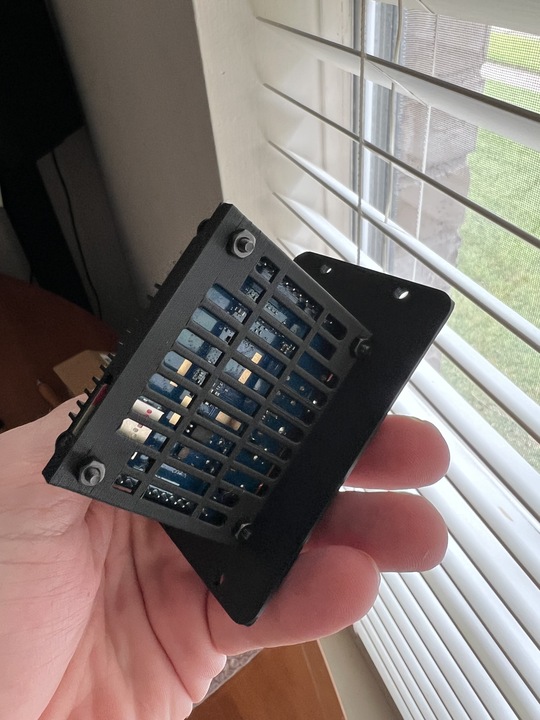

For mounting the Orange Pi onto the module, I was generous with the mount holes so you can use whatever hardware or fasteners you have laying around. I used the screws and nuts from an existing heatsink I had mounted, which you can see in pictures one and two.
Since the peripherals don't have any overhang it's a bit difficult to get it pushed further forward on the mount. However, the is clearance for all cables i've tested (usb-c & usb-a).
LabStack instruction + rack mount hardware:
- LabStack: https://github.com/JaredC01/LabStack
- Upstream PR: https://github.com/JaredC01/LabStack/pull/53
In a future update I may adjust for heat set threaded inserts, and give a bit more room for the peripherals. Feel free to comment if you need any updates.
