8BitDo N30Pro Controller Cover
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Video Games
- License
- Creative Commons — Attribution

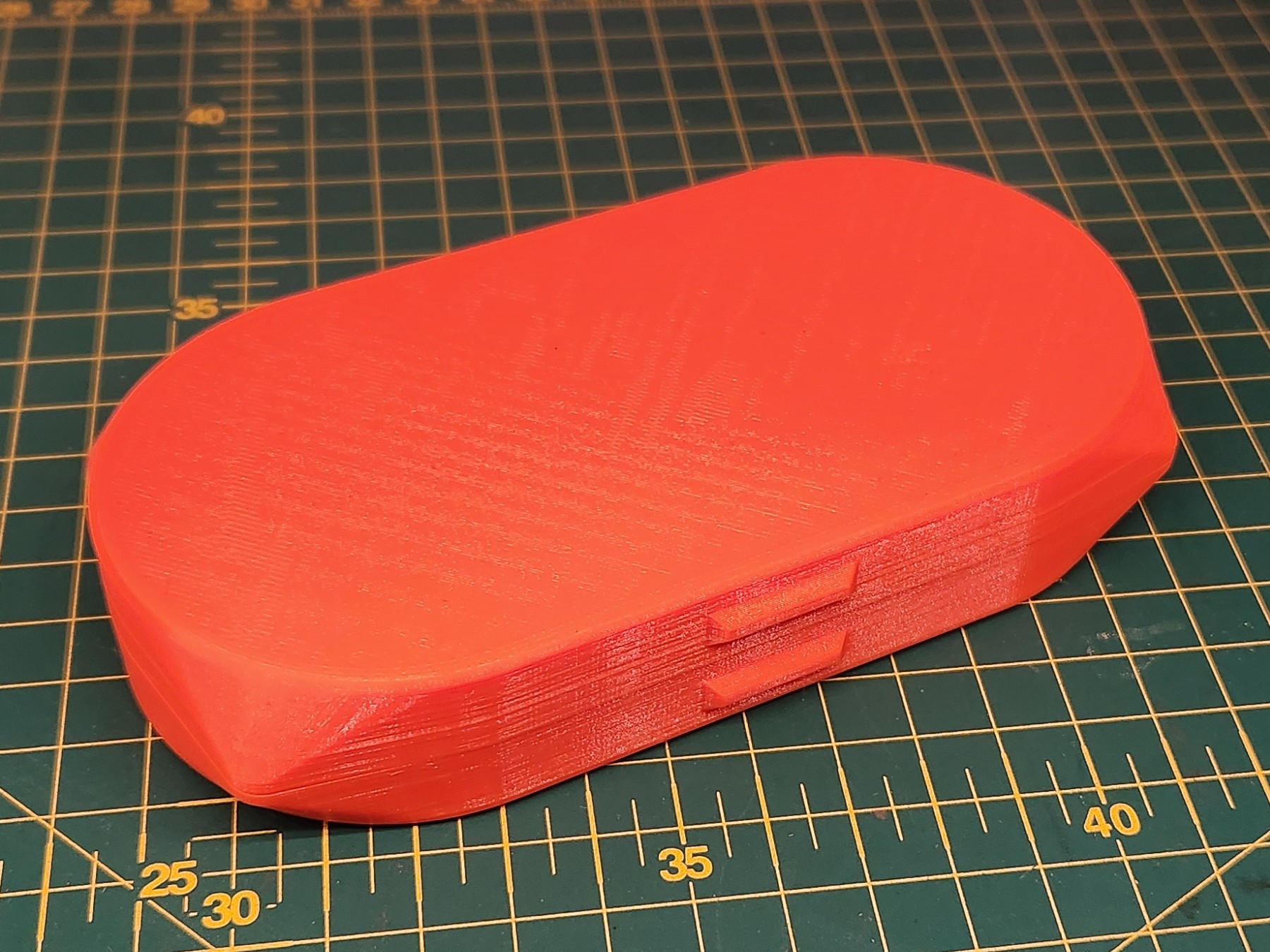

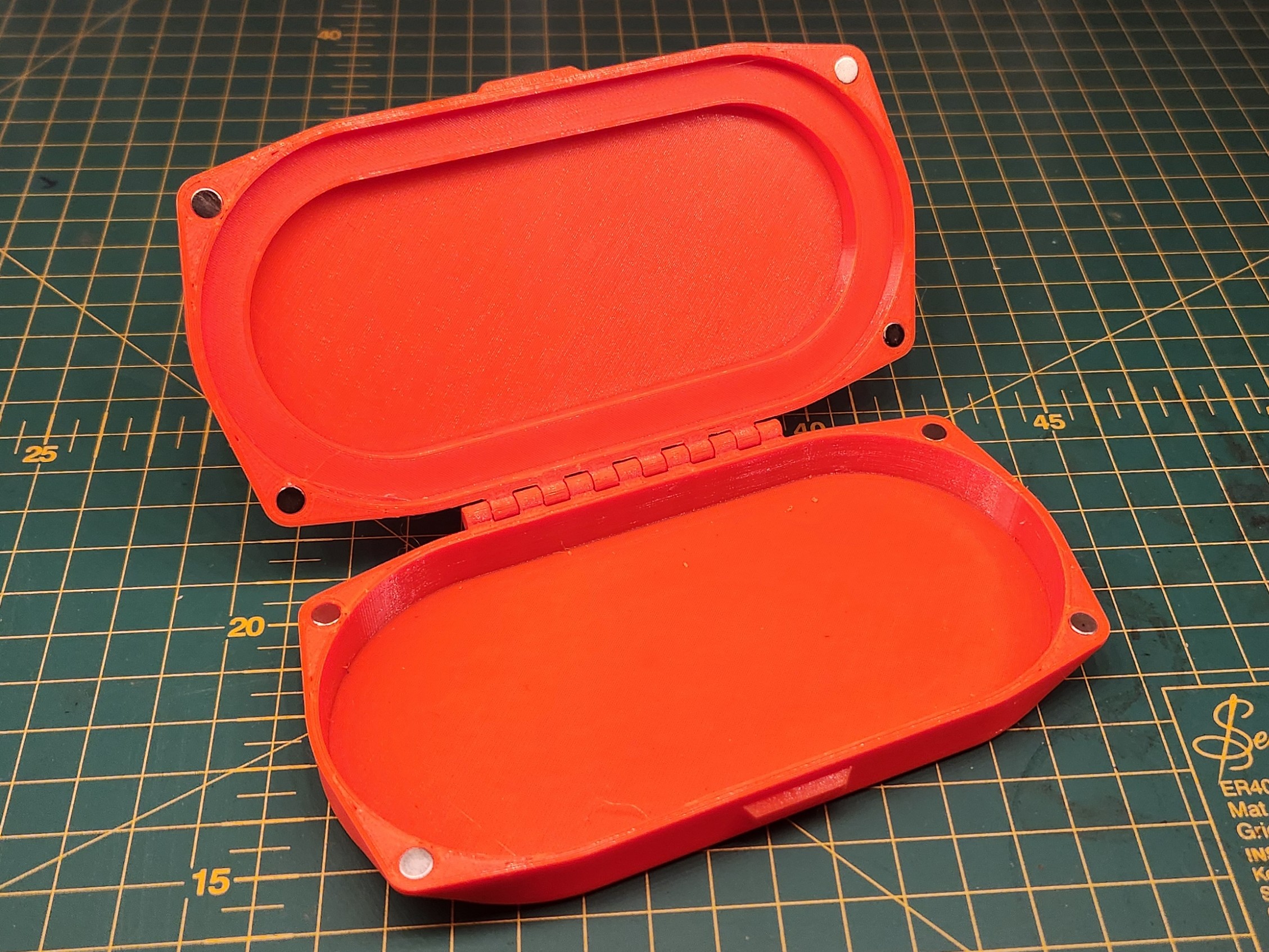

A clamshell-style protective case for the 8BitDo N30 Pro controller. The cover features a print-in-place hinge and snap-fit magnetic closure using standard round neodymium magnets.
Designed in OpenSCAD using the BOSL2 library to protect your N30 Pro during storage or transport.
Features

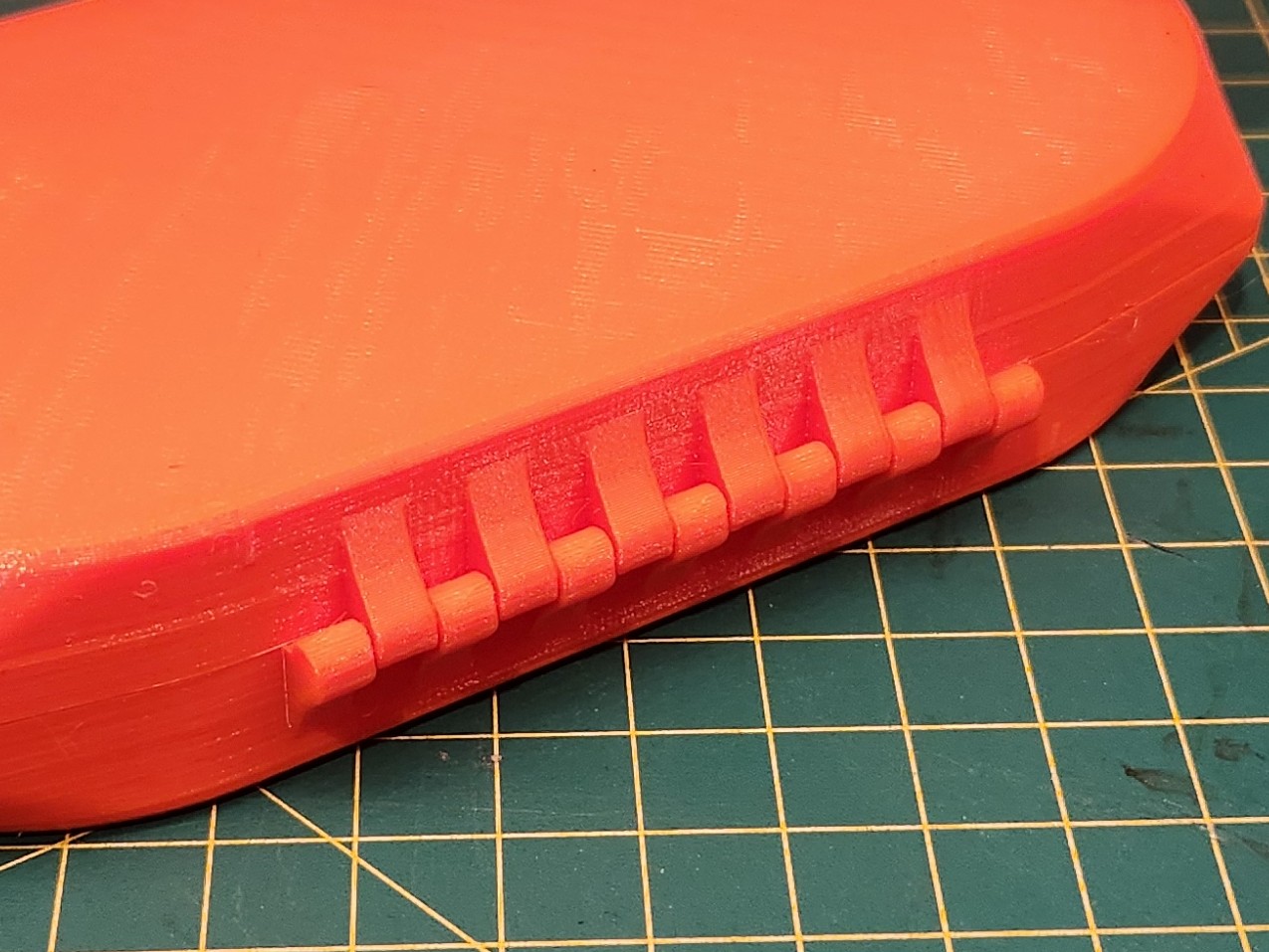

Print-in-place hinge – no assembly required

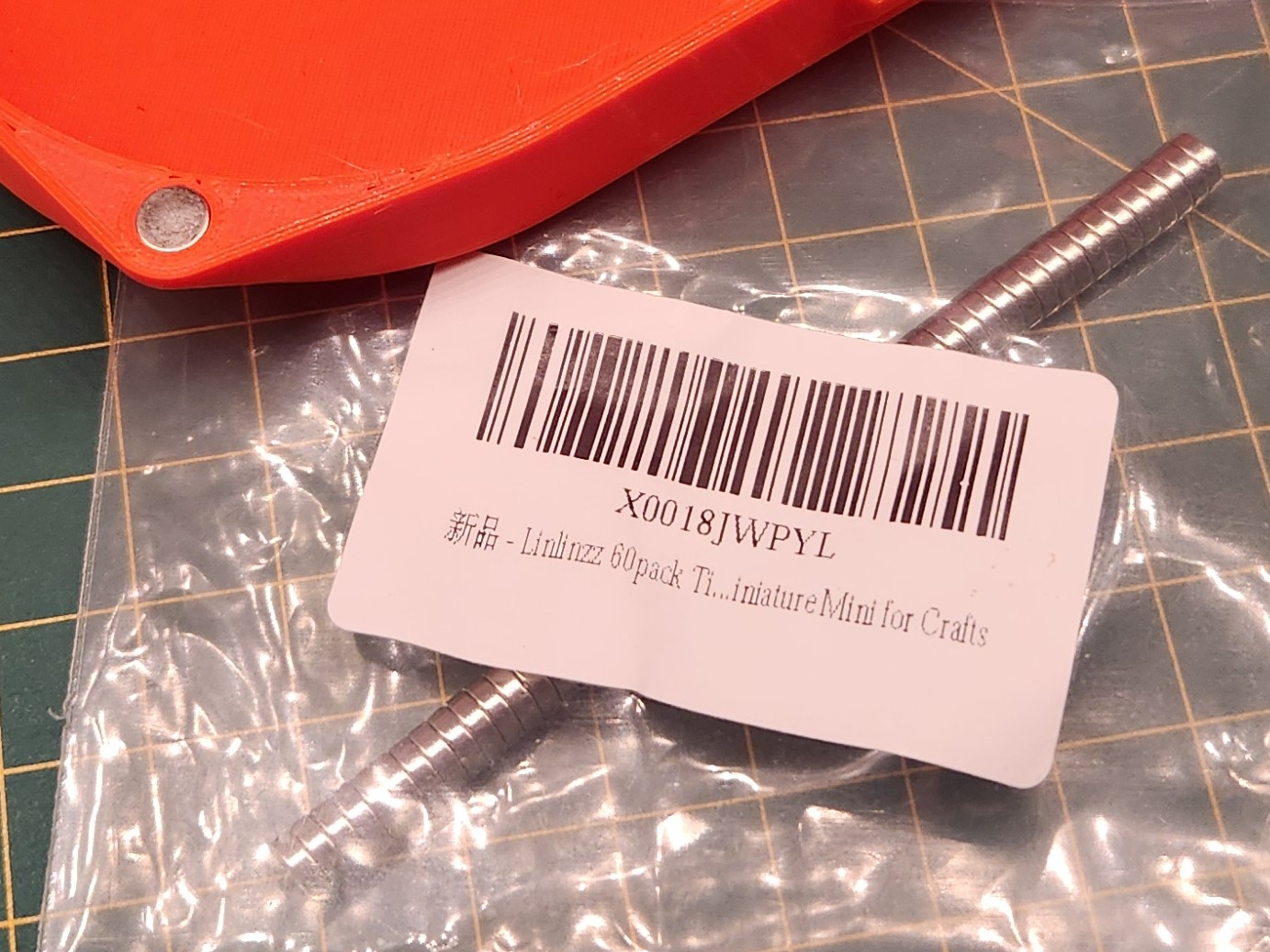

Snap closure using magnets – fits 8×5×1.5 mm neodymium disc magnets
Precisely fits the original 8BitDo N30 Pro controller
No supports required – fully printable flat on the bed
Compact and rugged – ideal for tossing into a gear bag
Print Settings
| Setting | Recommended Value |
|---|---|
| Material | PLA or PETG (PETG preferred for durability) |
| Layer Height | 0.15 mm |
| Infill | 15–25% |
| Supports | None |
| Build Plate Adhesion | Brim (optional – 5 mm suggested) |
| Orientation | Print flat, hinge up (as modeled) |
Assembly Notes
After printing, gently flex the hinge if it's fused.
Superglue magnets into the corner recesses — check polarity before gluing!!
Snap shut and you're ready to go!
OpenSCAD & BOSL2 Notes
Designed in OpenSCAD and uses the BOSL2 (Bay Area OpenSCAD Library 2) for hinge generation.
If you want to tweak the model, make sure to clone or download BOSL2 and place it in a known path (../0000_StdLibraries/BOSL2/ as per the provided source).
