Caliper radius measuring attachment
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial

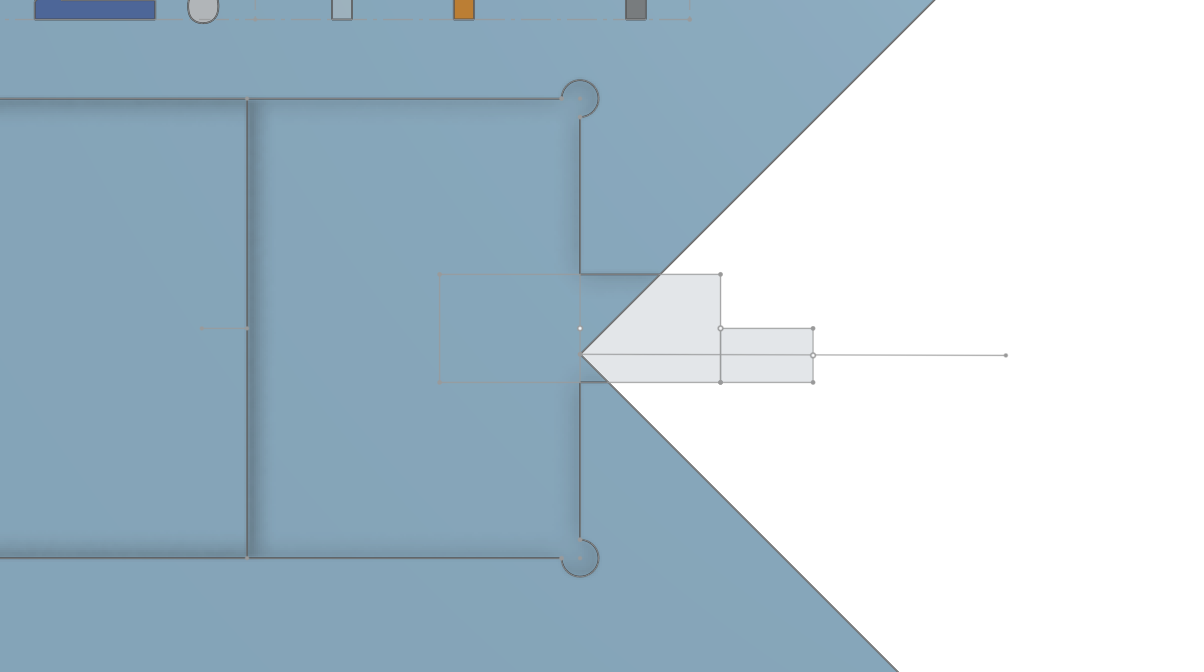

Made it a close enough fit to not need magnets (about .001" press fit). Also added the multiplier cause I'm not going to remember that. offset center of v slightly to align with little nub on caliper.

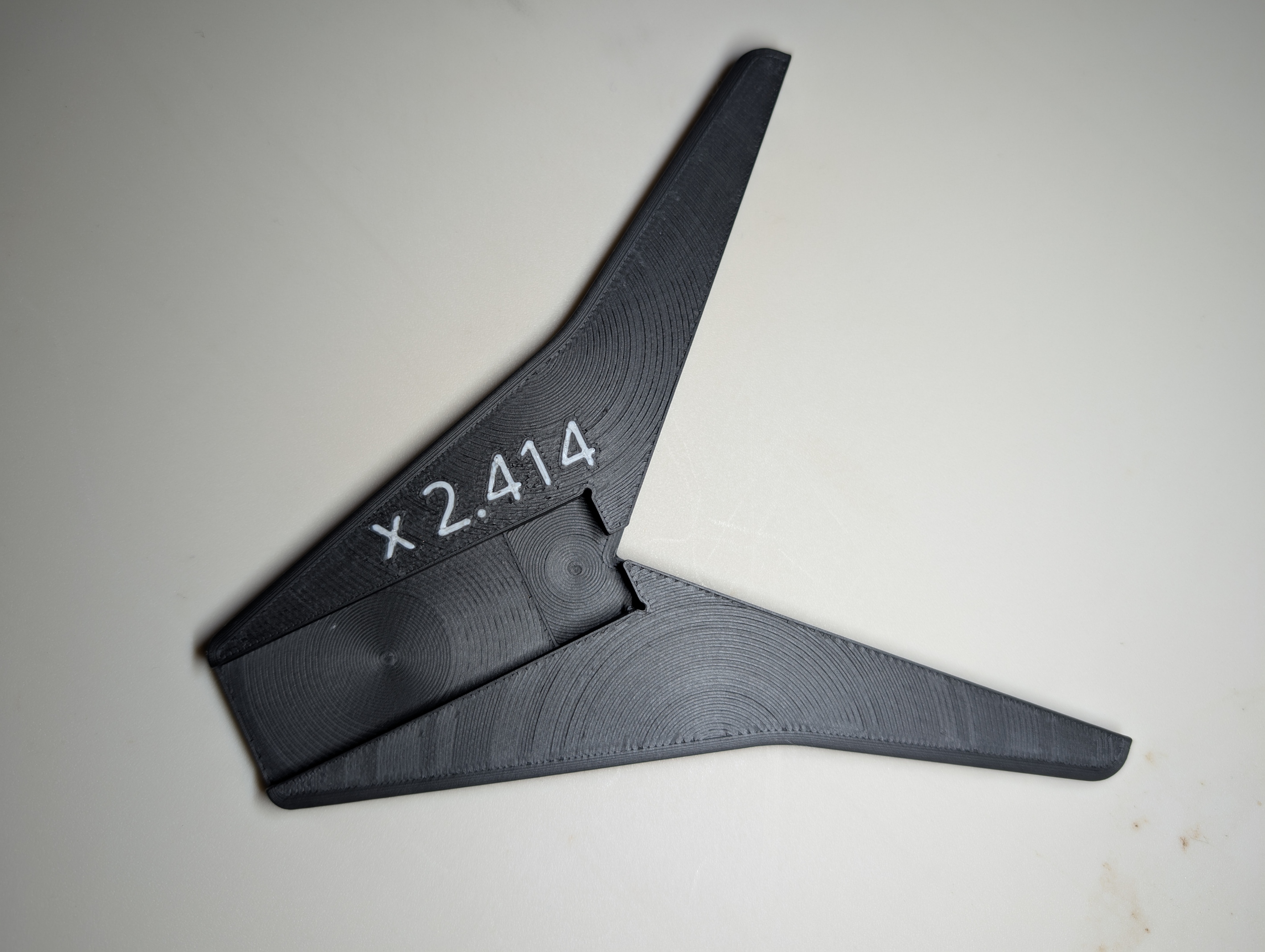

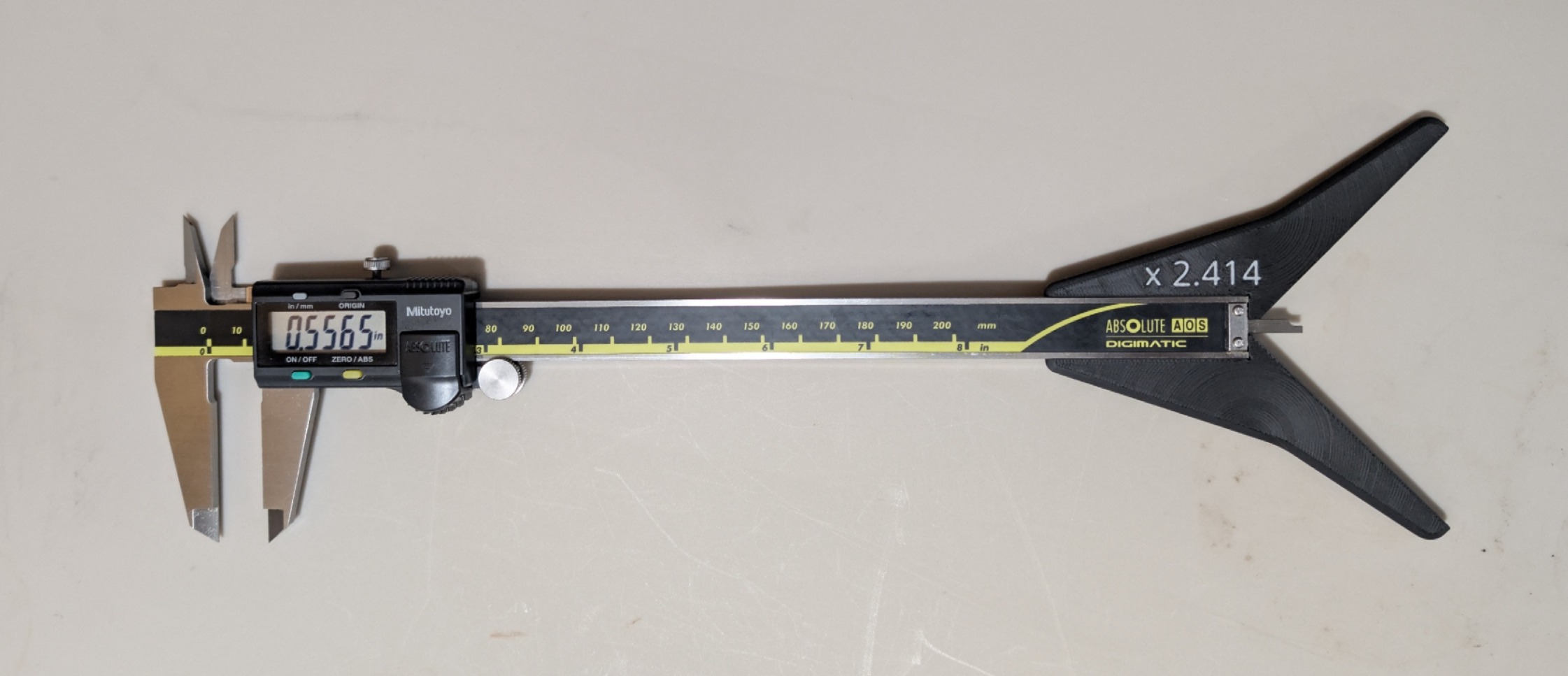

To use just multiply caliper reading by 2.414.
Can measure up to 4.8" radius(121.92mm).
