Insect Watering Trough

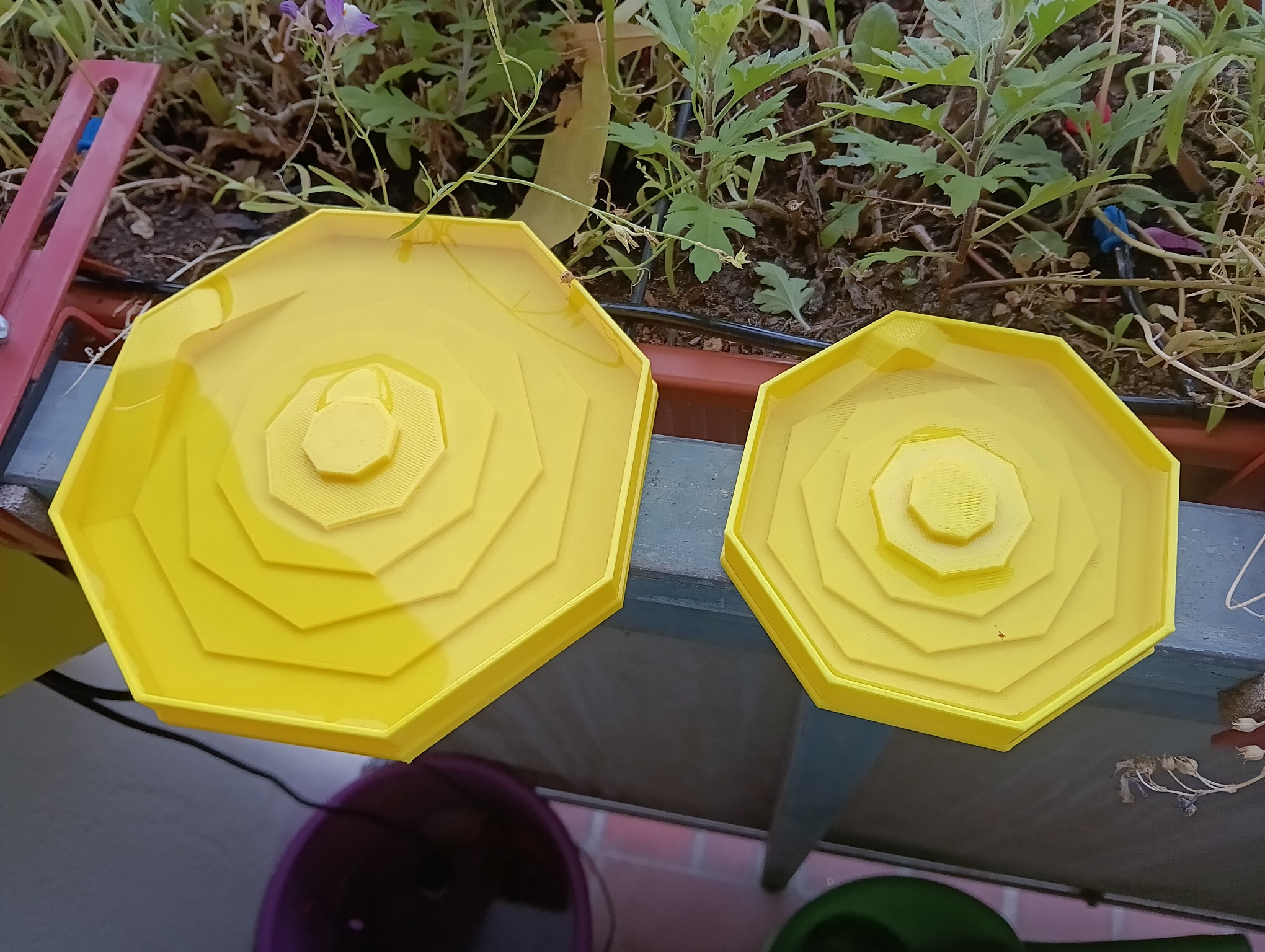

As it is getting warmer and warmer and the flower boxes on my balcony with the wildflowers - as well as my ‘insect hotel’ - are well visited by insects, I decided to create a small octagonal insect watering trough.

The trough is available in two sizes, inner diameter 100mm and inner diameter 150mm.

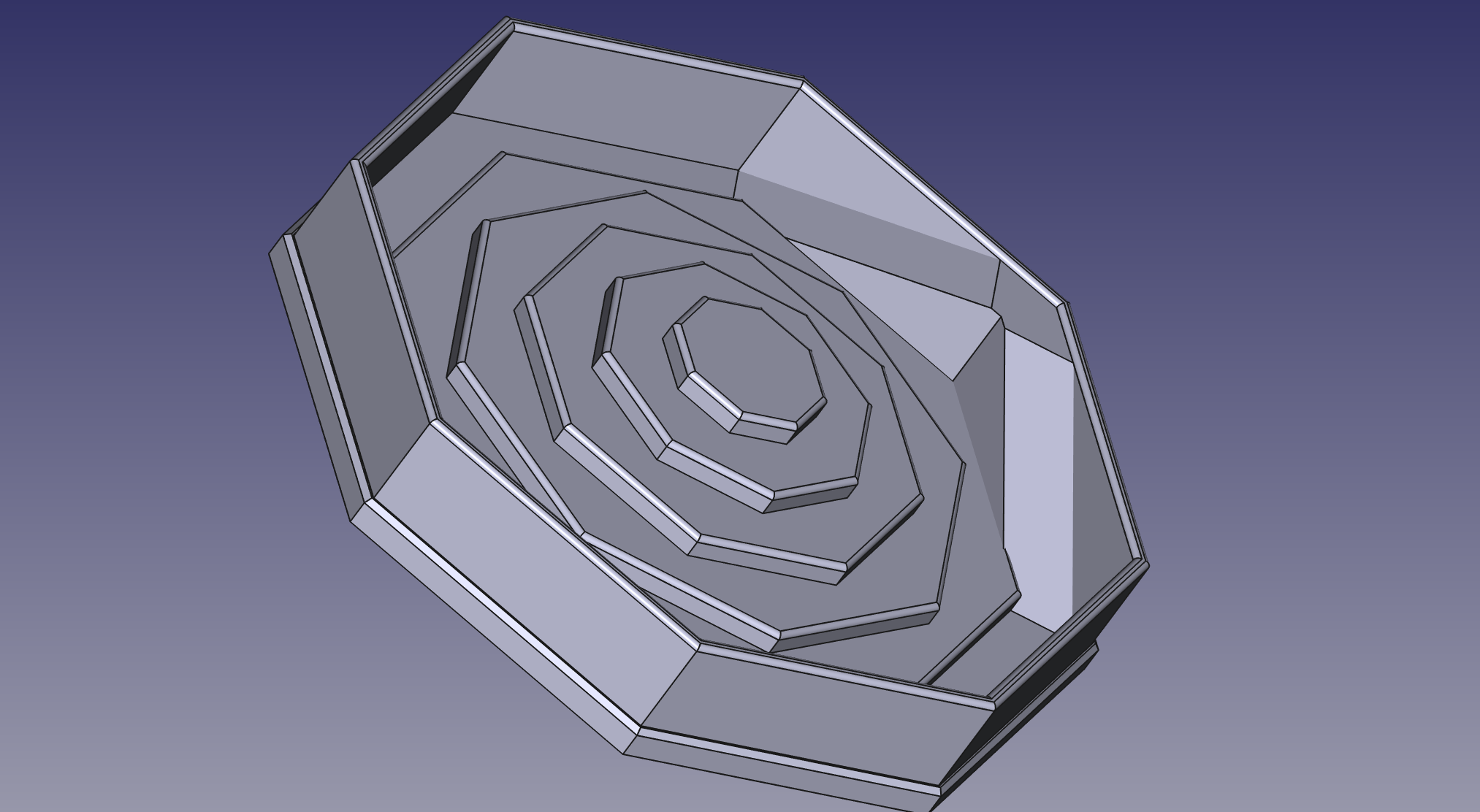

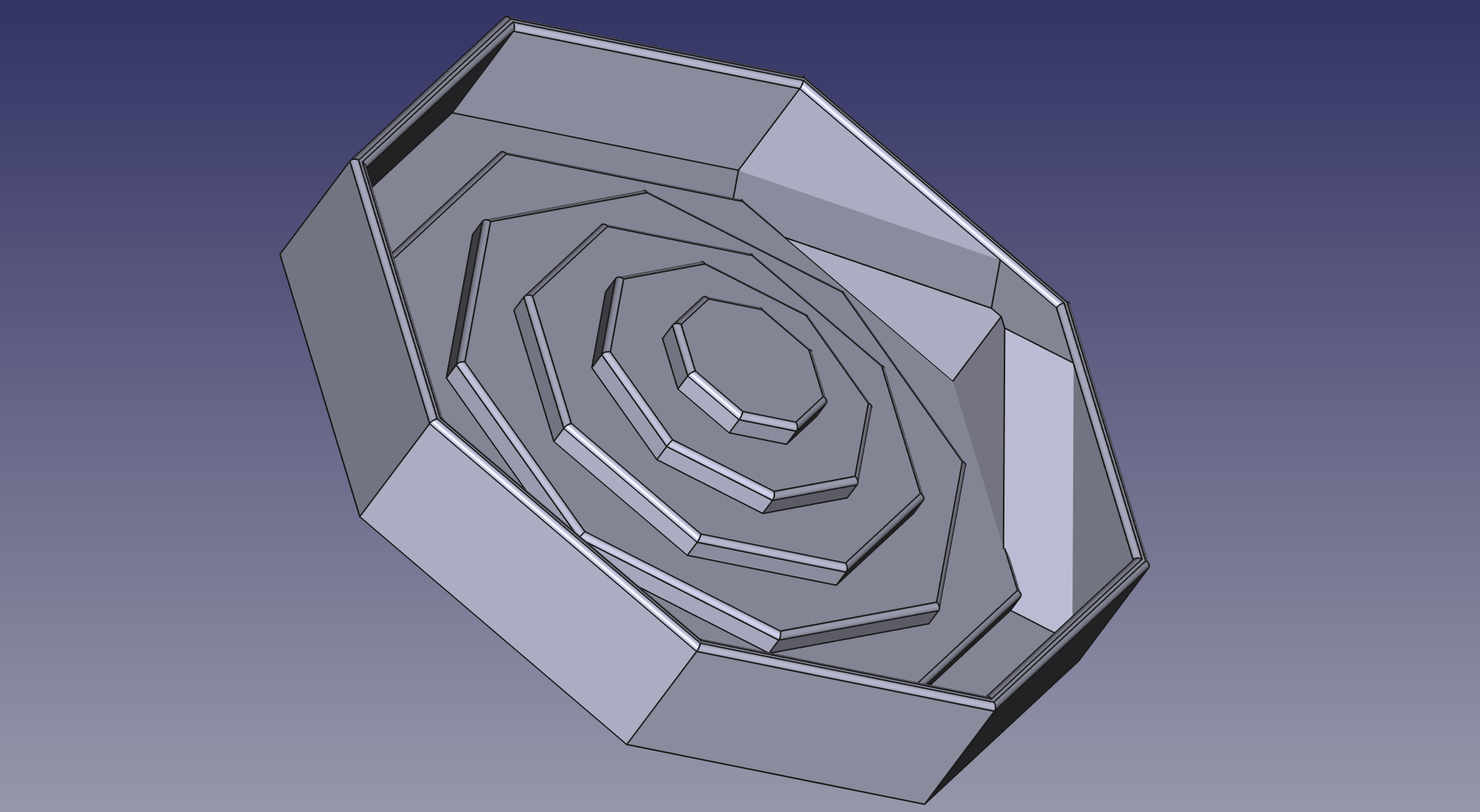

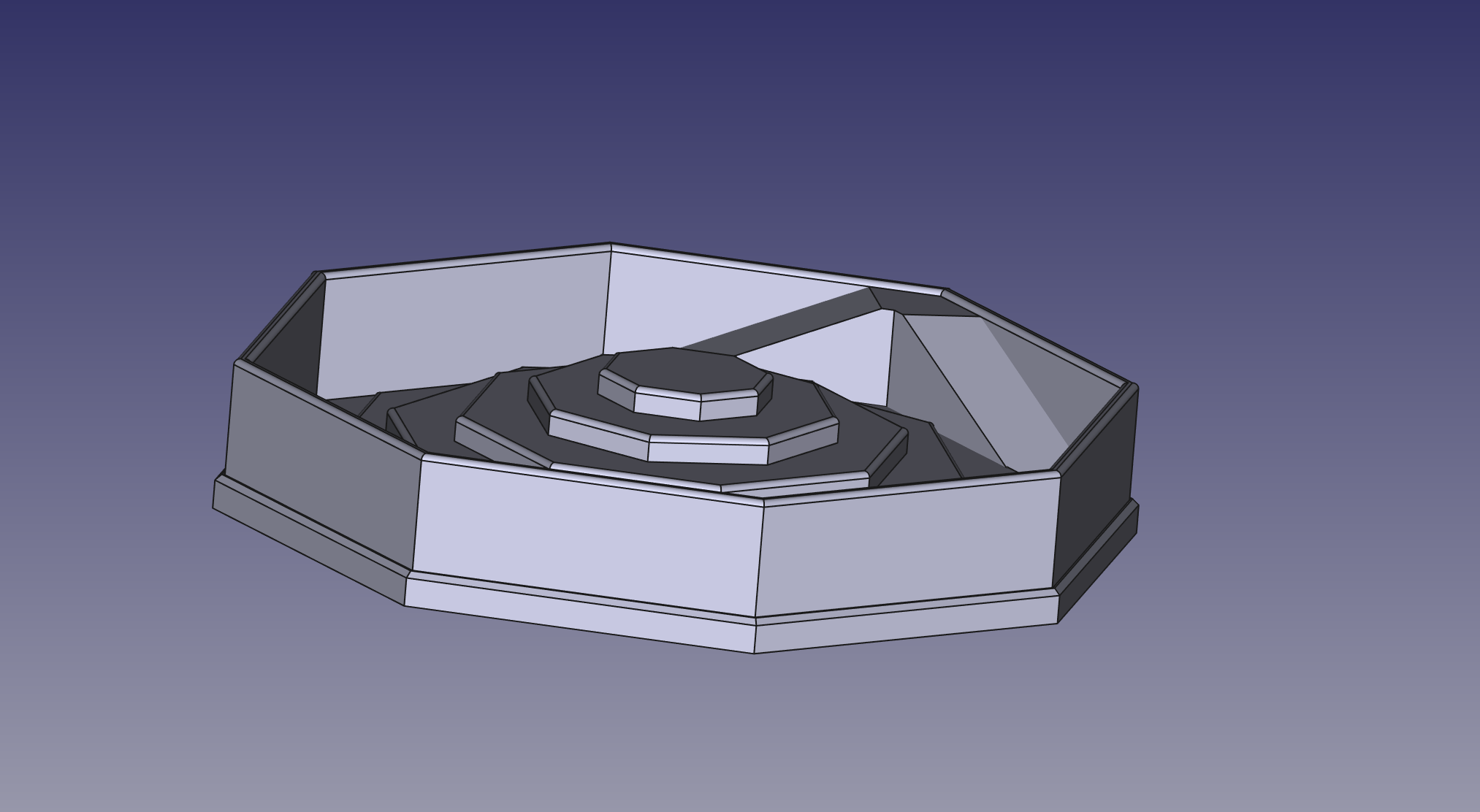

Trough 100
  • Outer diameter: 104.0mm
  • Outer height: 17.0mm
  • Inner diameter: 100.0mm
  • Inner height: 15.0mm

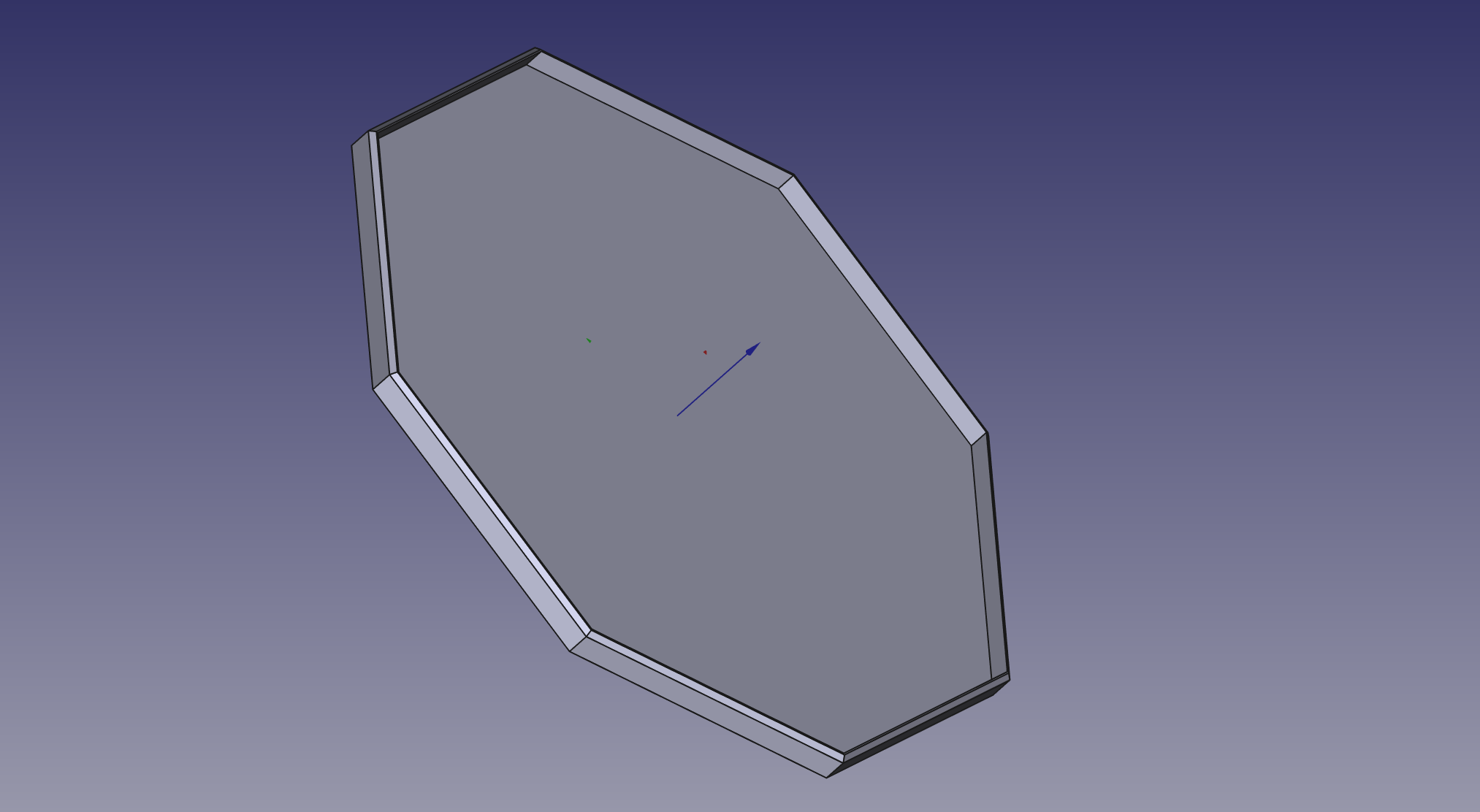

Base 100
  • Outer diameter: 103.1mm
  • Outer height: 6.0mm
  • Inner diameter: 102.1mm
  • Inner height: 5.0mm
Trough 150
  • Outer diameter: 154.0mm
  • Outer height: 17.0mm
  • Inner diameter: 150.0mm
  • Inner height: 15.0mm
Base 150
  • Outer diameter: 153.1mm
  • Outer height: 6.0mm
  • Inner diameter: 152.1mm
  • Inner height: 5.0mm


And yes, I like geometric shapes better than round ones. ;)

Fittings

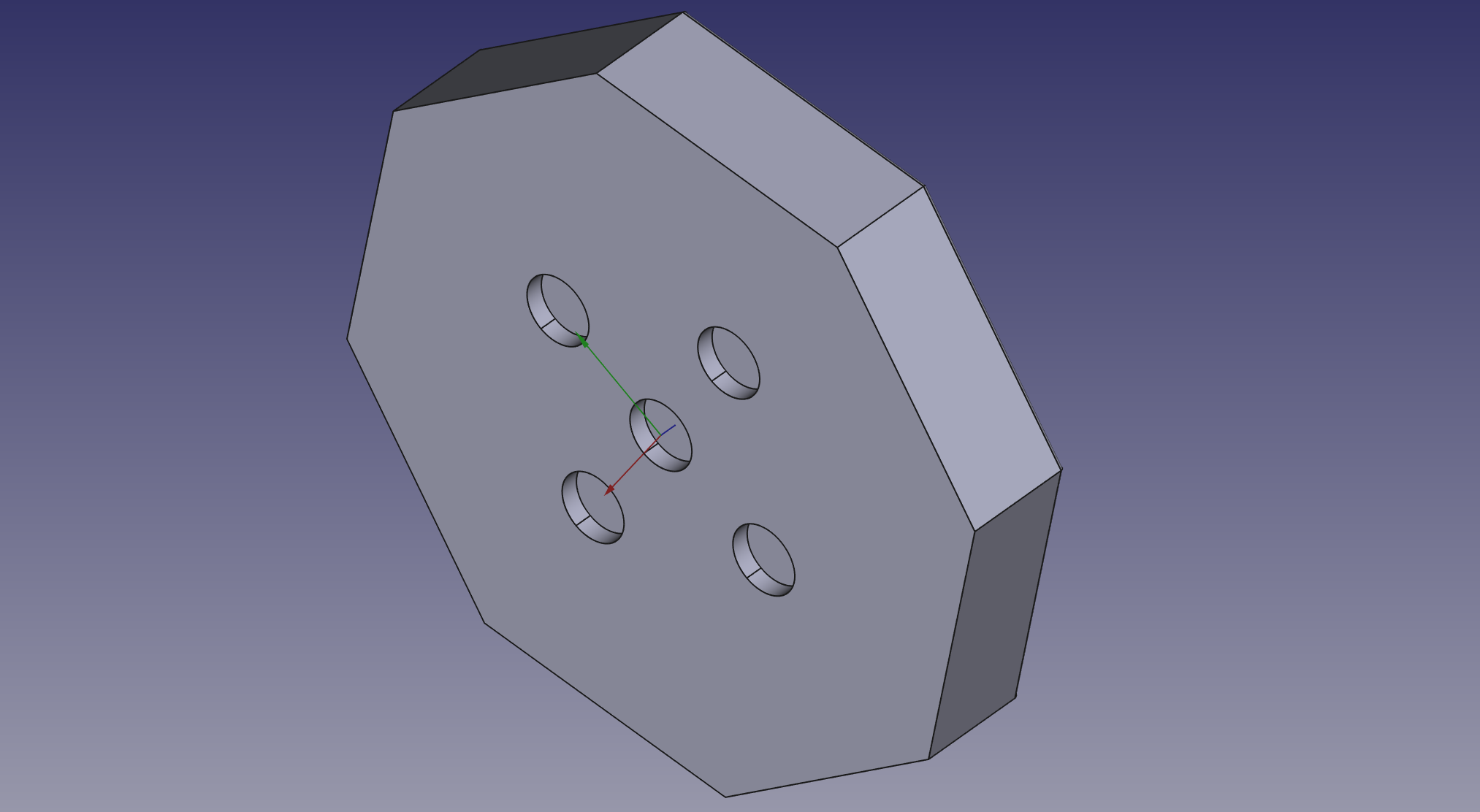

  • Optional 1 to 5 magnetics 10.0mm x 3.0mm.

Temperatures, Speed and Materials

  • Filament: PETG
  • Printing speed: 150.0mm/s
  • Perimeter: 4
  • Layer: 0.2mm
  • Infill: 10%
  • Infill pattern: Adaptive cubic
  • Print temperature: 240 °C
  • Temperature hotbed: 75 °C
  • Brim: No
  • Support: No

Approximate Printing Times and Filament Quantities

Print times are also based on my Anycubic Kobra 2 Plus.

  • Trough 100: Time: ~1:21h, ~Quantity: ~31.88, ~10.60m
  • Base 100: Time: ~0:32h, ~Quantity: ~11.21gr, ~3.37m



  • Trough 150: Time: ~2:21h, ~Quantity: ~57.83 gr, ~19.23 m
  • Base 150: Time: ~1:05h, ~Quantity: ~24.88 gr, ~8.11 m
