Bike Brows

-Hardware

This model will only need 2 screws and nuts each.  ~3.5 MM diameter bolts 22 MM Long and ~6 MM diameter square nuts.

-Layer Change Instructions

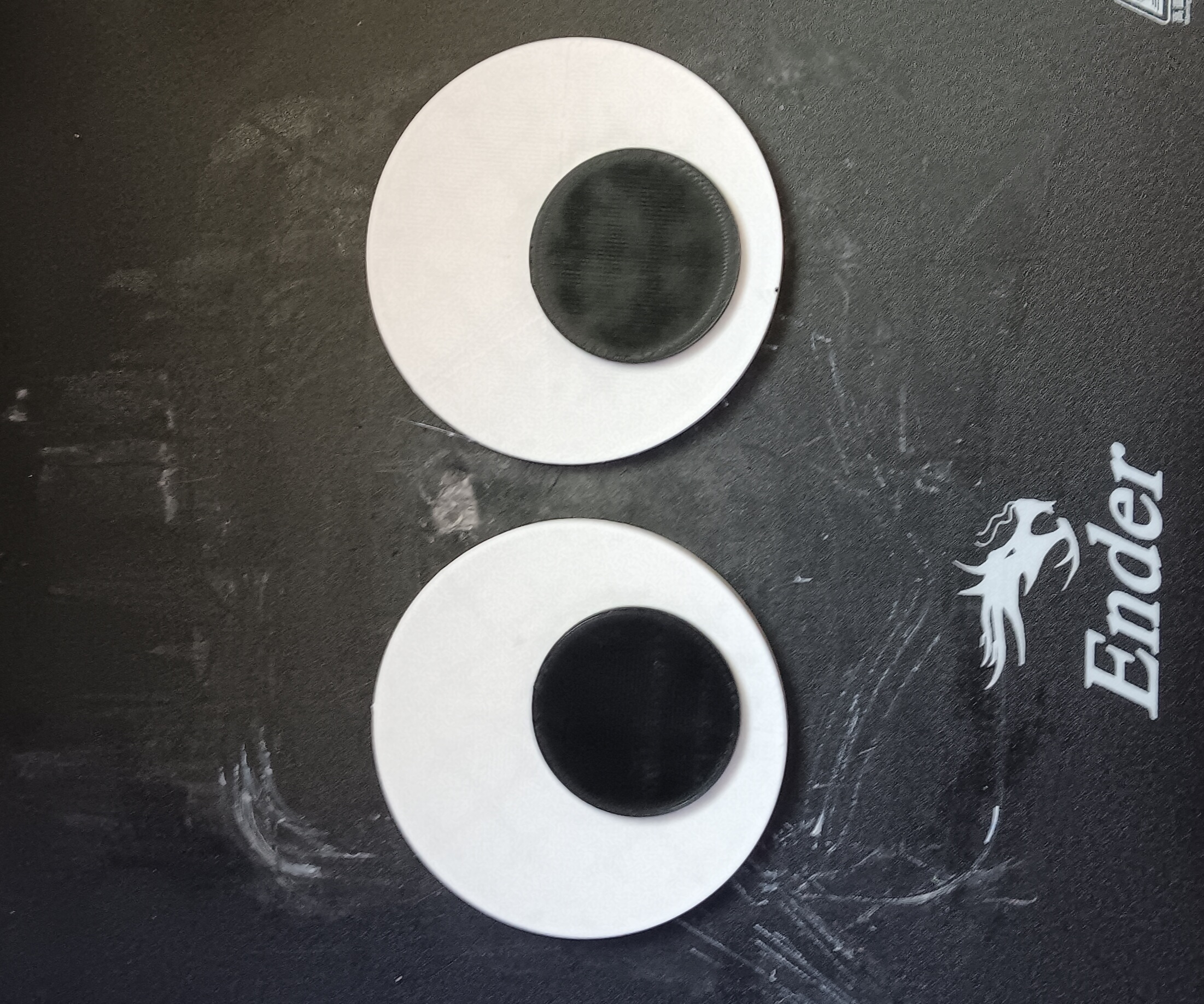

For the eyes I used a color change at the layer between the big eye part and small eye part. If you don't know how to do layer change, Theres Instructions below, or you can use the g-code provided :)

CURA INSTRUCTIONS

Once the slicing's finished select preview in bottom corner. The go to the layer height slider on the right side. Locate the layer you want the height you want the change to occur. Remember that number or jot it down on paper. The go to the extensions button at the top. Select post processing → modify g-code the select filament change then type the layer from earlier in that box.

PRUSASLICER INSTRUCTION

Slice the model the use the slider to find the layer height then select the plus button then your all set to print.


-Printing

Settings

Supports: No

Rafts: Optional

Resolution: .2mm

Infill: 10-20%

Filament Colors: Transparent, White (You can use glow in the dark white, read the more section for more info) and, Black

Filament Material: PLA

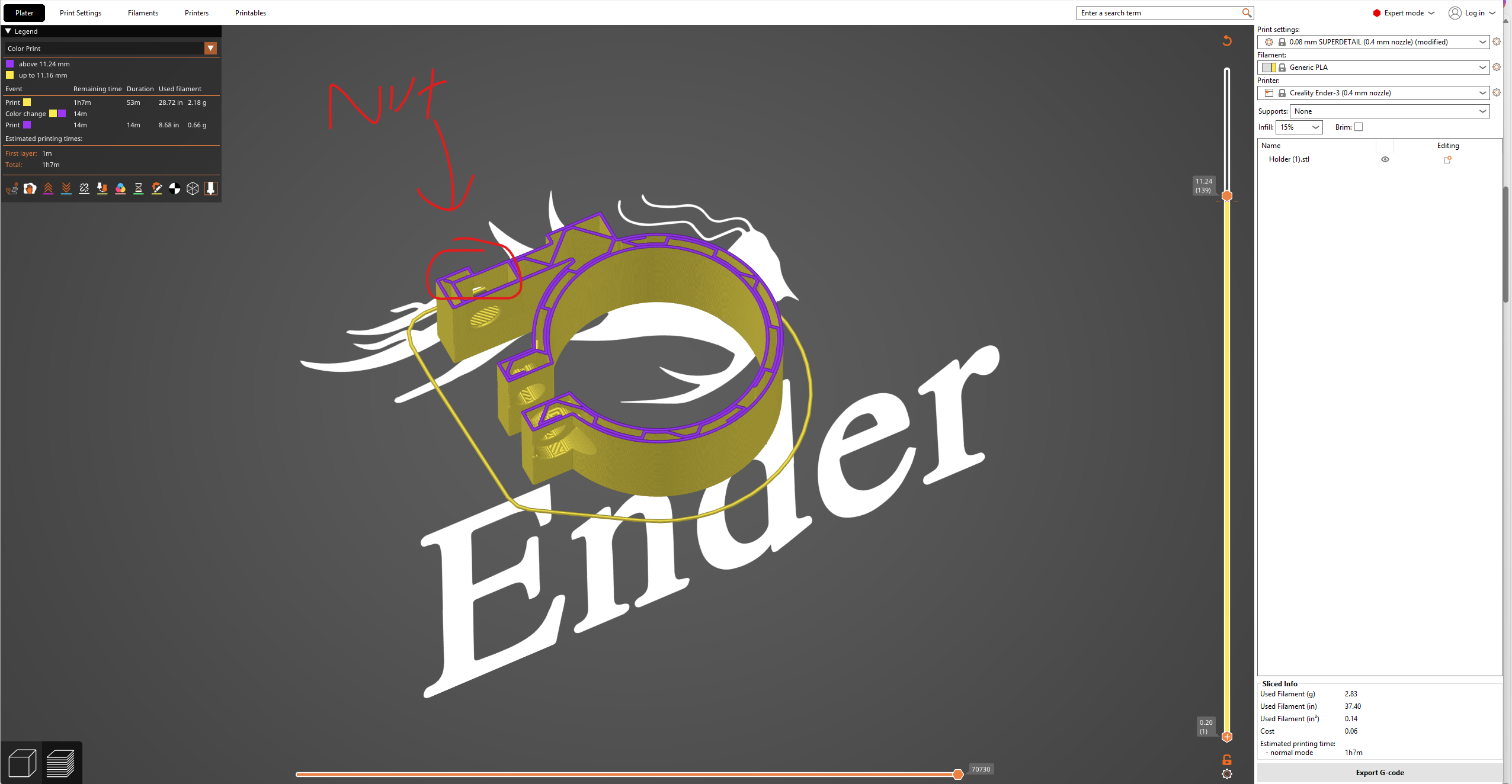

When printing the holder clip stl file I added a pause at the 139th layer so that I could insert the nut. Also, for the holder clip I used 100% infill but only 1 wall but .08 resolution.

And for the spring I used 1 wall 5% lightning infill with a resolution of 0.08 mm

-Pieces

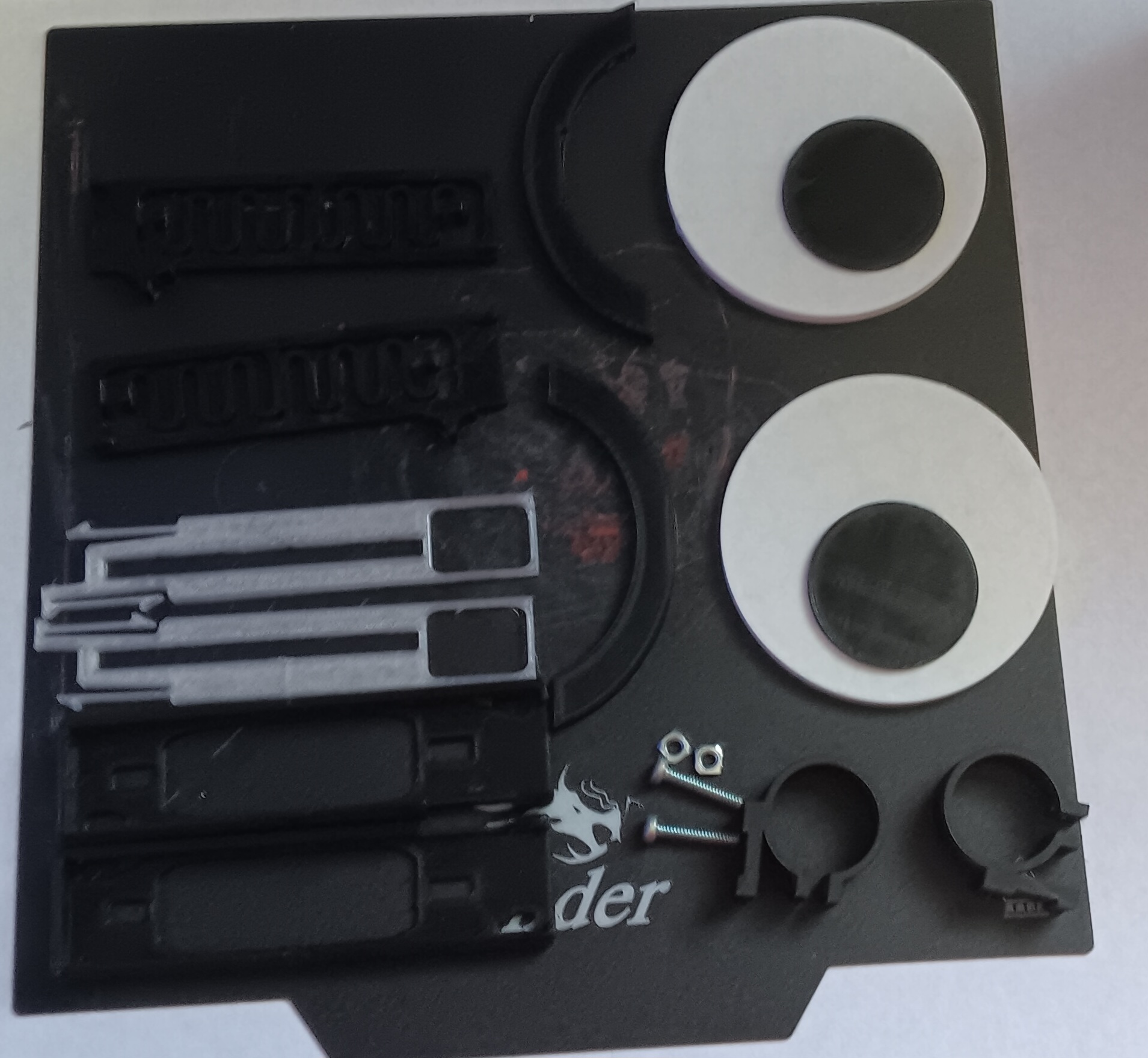

These are all of the pieces you will need for this model:

-Assembly

First, we will begin by puting the eyebrow mechanism together

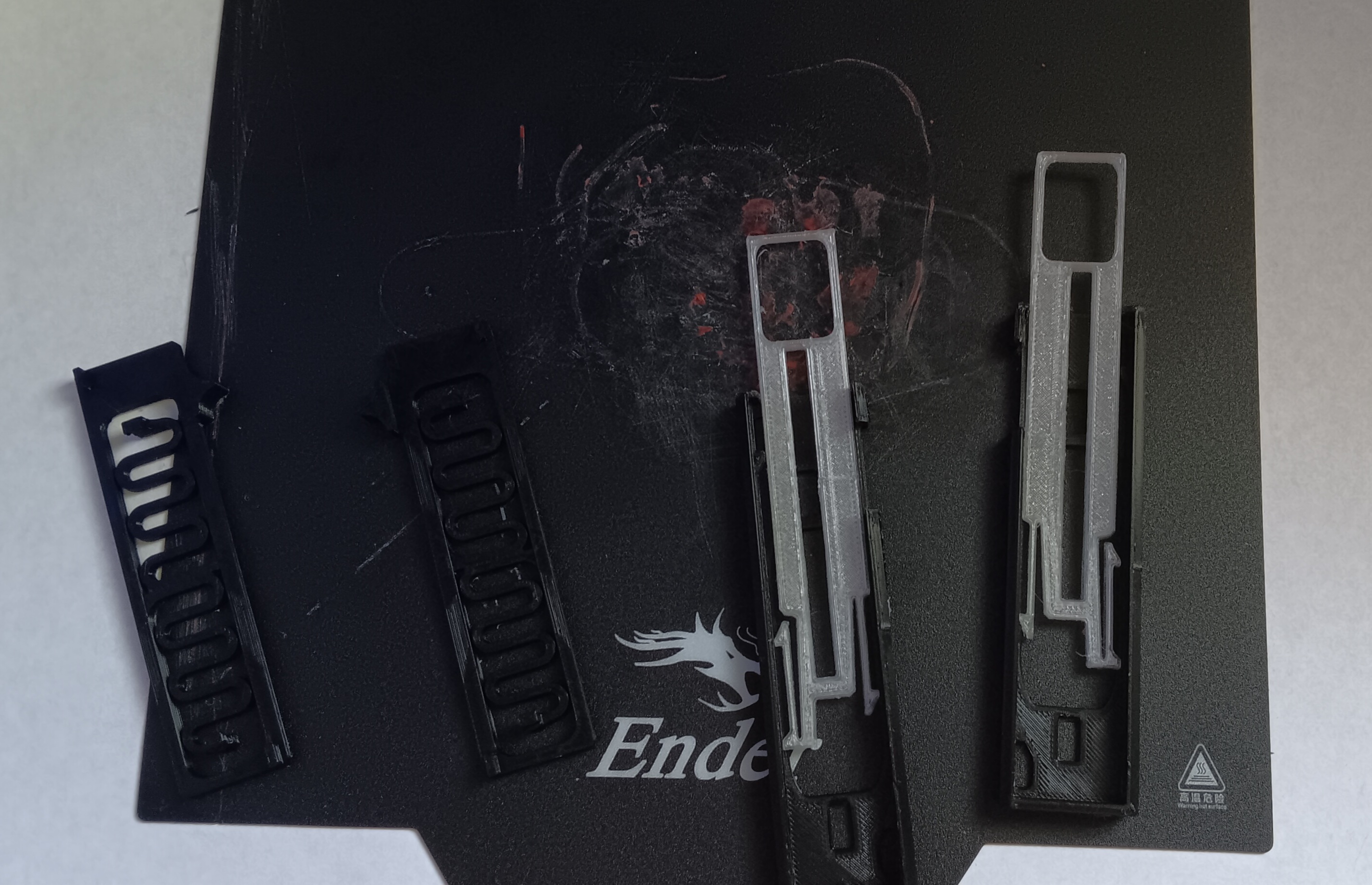

Take your lifter and spring case and put like so:

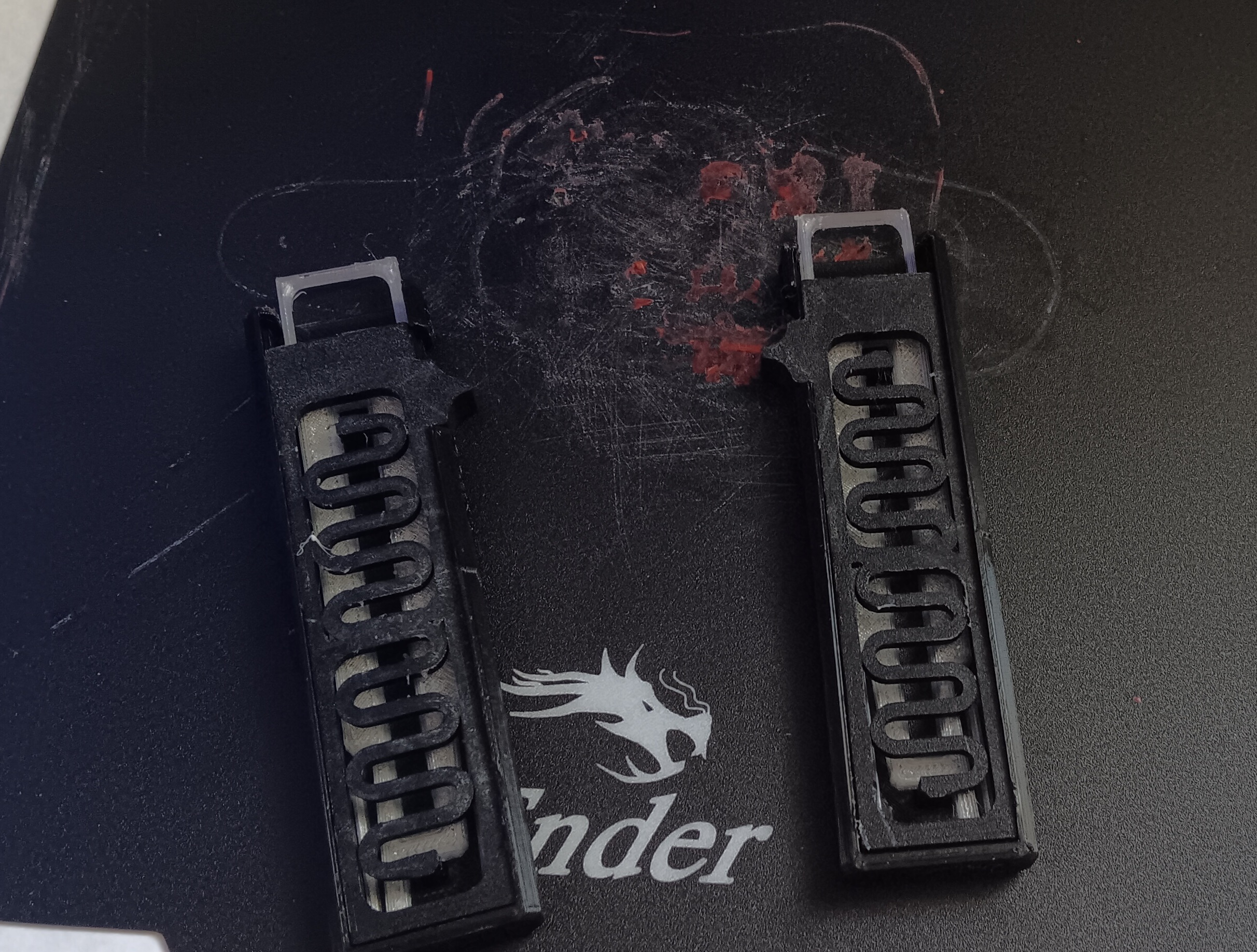

Then place the spring on top:

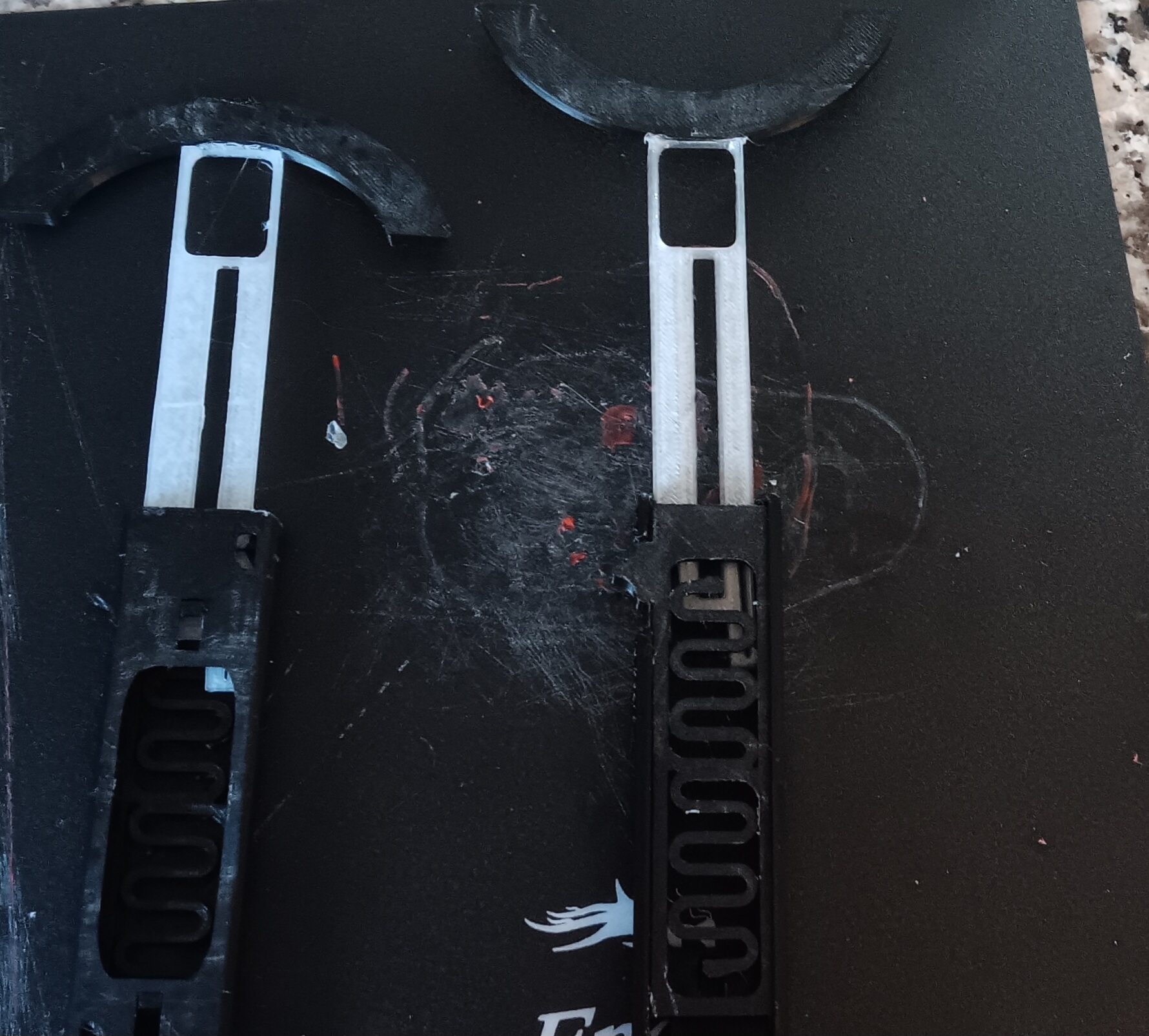

Eject the lifter and hot glue the eyebrows on, there's a slot for it to fit in:

Then take this and glue the eyes to the opposite side of the spring and glue the holder to the bottom:

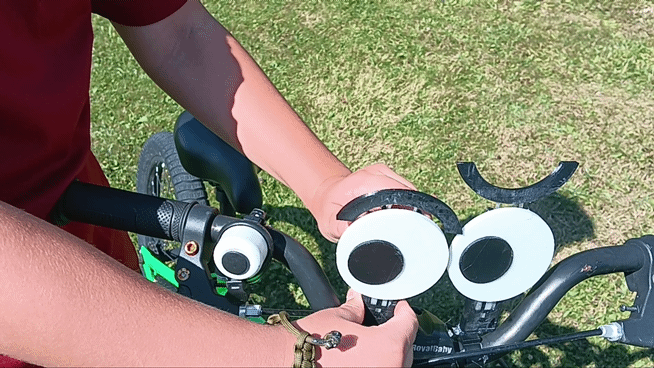

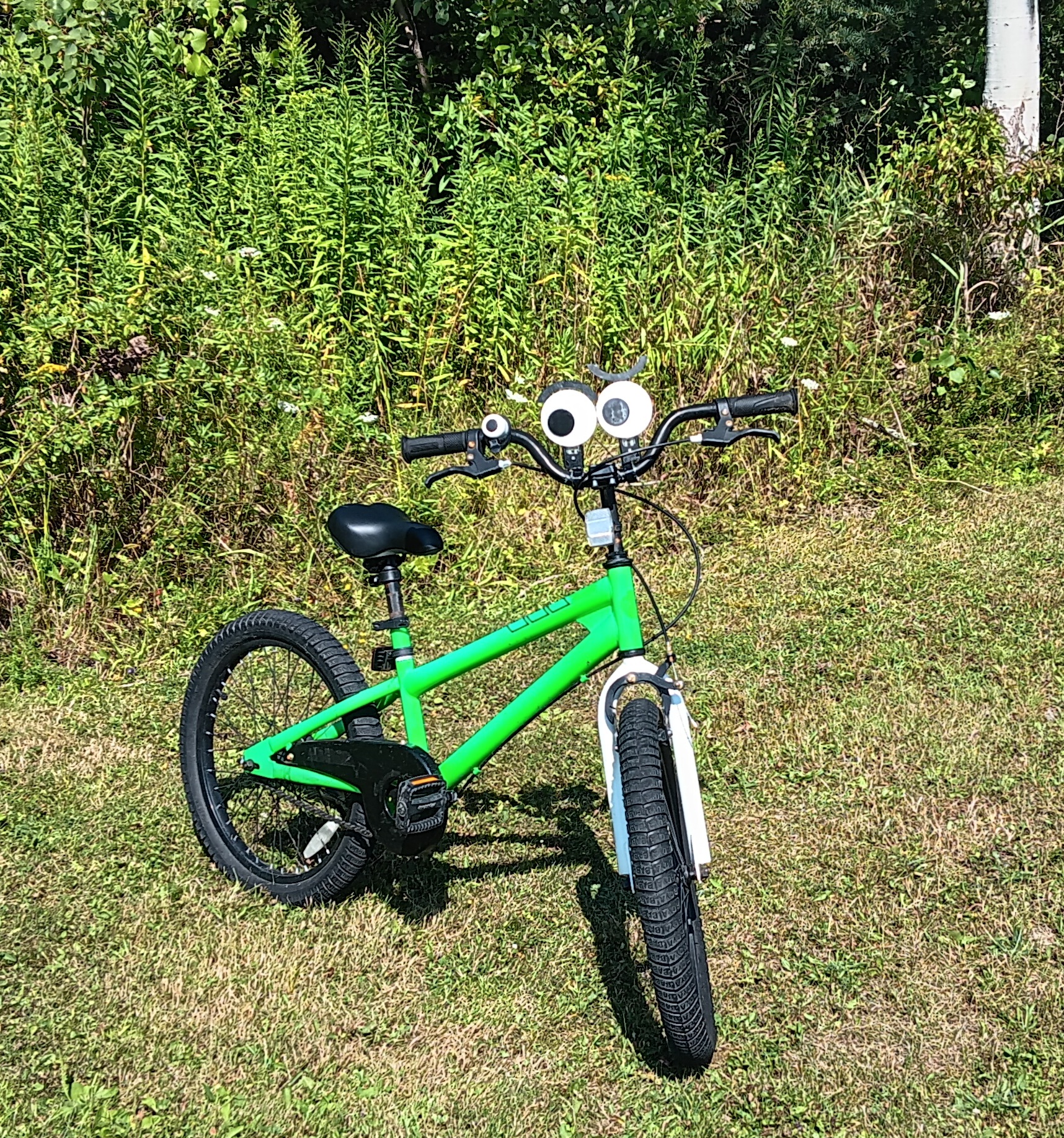

Take your model and screw it into your handlebars and you're all done!! 👍

-More

Feel free to leave a comment for a suggestion on how I can improve this model :)

If you're having issues with the color change, there are models that don't use the color change.

This model was inspired by the Hustle Brows from Rocket League.

Also, I remixed some of this model from the OTF knife because the motion of the knife would be great for the brows, so I added lots of different things to the lifter part to change it.

I took glow in the dark glue that I made and but it one the eyes only the white part through and let it dry so it will look somewhat like headlights. You could use glow in the dark filament or glow in the dark paint if you would like it.

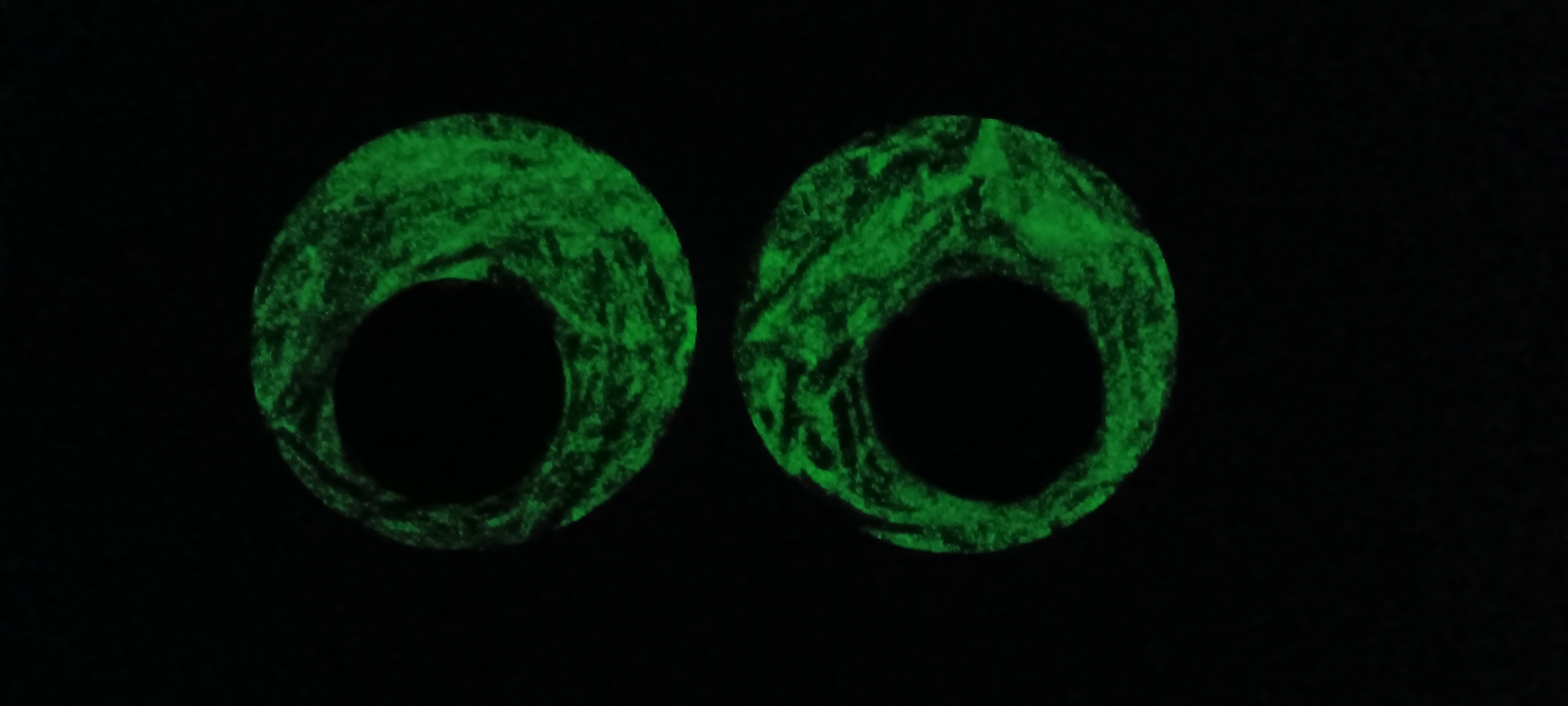

This is what it looked like for mine once I applied the glow in the dark glue
