Wall/shelf brackets designed for garage/shop with pass-throughs of various sizes for misc. items
- Rating
- 0 / 5
- Likes
- 82
- Downloads
- 235
- Makes
- 0
- Views
- 1,233
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Garage
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
UPDATE: a friend with 2x track saw rails asked if I could modify the model so as to accommodate both. He also wanted more rectangular passthroughs. I have uploaded that model as well (the second image - generated by printables)

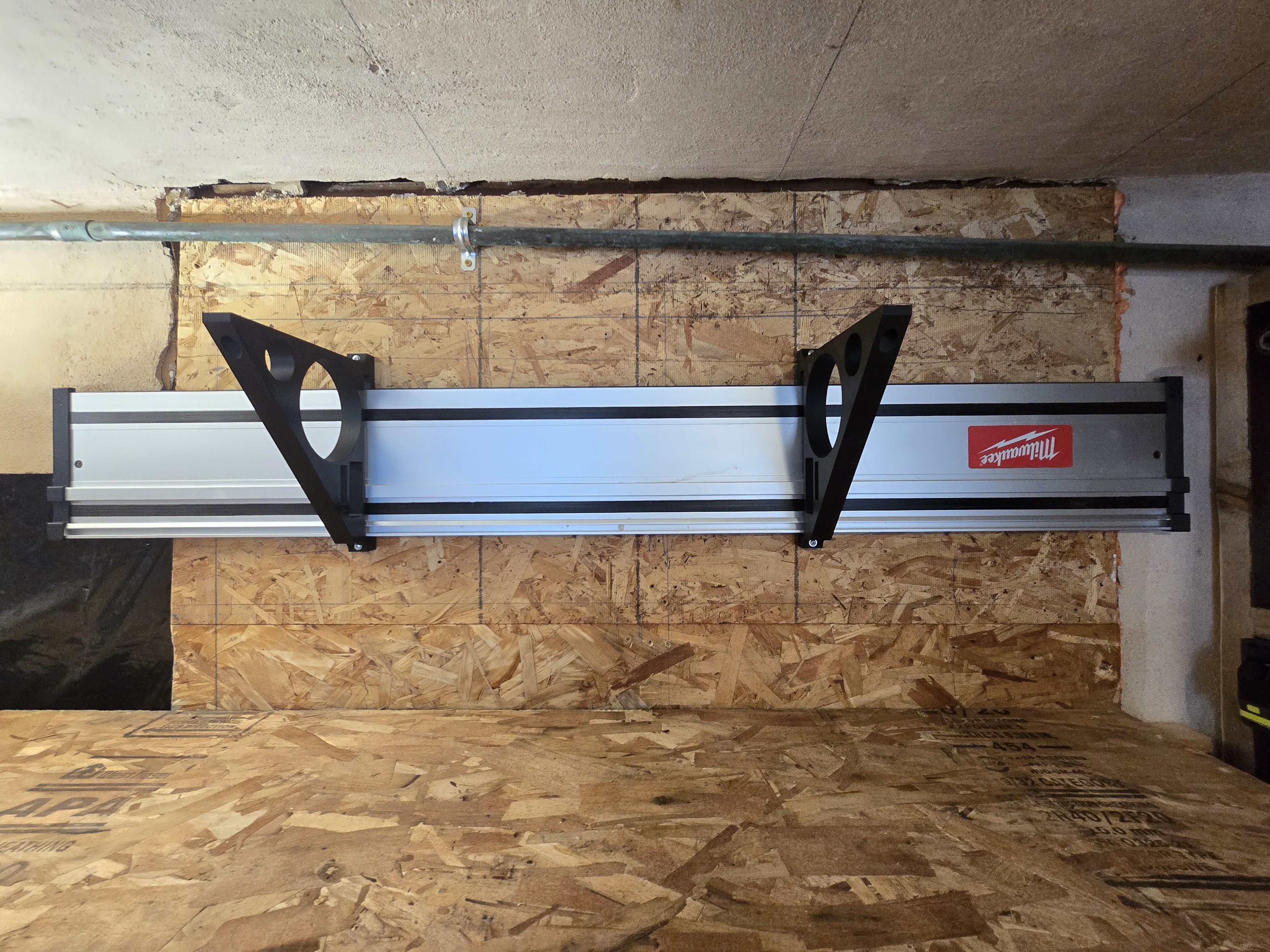

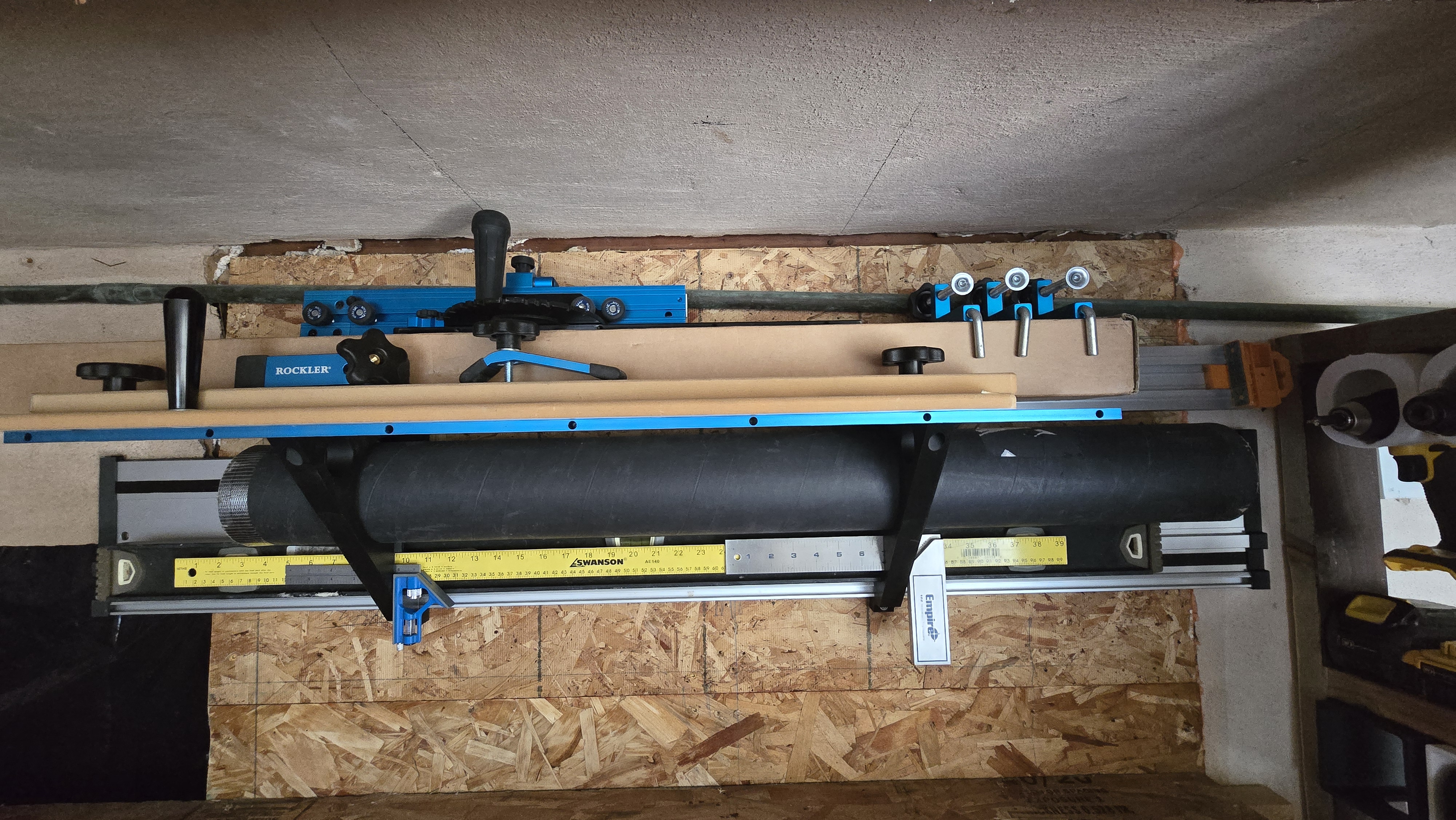

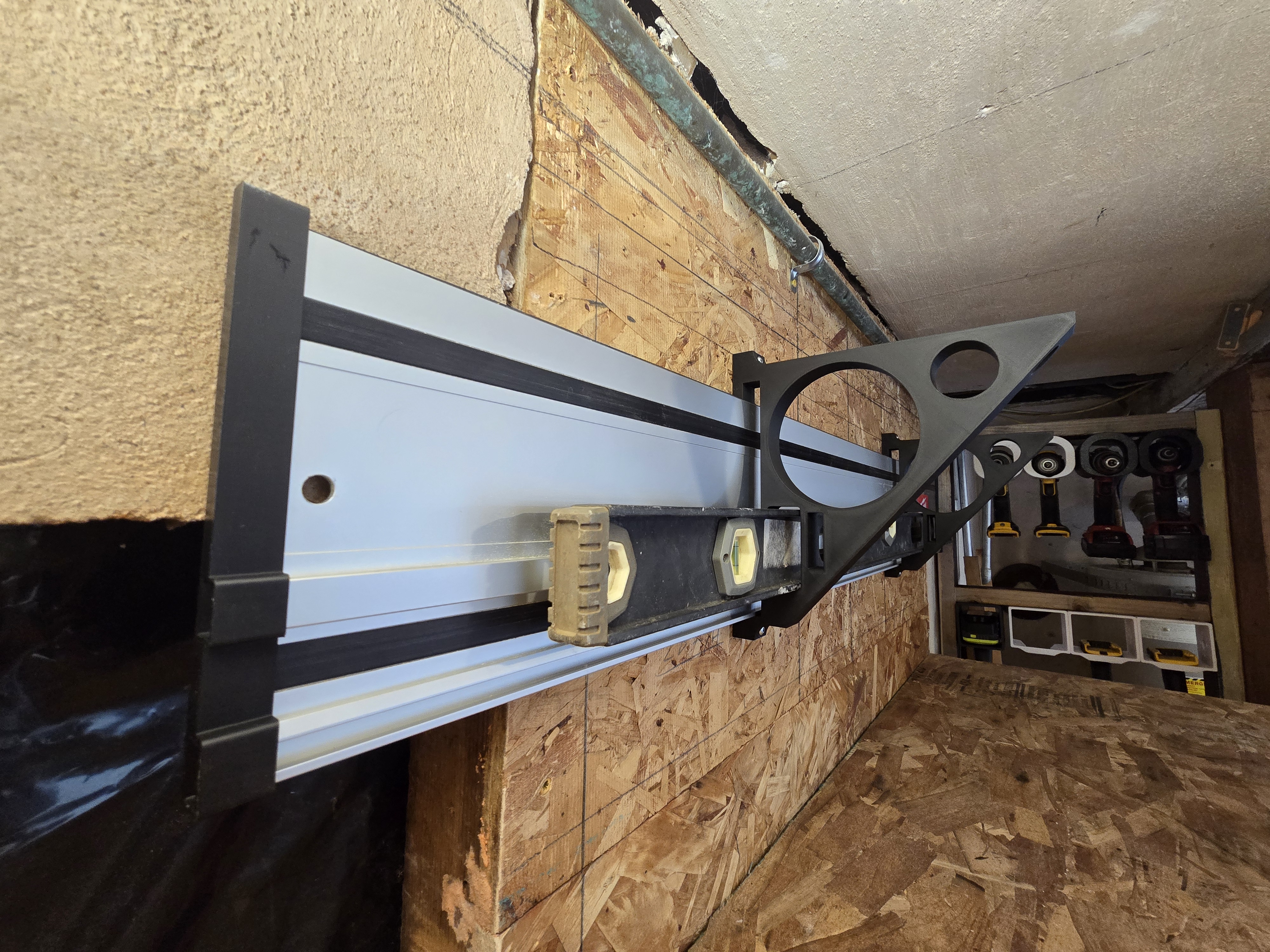

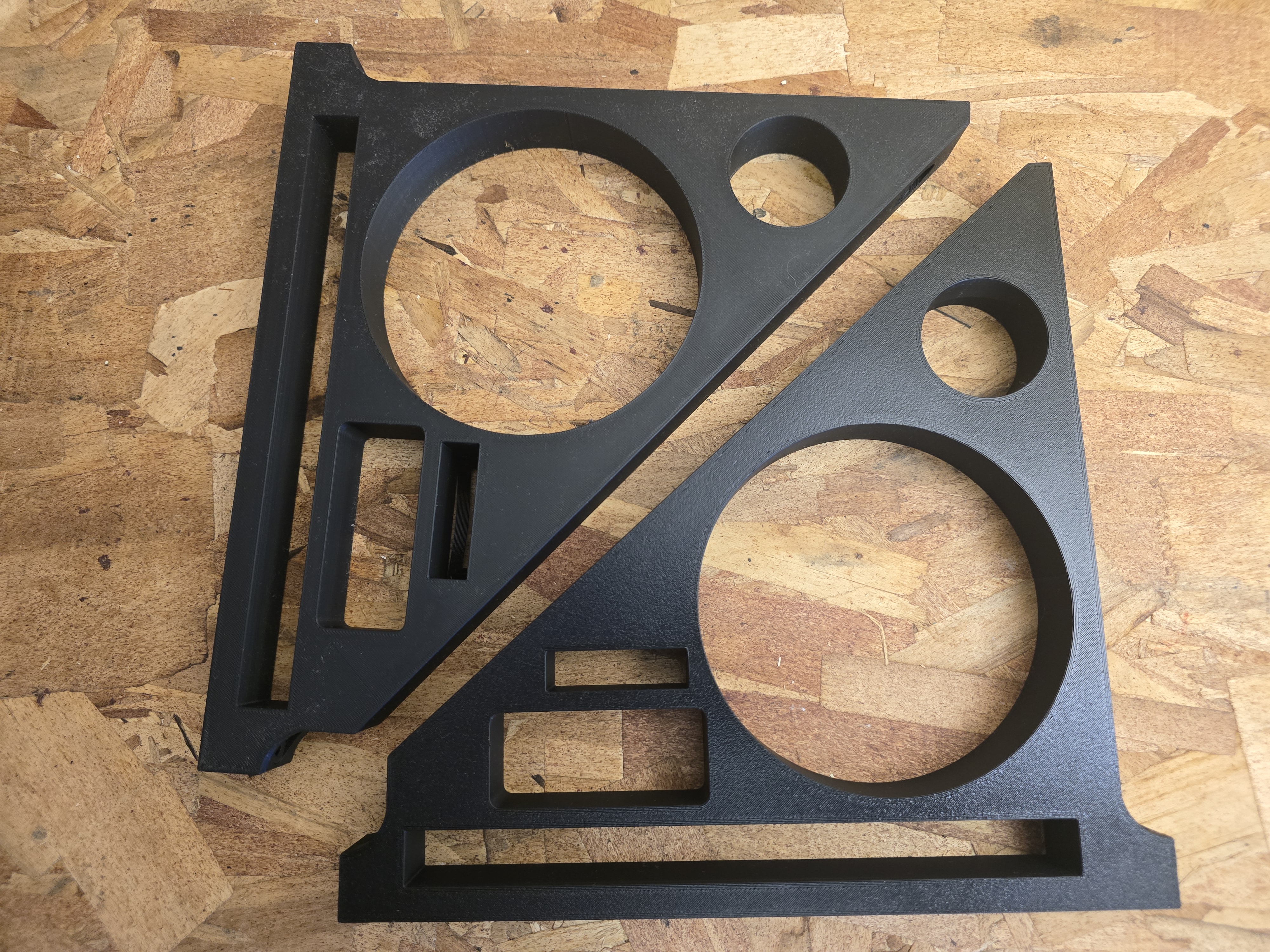

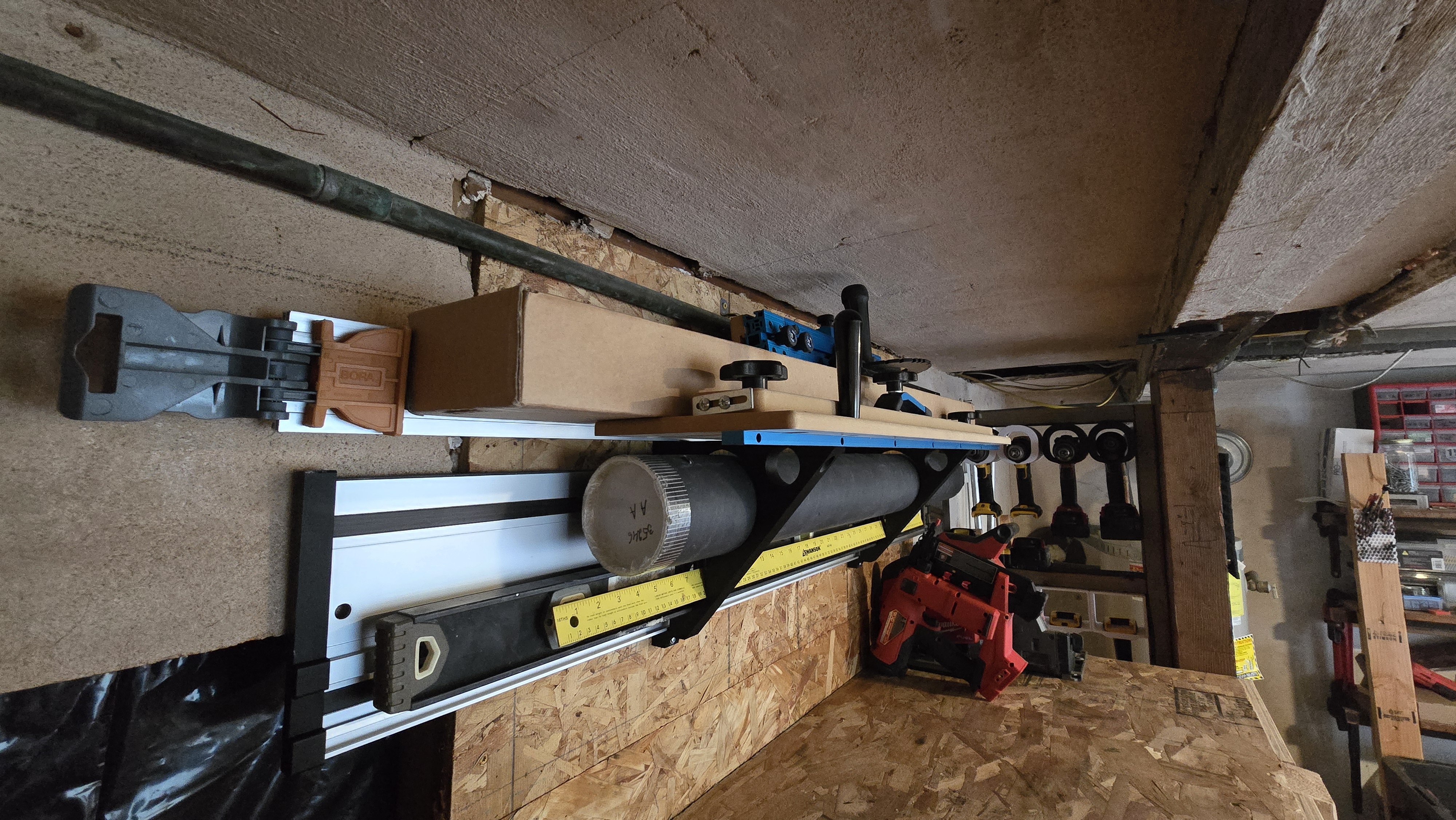

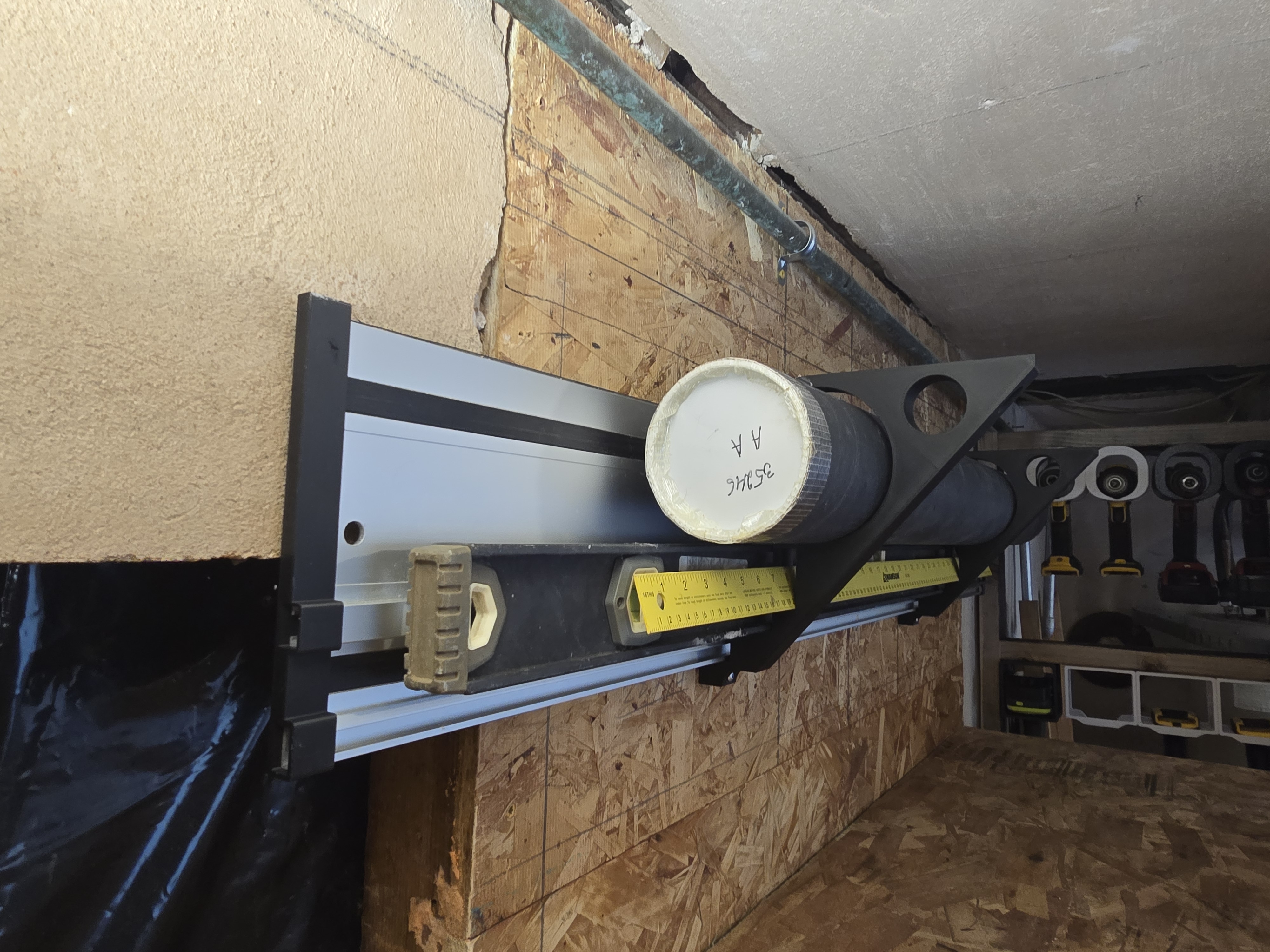

I designed these brackets as a way to store/organize the troublesome items of various sizes (looking at you track saw rail) and shapes. I added/modified the passthroughs to the uploaded model after my experience with the original not having a place for my parallel clamps.

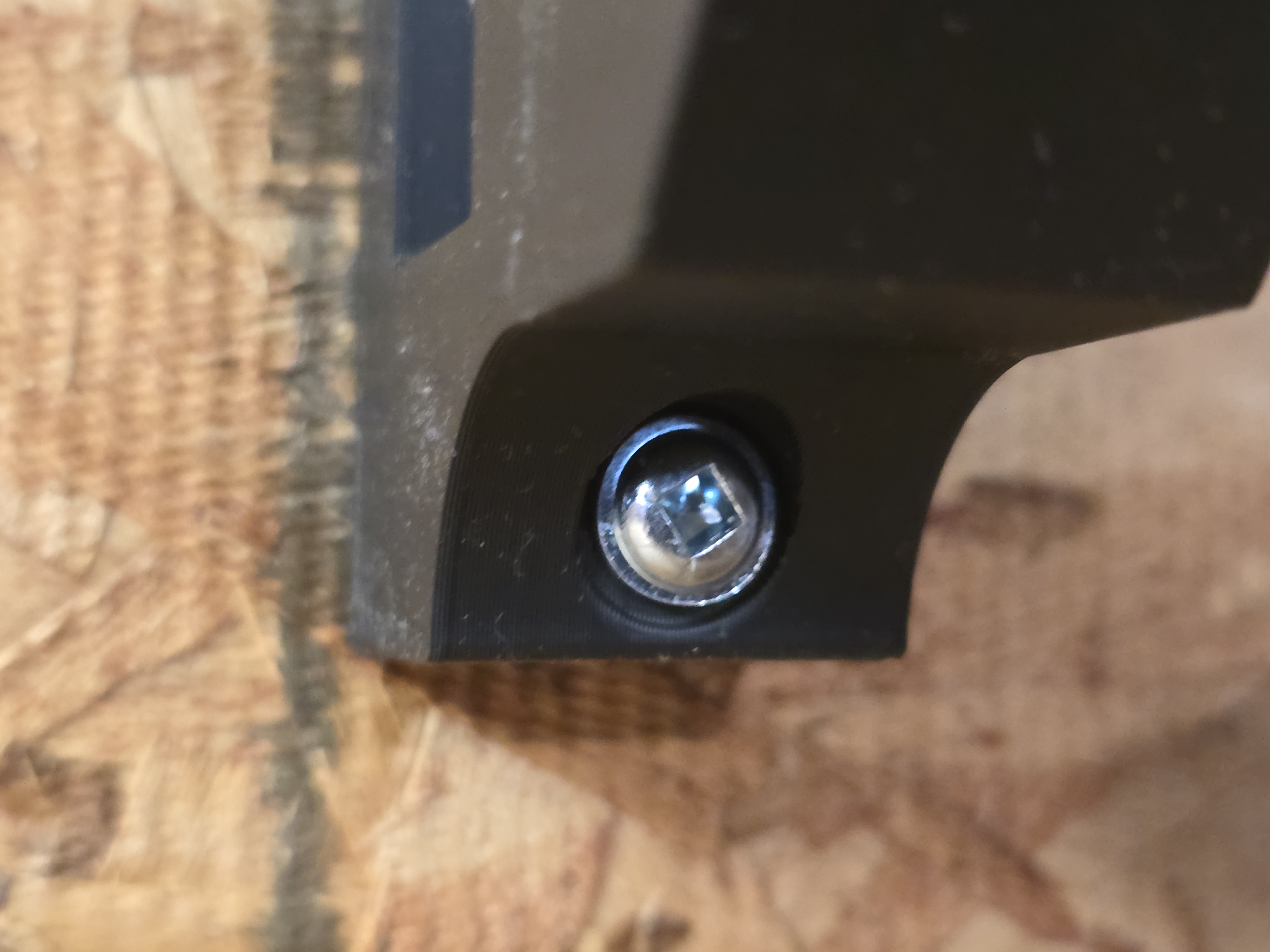

The bracket-to-wall screw holes are 20mm deep designed for a flathead screw. I used 1-½" pocket screw to mount to 19mm (¾") plywood. The shelf screw hole is 12mm deep and can accommodate both flathead and tapered screws.

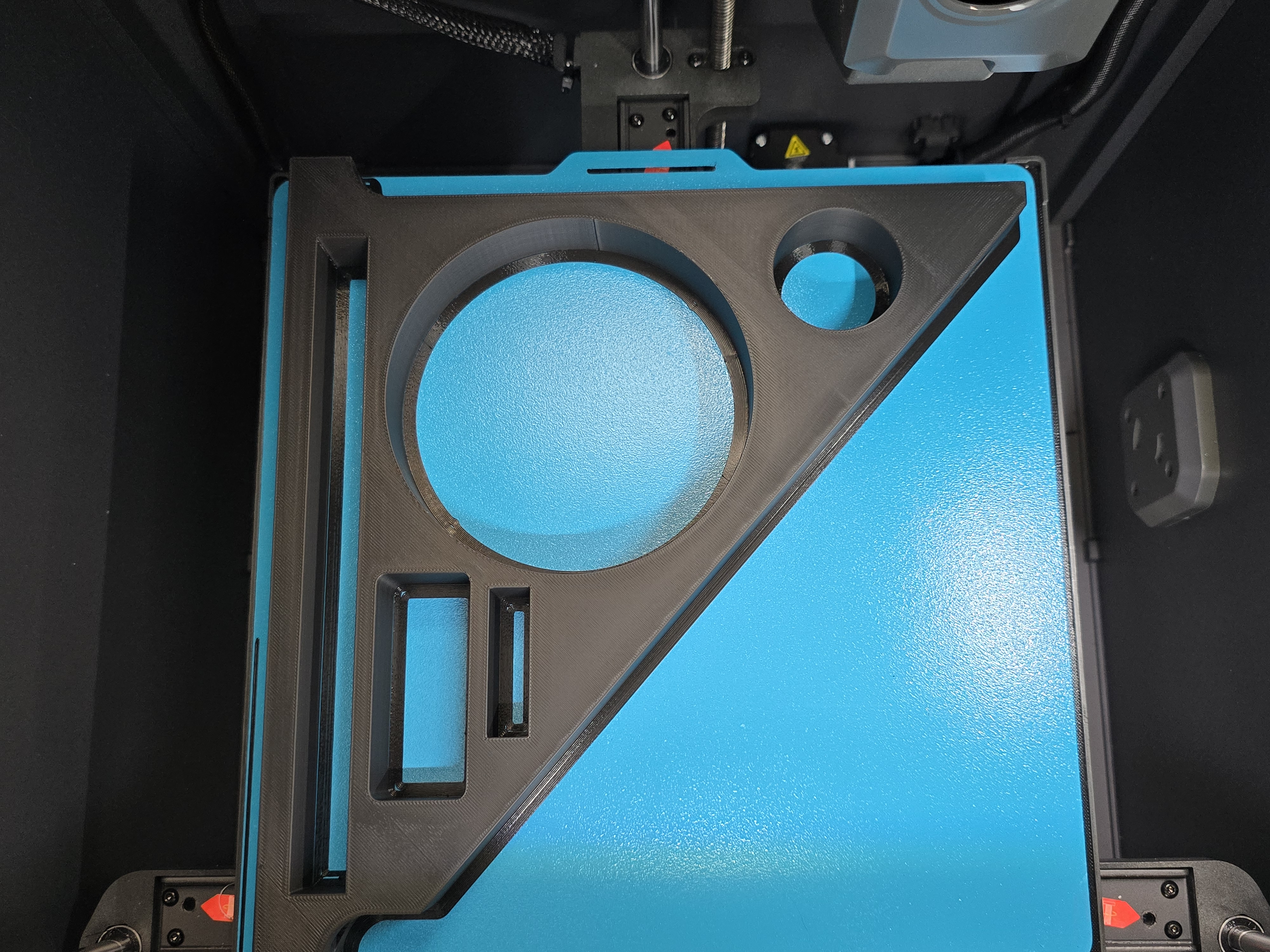

Printed in PETG-HS with 4 walls and 15% infill. Adjust to suit your use case. Cheers.
Post any pics if you use these, I am curious as to what can fit in them.
