Bike Light Mount Parameterized (with instructions)
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Outdoor Sports
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
Create Your Own Parameterized Rear Bike Light Mount
A downloadable STL is included for quick Viewing.
If you find it useful, a follow is always appreciated!

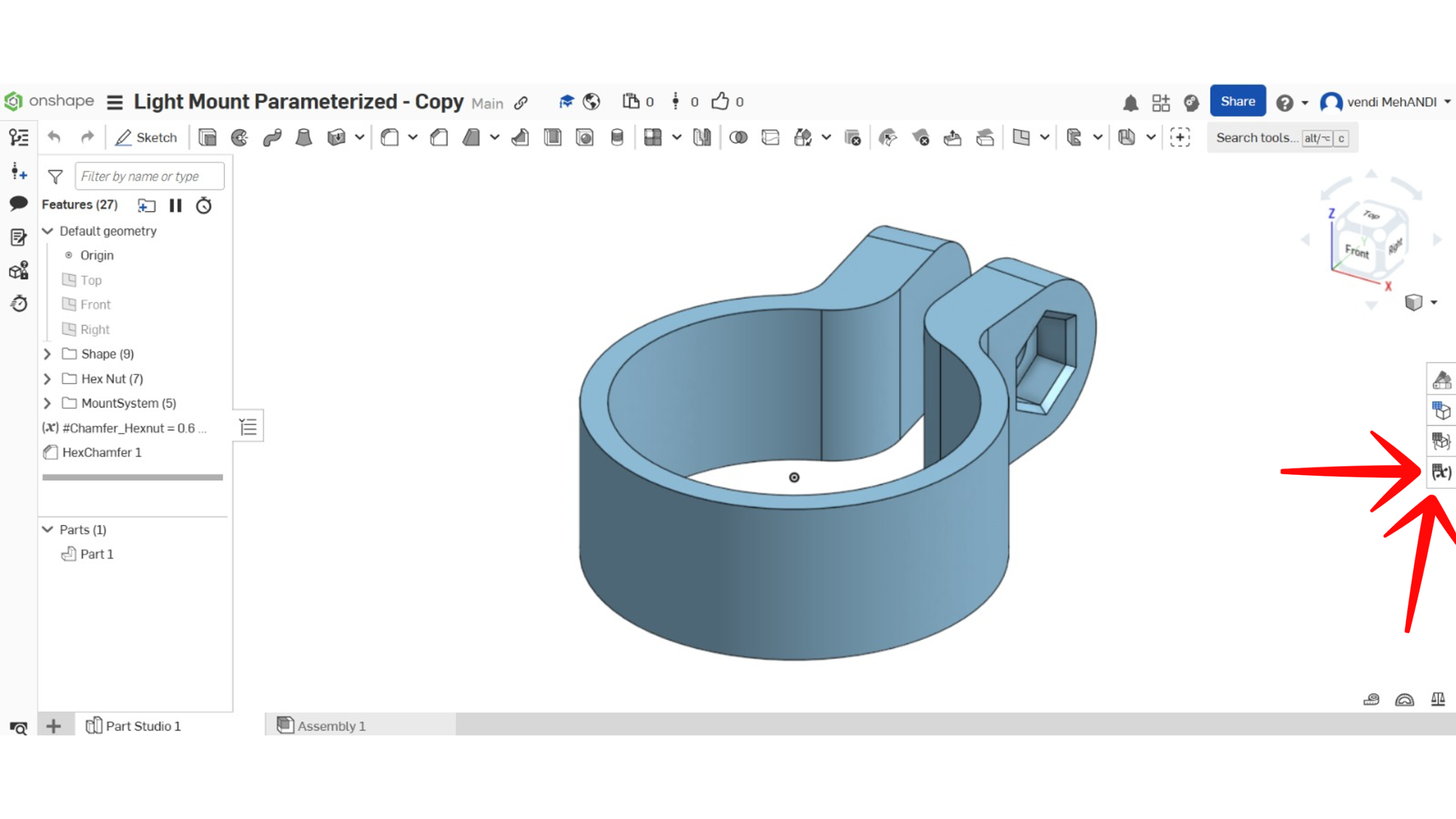

(Copy the file and customize it)Onshape Link: https://cad.onshape.com/documents/4853b9099c77abffc862865a/w/b16c7fb4ce6ac1266761d074/e/51de6f25af7fc6bbd4bb28c7?renderMode=0&leftPanel=false&rightPanel=variableTablePanel&uiState=68c6c0fccf4f2333fc3ca623
Printed Part Picture:
https://www.printables.com/model/1413951-bike-light-mount-replacement-v112
Instructions:
- 1: Create/Log in to an Onshape account.
- 2: Click “Make a Copy to Edit.”
- 3: Optinal: Rename the file
- 4: Click “Owned by me”
- 5: The “Open” button should turn blue ,click it.
- 6:You now have your own copy of the project.

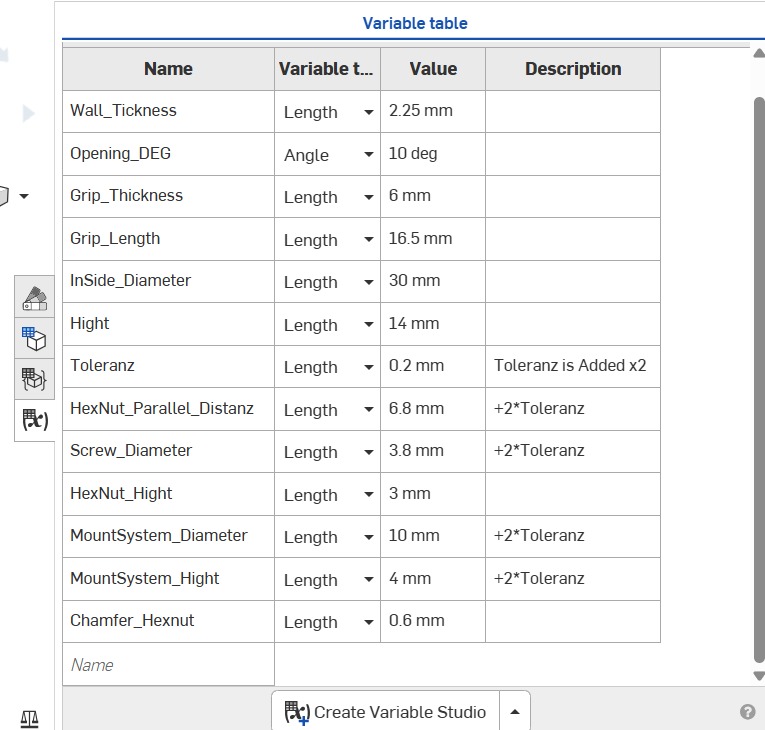

- 7:Open the “Variable Table.”
- 8: Measure your seatpost and change the values as needed.
- 9: Leave a Like and Follow if you enjoy the design.
- 10: If something doesn’t work, please report it to me
