Compact Raspberry Pi 4 Case
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- GNU General Public License v3.0
Usage

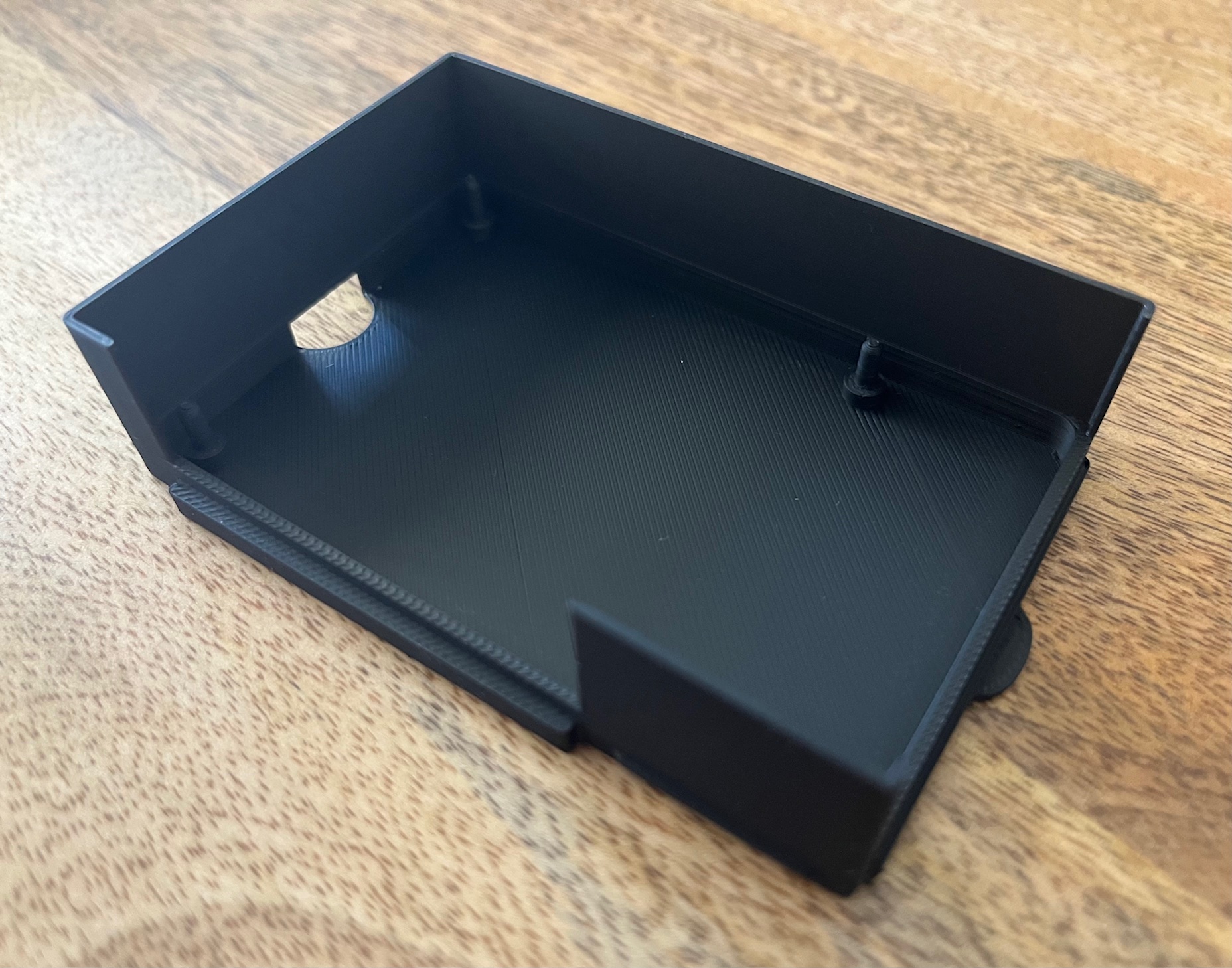

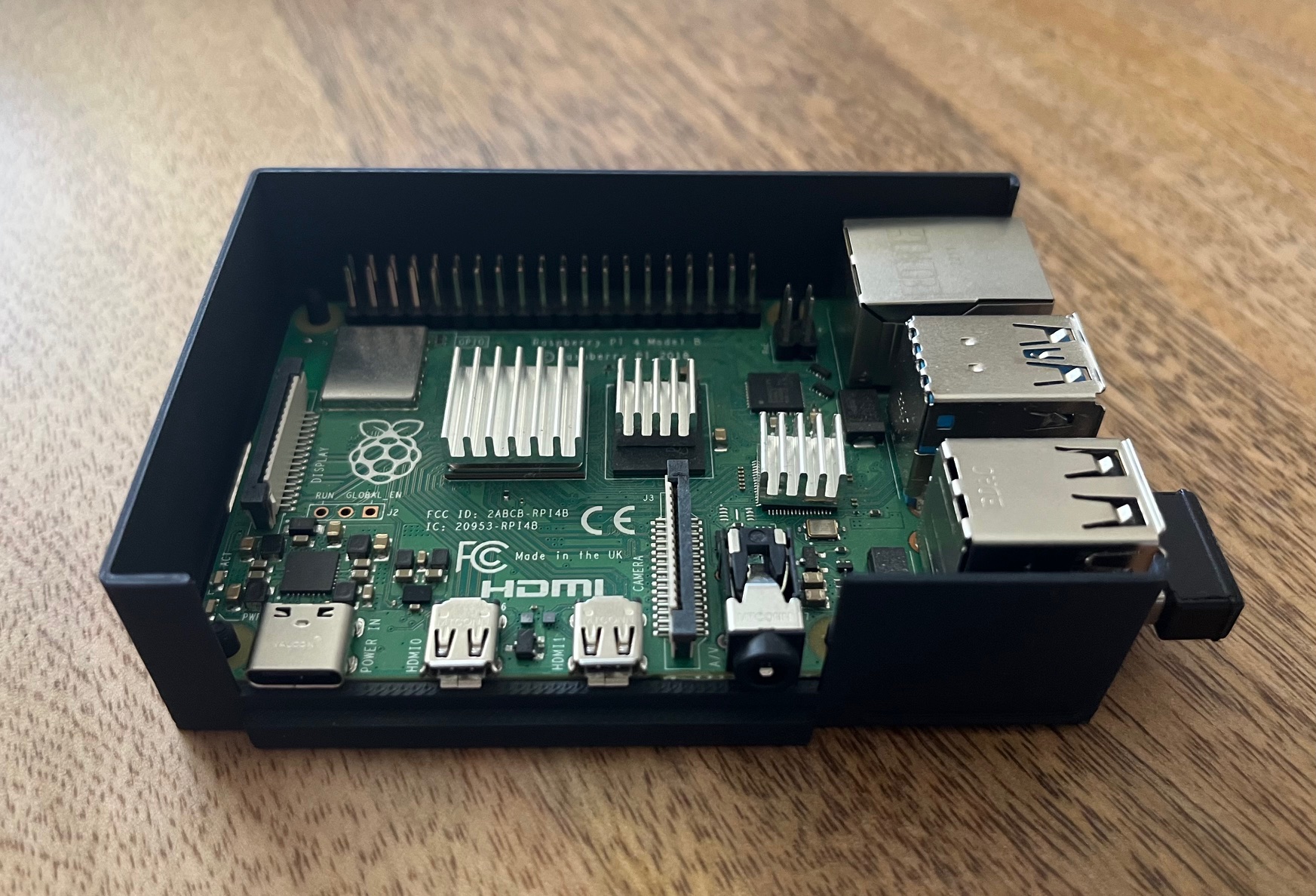

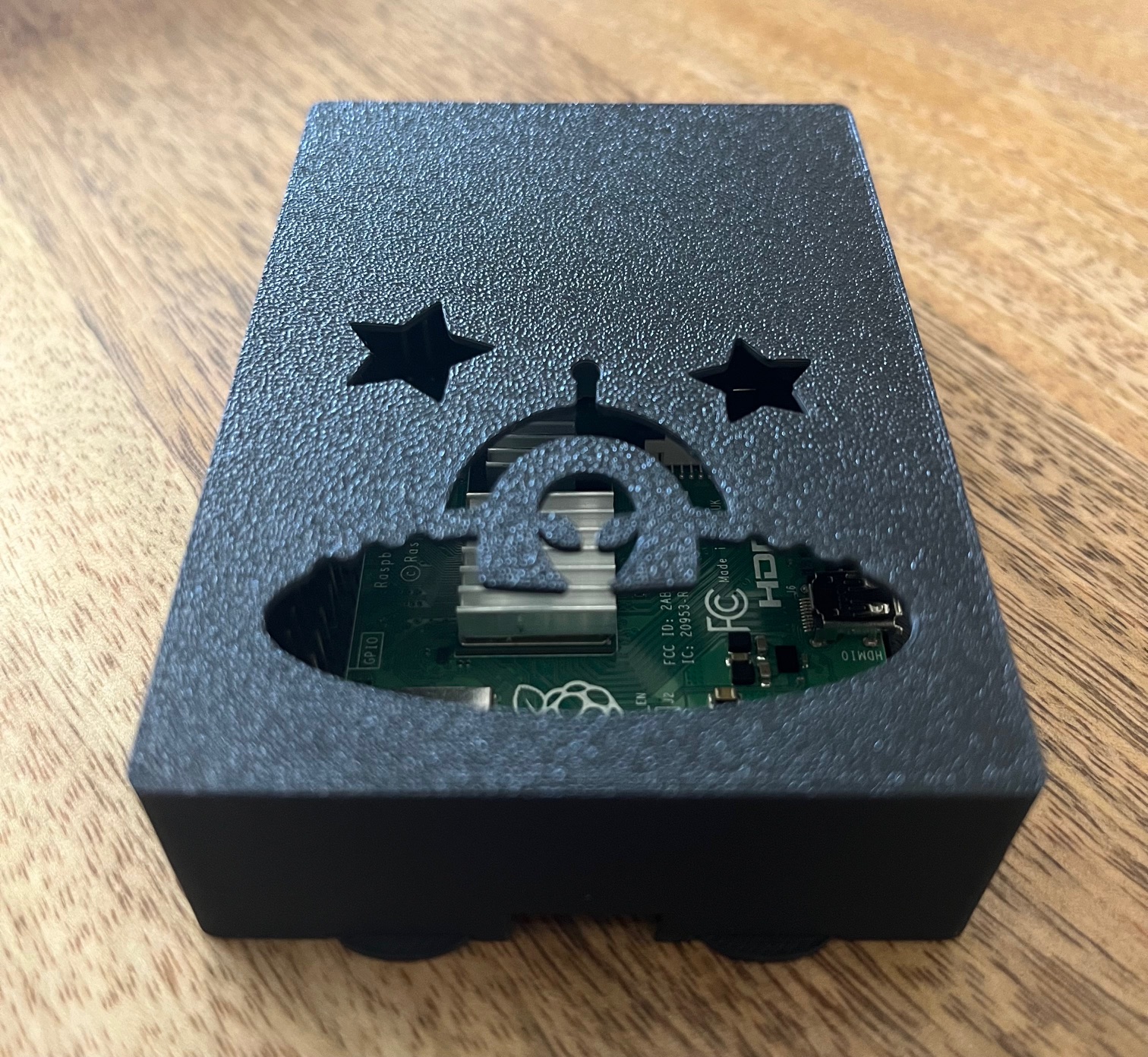

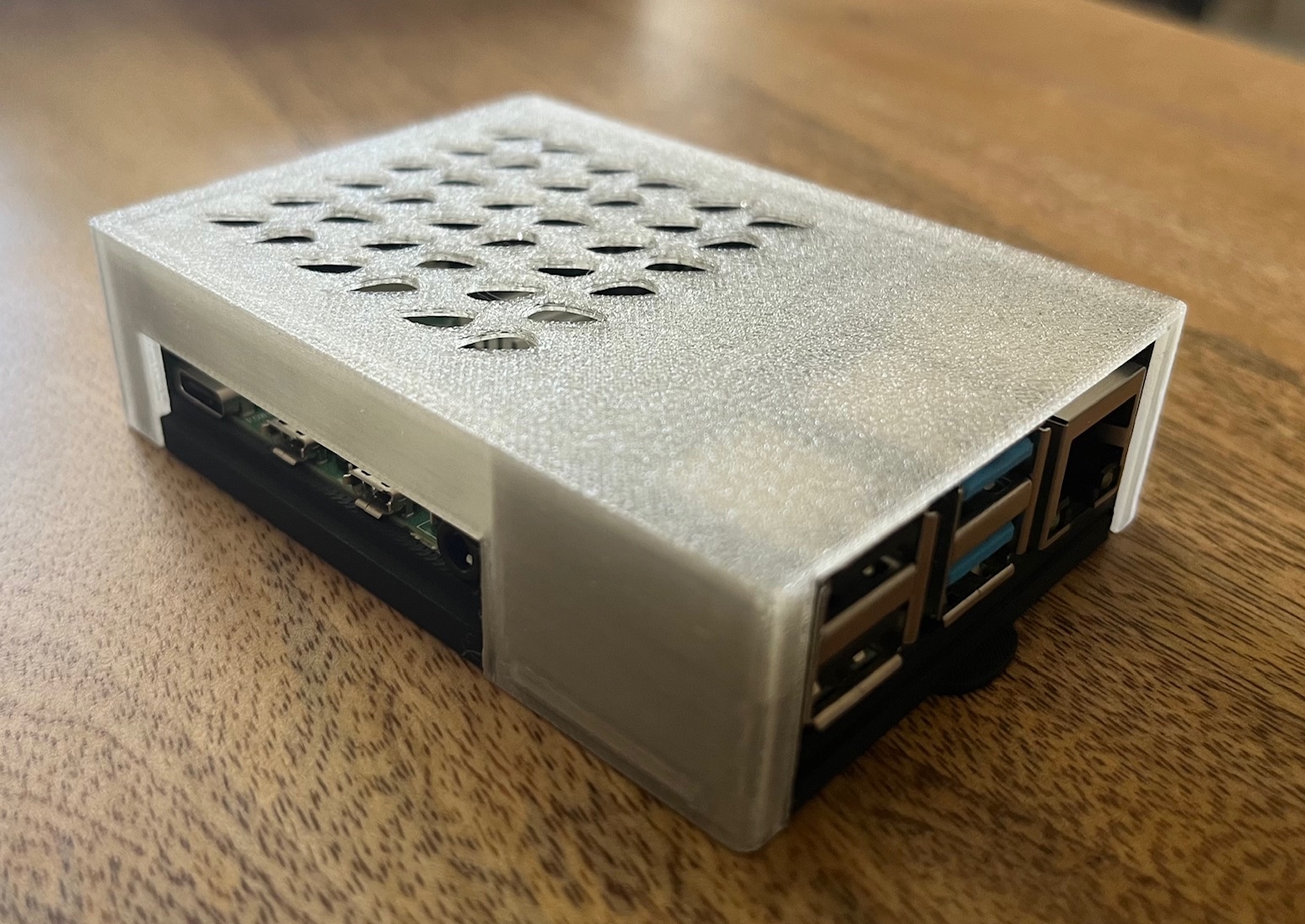

Raspberry Pi 4 drops in the base with no screws needed. The base and outer case snap together.
To more easily remove the outer case from the base, there are three tabs on the base for your thumb and fingers to hold, and with the other hand pulling the outer case off.

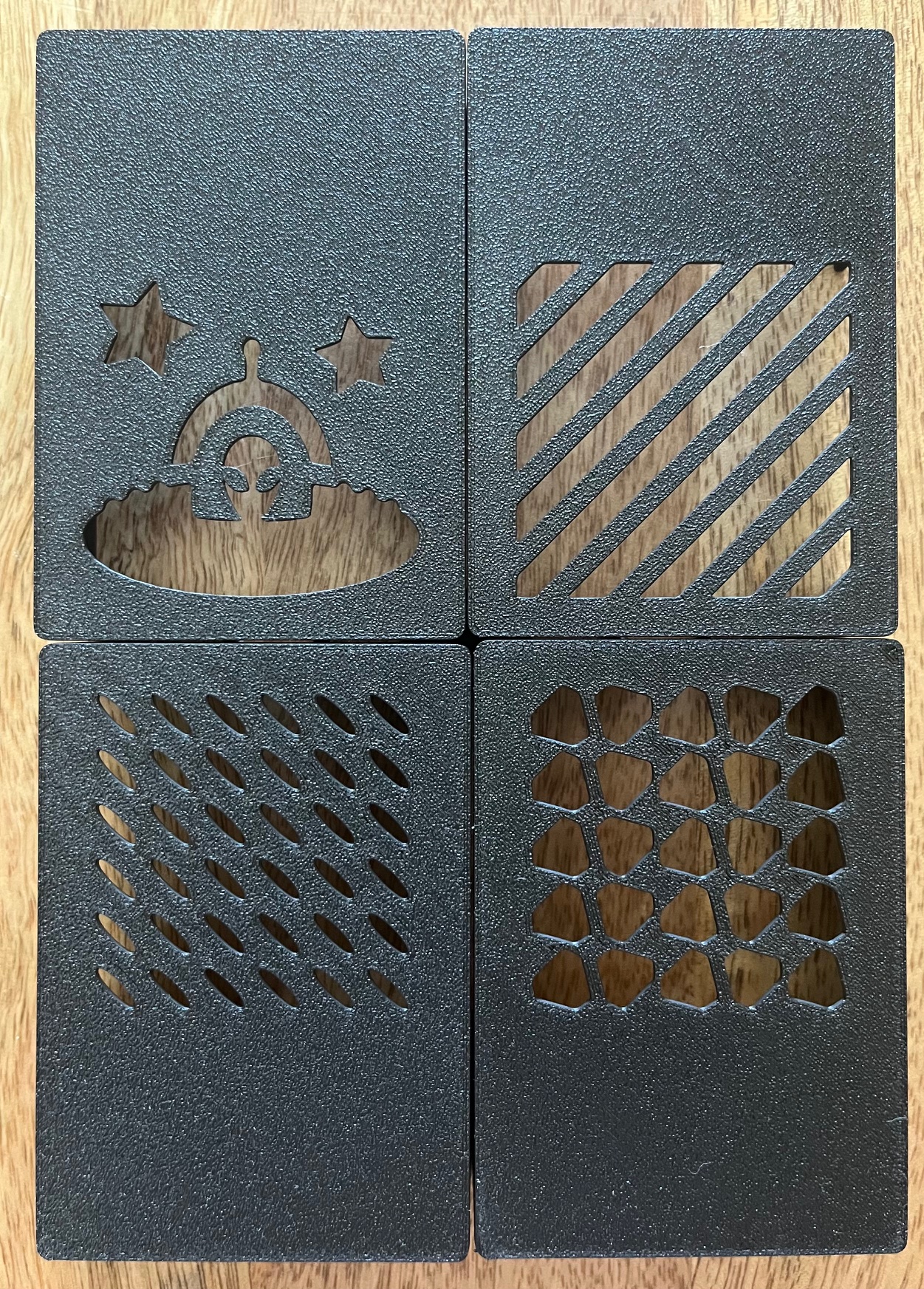

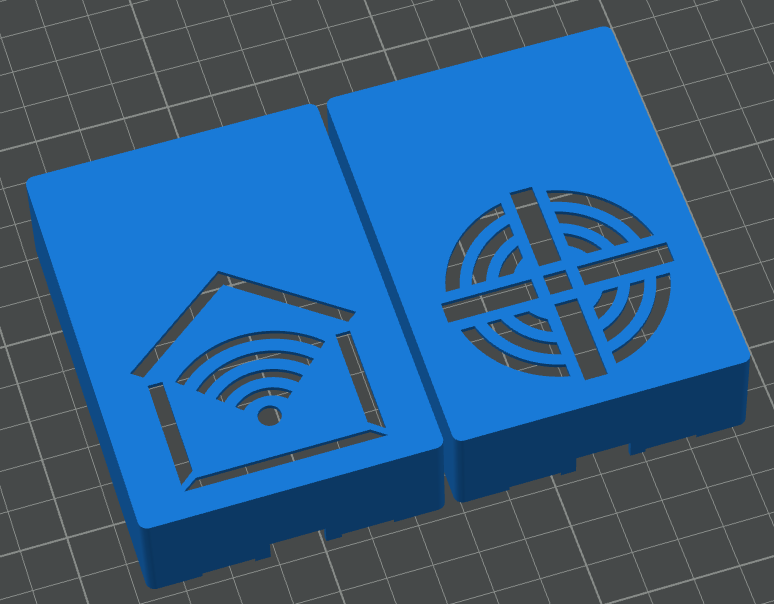

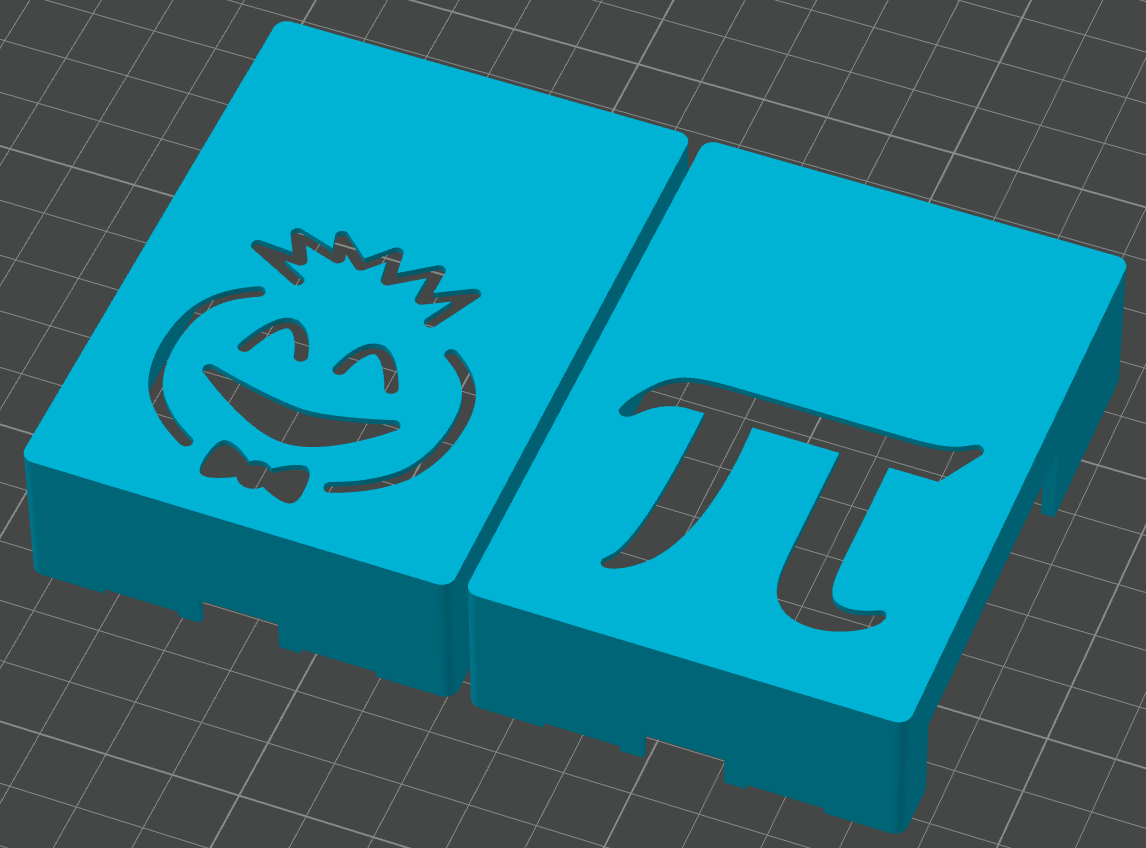

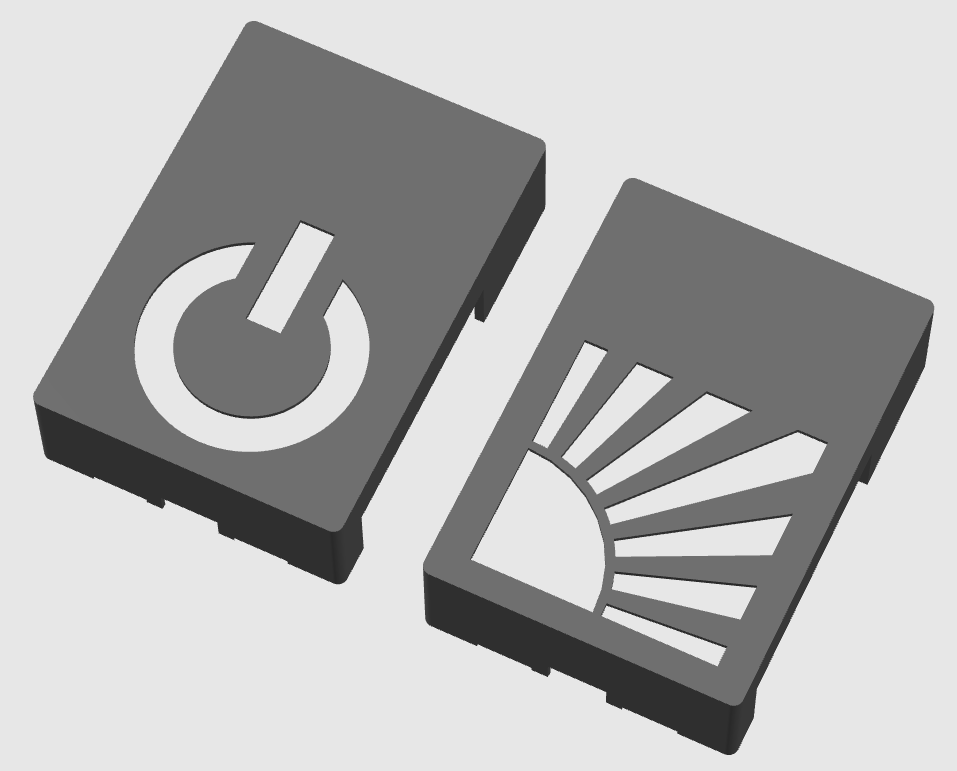

There's a few outer case models you can choose from with different vent designs.
I've also included a model with no vent, that I don't recommend for actual use. This model is included if you want to do a remix on the vent and apply our own design or pattern.
Printing Notes
Supports are needed just for the base where the memory card will be. No supports needed for the outer case. Overall, very little supports needed.
I've had success with this model using both PLA and PETG. Recommend PETG, as I suspect PLA would be more prone to warping over time from the system heat.
Thank you!
