Langstroth Beehive Frame (Deep)
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Outdoor & Garden
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
Printable beehive frames in two lengths, one that ends up at the standard 484mm long and another that ends up 492mm that fit better in the hive box I have. ( Knockoff flow hive )
Built originally for plastic inserts but I added optional side pieces that have two hole sizes if you would like to try adding wire and wax. I don't think the frame would be able to handle the stress from the wire without snapping the bottom joiner piece though so print at own risk.

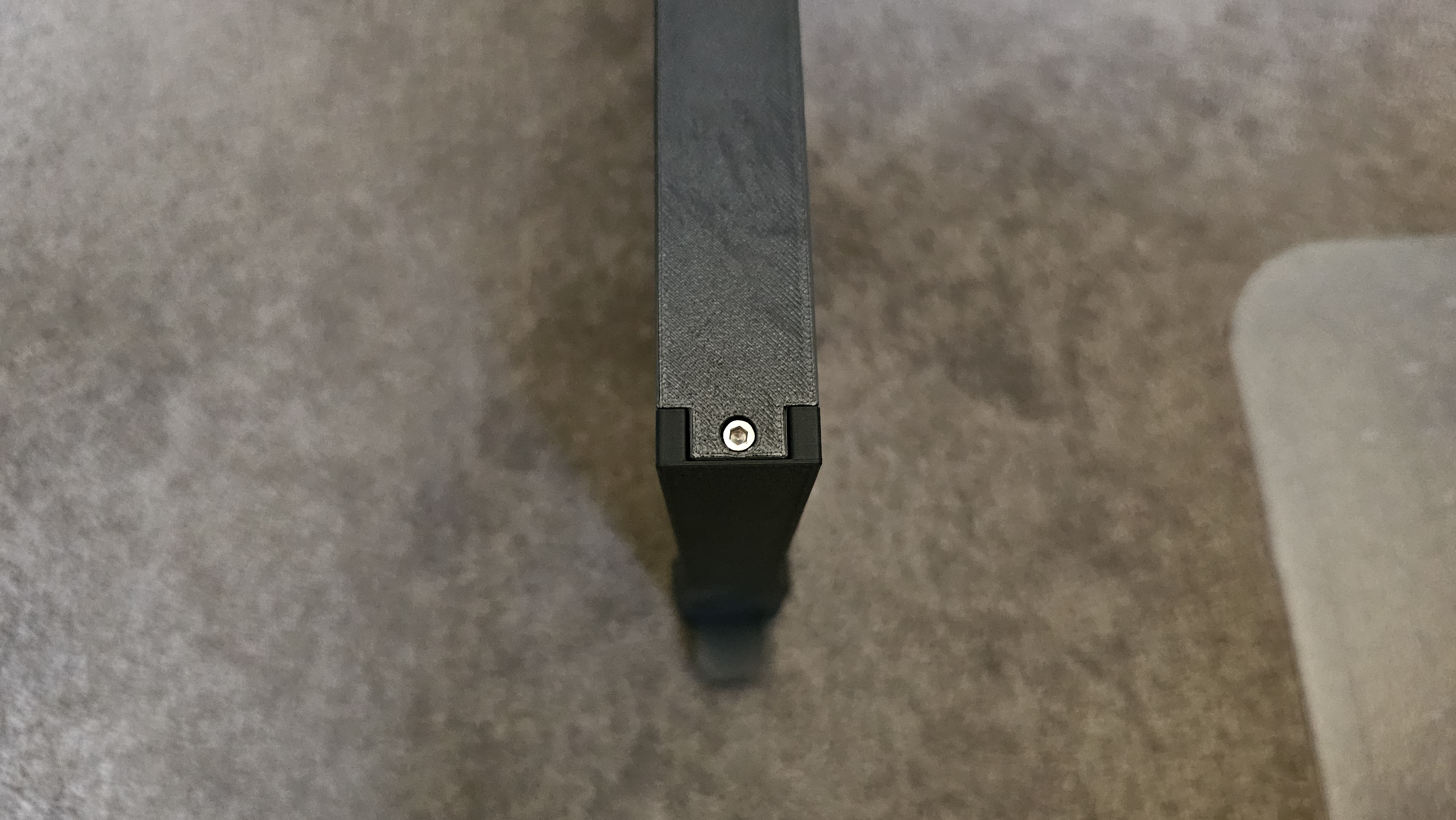

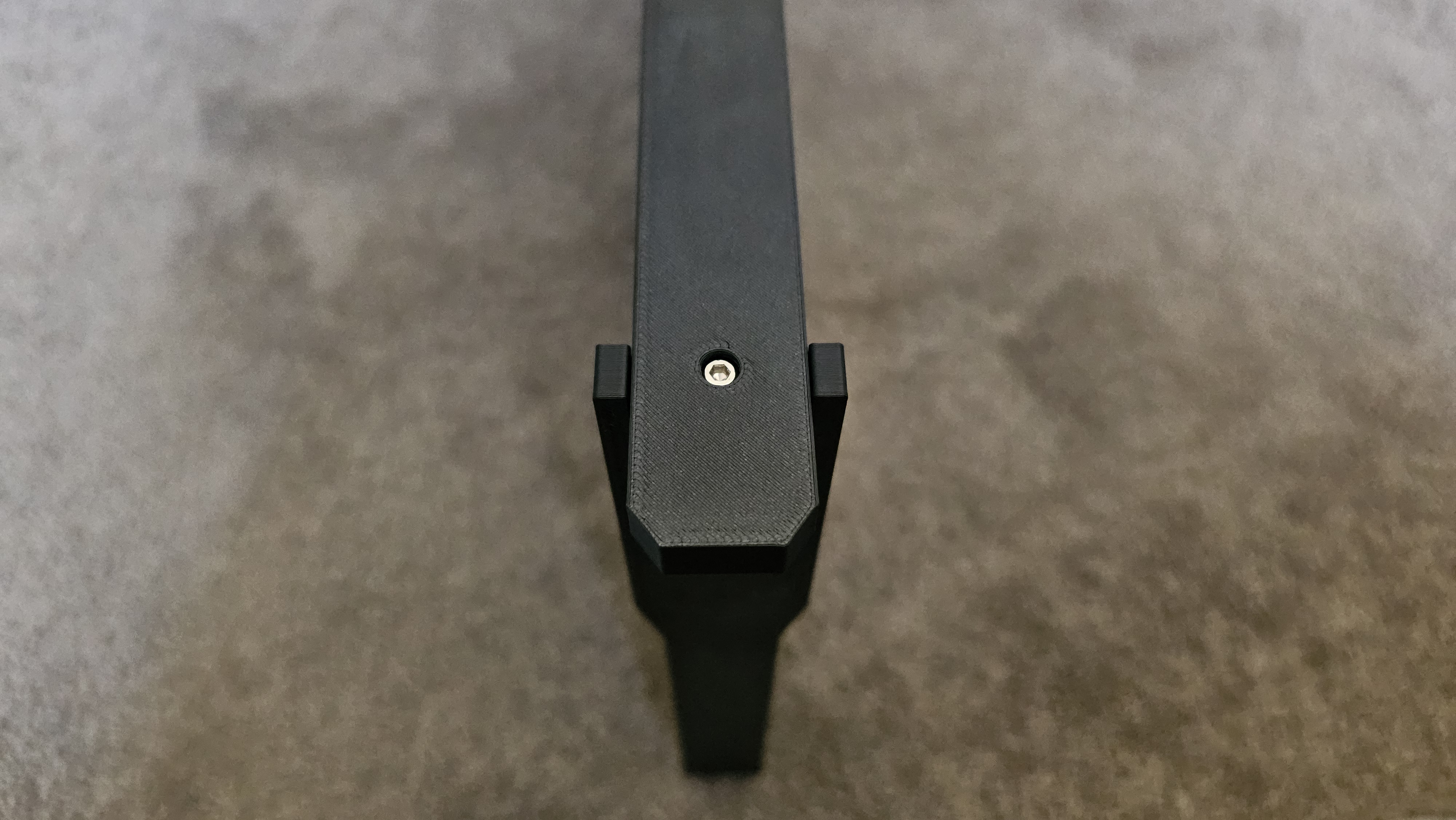

You also need four M3 bolts 20mm long to screw the frame together along with superglue for the joiner pieces. You will need support inside the frame joining cavities.
DO NOT PRINT IN ABS! ABS IS TOXIC TO BEES. ONLY PRINT IN FOOD SAFE FILAMENT LIKE PET AND PLA.
Added a starter strip that was edited to fit this frame. Remixed from https://www.printables.com/model/141587-both-sides-beehive-starter-strips-50mm/files
This frame design with a plastic insert full of honey next to an injection molded plastic frame. Bees seemed to like using the printed frame over the other.
