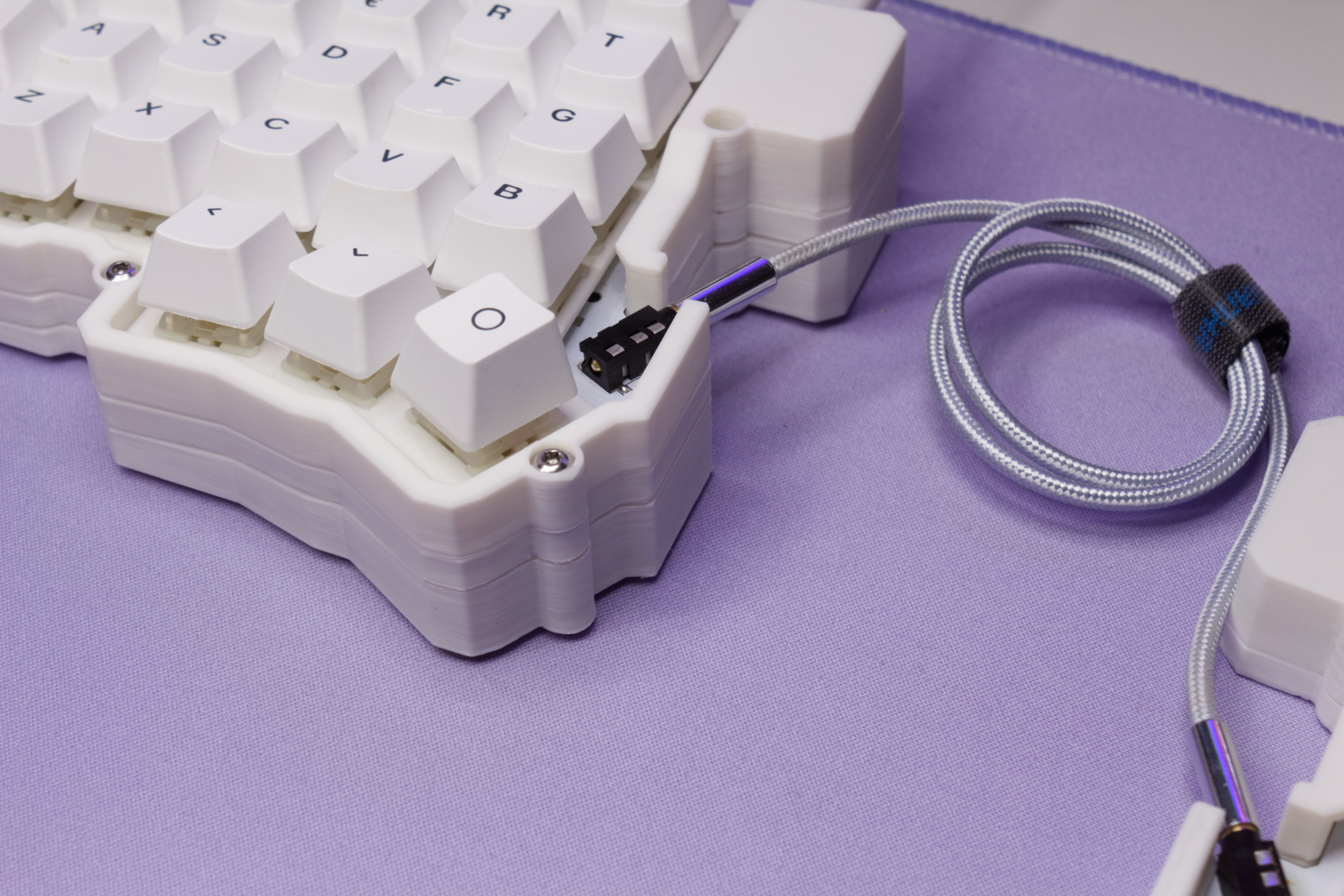

Slim case for the silakka54 split keyboard
- Rating
- 5 / 5
- Likes
- 13
- Downloads
- 128
- Makes
- 1
- Views
- 1,669
- Reviews
- 1
Updated at source:
Model information
- Source
- Printables
- Category
- Computers
- License
- GNU General Public License v3.0
The case should be compatible with the original silakka54 and the wired SMD versions sold in Aliexpress. The case does not use PCB mounting holes. Heat set inserts goes into the base.
If you want to adjust the angle of the keyboard, you can print the tenting platforms under the case.
This is not compatible with “wireless silakka54” keyboard
BOM
12x 12mm M3 Bolt
12x M3 Heat set insert (Length 3mm, OD 4.2mm)
8x Rubber feet TODO: take better pictures
Printing instructions

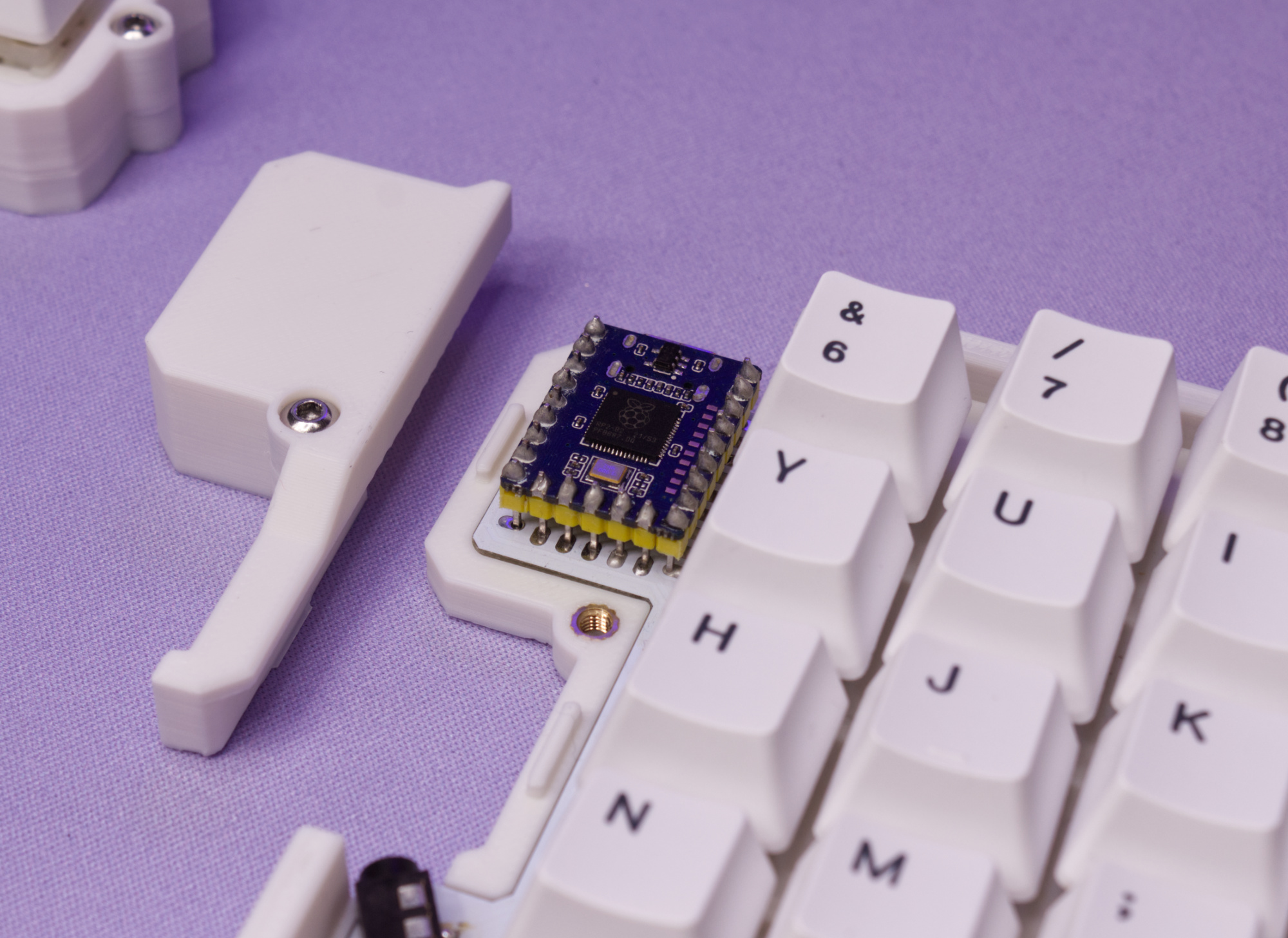

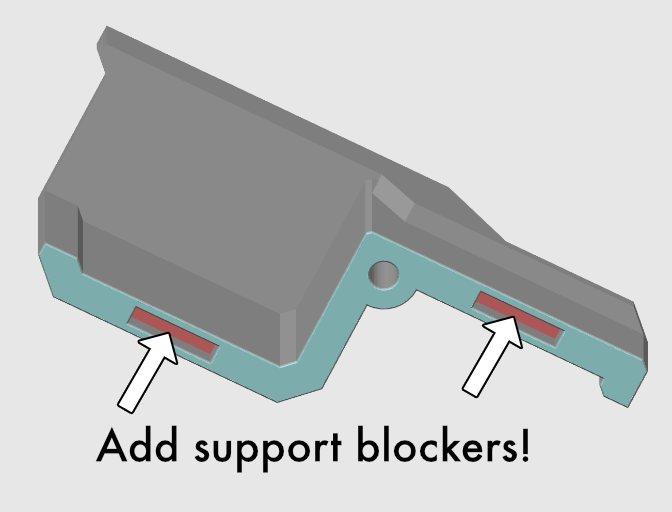

PLA should work just fine, and only the MCU covers requires support. If you bought silakka54 from Aliexpress, you may need to print taller version of the MCU cover!
For Aliexpress silakka54 V1.3, I recommend to print this version
