Multiboard multipoint rail peg
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Simple peg that is designed to fit Multiboard multipoint rails https://beta.multiboard.io/multipoint-rails
- Rating
- 0 / 5
- Likes
- 2
- Downloads
- 15
- Makes
- 0
- Views
- 191
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Organizers
- License
- Creative Commons — Attribution — Noncommercial

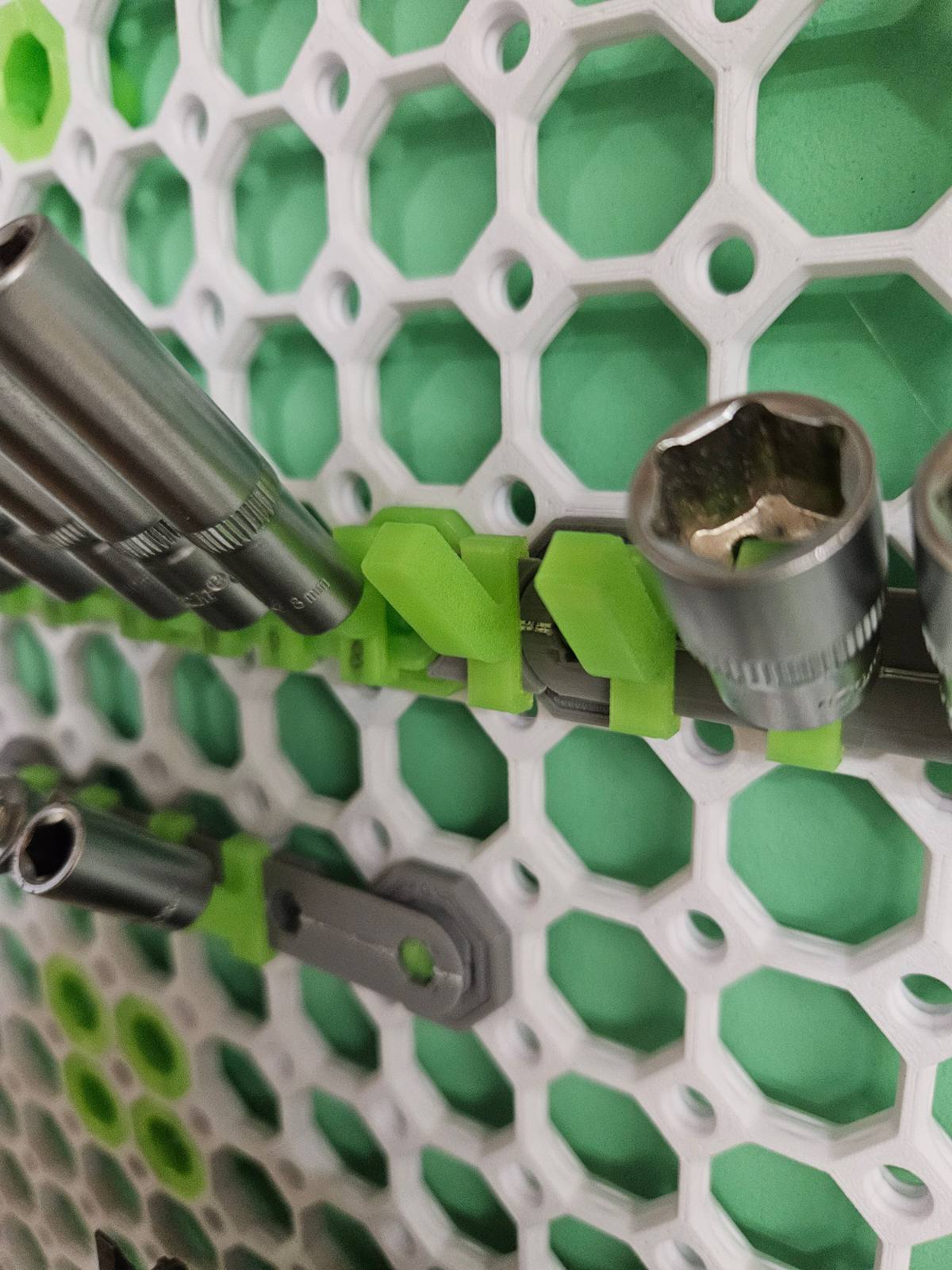

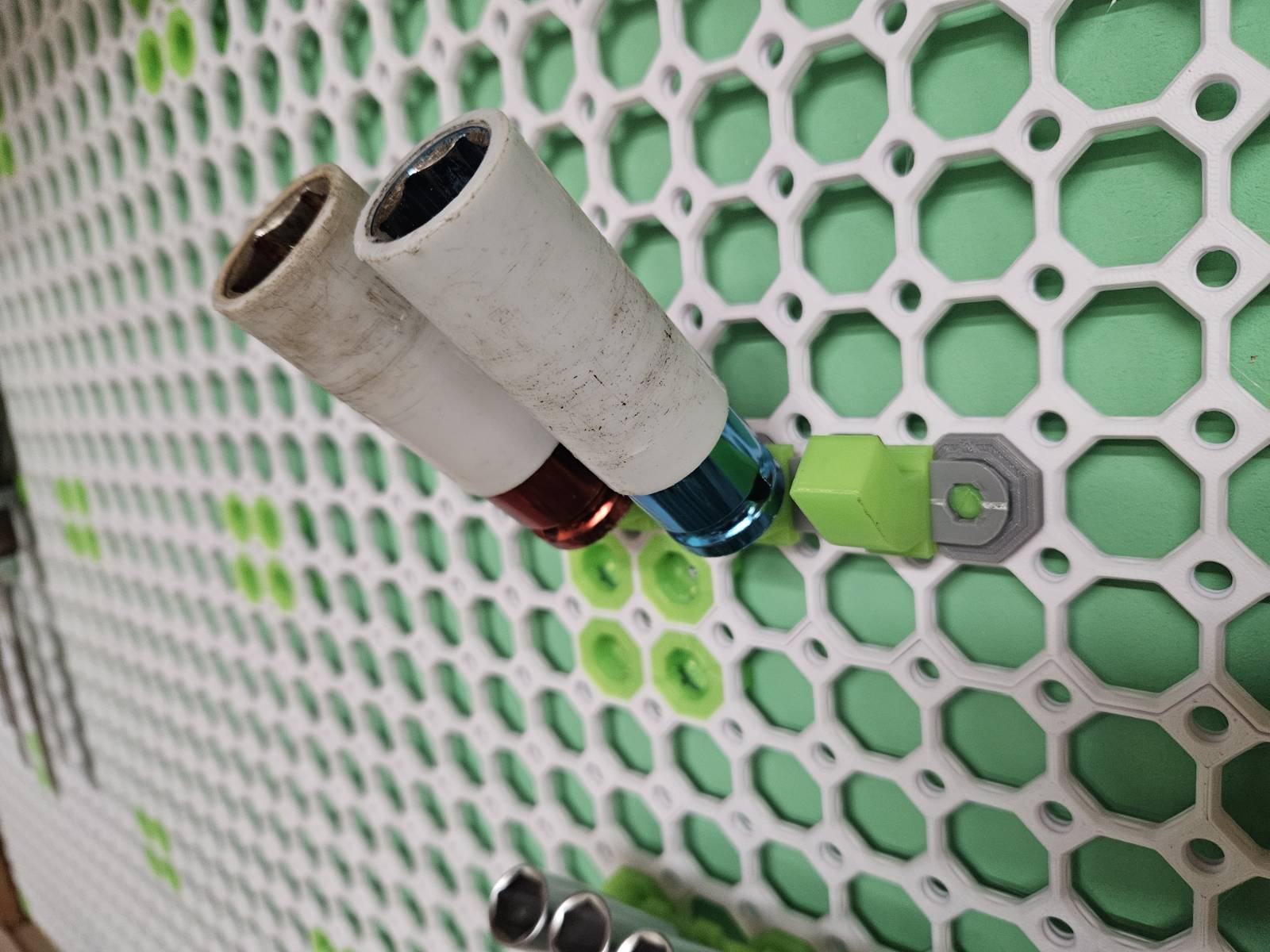

I wanted a efficient way to store my sockets on my Multiboard wall, so I designed a simple customizable peg for Multipoint rails

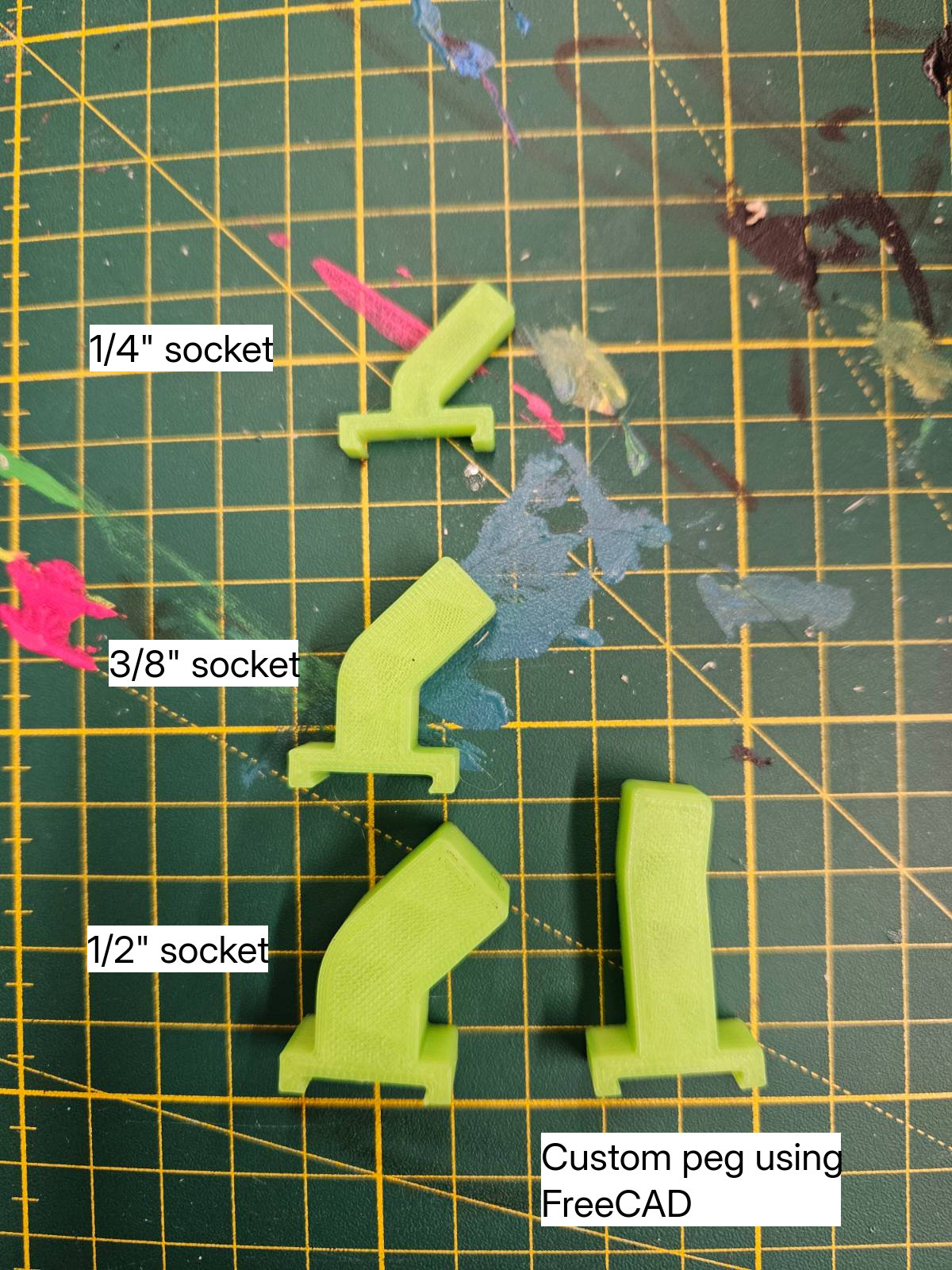

There are files ready for ½", 3/8", and ¼" inch sockets, but the provided FreeCAD file can be used to create customized peg for example wrenches or any other object that has hole or a loop to hang the item on.

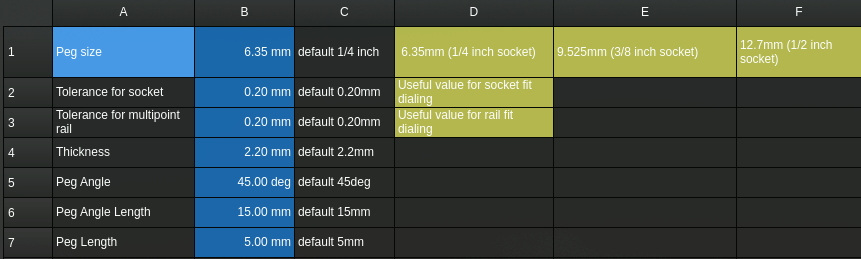

I've used the default Multiboard print guidelines, so 3 perimeters and 15% infill. Dimensions have 0.2mm tolerances for the sockets and rails. These values can also be customized via the FreeCAD file.
Kudos to Jonathan and his team behind the amazing Multiboard ecosystem
