DYSON Accessories Holders

3D Model Description:

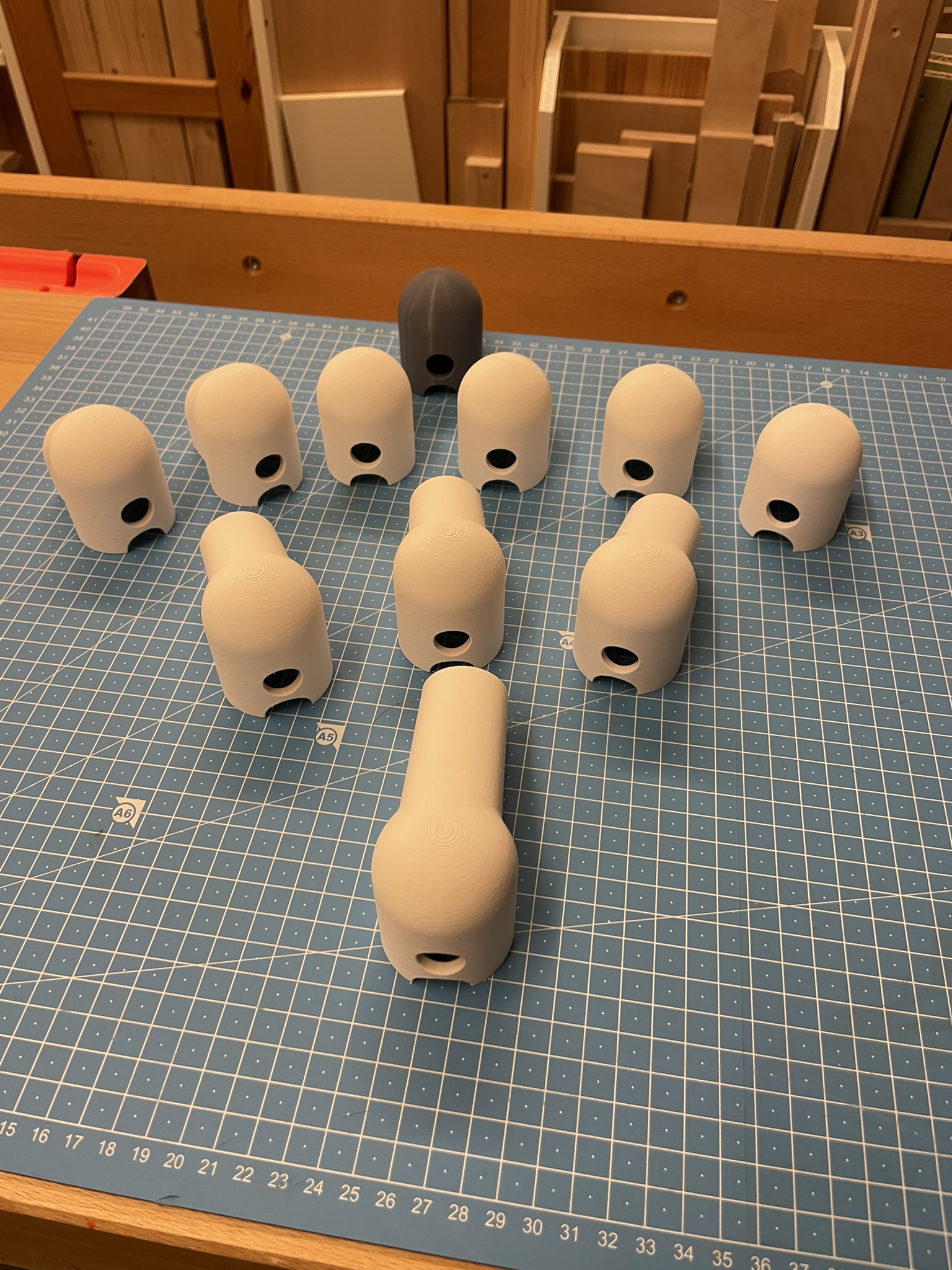

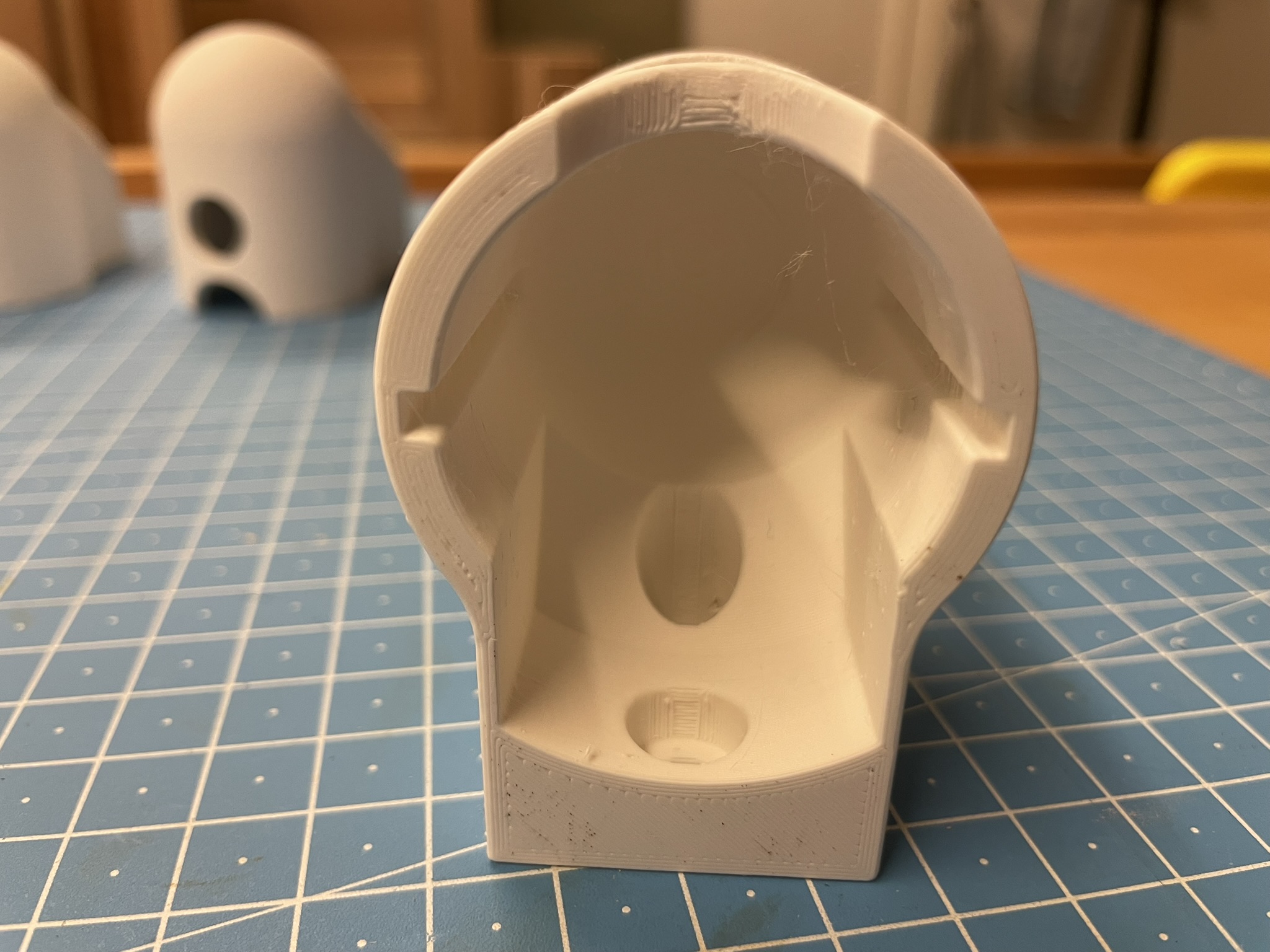

There are 4 different holders for nearly all of the available DYSON accessories:

• 61 mm flange for all parts, which are small and do not have an electronic connection
• 61 mm flange for all parts, which are small
• 81 mm flange for nearly all parts
• 101 mm flange for the parts, which need more space in the back

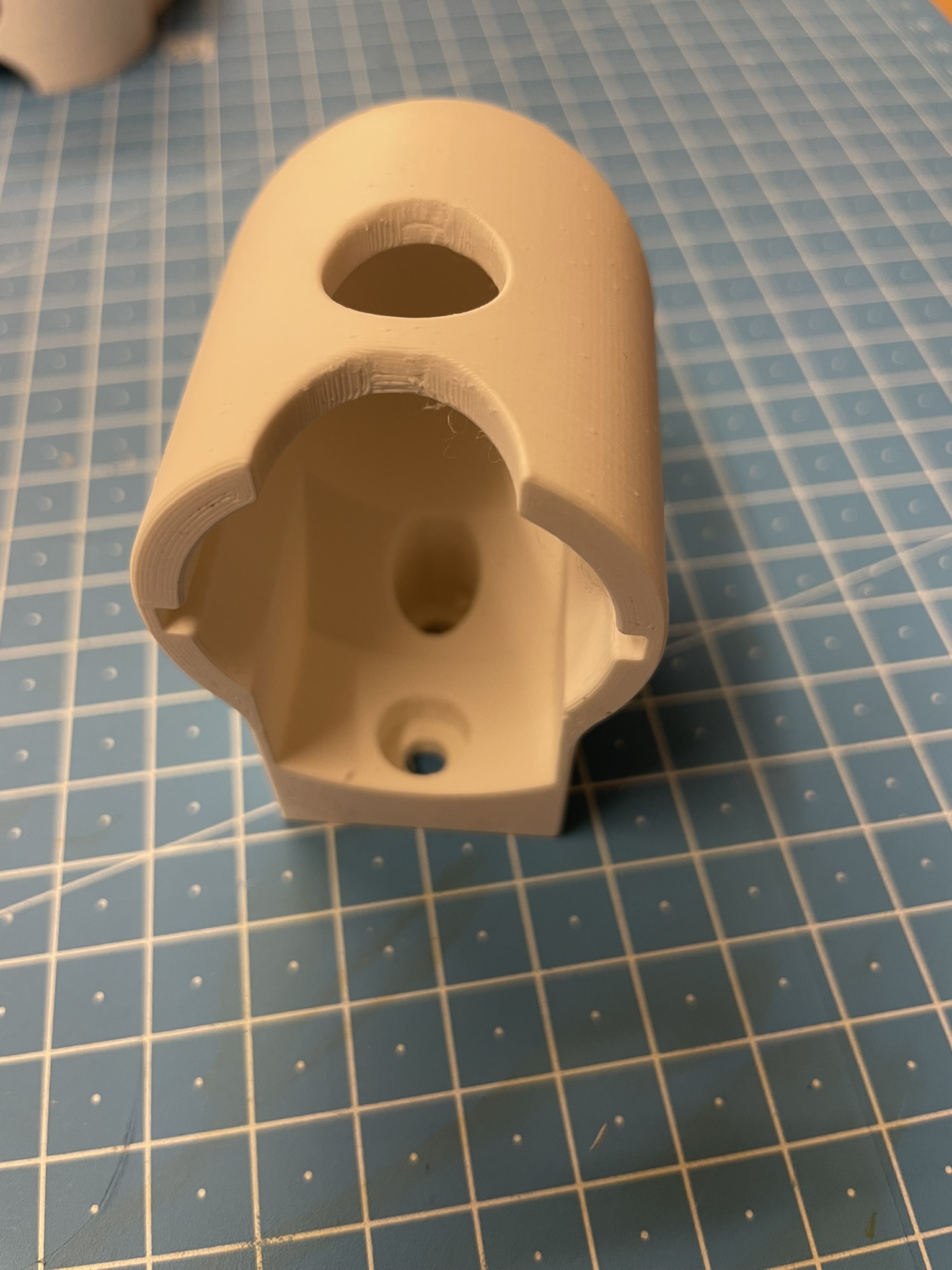

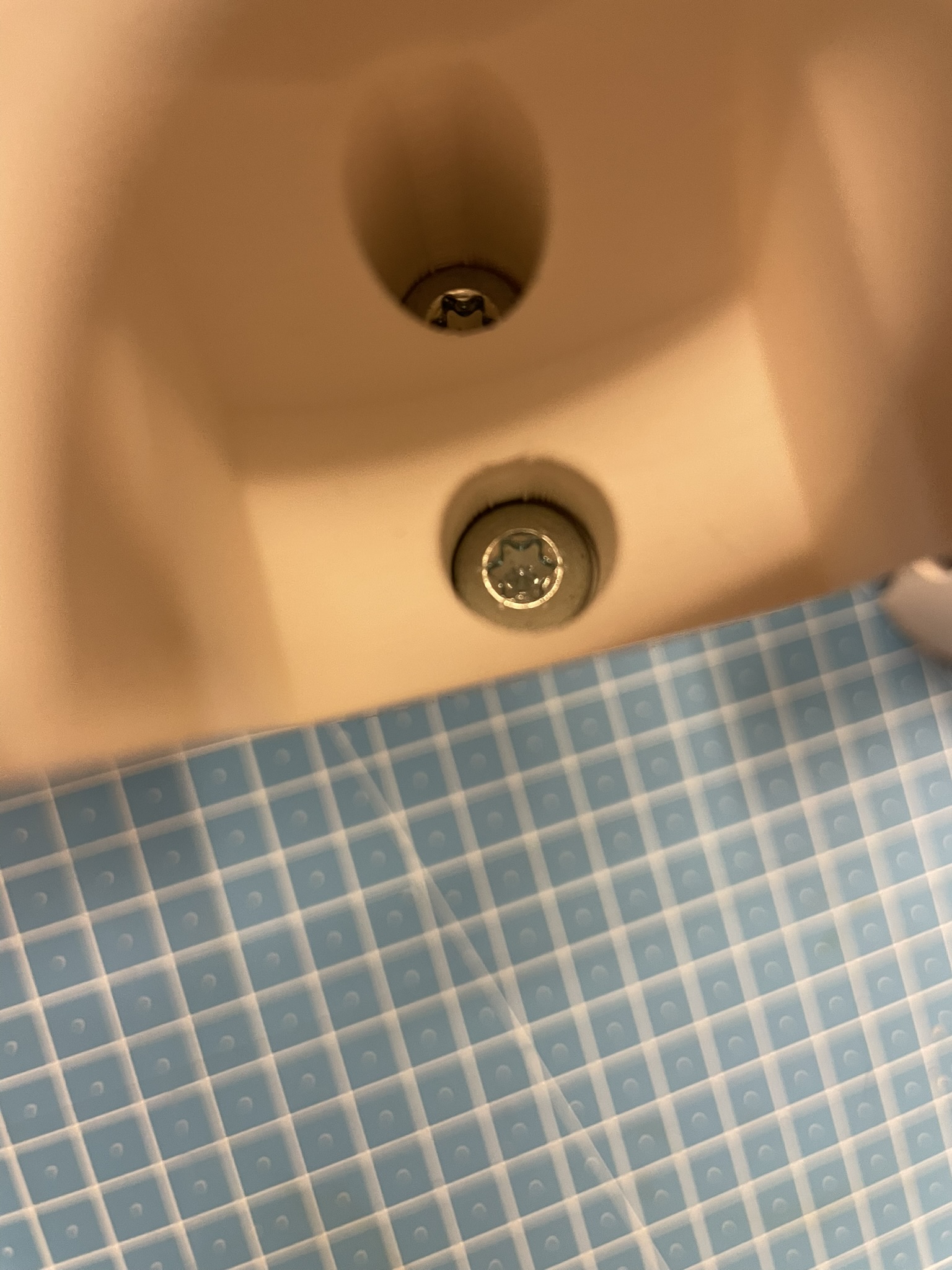

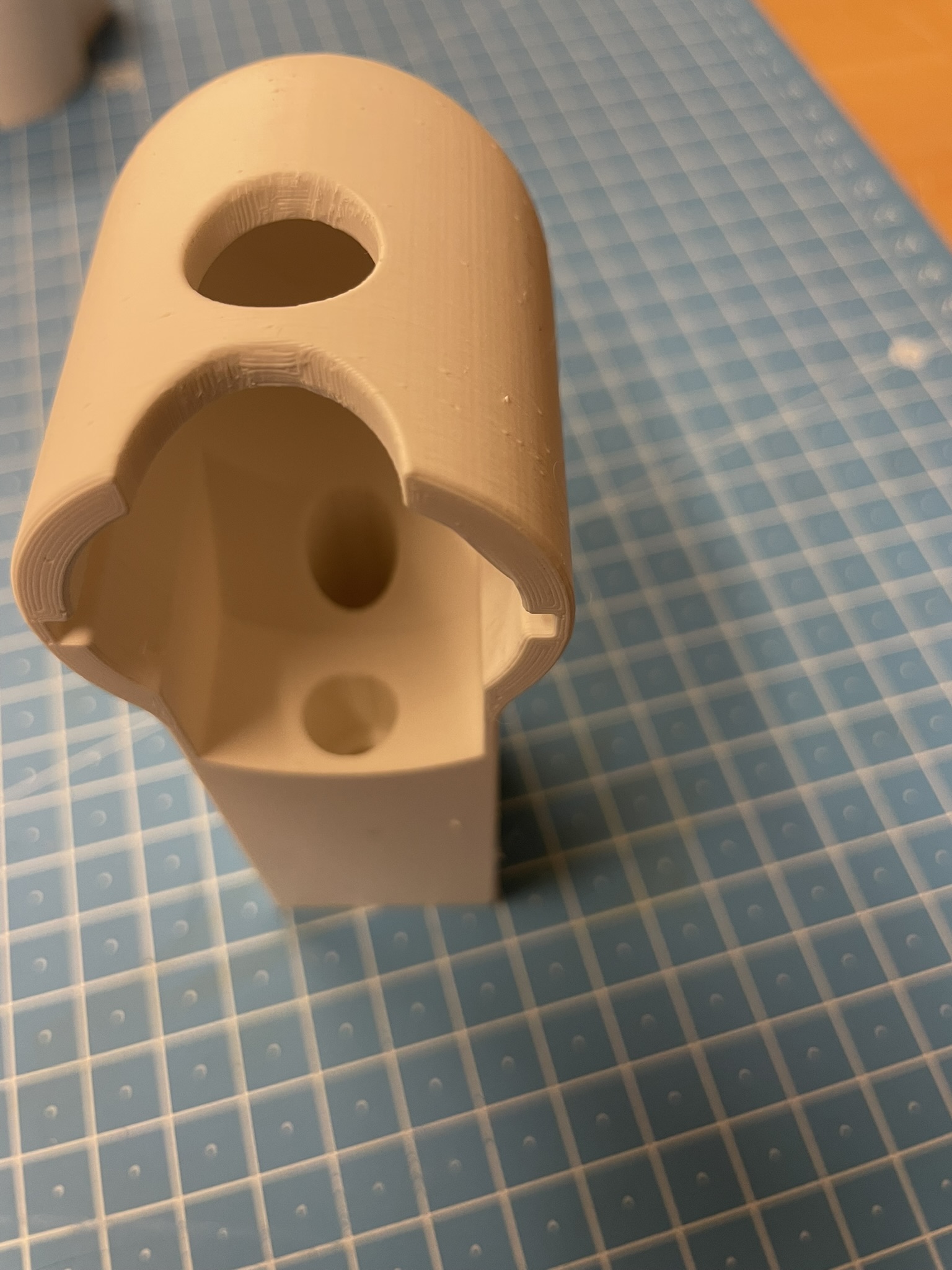

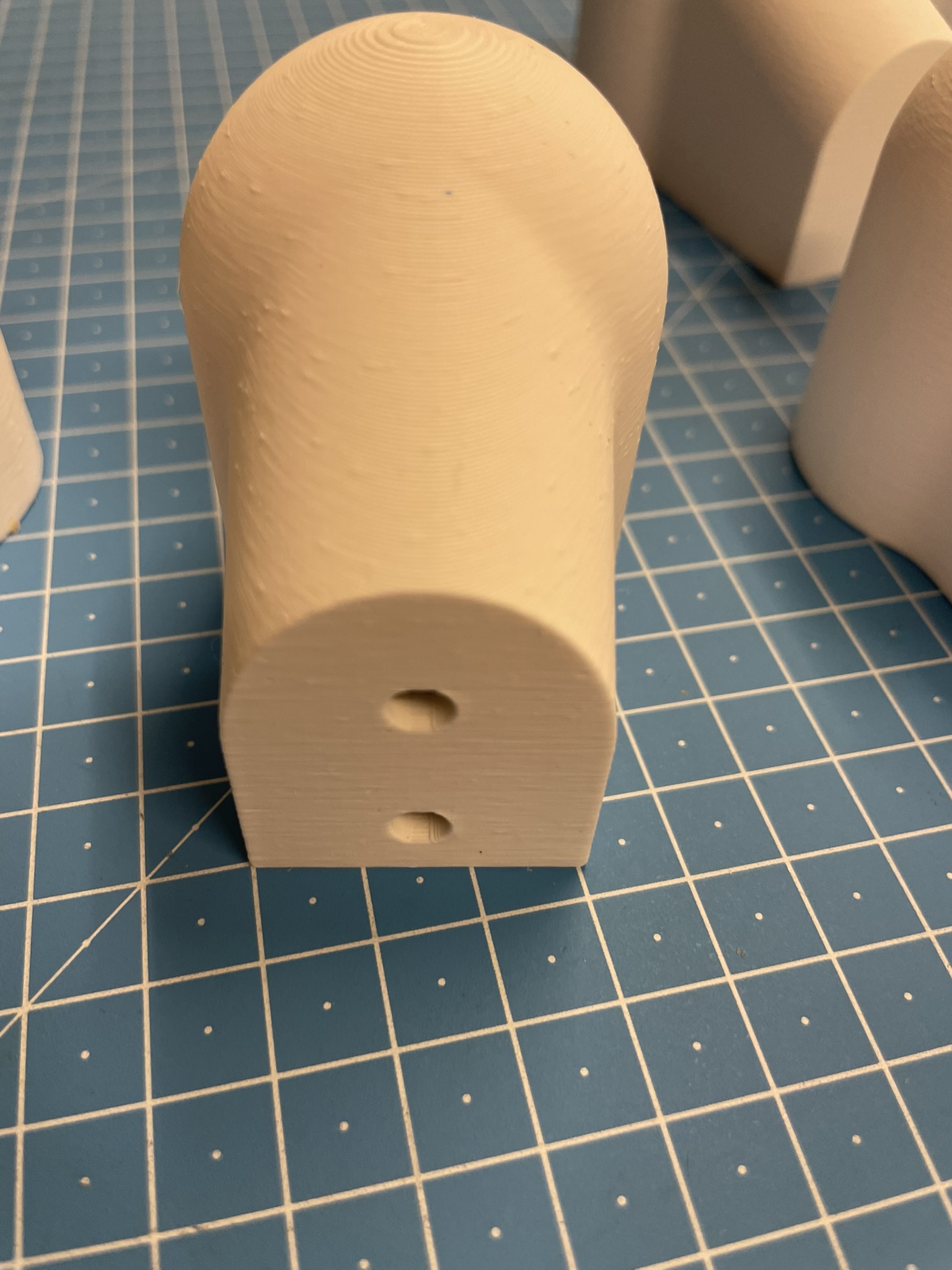

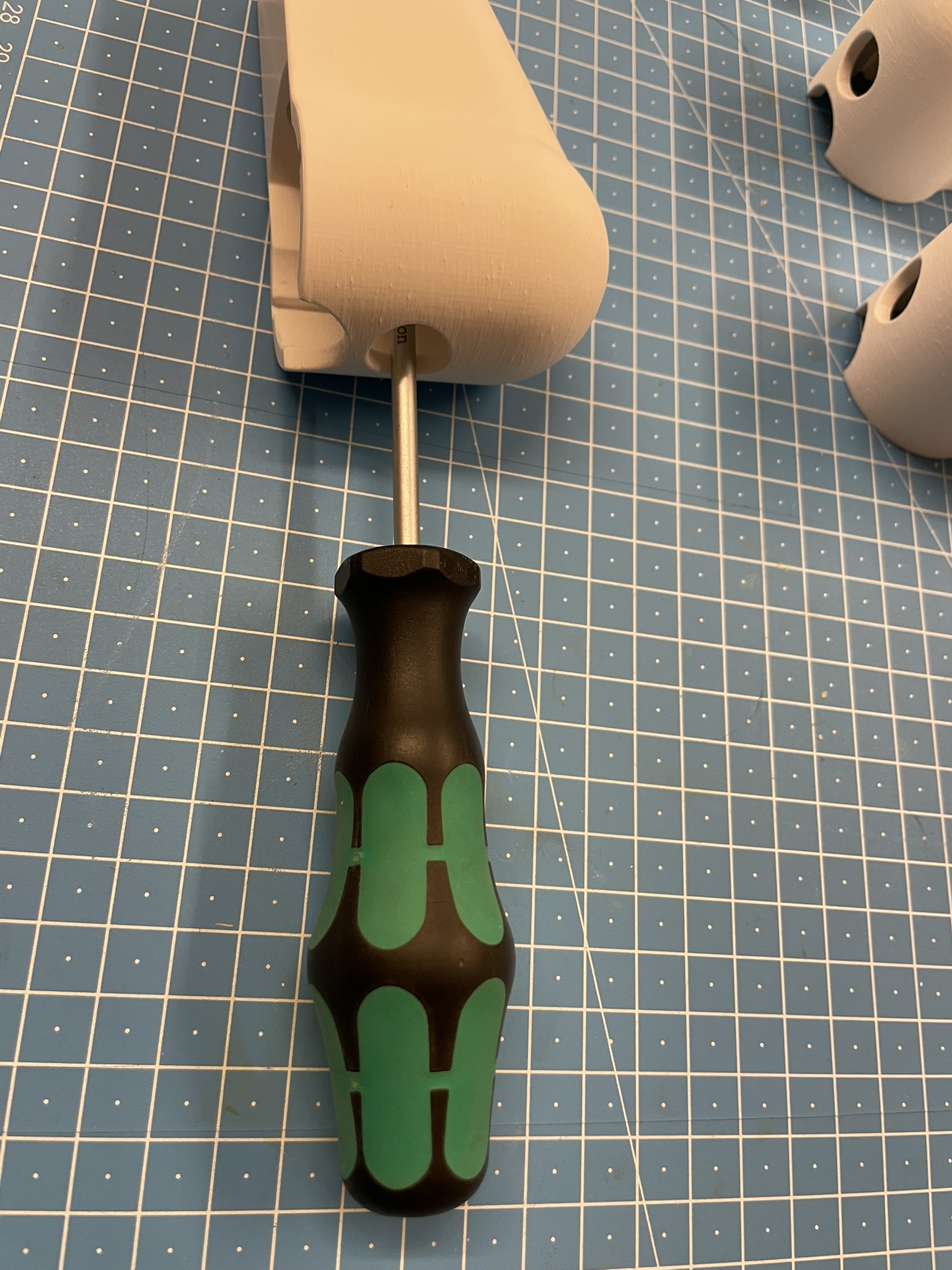

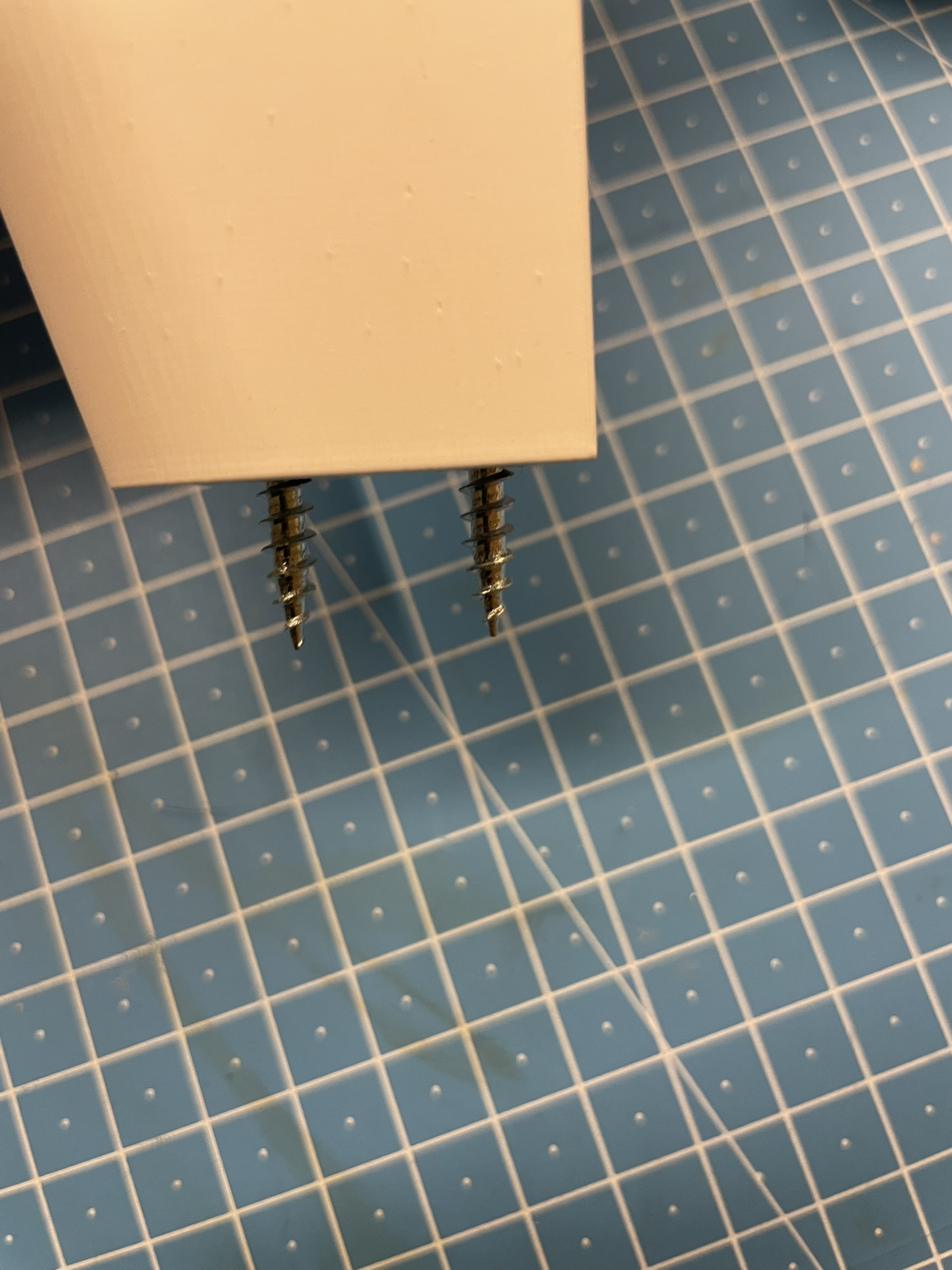

All of the holders will be mounted with one or two 5 mm screws (e.g. the ones in the picture).

3D Print Settings:

All flanges are printed in PLA/PLA+ with the following settings:

• 0.2 layer height
• 4 perimeters
• 5 top and bottom layers
• 25% infill with grid pattern

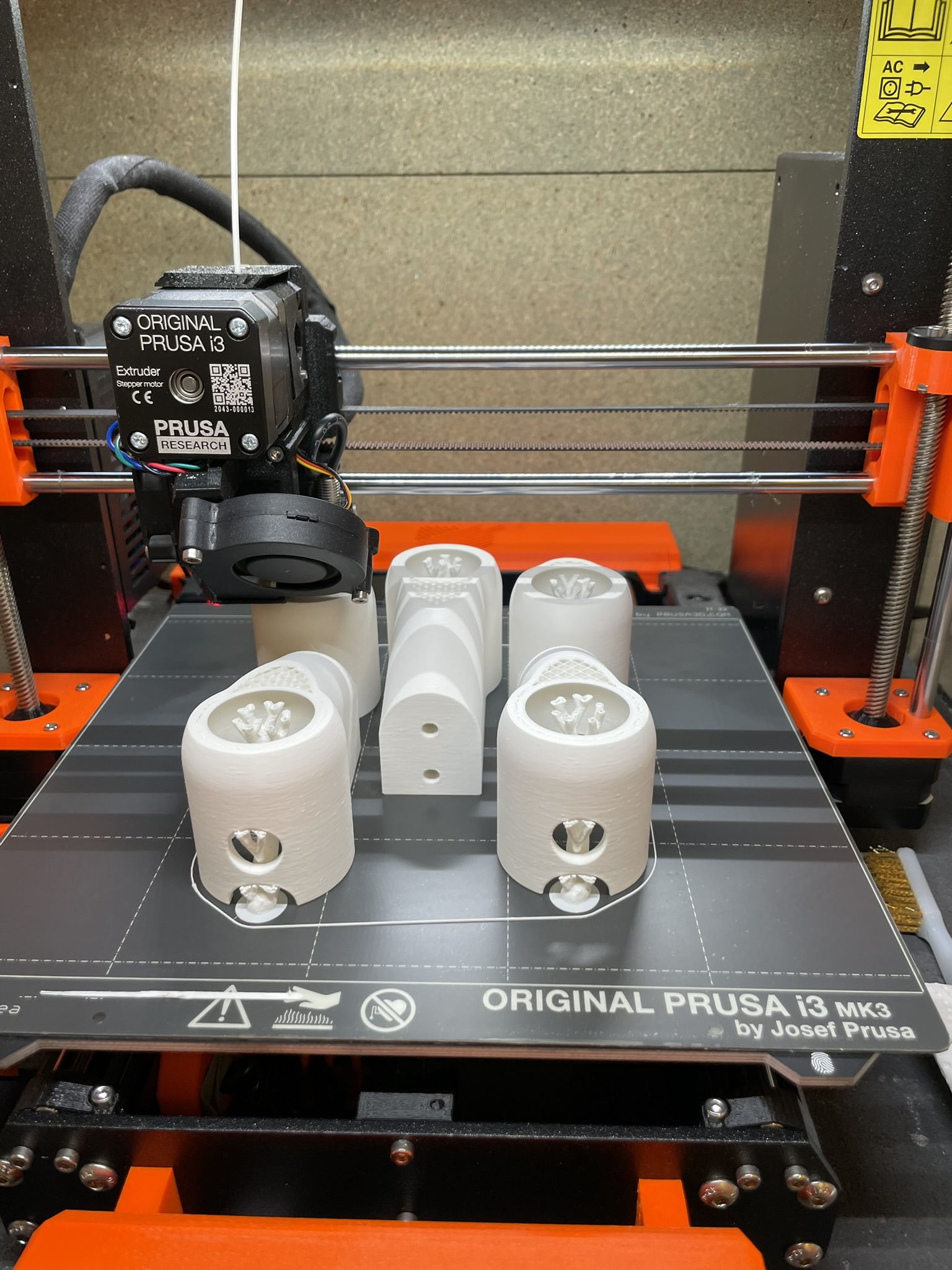

• supports as shown in the picture
