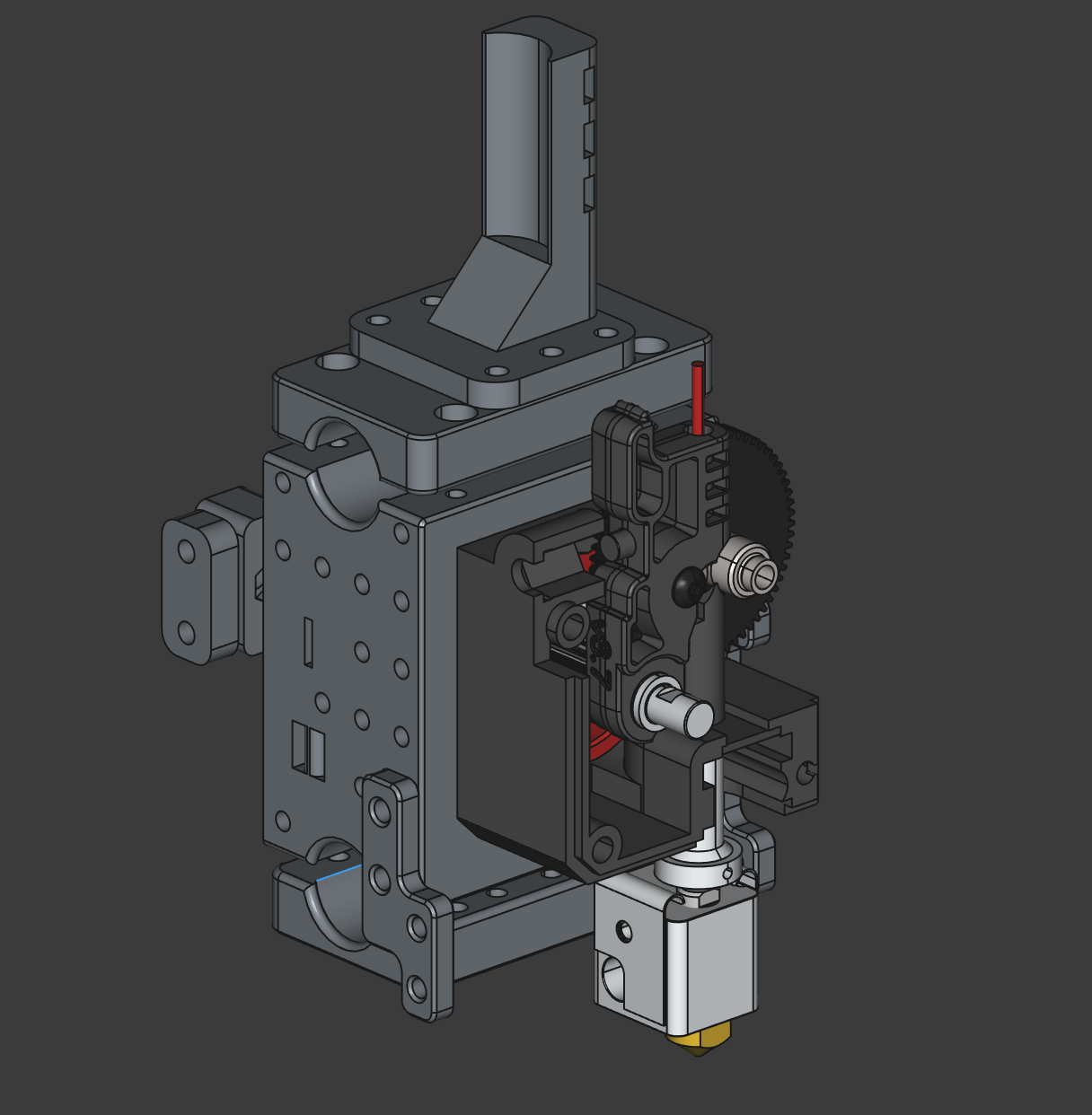

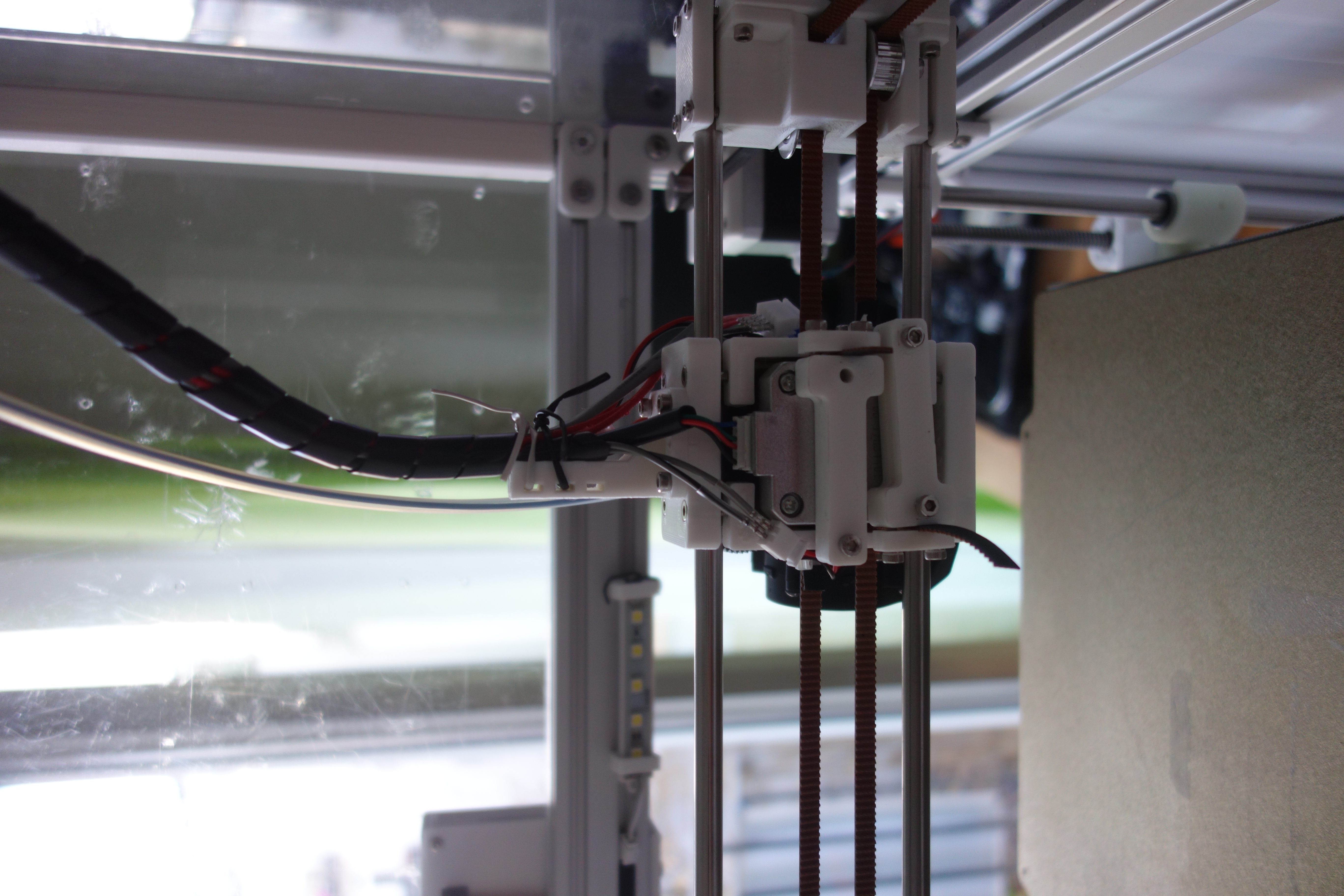

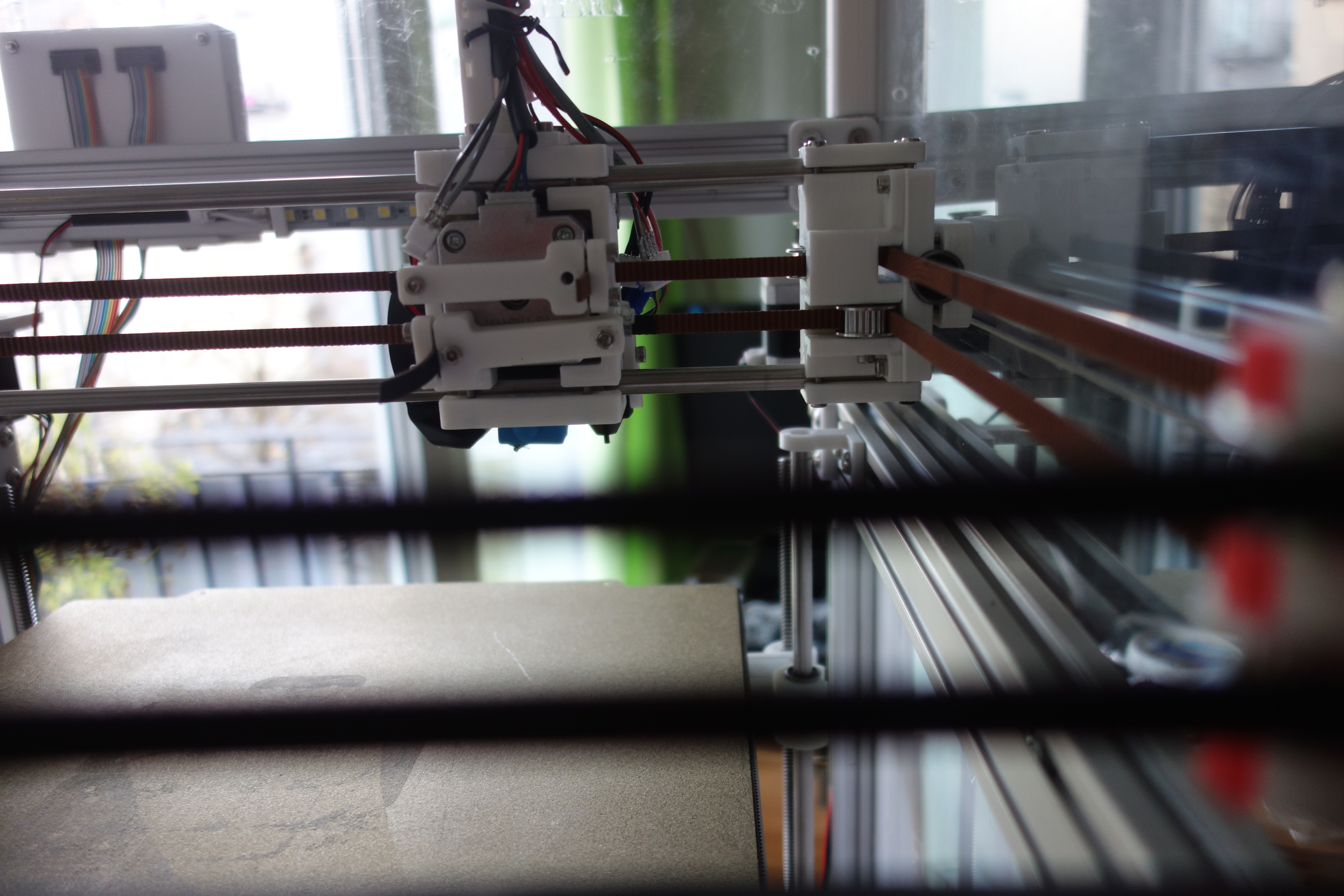

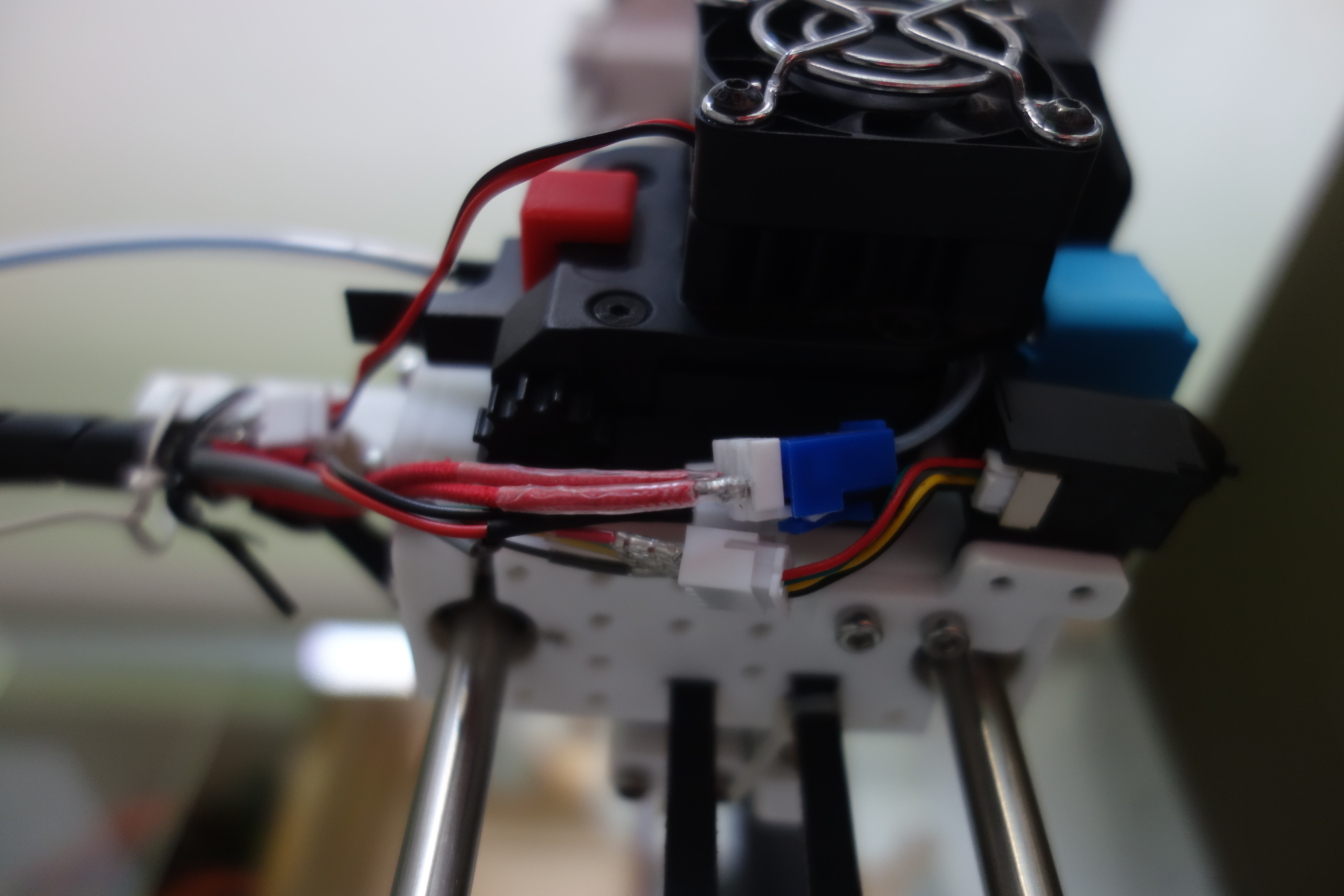

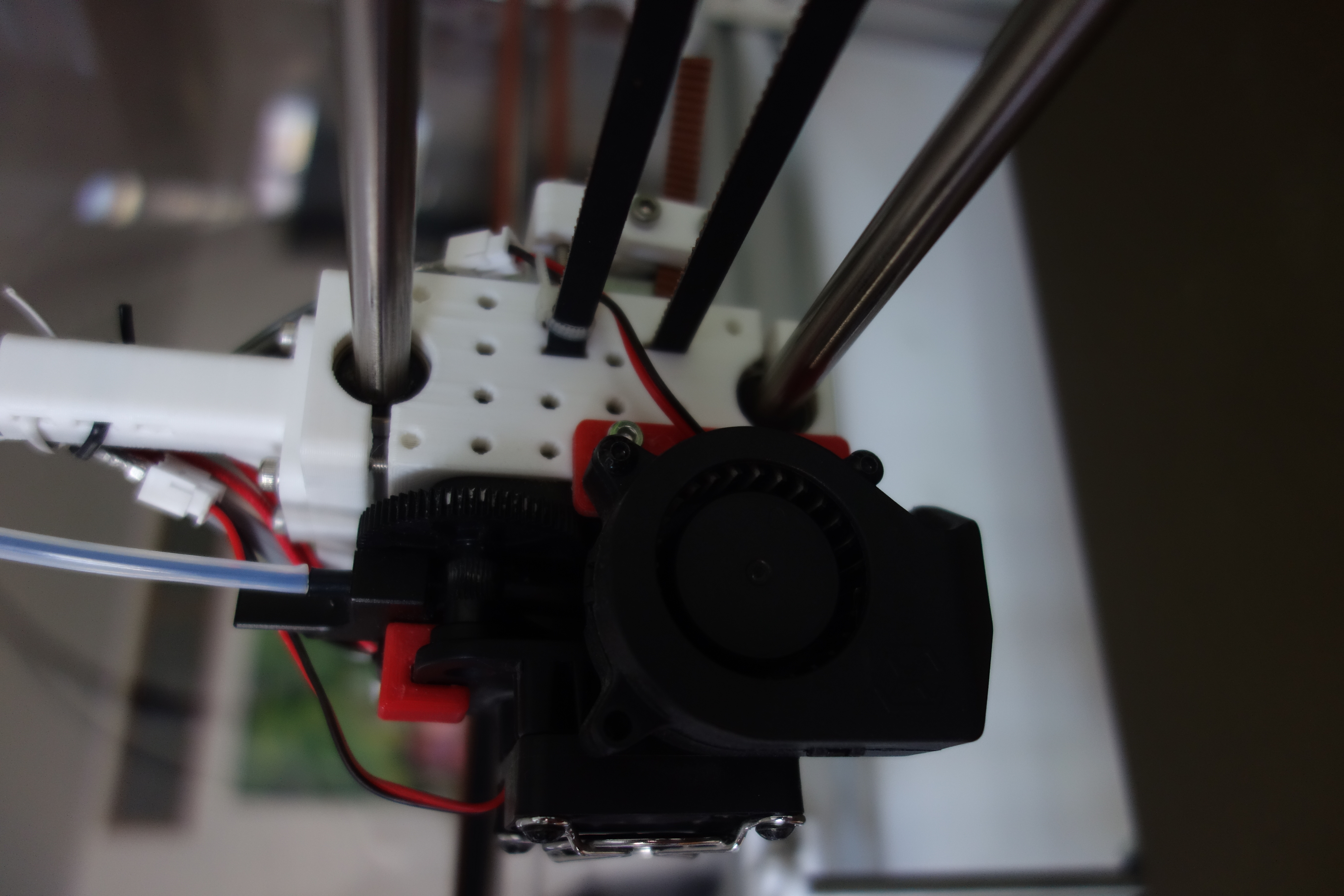

A simple CoreXY printer using some Artillery Sidewinder X2 parts with the direct extruder motor placed between the linear rods.

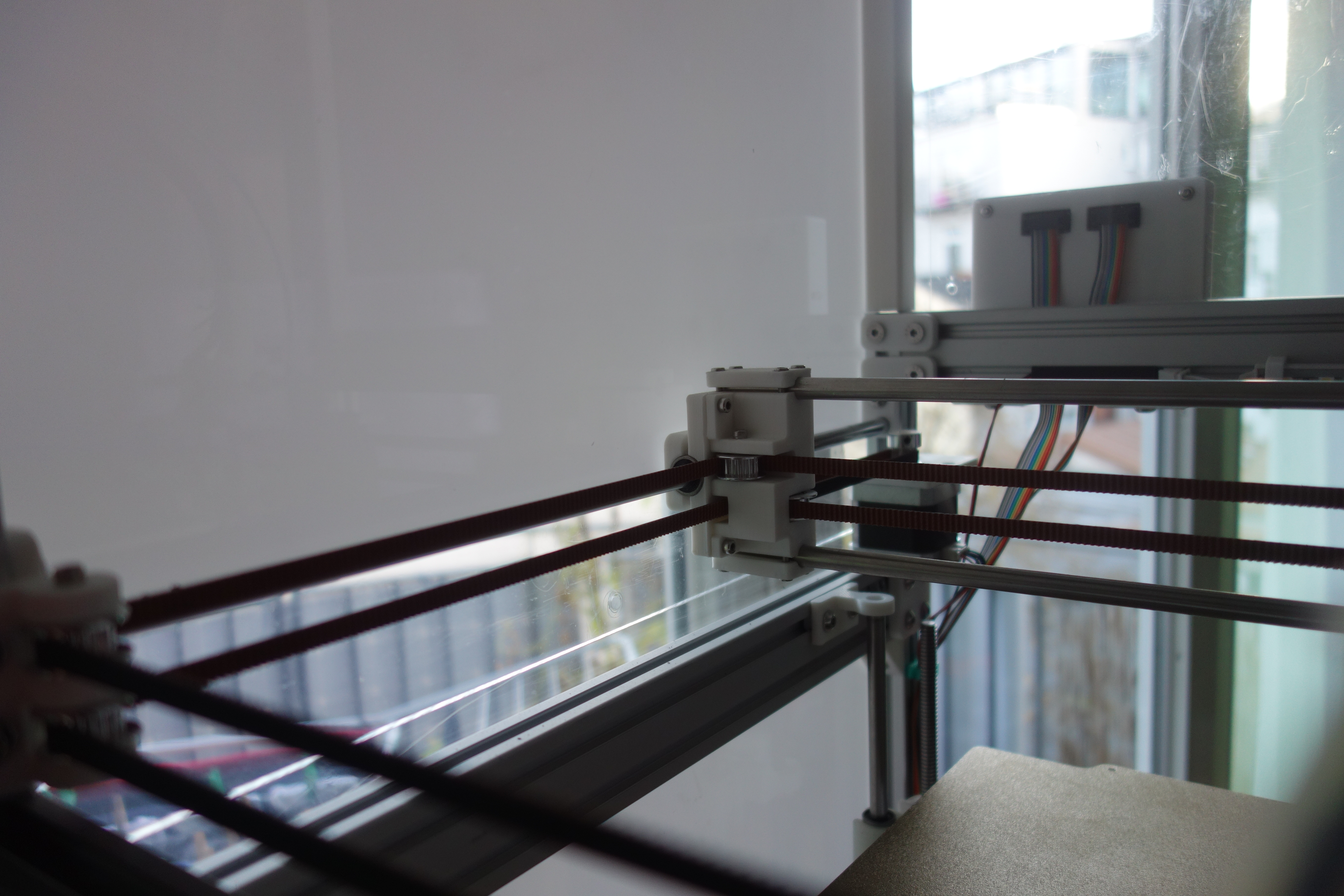

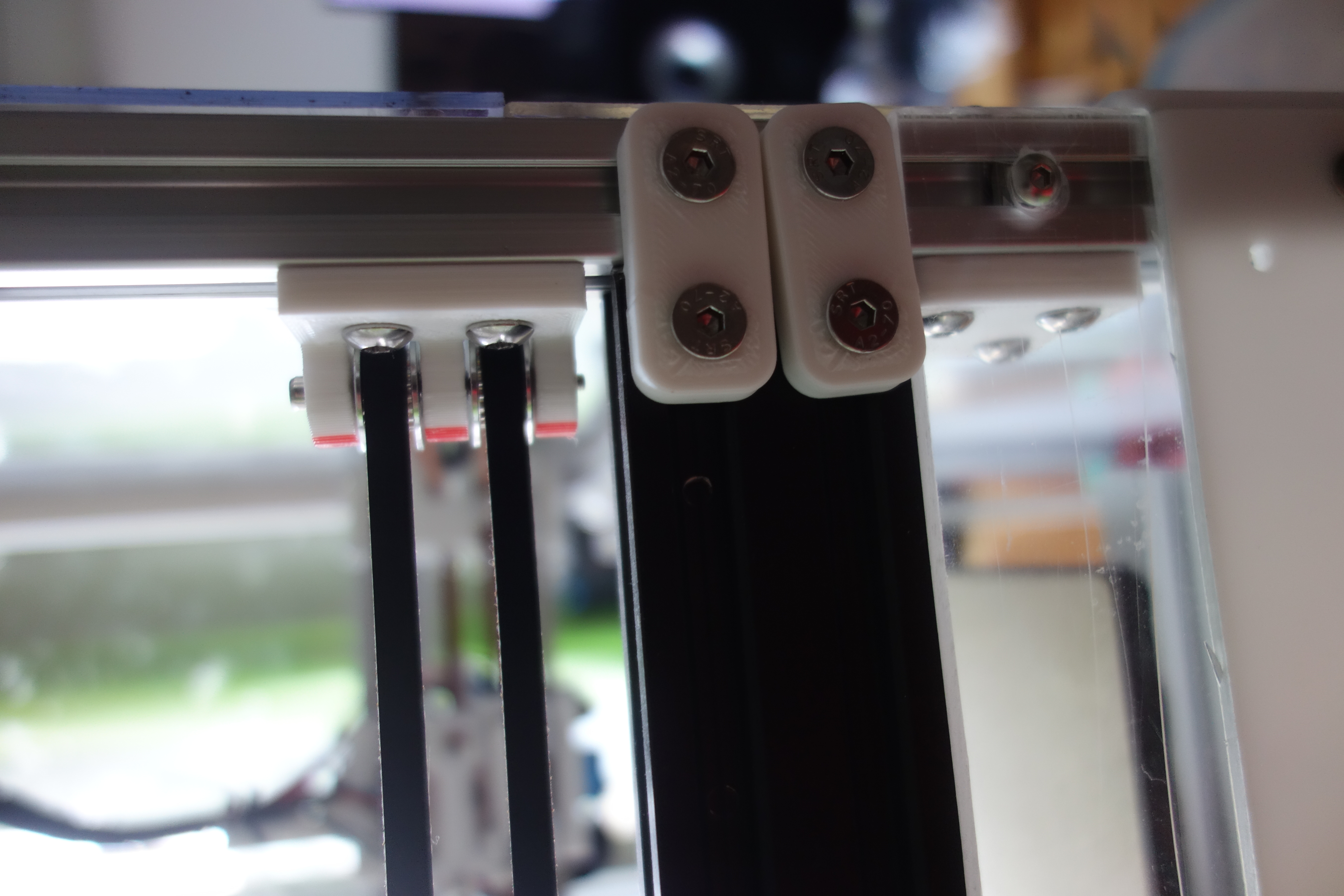

It uses 2020 and 2040 aluminum extrusions for the frame, and 8mm linear rods for all axis.
The build volume is around 268mm x 290mm x 240mm (x, y, z).
The model is designed in a way, that the printer can easily be enclosed.
All parts are very easy to print and don't require supports.

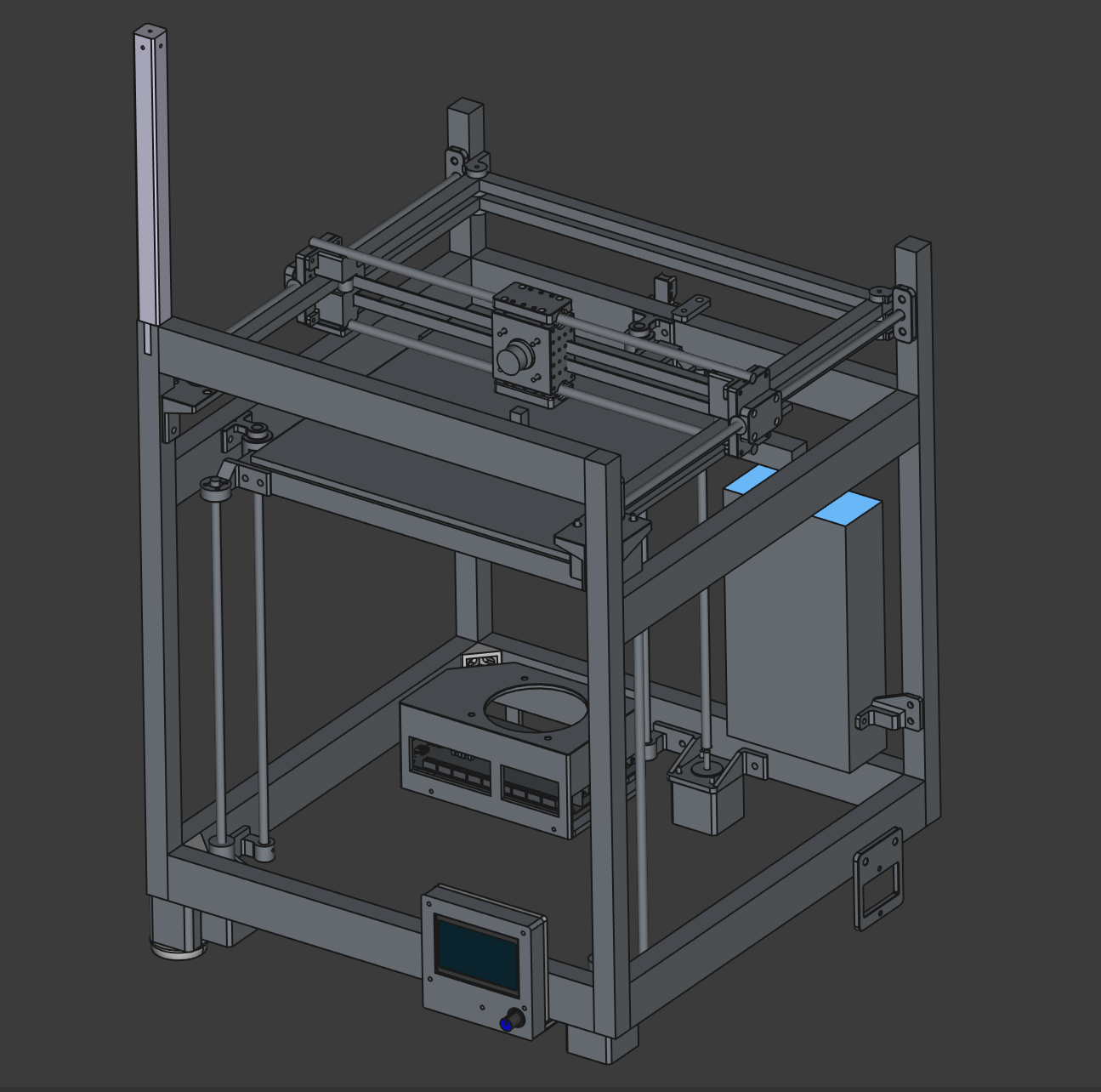

Please check the FreeCAD source files for more details.
I just don't have enough time at the moment to provide detailed build instructions, but the model is pretty simple.
If you have any questions, don't hesitate to ask.

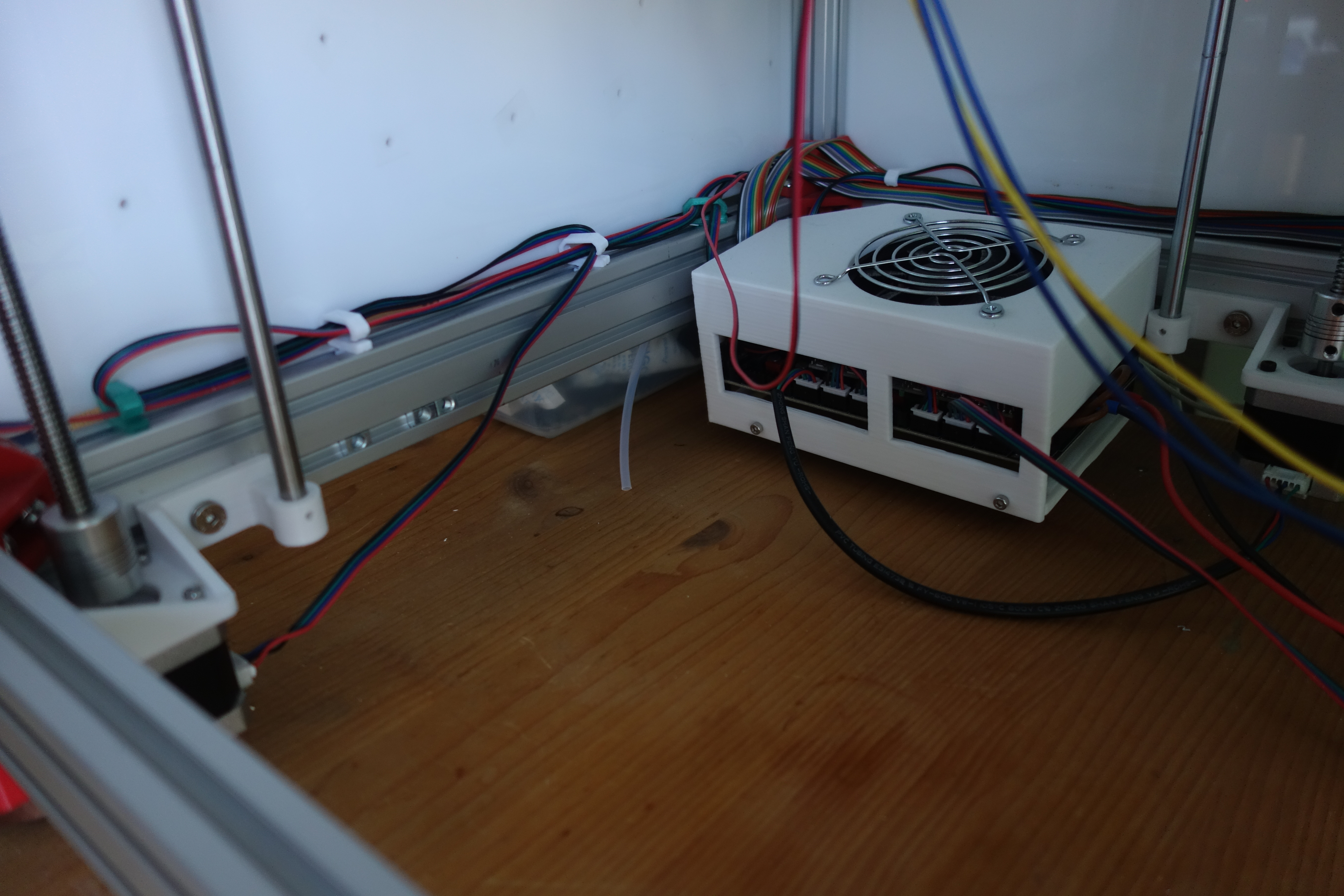

I use a BTT Octopus just running Marlin for simplicity.
My firmware config can be found here: https://github.com/b3n3d1k7/Marlin/tree/2.1.x_BigTreeTechOctopusCoreXY
I've used this printer for quite some time now without any issues.
I will soon provide some more pictures.
