Pixelcade V2 case
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution — Noncommercial

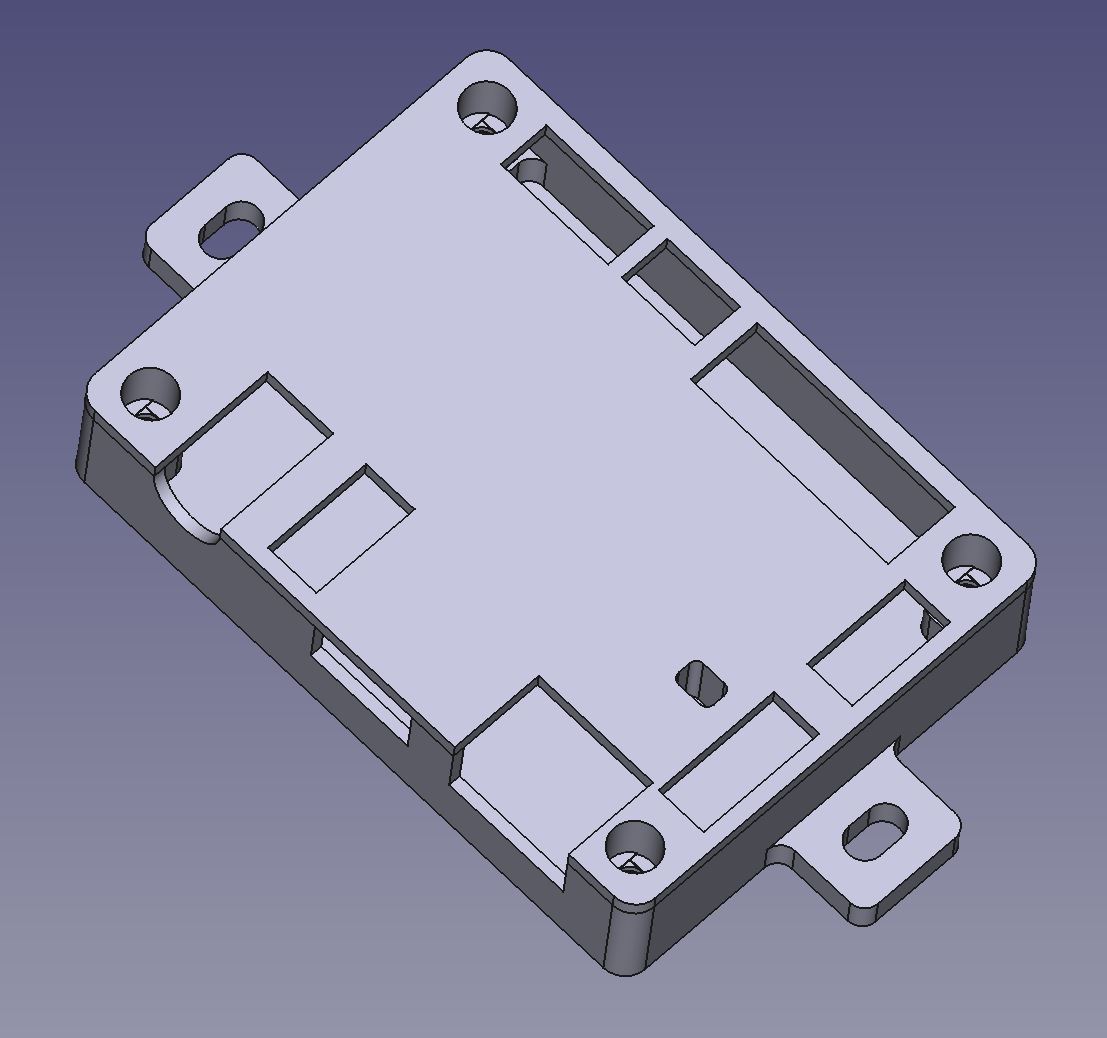

This is a case for the excellent Pixelcade V2 board.
The base is designed for M3 heat set inserts; the tapered kind - 4.5mm diameter hole about 5mm deep. The wings are designed for a #8 cabinet screw with up to a 12mm diameter head.
The top prints upside down and does not need supports due to the way the screw head recesses are designed.
I included the FreeCAD file so feel free to remix but please remember to mark it as a remix to I can see what you come up with.
Note: I have no affiliation with Pixelcade.
Print settings:
I printed with PETG (because it was already loaded), 0.24mm layers, 3 walls 15% rectilinear infill.
Pretty much print however you want. The only thing you might consider is I designed the base bottom thickness assuming 0.24 layer height (including the first layer) so it is 0.96mm. The slicer will handle it if you have a different setting though. PETG or PLA I don't think it matters - if the inside of your cabinet gets warm enough that you need PETG then you need a fan.
