Airspeed Static Pressure Ring Modification for Educational Wind Tunnel
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Engineering
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
Intended for use with the EDU Wind Tunnel Github Repository to add Arduino based airspeed measurement and control to your Modular STEM Wind Tunnel project. See the GitHub repo for full documentation and details of use.
https://github.com/Low-Boom/EDU-Wind-Tunnel
Files include:

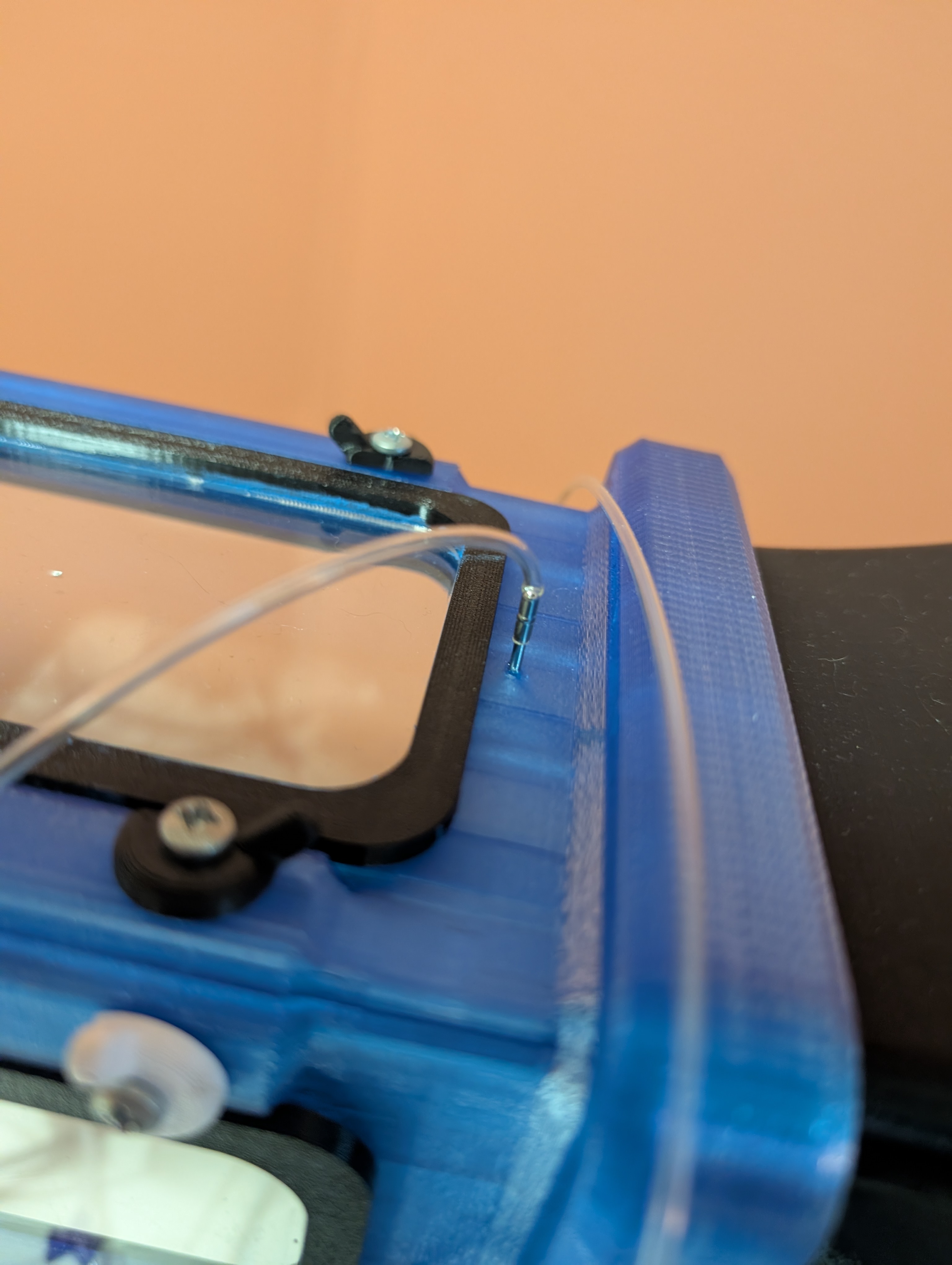

Original Test Section modified to add four pressure tap holes where 1/16" OD tubing can be inserted.
Short straight section with four pressure tap holes where 1/16" OD tubing can be inserted. This should be installed just upstream (before) the test section. Use this if you don't want to re-print the entire test section to add airspeed capability.

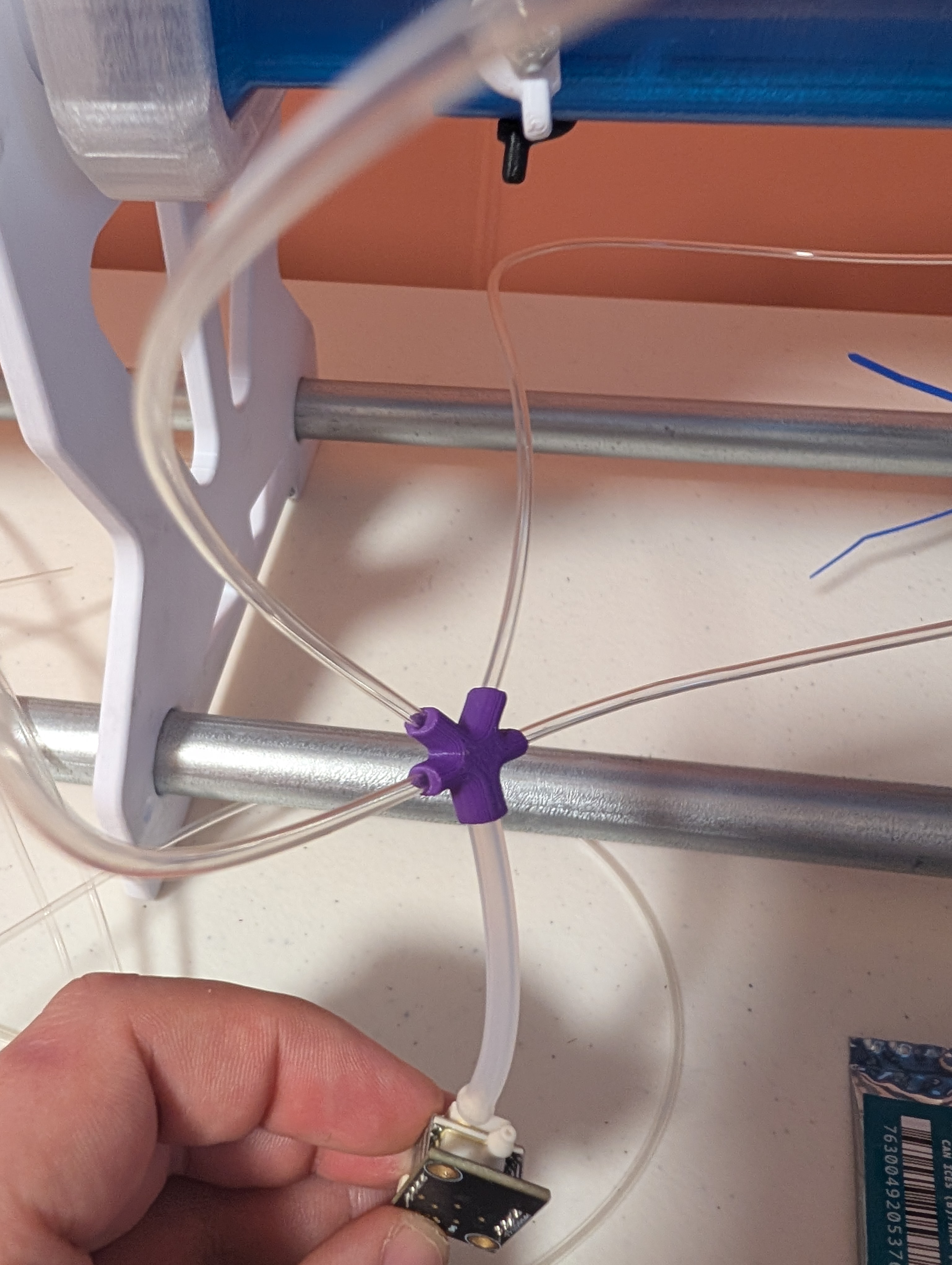

Static Pressure Manifold: Connect four 1/16in soft line tubes together to a single 1/8in soft line tube. For use in combining the pressure from the four sides of the test section into the transducer.

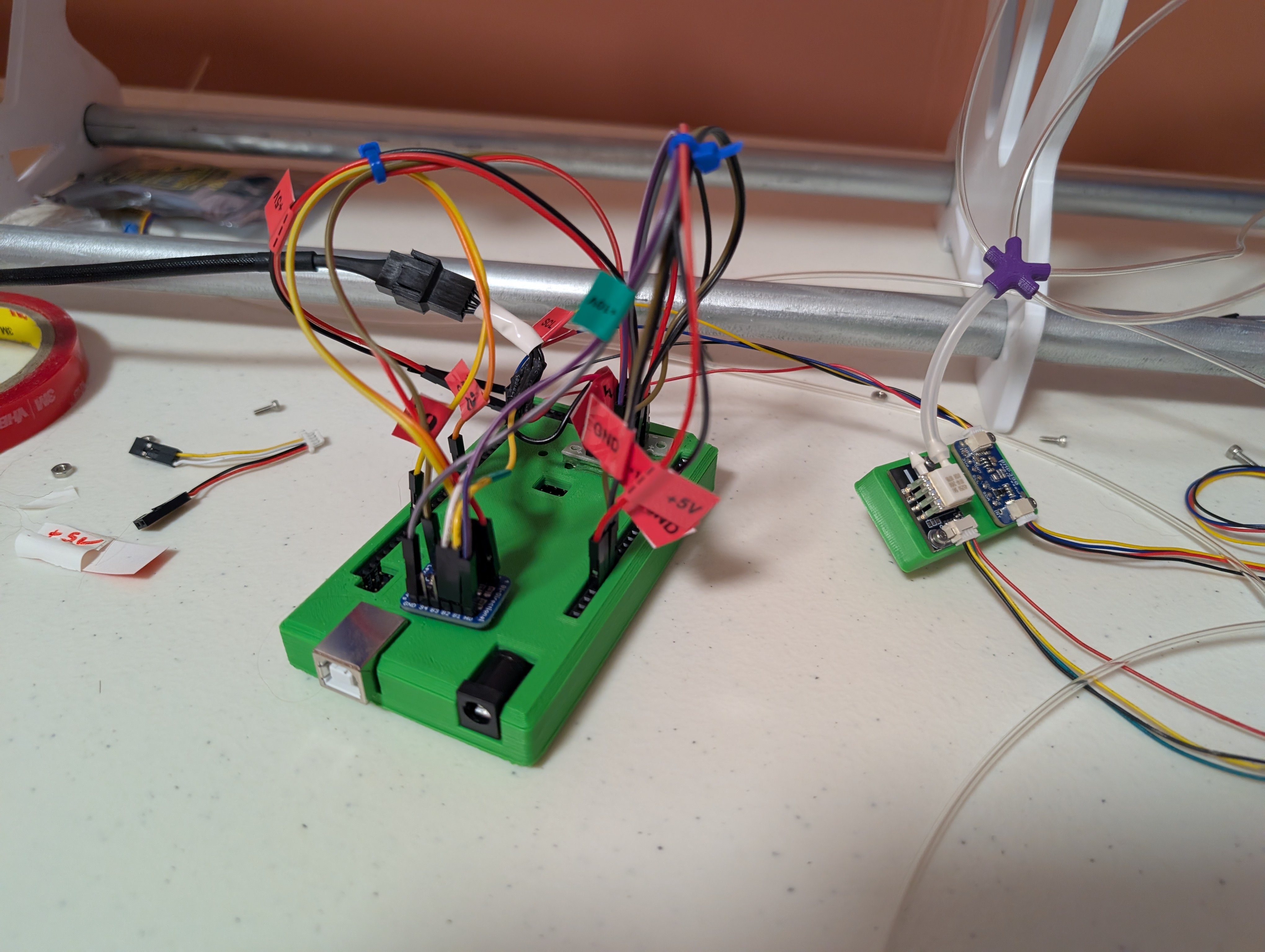

A simple block with mounting holes for the Barometer and Airspeed sensor.
