Socket Wrench Set Insert (for Organizer Box)

Tipps and values:

• Filament: PLA recommended (PETG also works)

• Quality (Layer Height): 0,2mm

• Wall Loops: 3

• Infill: 15%

• Infill pattern: Doesn't matter (I used Rectilinear)

• Supports: No! (Do not use supports for all of my Parts!)

• Wall generator: For all Inserts Arachne!!!

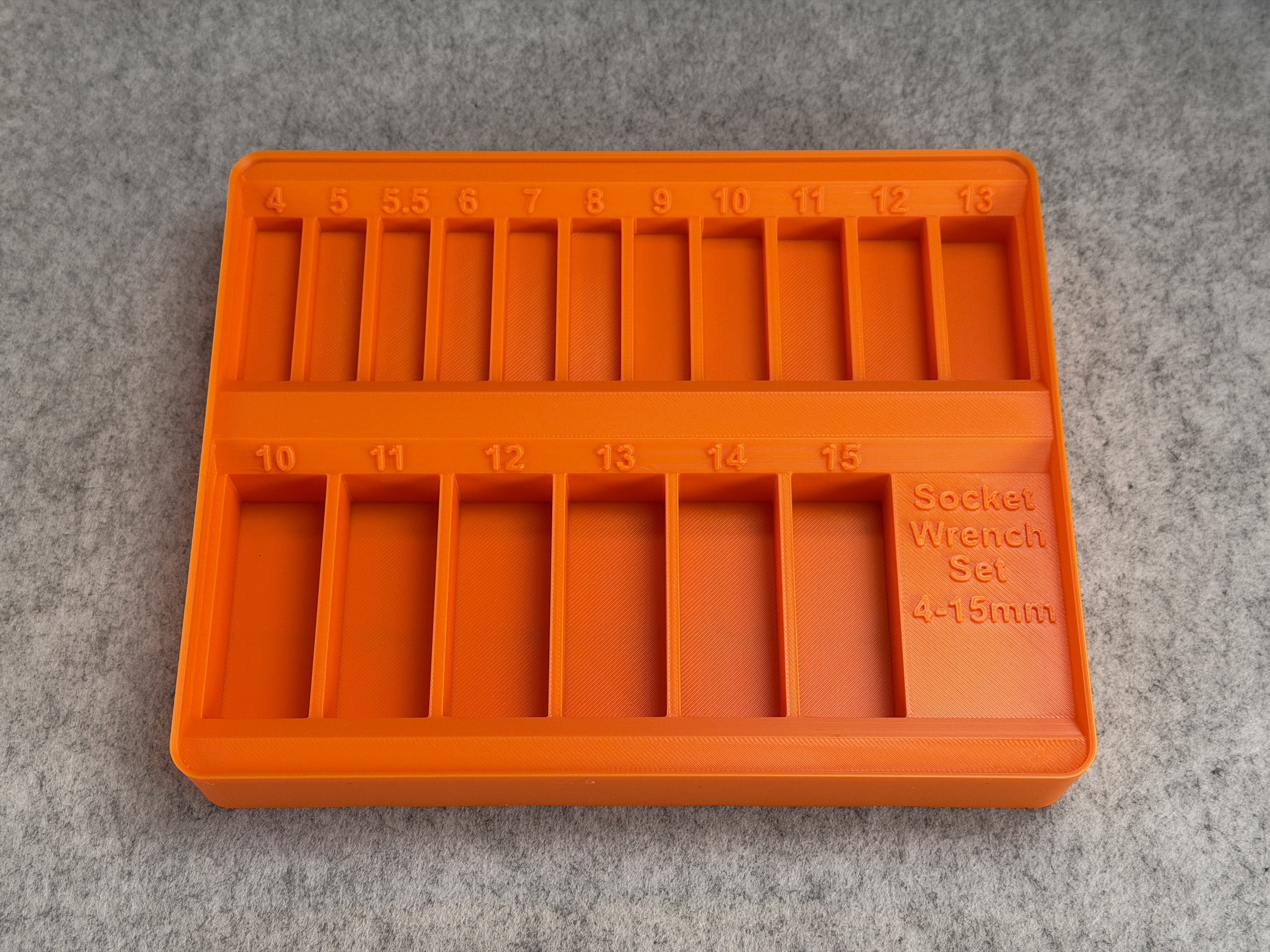

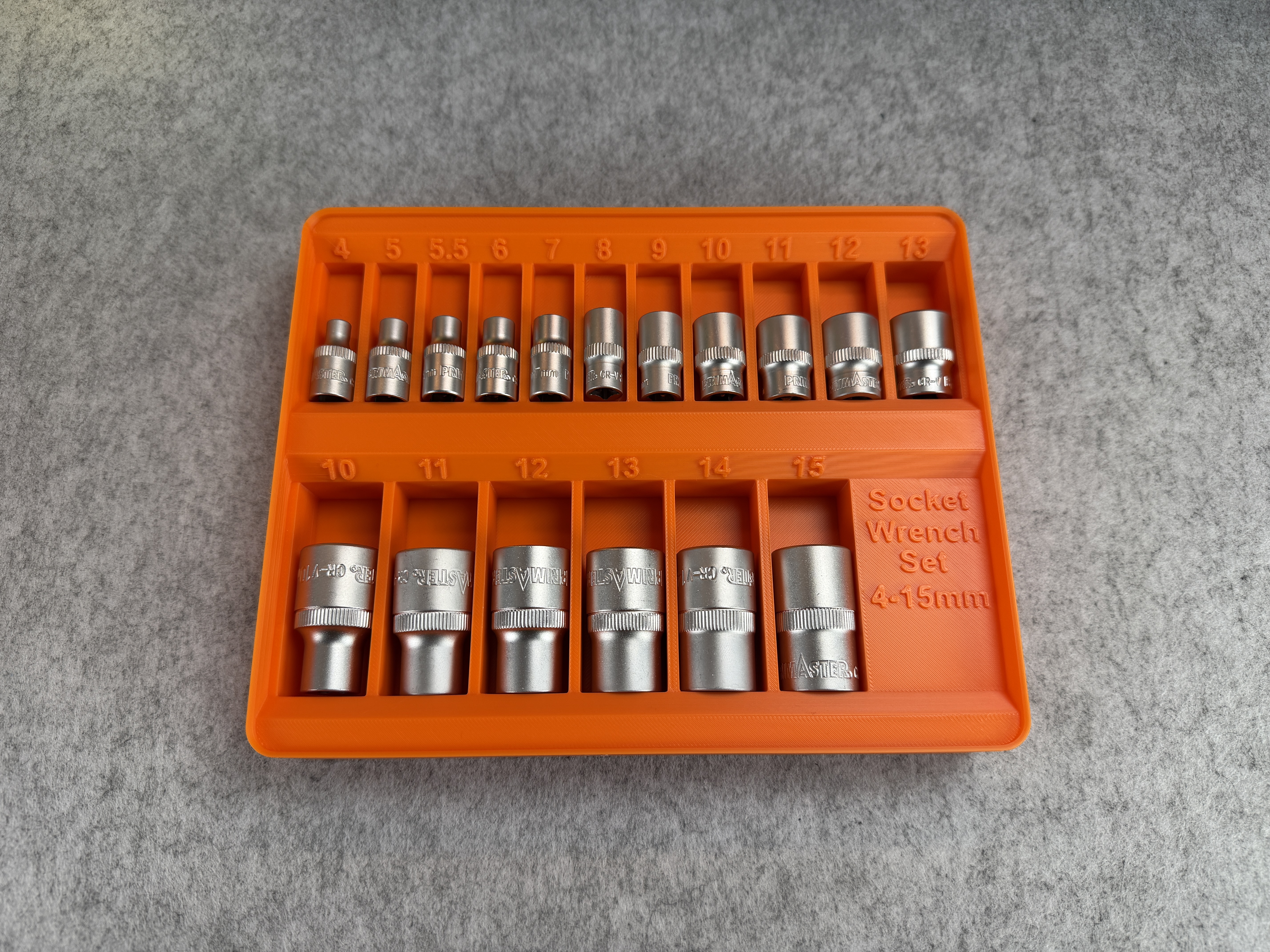

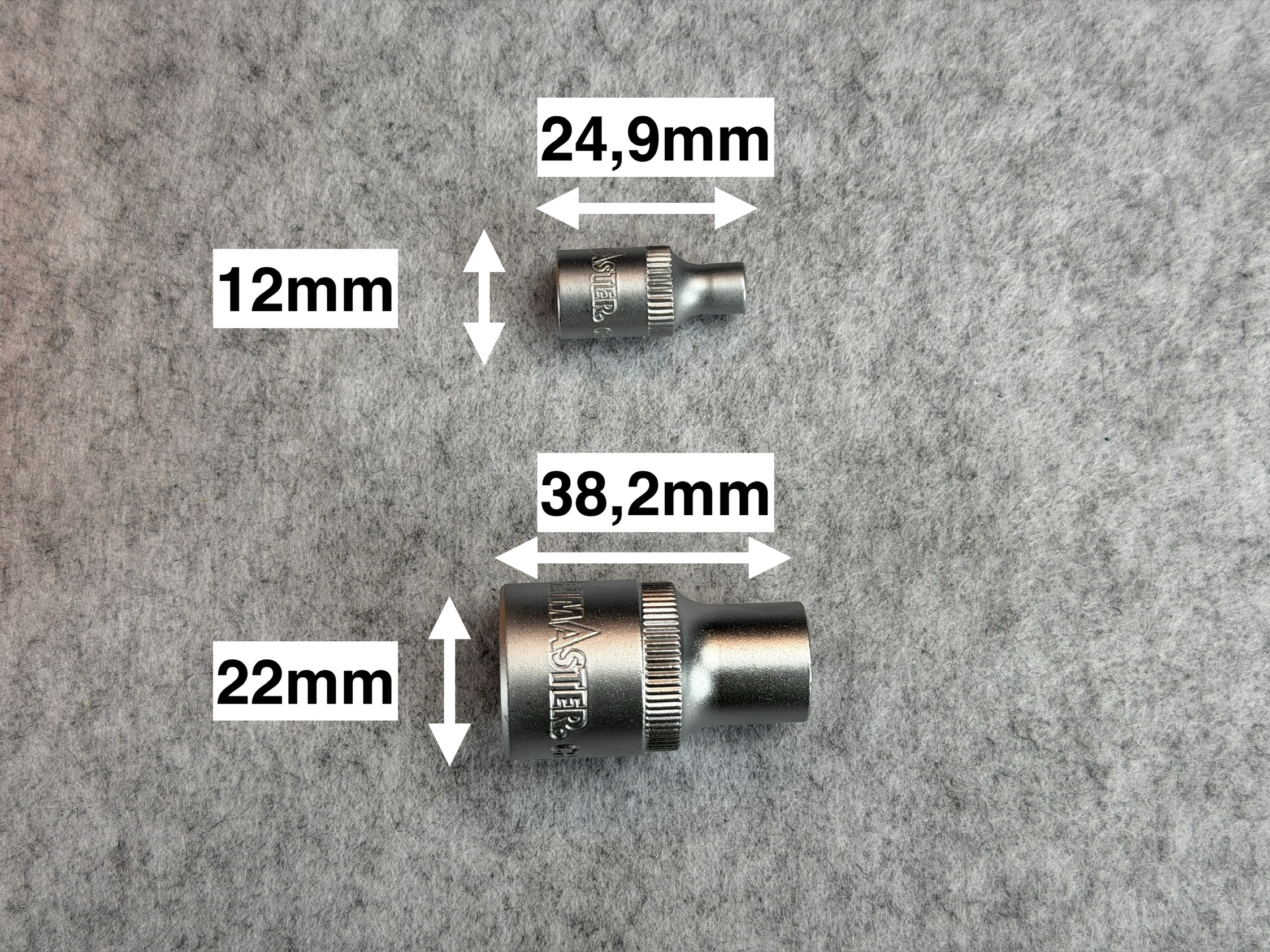

Please check which exact type you have before printing this insert. Refer to my table and the photo with the dimensions for guidance. The socket wrenches fit from 4–13 mm in the top row, and from 10–15 mm in the bottom row. This insert will only be available for the larger 5×4 version, as a smaller version is not possible.

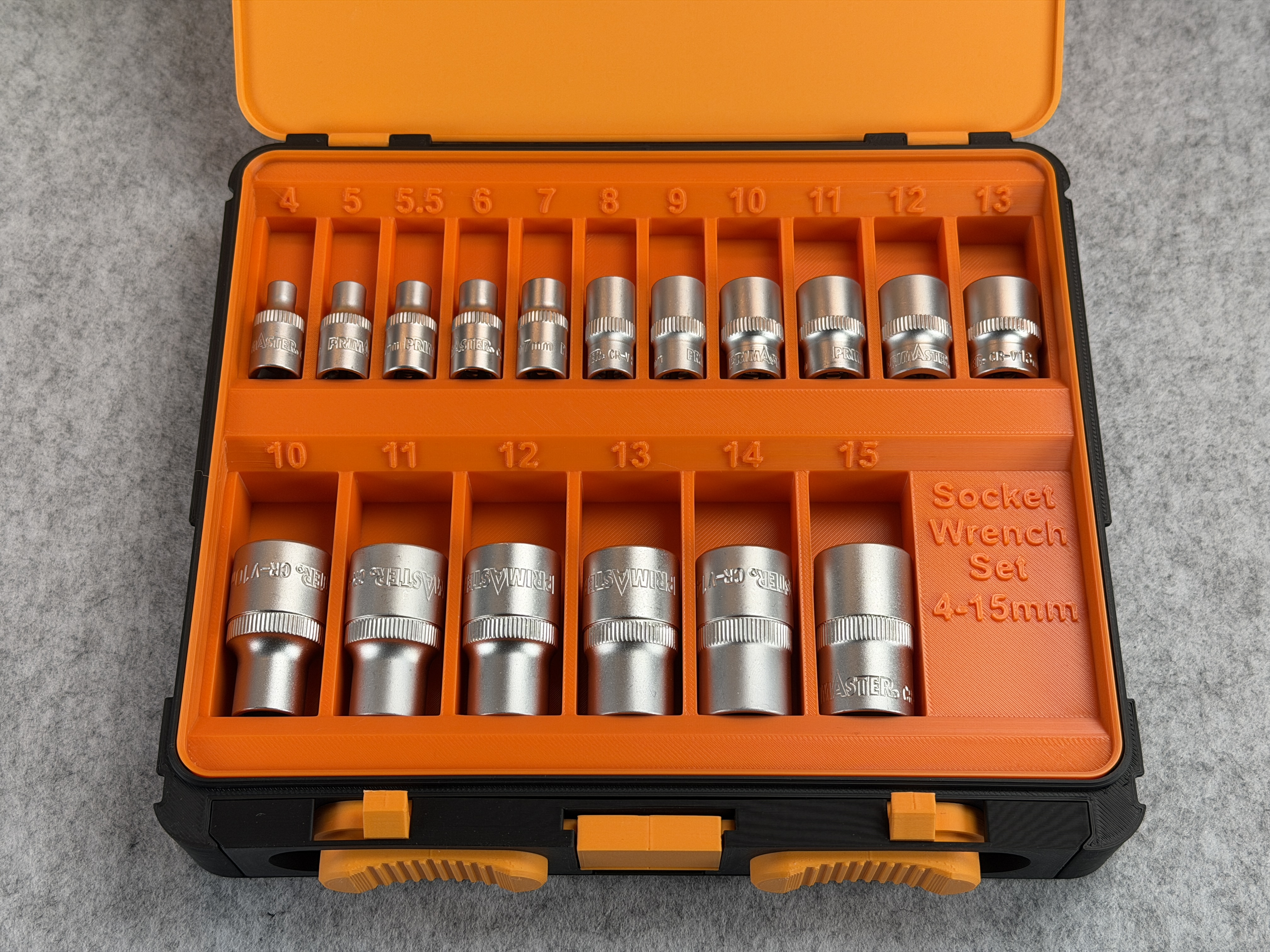

The socket wrenches sit loosely in the insert, but this makes them easier to remove. At the same time, they cannot fall out even if the box is turned upside down, as long as the lid is closed.
