Stair Tread / Riser Gauge
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.

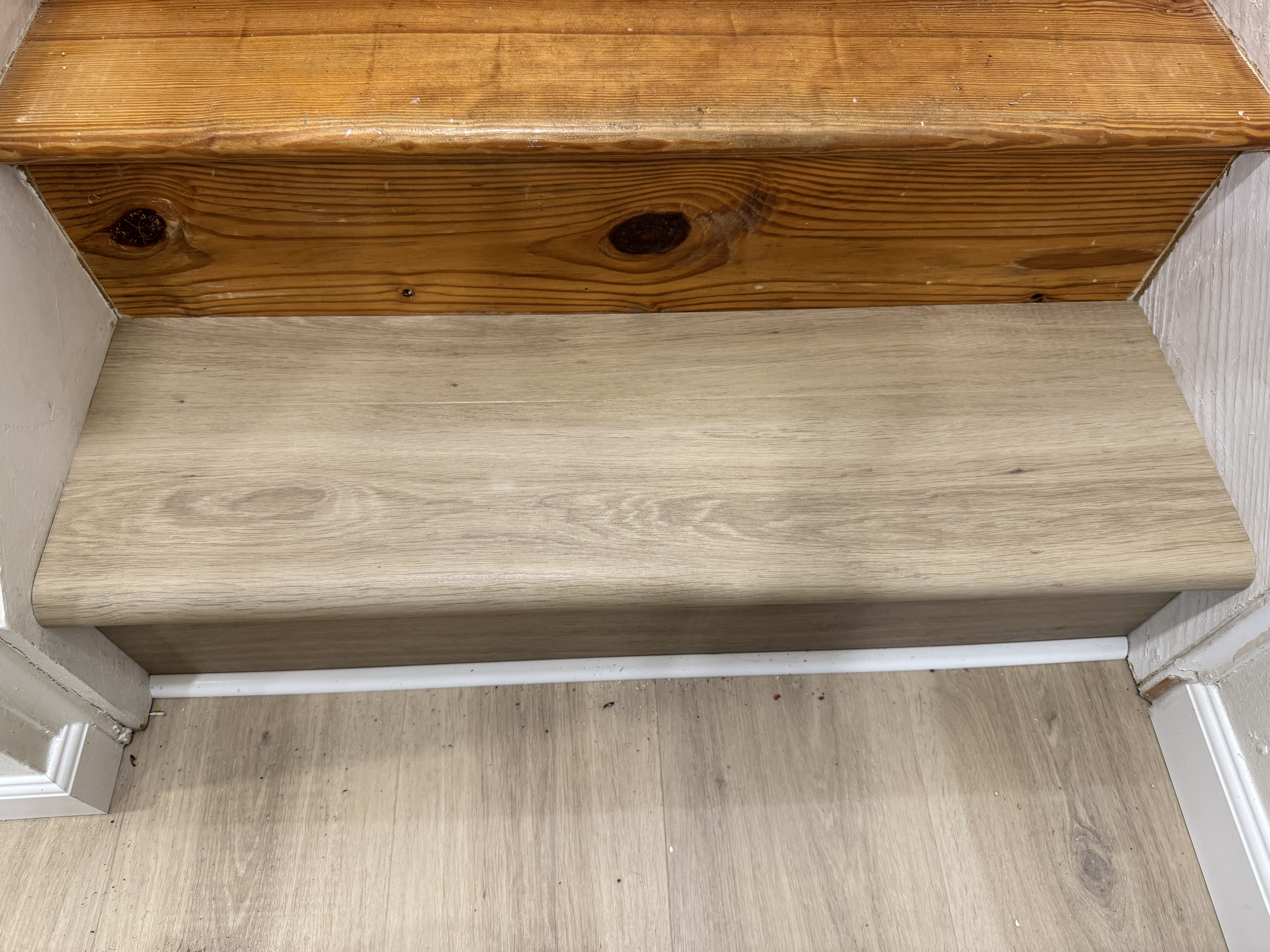

Quickly measures out a template for a stair tread or riser to cut out of a new piece
- Rating
- 5 / 5
- Likes
- 30
- Downloads
- 133
- Makes
- 0
- Views
- 884
- Reviews
- 1
Updated at source:
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

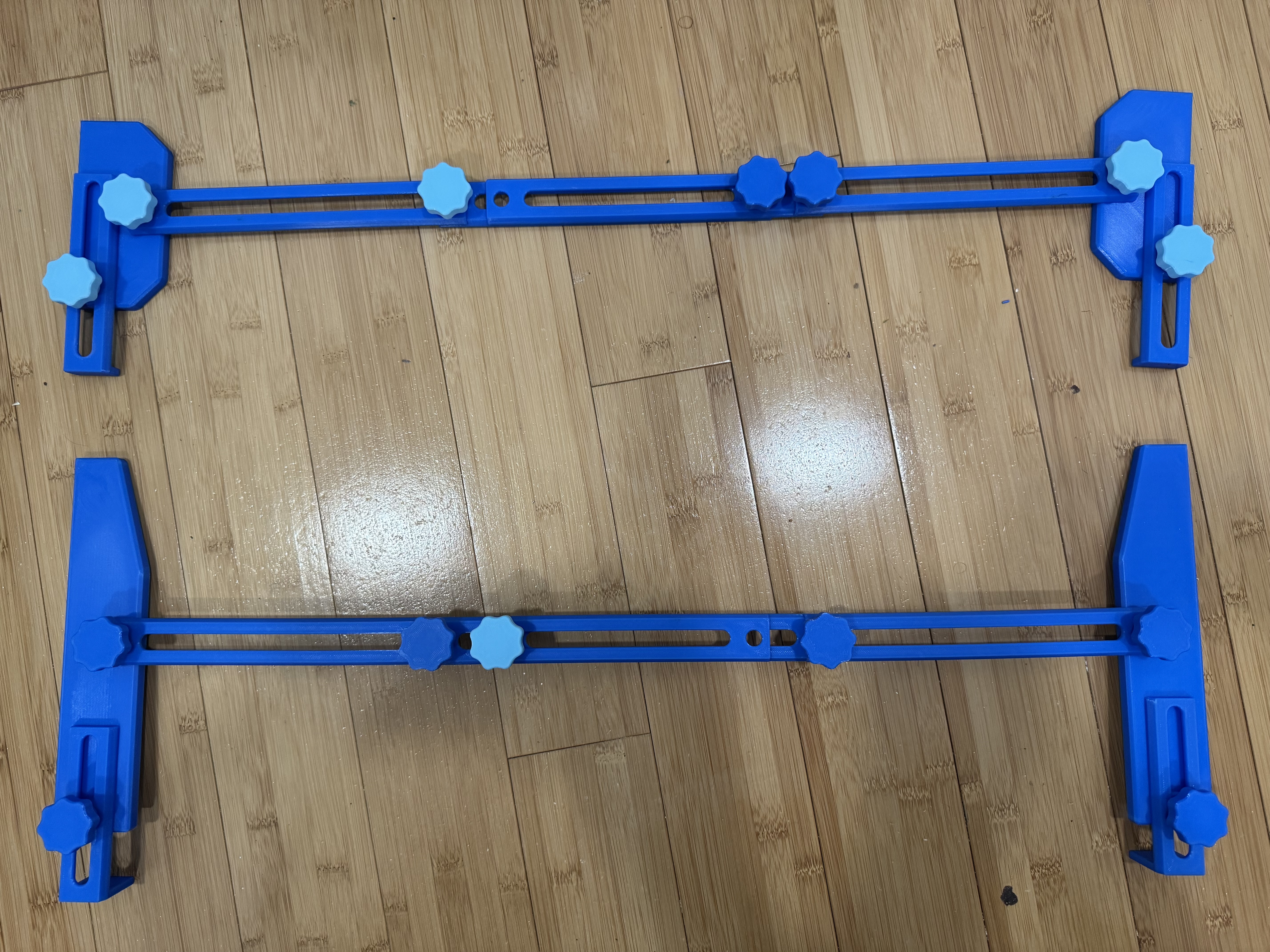

Fully printable tool for measuring an exact template of a stair tread or riser, that you can then transfer to a workpiece to be cut out.
Key features:

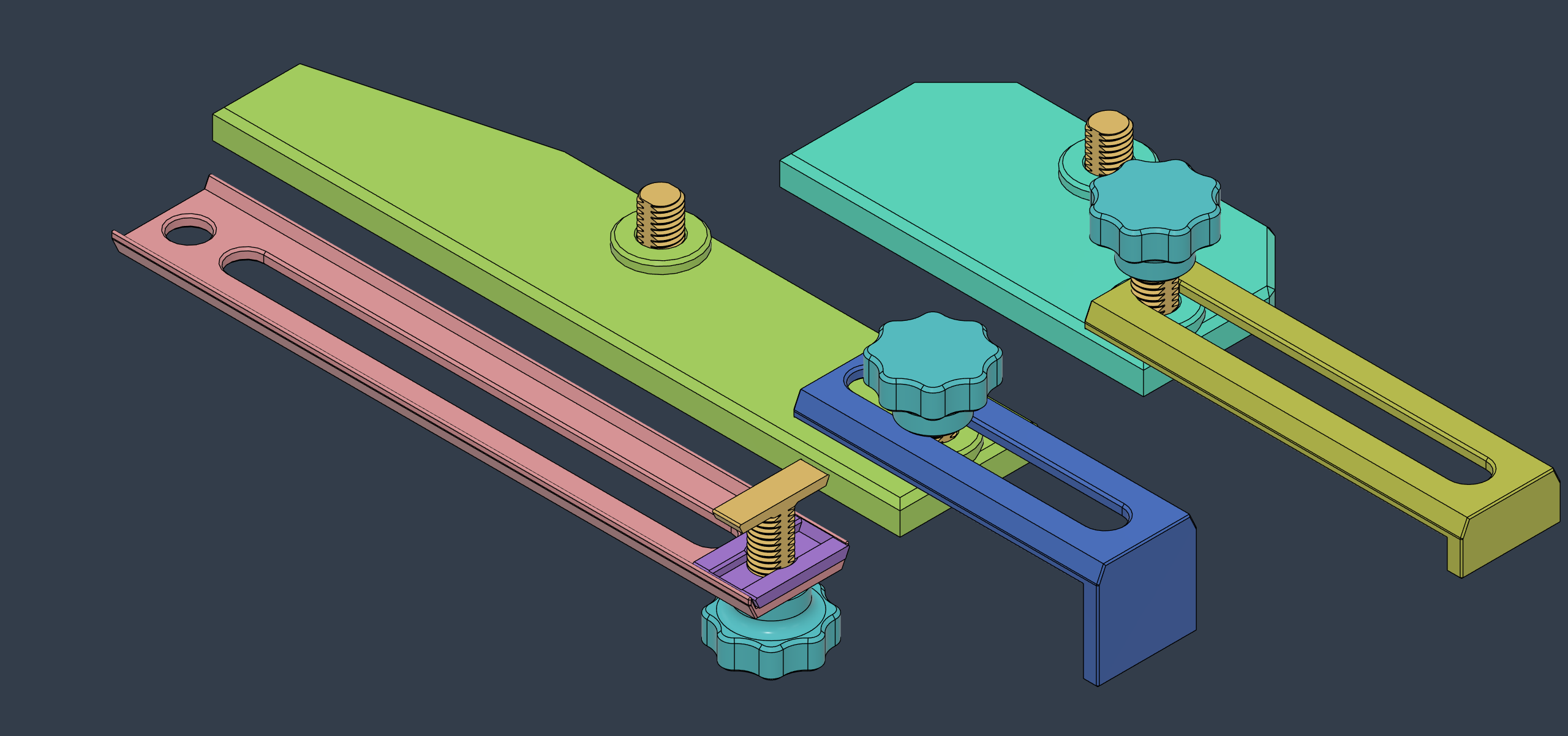

Fully modular - print as many rails, bolts, knobs, etc. as you need for your situation

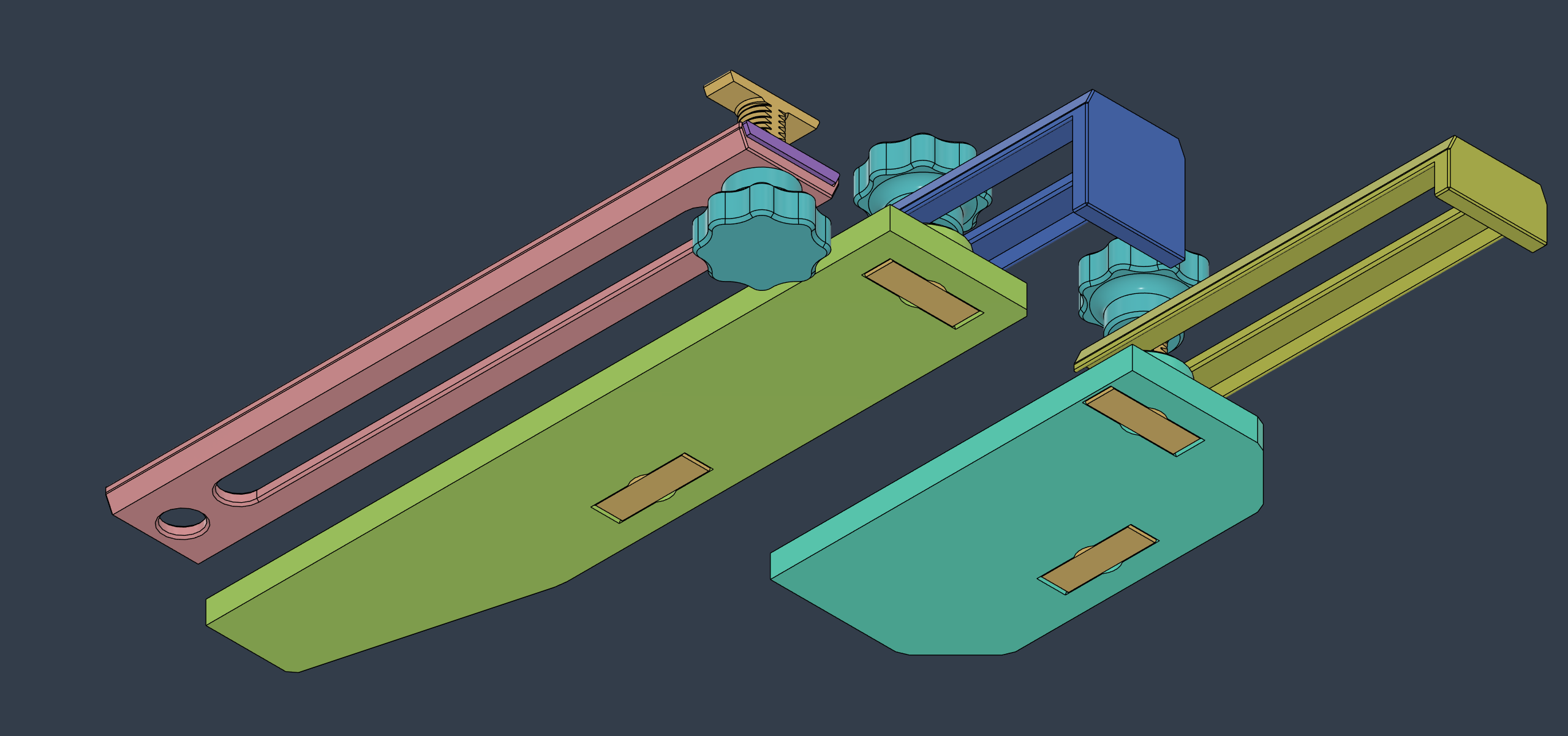

Both tread and riser templates have adjustable depth stops for separately measuring the left/right sides of a tread/riser
Tread templates have a taller depth stop for getting the front edge of an existing tread
A single bolt design is used for everything, printed sideways for increased strength
Most of the model is parameterized, so if you need shorter rails for example, that's adjustable in the
f3d
I recommend printing the bolts and knobs in PETG, at the very least the bolts should be. The rest of the parts can be anything, I used PLA.
Print settings:
Knob: 5 perimeters
Bolt: 5 perimeters, 100% infill
Everything else: default settings, the 3mf has adaptive cubic infill set for everything
