No supports necessary. Print all pieces in the orientation that they come. Instruction photos from orginal project.
Lid Assembly Instructions

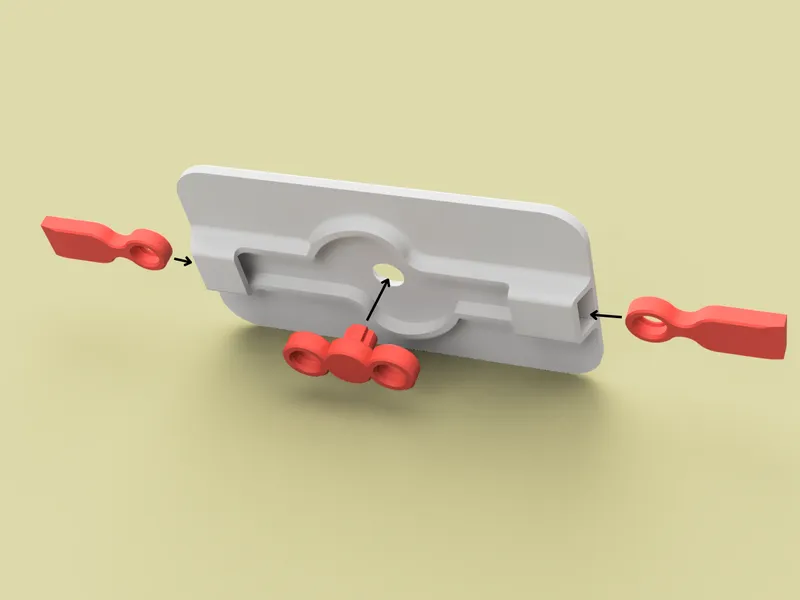

With the lid upside down, insert the inner and outer linkages. The orientation of the outer linkages matter. One face is flat, while the opposite has a slight taper. The flat side should be against the lid. The tapered side should face the container.

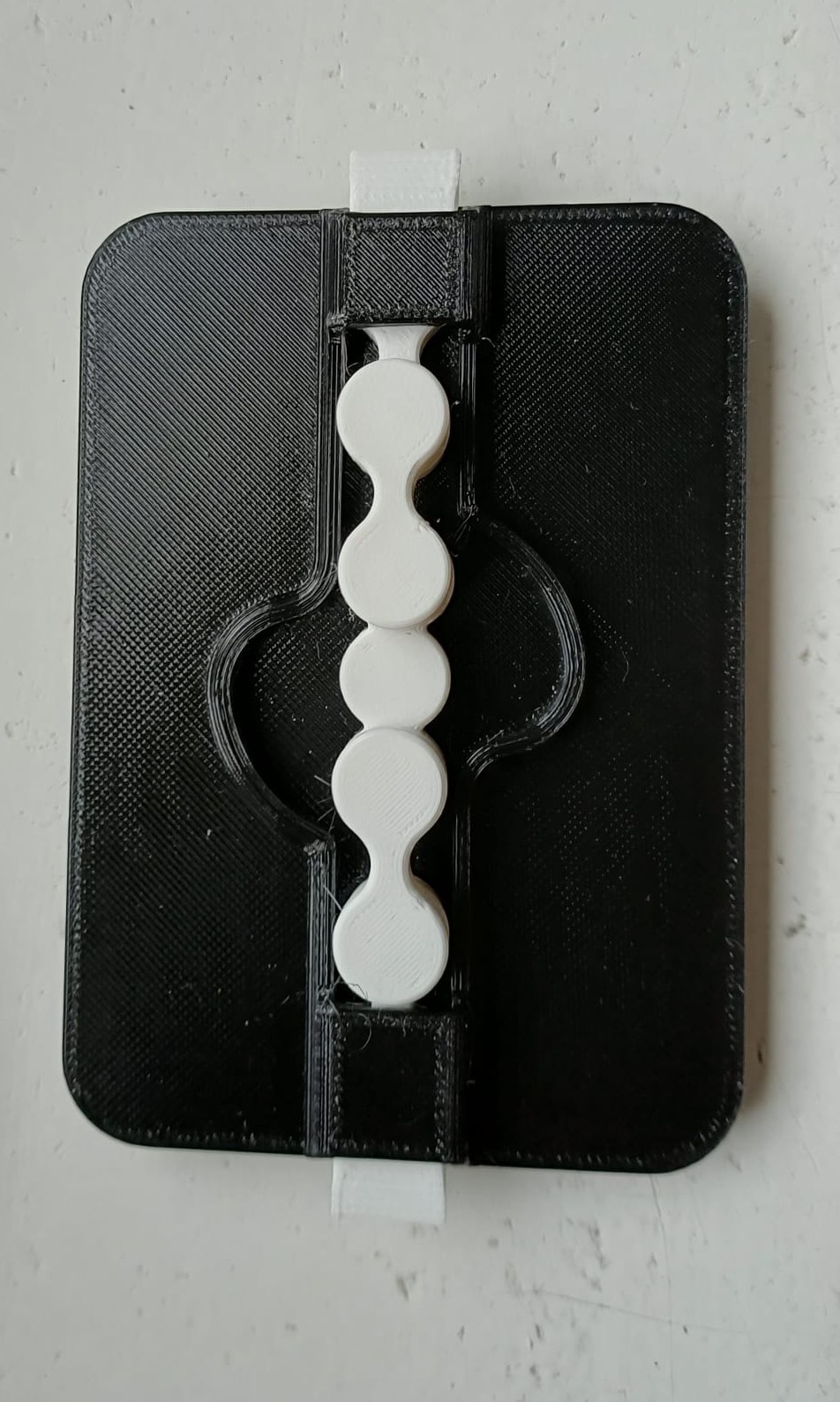

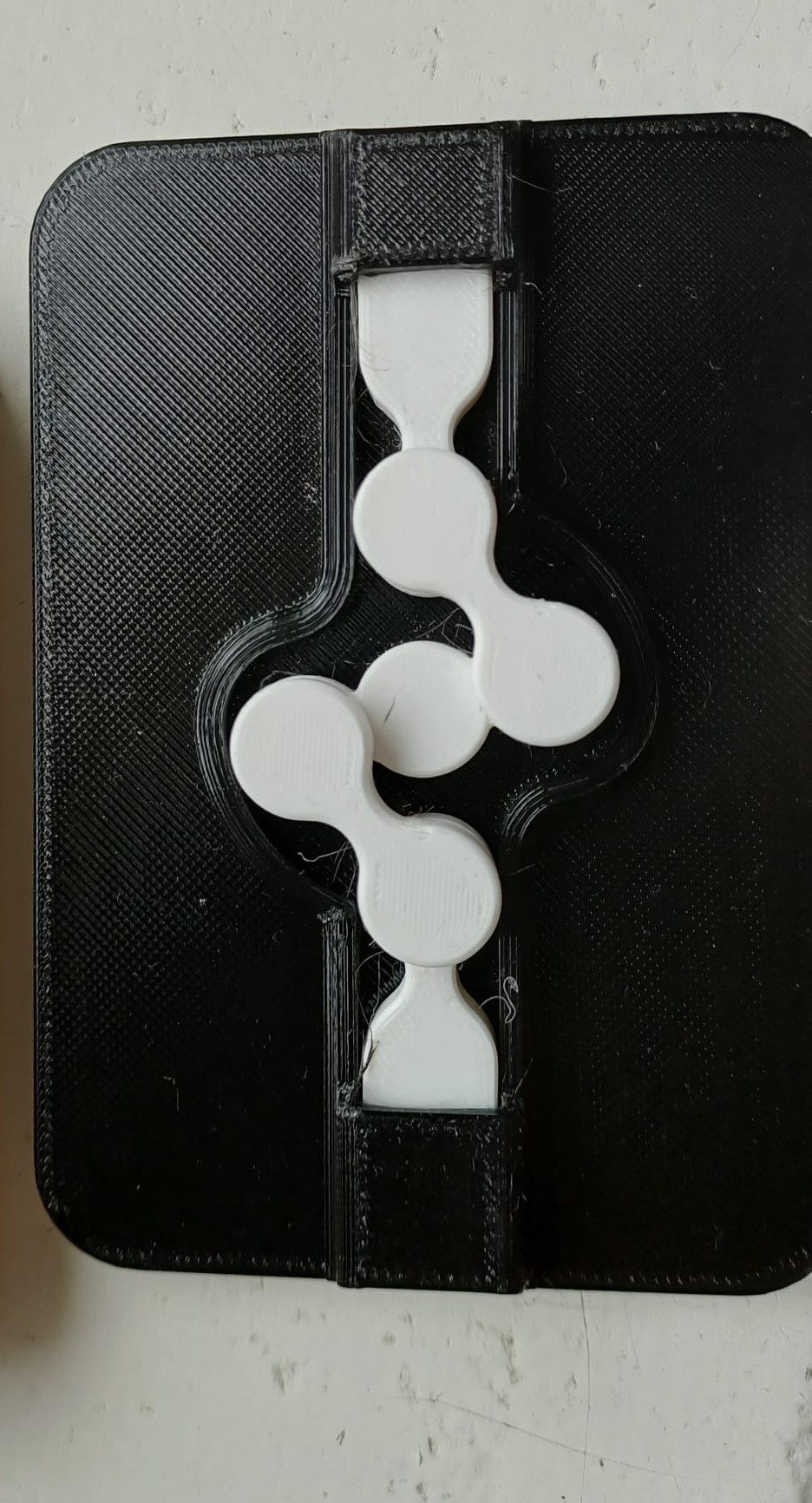

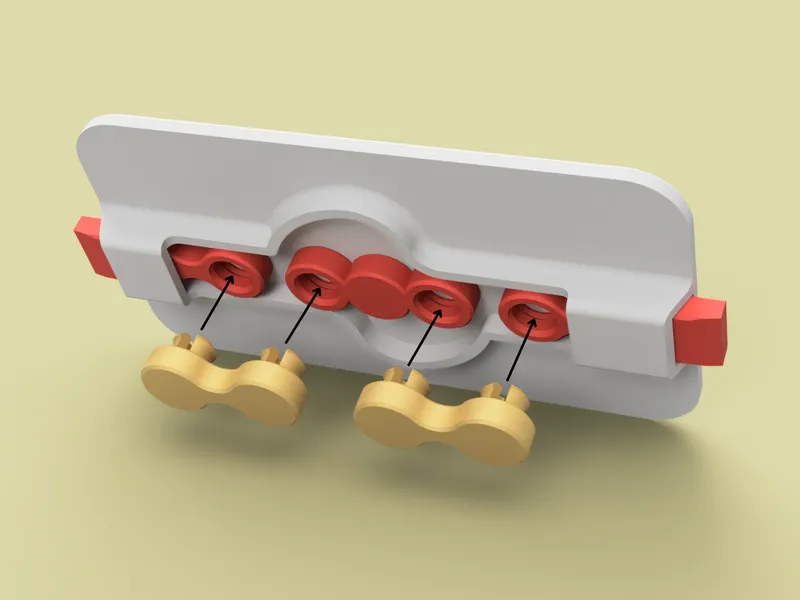

With the inner linkage in a horizontal orientation and the outer linkages sticking out about 5mm past the outer edge of the lid, the mid linkages should snap into each piece. Some force is required. Be sure that you press them straight down - if they are tilted during pressing, they may snap.

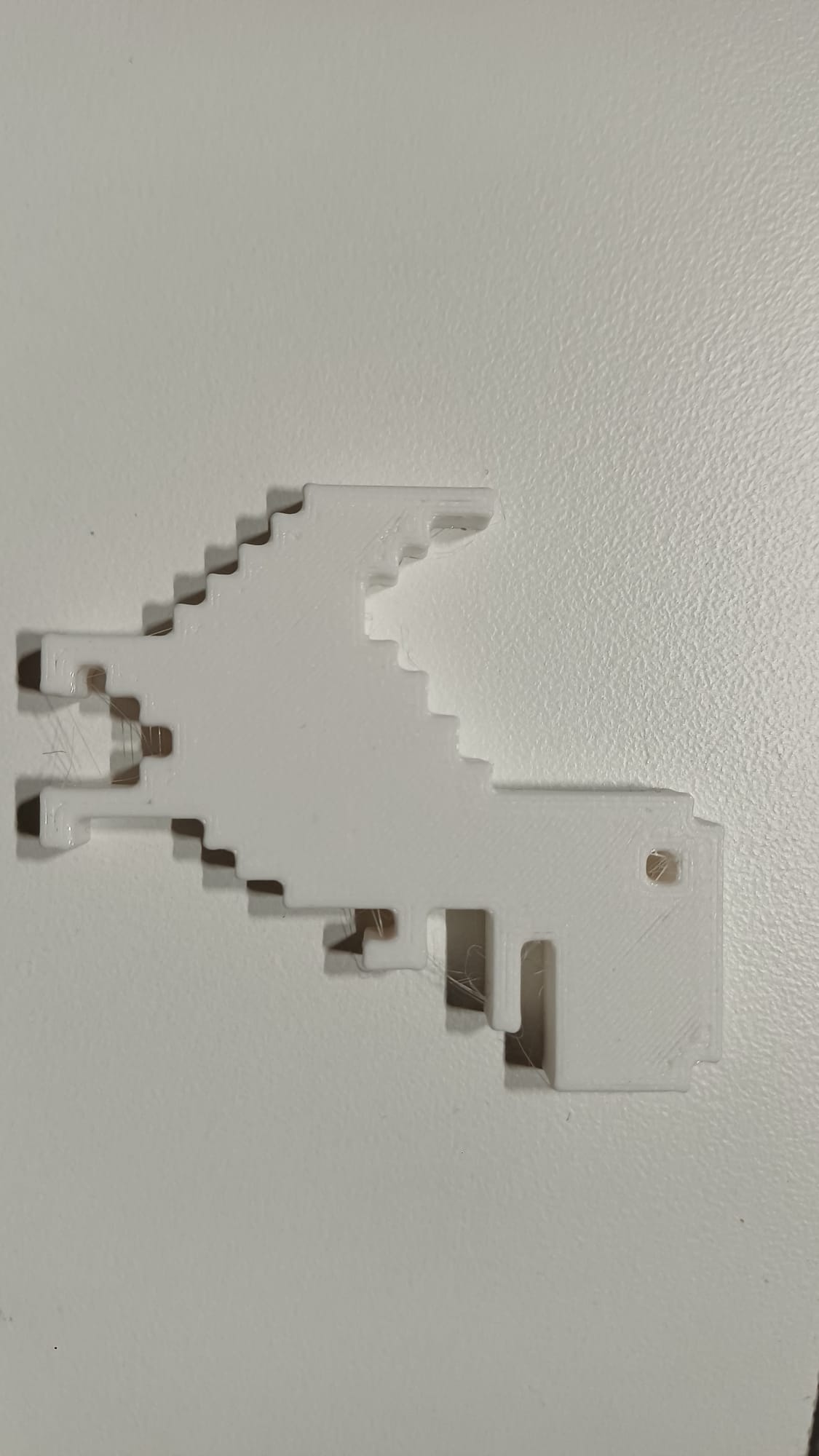

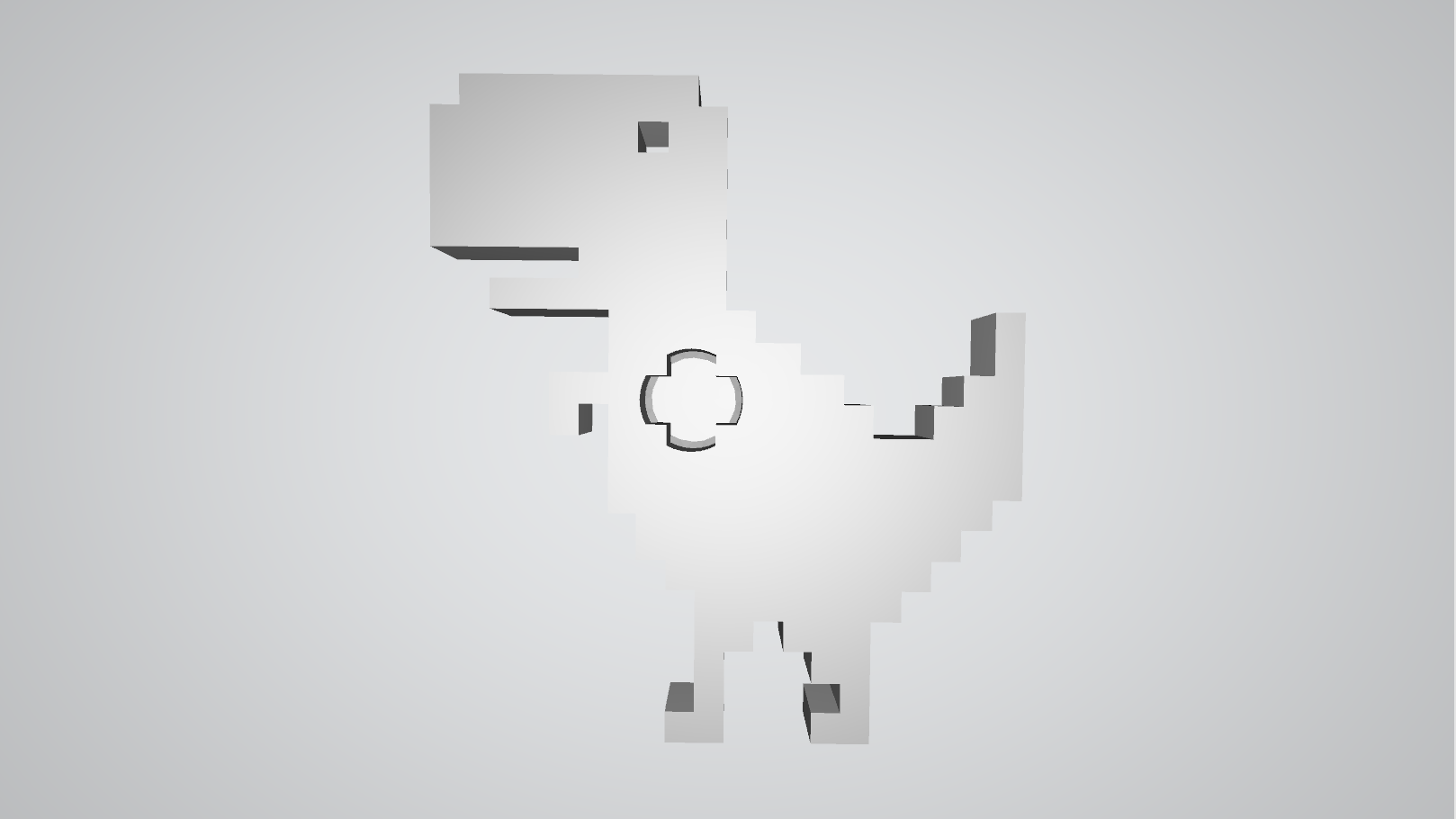

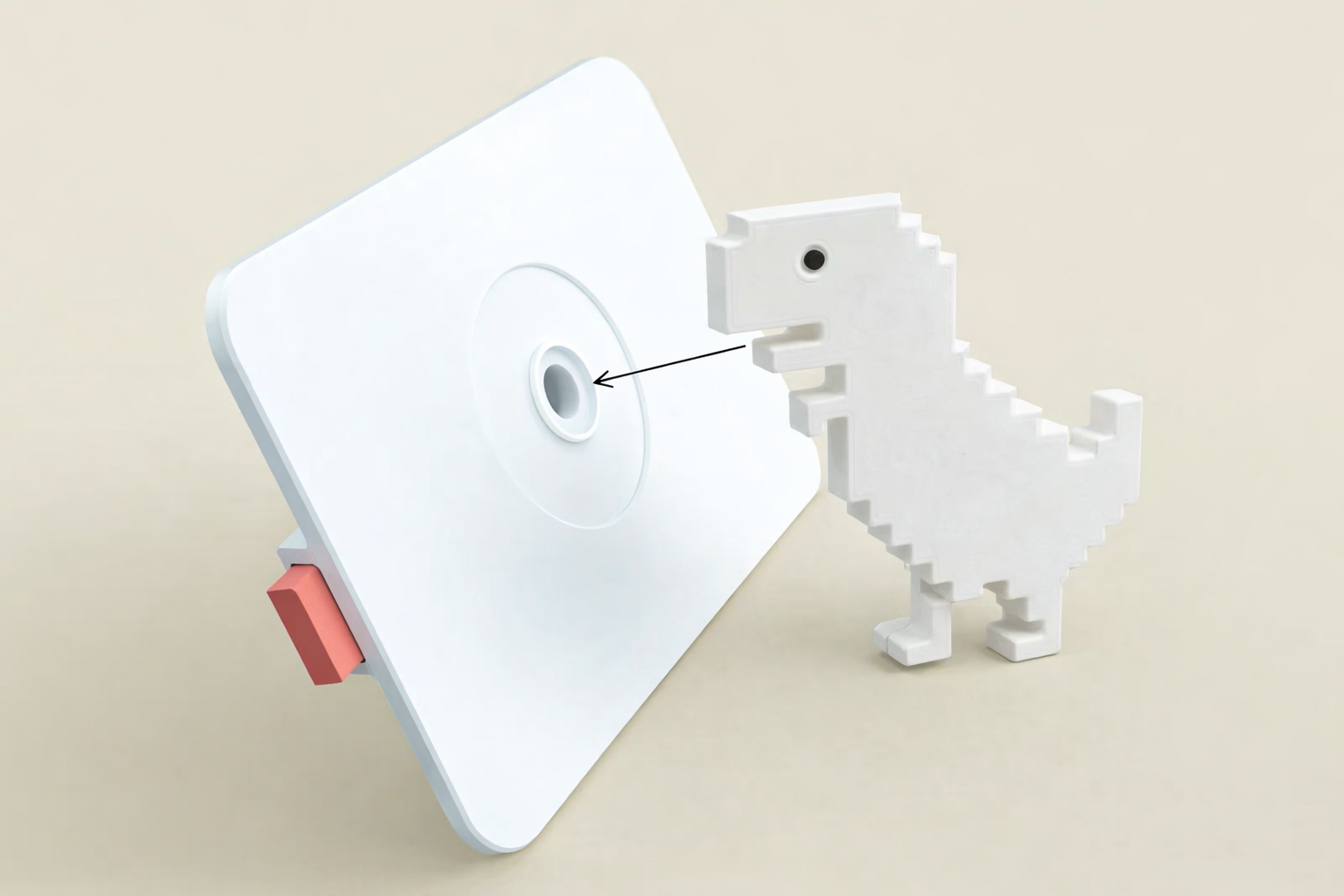

The knob will need to be glued in place on top of the inner linkage. Place the knob onto the inner linkage and ensure that the linkage moves smoothly. Once happy with everything, use a small amount of glue to permanently connect the knob and inner linkage. If you use too much, it may run out onto the lid and lock everything in place.
Tip: If you flip over the entire assembly while drying, glue cannot leak out.
