I was not satisfied with existing Citadel paint storages for Gridfinity so I created yet another one:

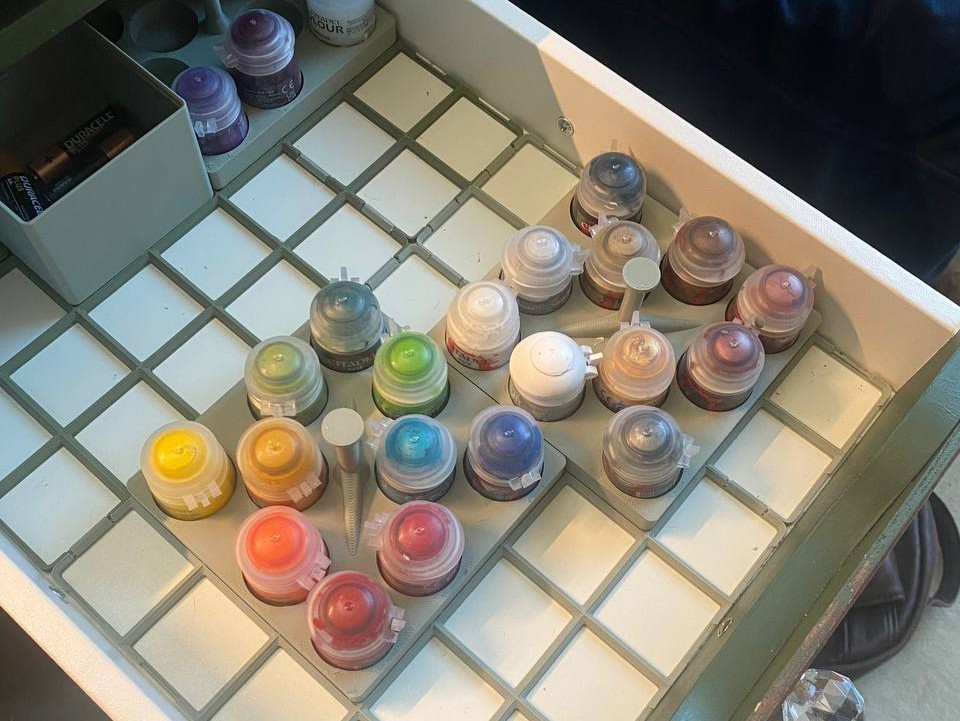

Fits 10 bottles into 3x3 grid, that's 1 bottle extra compared to most other solutions
Nice, strong handle to put the whole rack in and out of the drawer
Stack them vertically for even denser storage
No supports needed
For the easiest print use the 3mf file.
Otherwise, check out these printing recommendations:
Check the bridging layer at 5mm height! PrusaSlicer generated very long bridges by default which needed to be fixed with explicit 45 degrees bridging angle.
Use brim in the corners or they will lift. However, I do not recommend the full brim because it's a pain to remove inside the grid. Either use brim ears if your slicer supports them or use the "withBrimEars" .stl
Use continuous scarf joint on the handle to hide the seam, I got really nice results with it.
