Retractable Surface Pro Fan

Order a print of this model

We calculate the final price from your selected file. You review and accept it before payment.

Saved on this device.

Model information

Source
Printables
Category
Computers
License
Creative Commons — Attribution
DetailsMakes & commentsRemixesCollectionsRelated

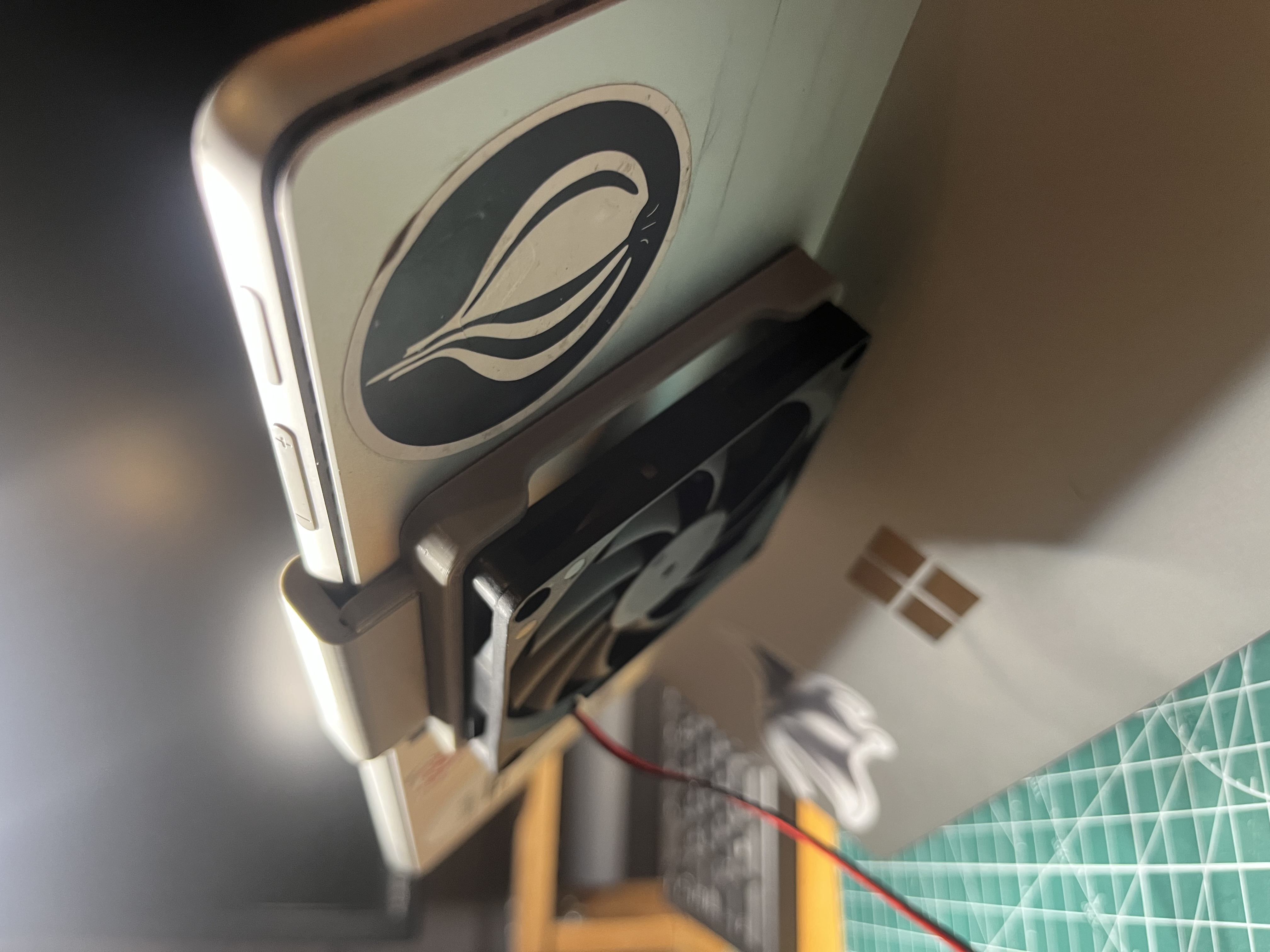

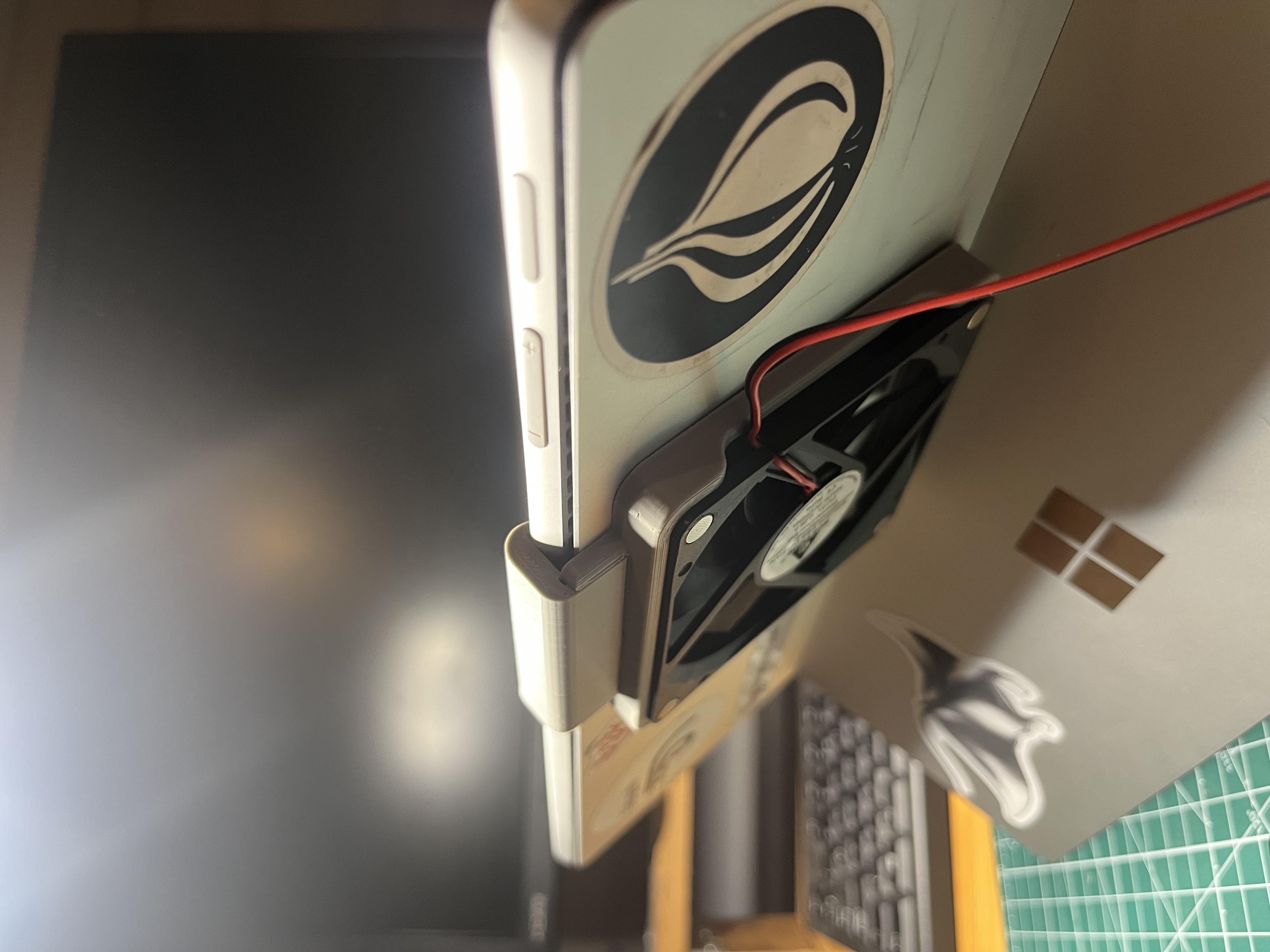

The fan can be flipped and stached inside the main body for reduced footprint when on the move.

BOM:

  • 1x 8010 5v fan

  • 1x old power cable (USB A)

  • 4x m2.5 5mm screws

  • 4x 6x3mm magnets

  • PLA

Instructions:

  • Super glue all four magnets to the fan screw mounts.

  • Fasten all four screws to the main body.

  • Super glue the screen clip to the lip of the main body.

  • Solder fan wires to a male usb if required.

If you are using type-C ensure the male or fermale module is 5v PD/QC trigger board such as: https://www.aliexpress.com/item/1005010263862796.html?spm=a2g0o.order_list.order_list_main.30.3cd11802R9SCfg .


Furthermore, the fan is already super quiet but to reduce noise even more I added a layer of electrical tape to the inside of the screen clip.
