M12 40W Led flashlight

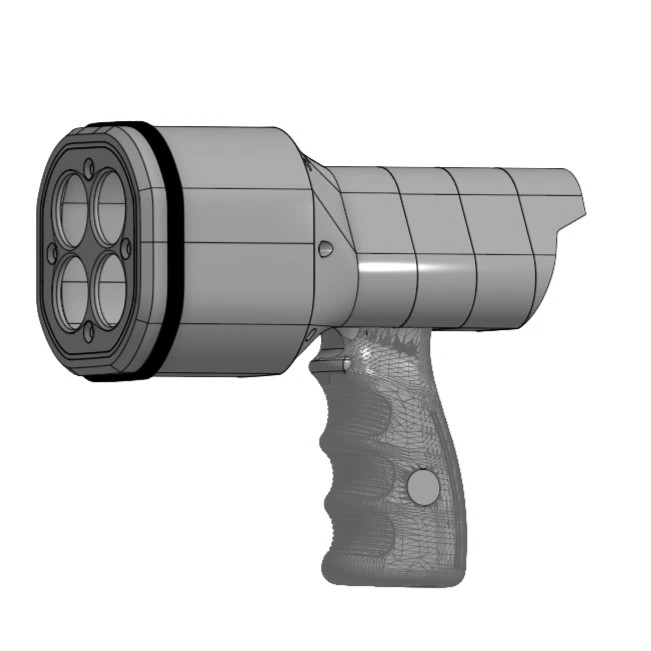

This is a Milwaukee M12 battery-powered handheld light using a single 3" off-road LED pod in a custom printed housing with a latching push button switch and inline fuse.

This model is shared for personal/noncommercial use and includes attribution to the original creators whose parts I used.

Remix / Credits (Attribution)

This project is a remix/assembly using the following models:

• Milwaukee M12 lantern no switch and 12V H3 LED by Heine Sørensen (@HeineSrensen) — CC BY 4.0
  https://www.printables.com/model/291109-milwaukee-m12-lantern-no-switch-and-12v-h3-led

• Original lantern base model: Milwaukee M12 lantern/torch by ksuszka — CC BY 4.0
  Credited because the model above is a remix of it.

• AR sniper pistol grip by s2811 (@sotos_1540449) — CC BY-NC 4.0
  https://www.printables.com/model/720426-ar-sniper-pistol-grip

My contribution: New handheld enclosure and integration (mounting for a 3" LED pod, internal wiring channels, switch + inline fuse placement, and screw-boss assembly).

License note: Because this remix includes a CC BY-NC component (the grip), this combined project is shared NonCommercial and requires attribution.

Parts

• Yellow Led Pods Lights 3" 40W LED spot cube, 12V/24V (pack of 2 — I used 1)

• 22mm latching push button switch, 5A, waterproof metal (flat head)

• 5A inline fuse

• Milwaukee M12 (2.5Ah–5.0Ah)

• 7× M3 x 10mm screws

• 7× M3 thread inserts (4.0 x 6.7mm)

• 2× crimp connectors with contact tabs for the battery +/– (inserted into the M12 adapter cutouts)

Wiring

• Battery + → 5A fuse → switch → light +

• Battery – → light –

Assembly Notes

• The M12 insert model I used already had two cutouts for contacts. I crimped two connectors with flat contacts leads and inserted them into those cutouts for the M12 battery +/– terminals.

• Watertight sealing is optional. My housing can be sealed, but I didn’t need waterproofing for my usage.

Print Info

• Material: Gray PETG

• Printer: Bambu Lab A1 (printed in an enclosure)
