3D printable rack mount faceplate system for Intel NUC 7 with keystone jacks, designed for 10" racks.
- Rating
- 0 / 5
- Likes
- 1
- Downloads
- 3
- Makes
- 0
- Views
- 131
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Public Domain
This is a modular 3D printable rack-mount solution for an Intel NUC 7, designed to integrate keystone jacks into a clean, professional front panel. It was originally made for a TecMojo 10" rack, but should be compatible with other 10-inch racks using the same mounting standard.
🧩 Included Plates
Plate 1 – Decorative Faceplate
Cosmetic only. Not required for function. Ideal for printing in a contrasting color to add visual flair.Plate 2 – Accent Plate
Sits behind Plate 1 to help the front design pop when printed in a different color.Plate 3 – Main Faceplate

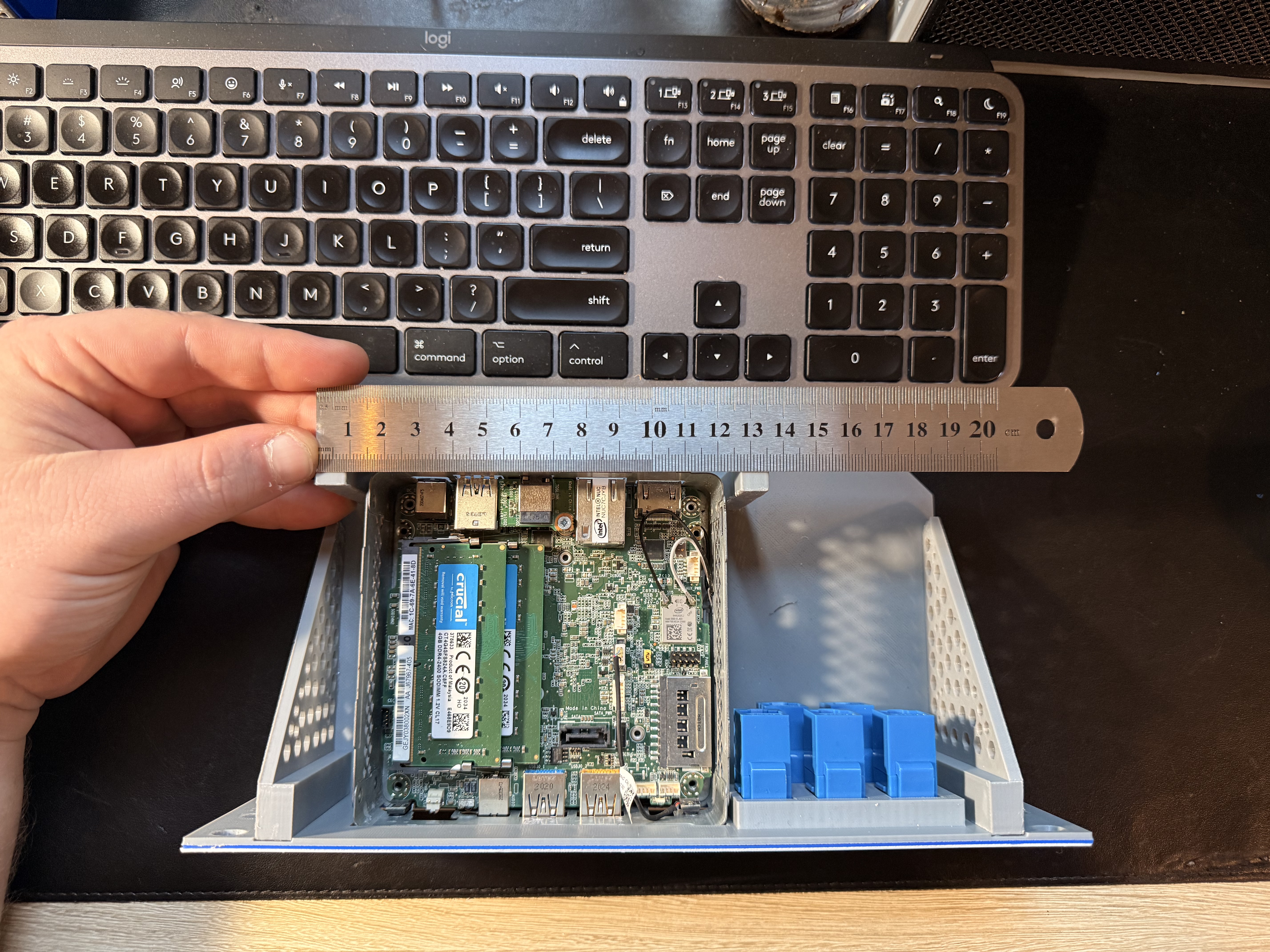

The functional core of the design. This plate holds the Intel NUC securely and locks the keystone jacks in place.Base Plate
Adds rigidity and helps secure the NUC using raised platforms for proper alignment and support.
🖨 Printing Notes
Material: PLA or PLA+
Walls: 3
Top/Bottom Layers: 4
Supports: Only if needed; Tree Snug supports recommended
Color swapping between plates is encouraged for best visual results
🔧 Use Case

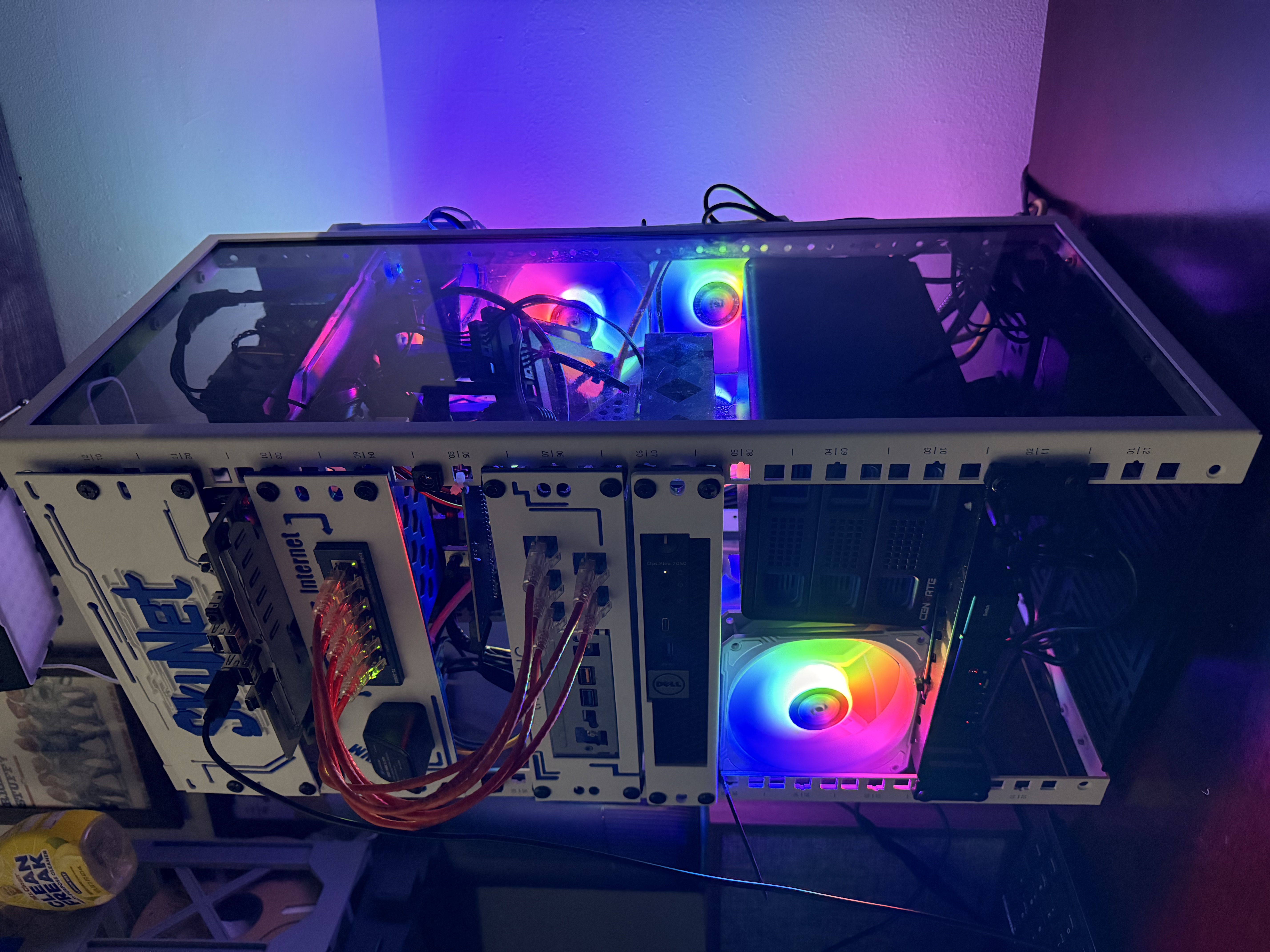

Perfect for homelabs, networking setups, or clean rack installations, this mount lets you combine compute and structured cabling into a compact, organized 10" rack footprint.
