Empire Vents Paintball Mask Proflex Strap Clip
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Outdoor Sports
- License
- Creative Commons — Attribution — Noncommercial

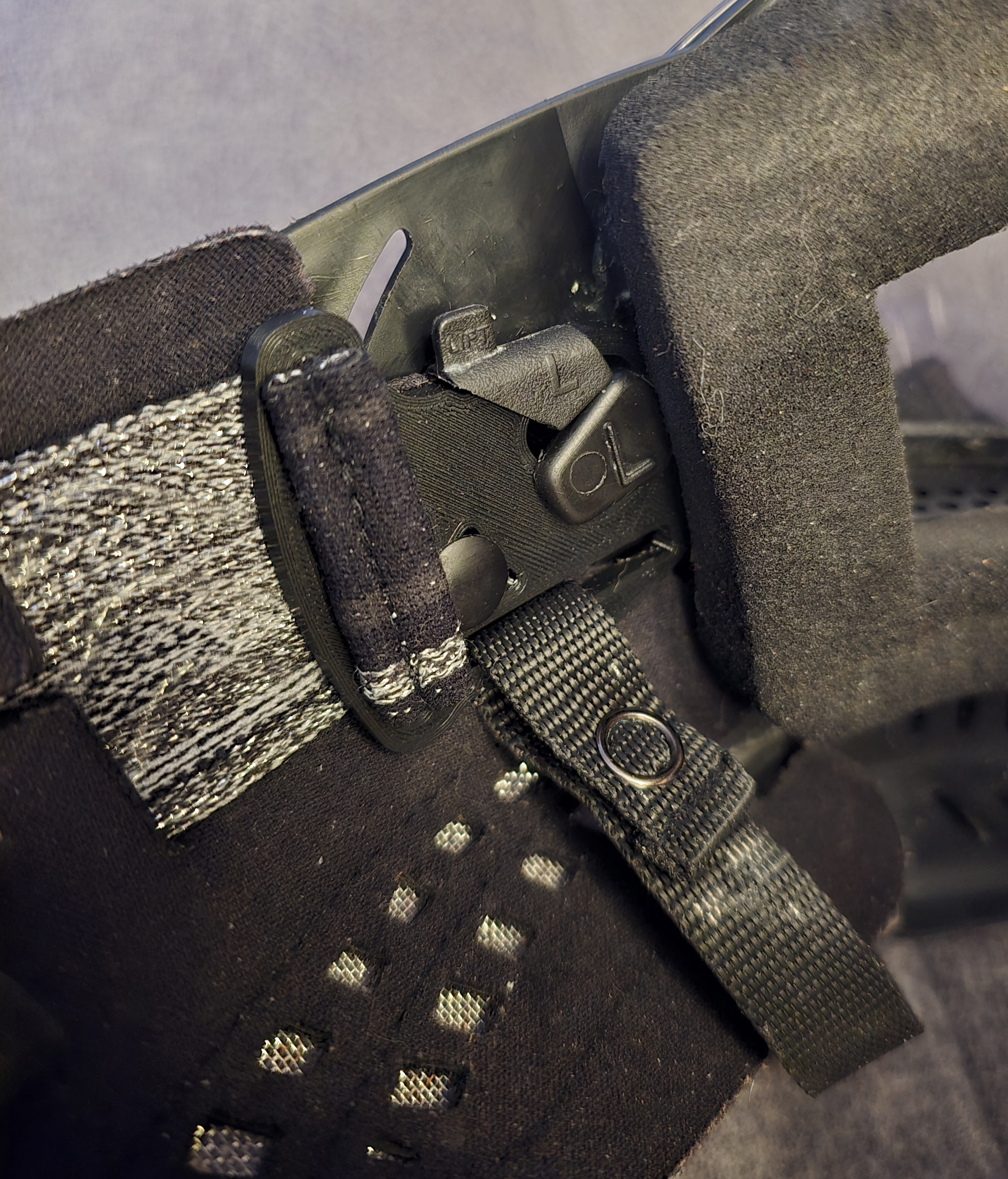

These clips will allow you to easily use a Proflex (other other "universal") strap on the Empire Vents family of masks (E-Vent, E-Flex, Helix).
The stock mask clips could also be used, but have two issues:
1) You need to cut off the existing strap.
2) The new strap is very difficult to get through the narrow slots.

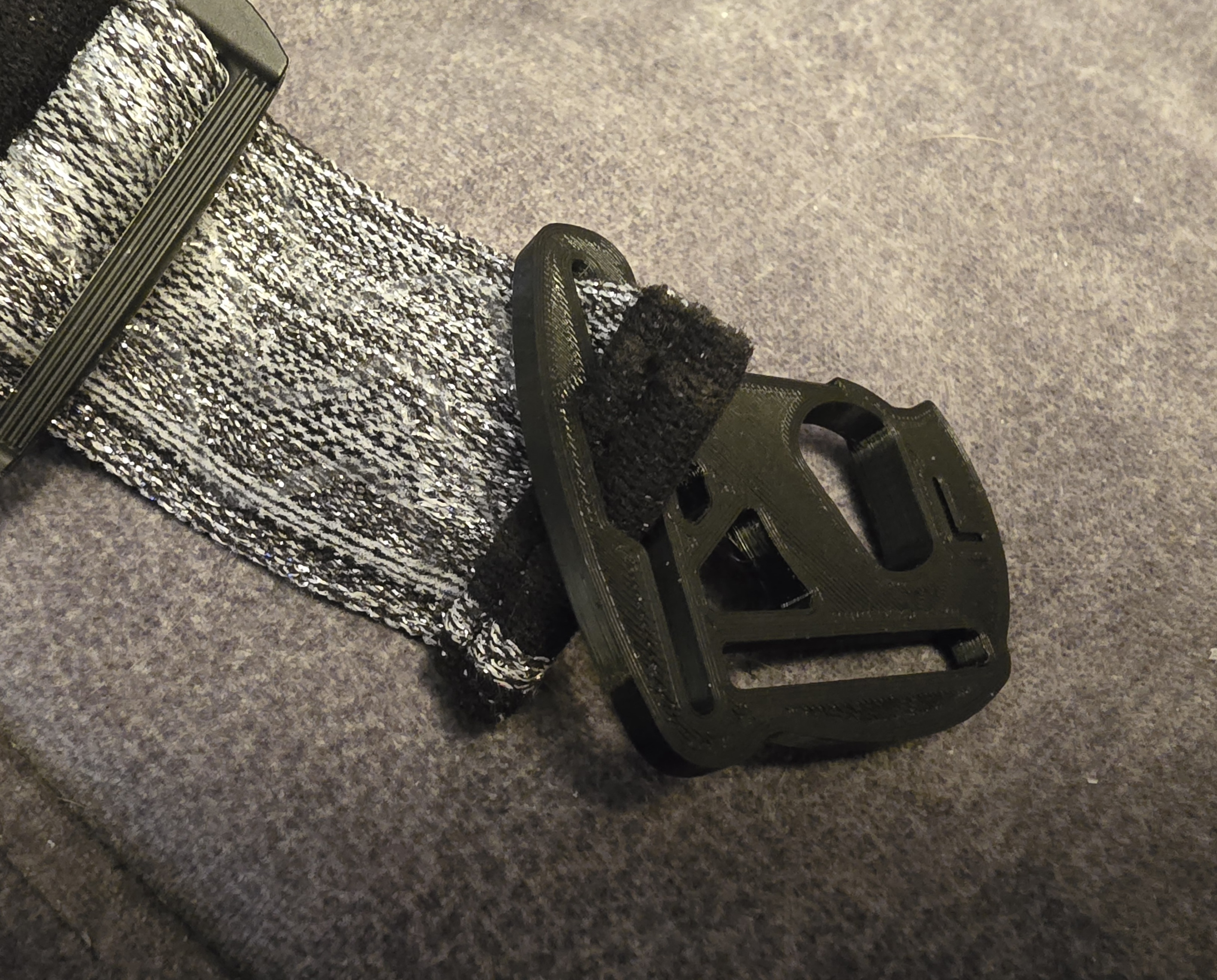

This adds a larger gap in the middle of the slot which allows you to push the end of the new strap through, after which the strap is rotated to prevent it from coming back out. This is similar to the clips on the new JT QLS frames.
Obviously use at your own risk, but I feel perfectly safe with them.

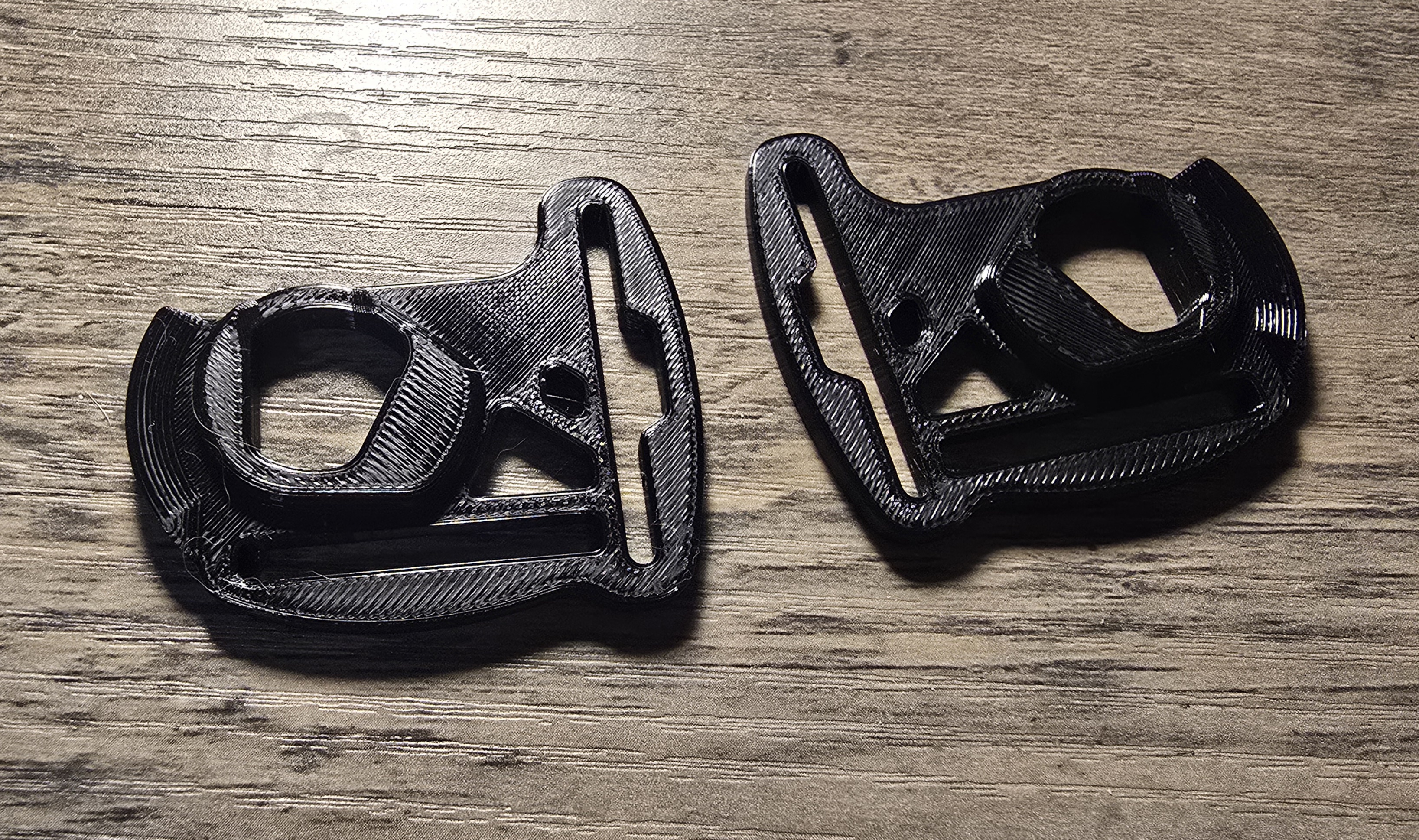

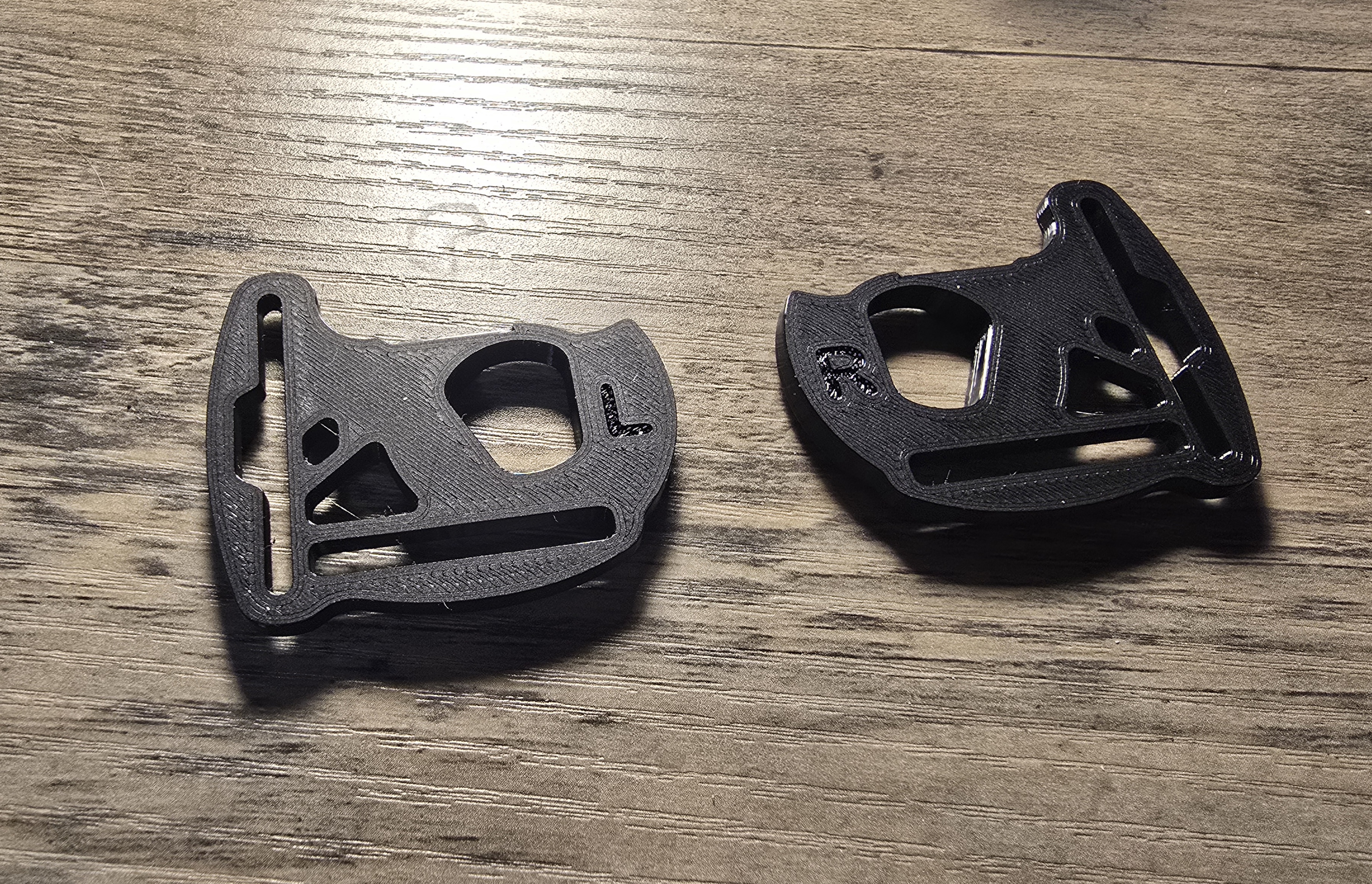

I printed mine with PETG at 100% infill, 0.15mm layer height, other settings default in PrusaSlicer. Seems very strong, I don't see it breaking easily. I tested one at 15% infill as well, and that would probably be strong enough too.

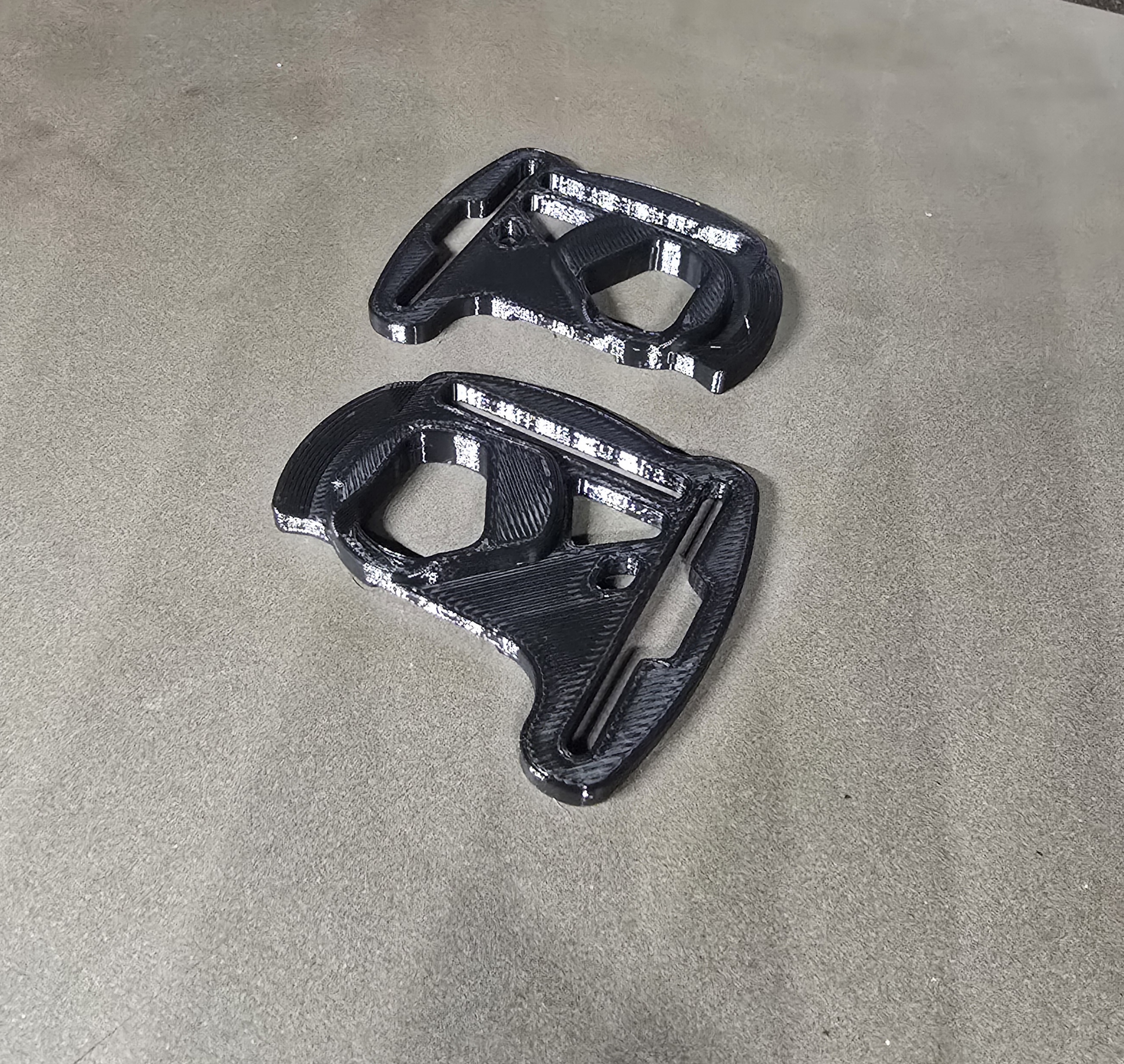

No supports needed, just print on the (mostly) flat side.
