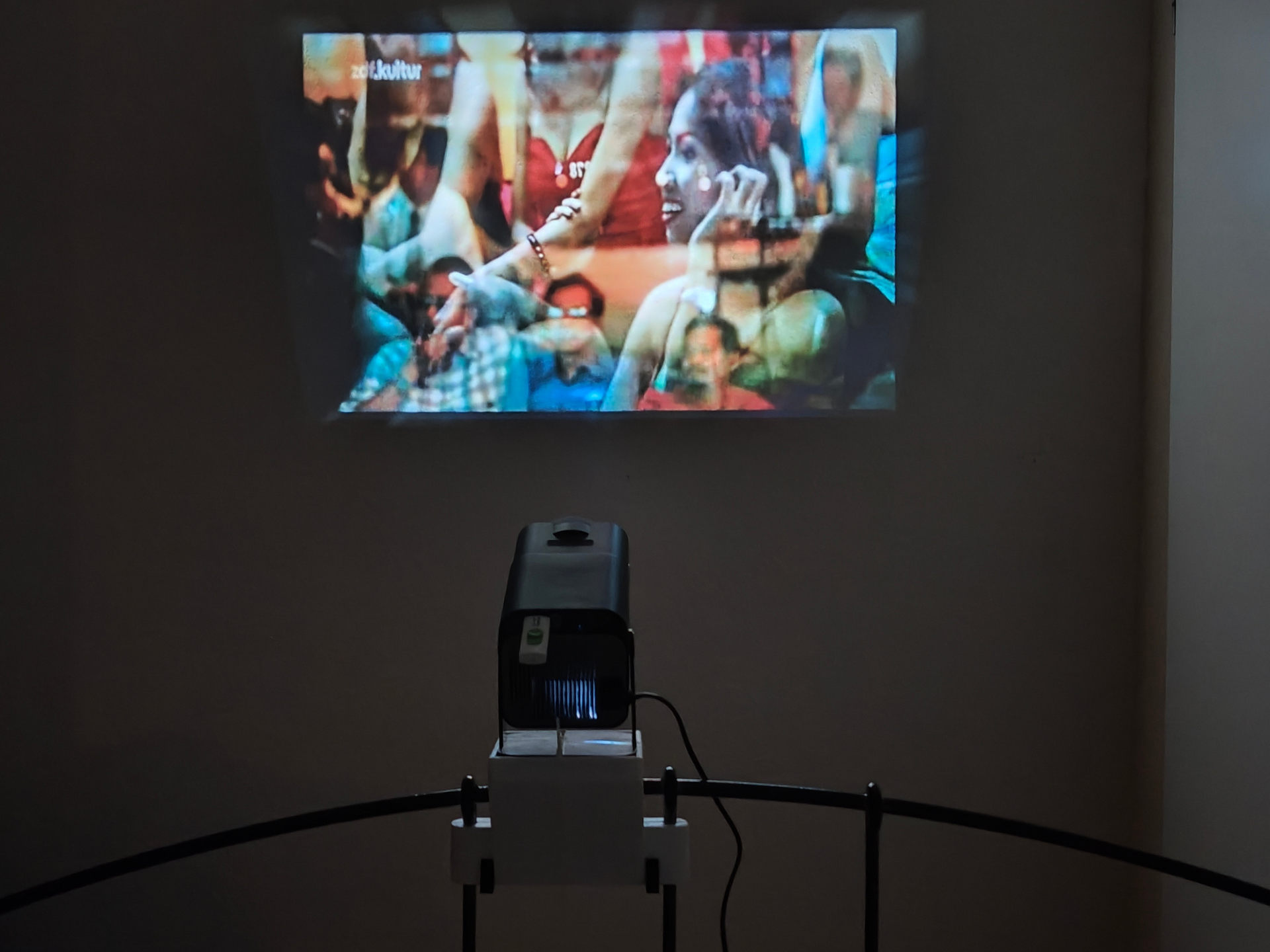

A beamer holder intended for a bed frame, which can be mounted easily without the need for screws or tools.
- Rating
- 0 / 5
- Likes
- 0
- Downloads
- 2
- Makes
- 0
- Views
- 82
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Photo & Video
- License
- Creative Commons — Attribution

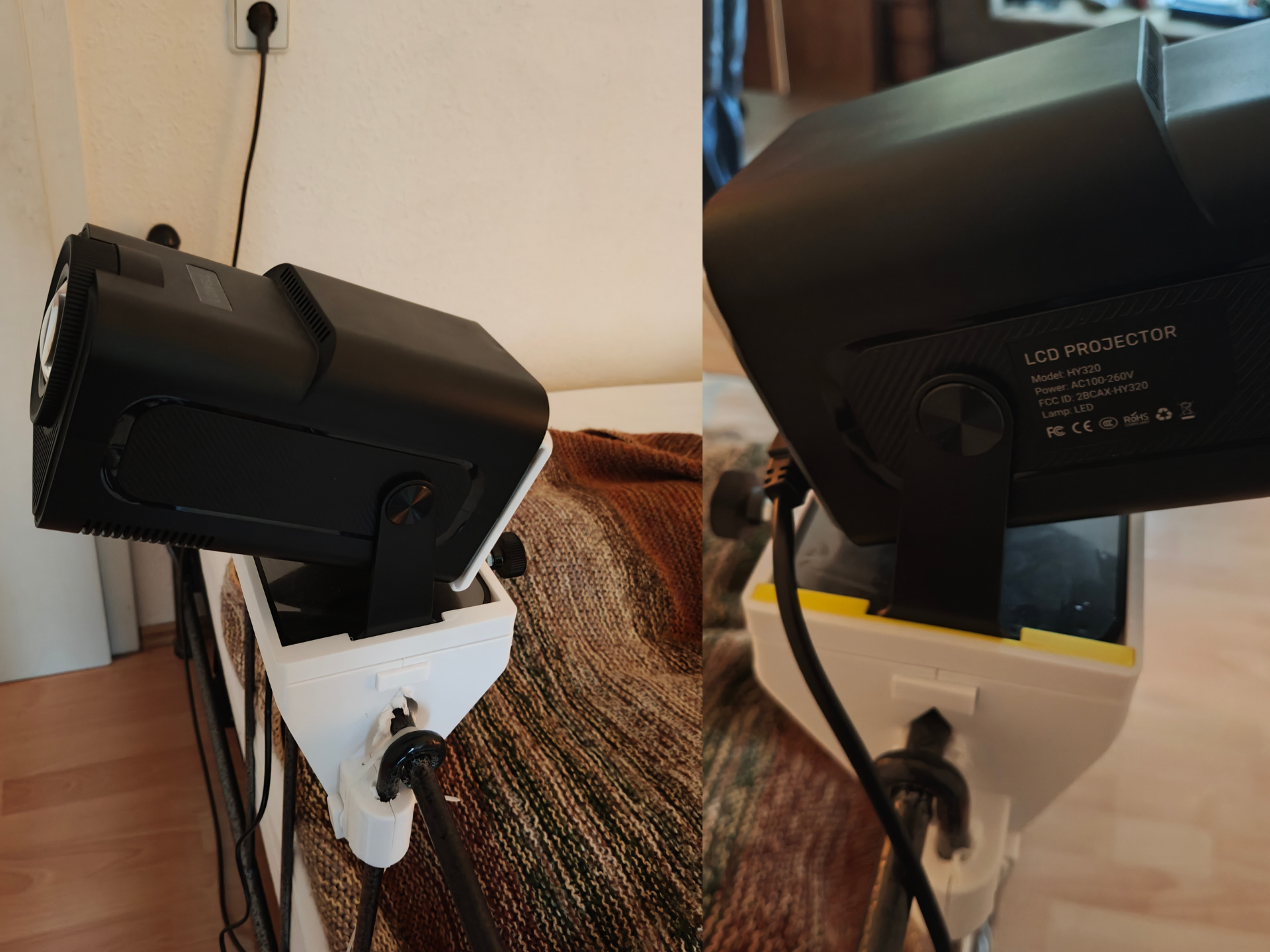

This is my design for a beamer holder intended for a bed frame. It can be mounted easily without the need for screws or tools. The model incorporates a bearing with a rotating base, allowing the beamer to be positioned in eight discrete directions at 45-degree increments. Once the desired angle is selected, it can be secured using an M5 screw. Additionally, the mount includes a dedicated slot for storing the remote. The beamer itself is inserted into the rotating platform and secured with a small retaining component. In the initial prototype, cable ties were used to hold the beamer in place. While this solution proved effective, it was not ideal for long-term use and required removal afterward.
I hope you like the design, and I would appreciate any suggestions for further improvements.
