Bindicator
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.

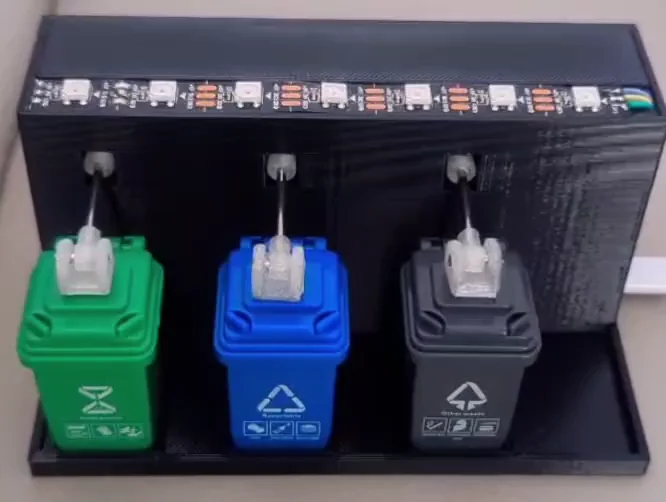

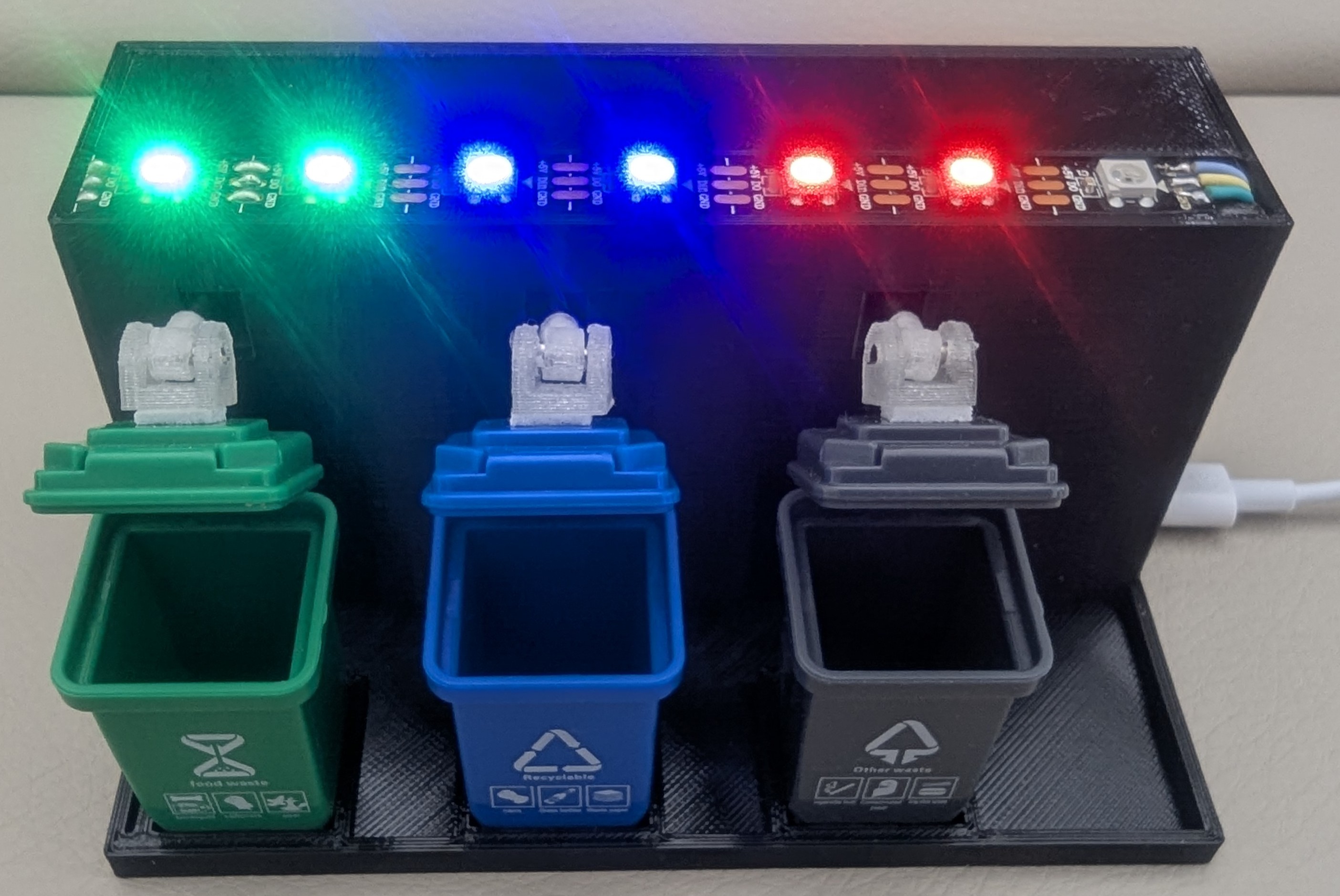

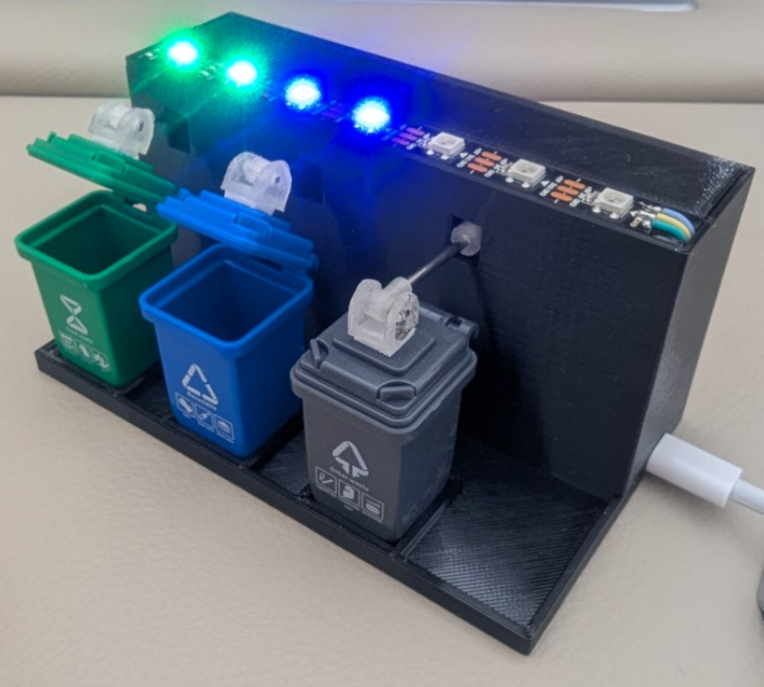

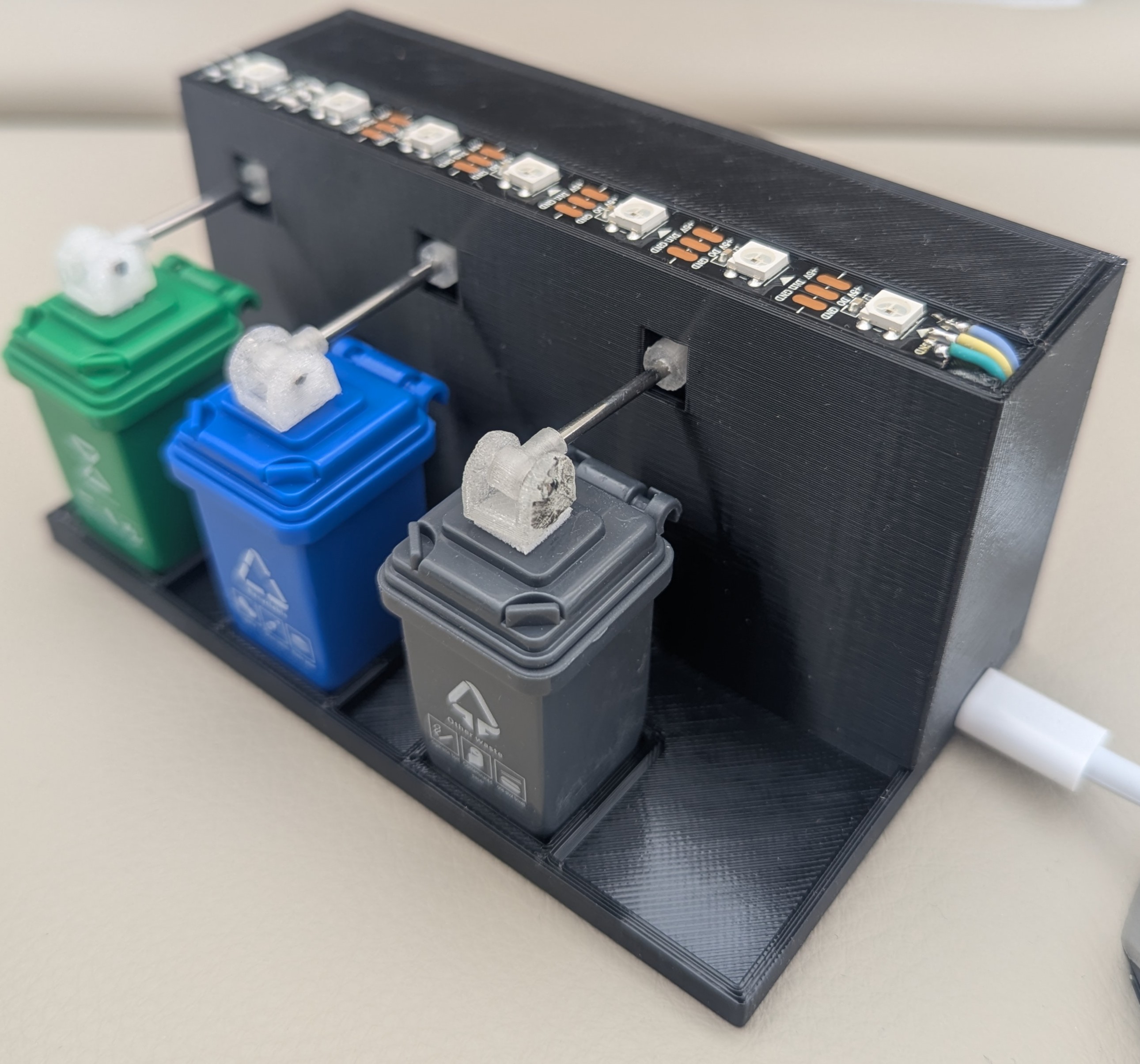

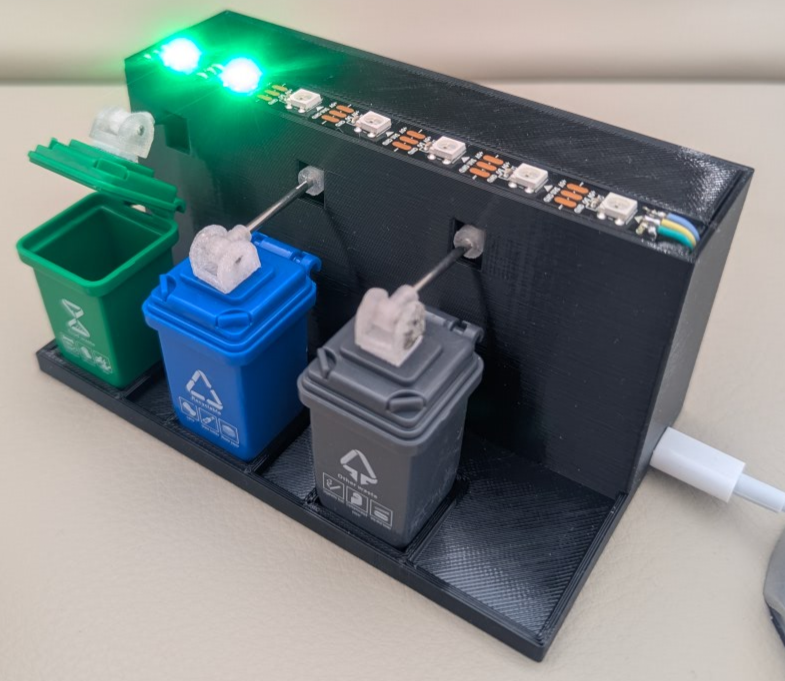

Visual representation of which bin is being collected this week, running in esphome + home assistant.
- Rating
- 0 / 5
- Likes
- 1
- Downloads
- 7
- Makes
- 0
- Views
- 218
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution — Noncommercial
Printed with Prusament PETG Black + Anycubic Transparten PETG.
Body and roof 0.3mm supports required for the body.
Hinges are all 0.1mm slow down speed to 25% might take a few tries.
Items used:
1x 2mm steel axle, found on aliexpress for the hinges.
7 x led strip WS2812B.
1 x d1mini
3 x SG90 servo
For smooth movement in the hinges, use a 2.5mm drill for the Hinge Servo and Hing 1 in the 2 holes in the "T"
Use a 2mm drill for hing square and the Hinge Servo and Hinge 1 in the singular hole, as this needs to be tight.
