I designed this due to not finding a fitting case for my last Project.

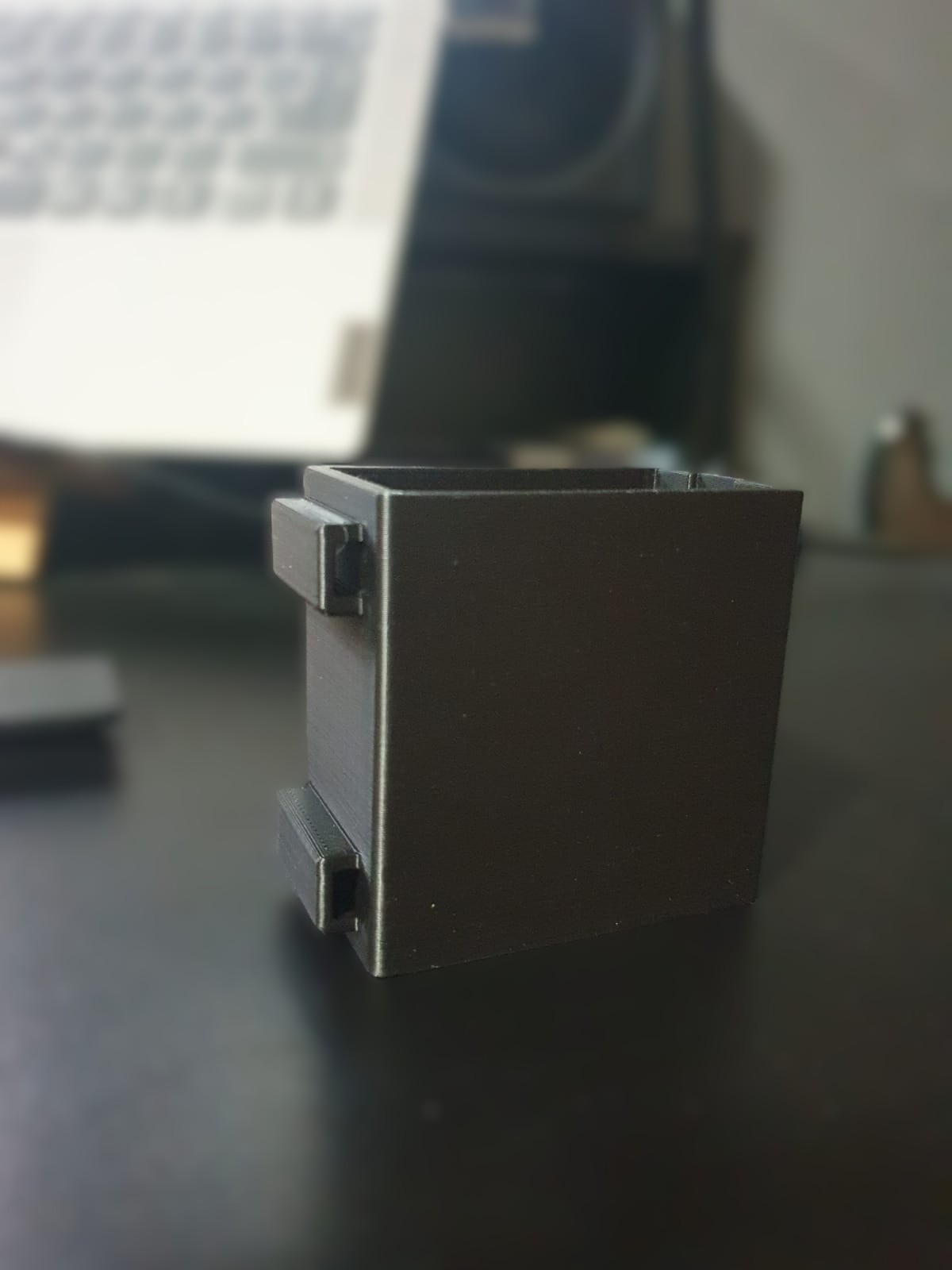

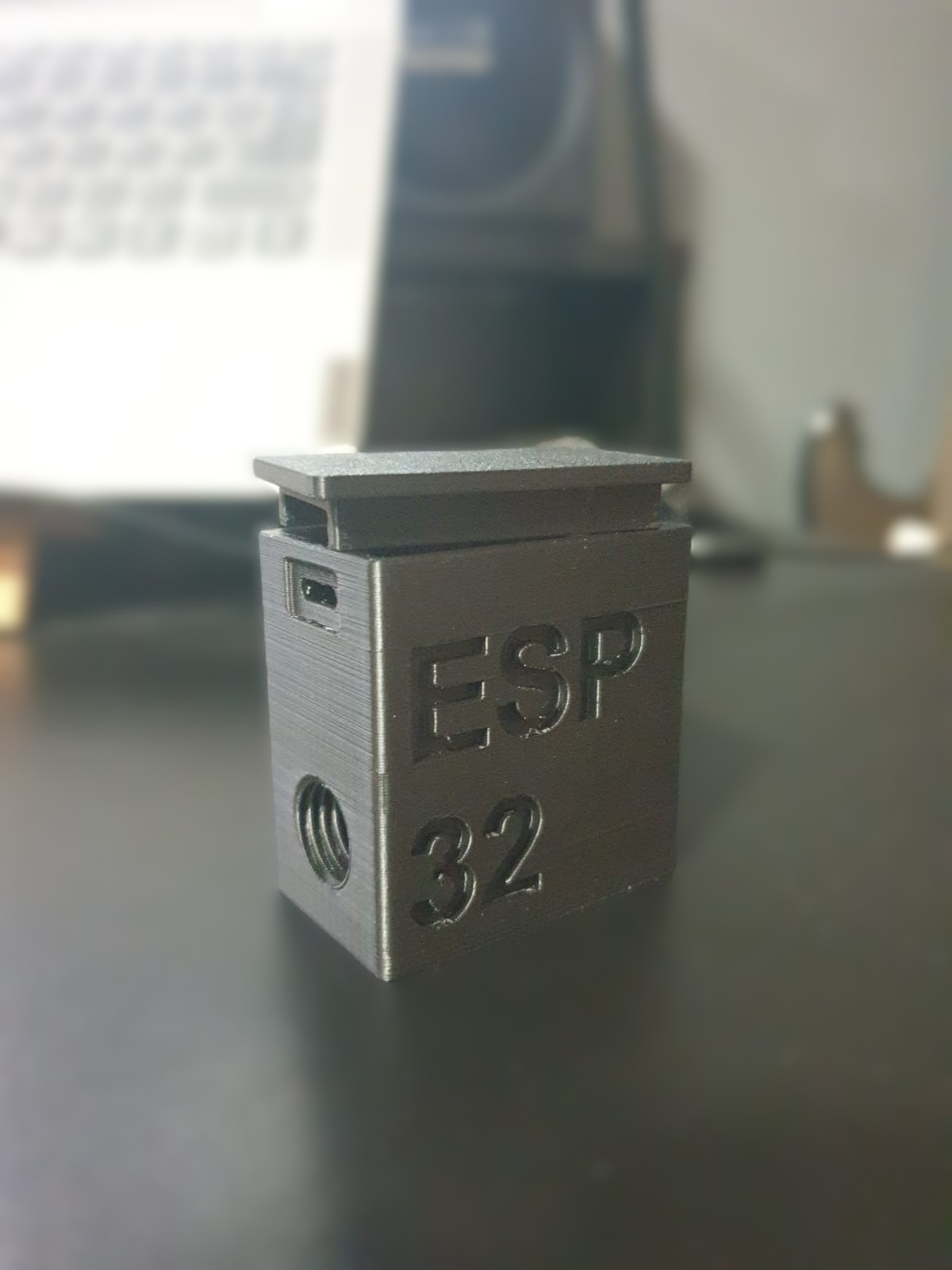

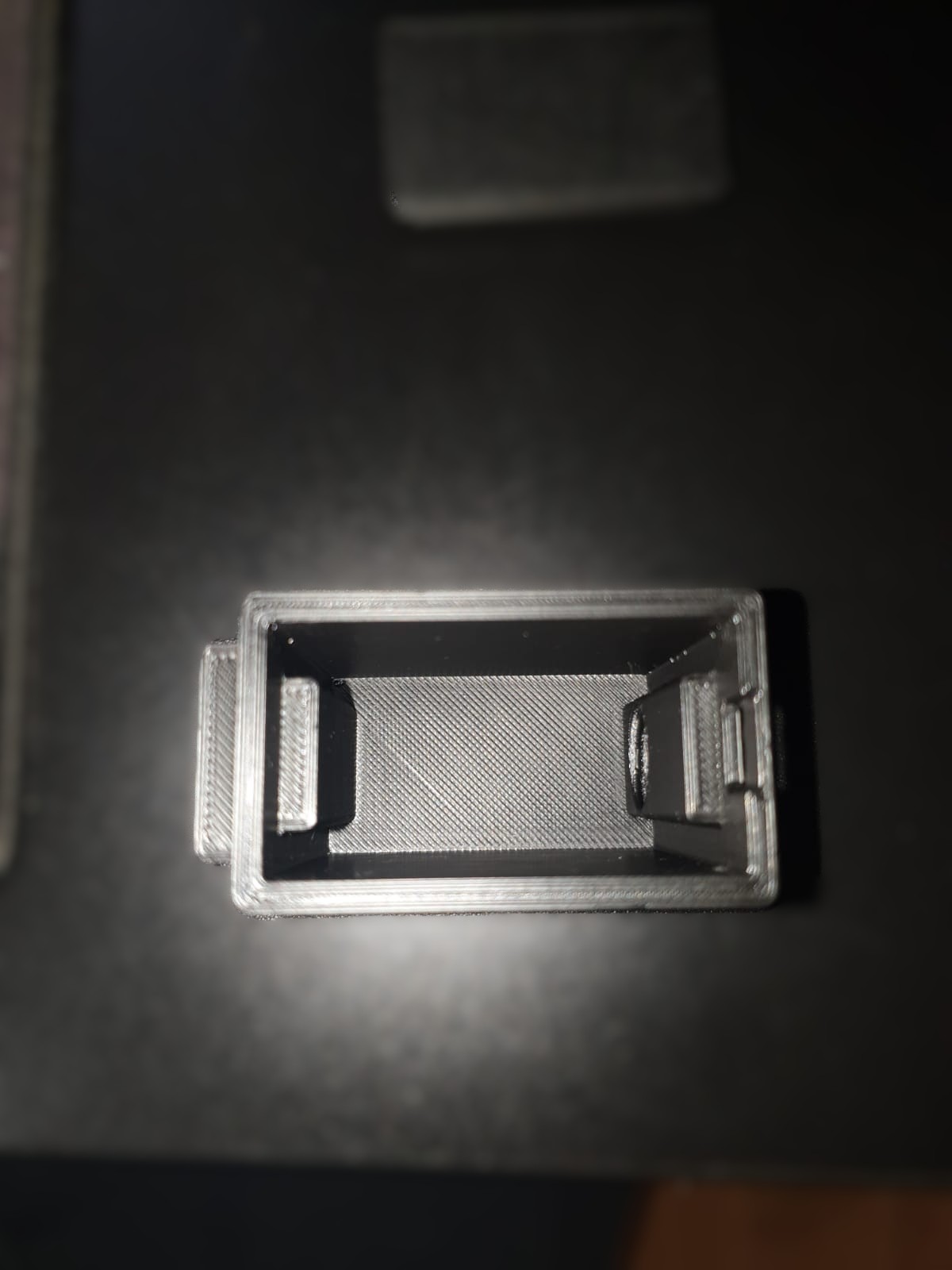

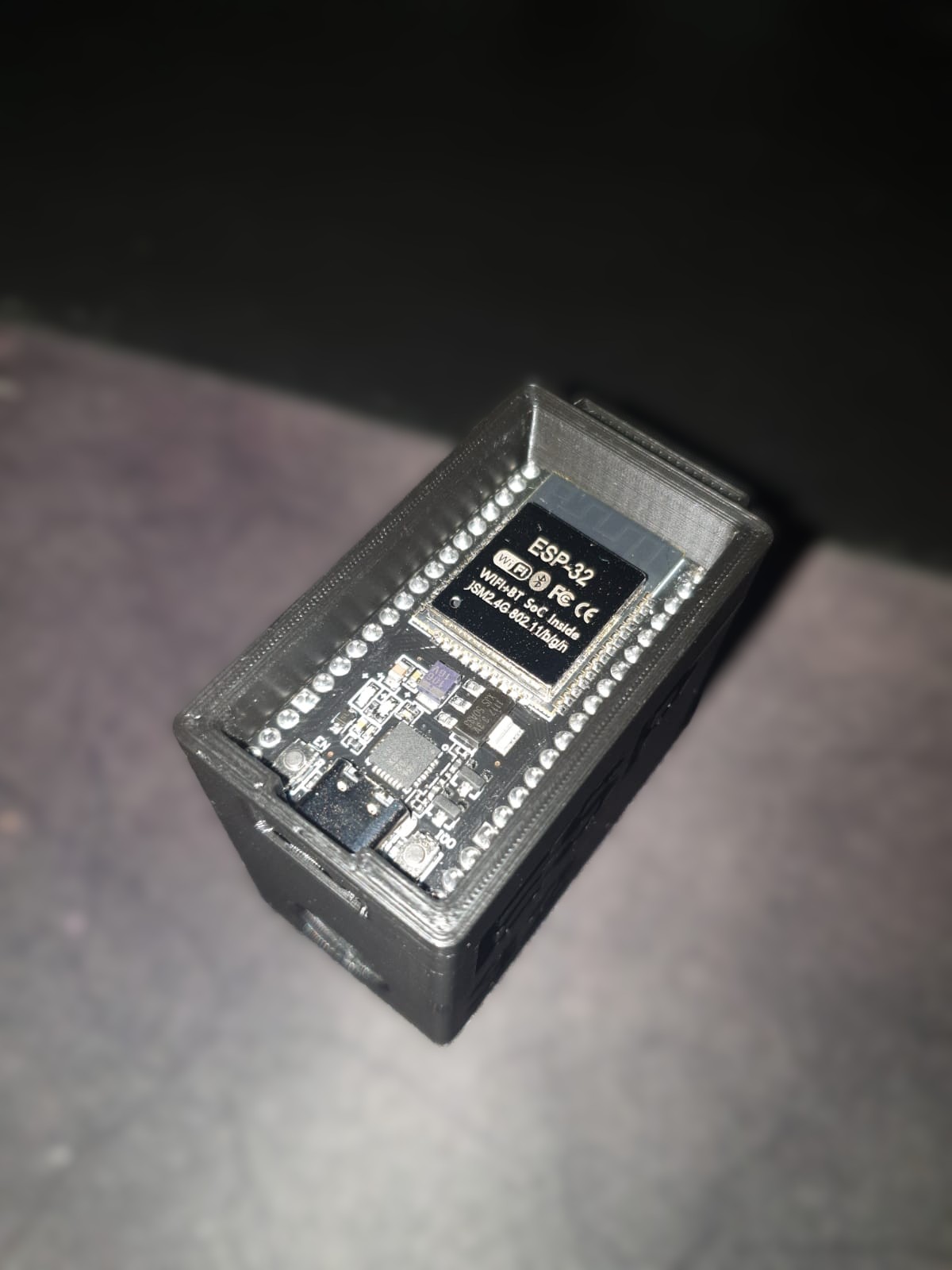

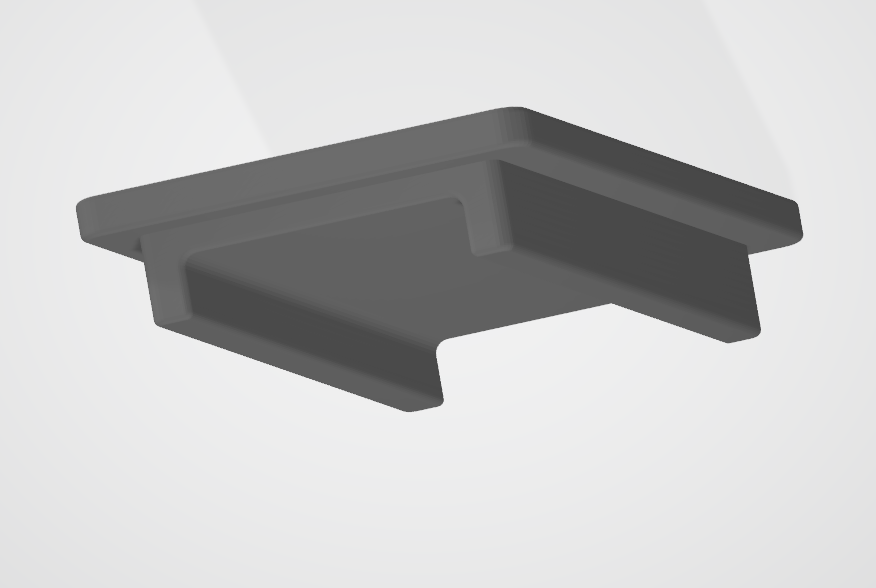

It has a cable outlet with a 16mm thread for a cable gland and a hole for the usb-c port. The NodeMCU-Esp32S is supposed to fit from above, stands on two little towers front and back and is secured by the two bridges from the lid which are pushing on the pins on the upside of the Esp to hold it down. It also includes two holders for cable ties.
The box has enough space for your cables and the cable gland can be screwed into the case and secured with a nut on the inside. All pins are accesible.
Measurings:
BOX: height: 58cm; width: 55cm; depth: 33cm;
ESP: depth: 26cm; width: 48,5cm
