Quick Connect with passthrough nut
passthrough_ptfe_nut
enclosed_ptfe_holder

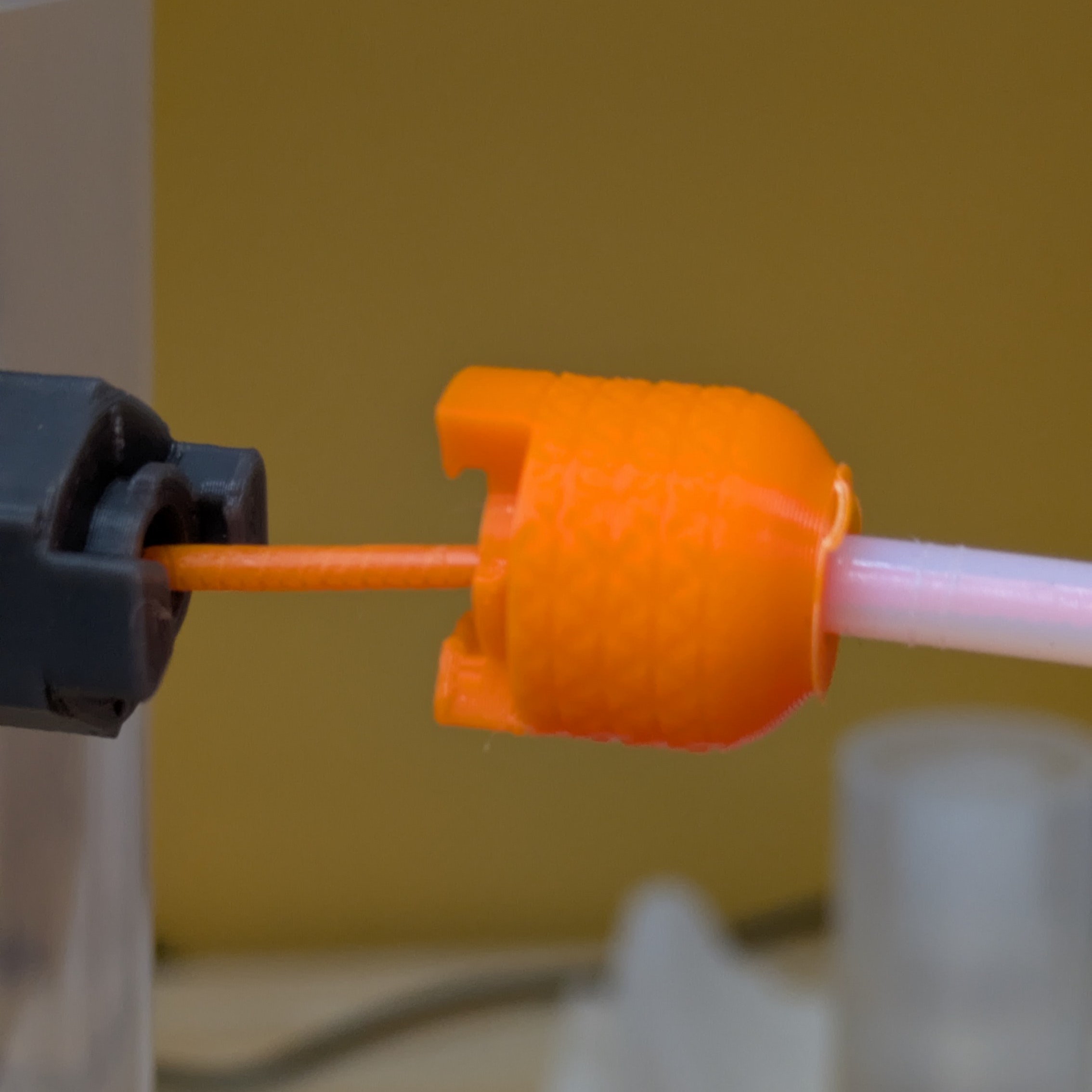

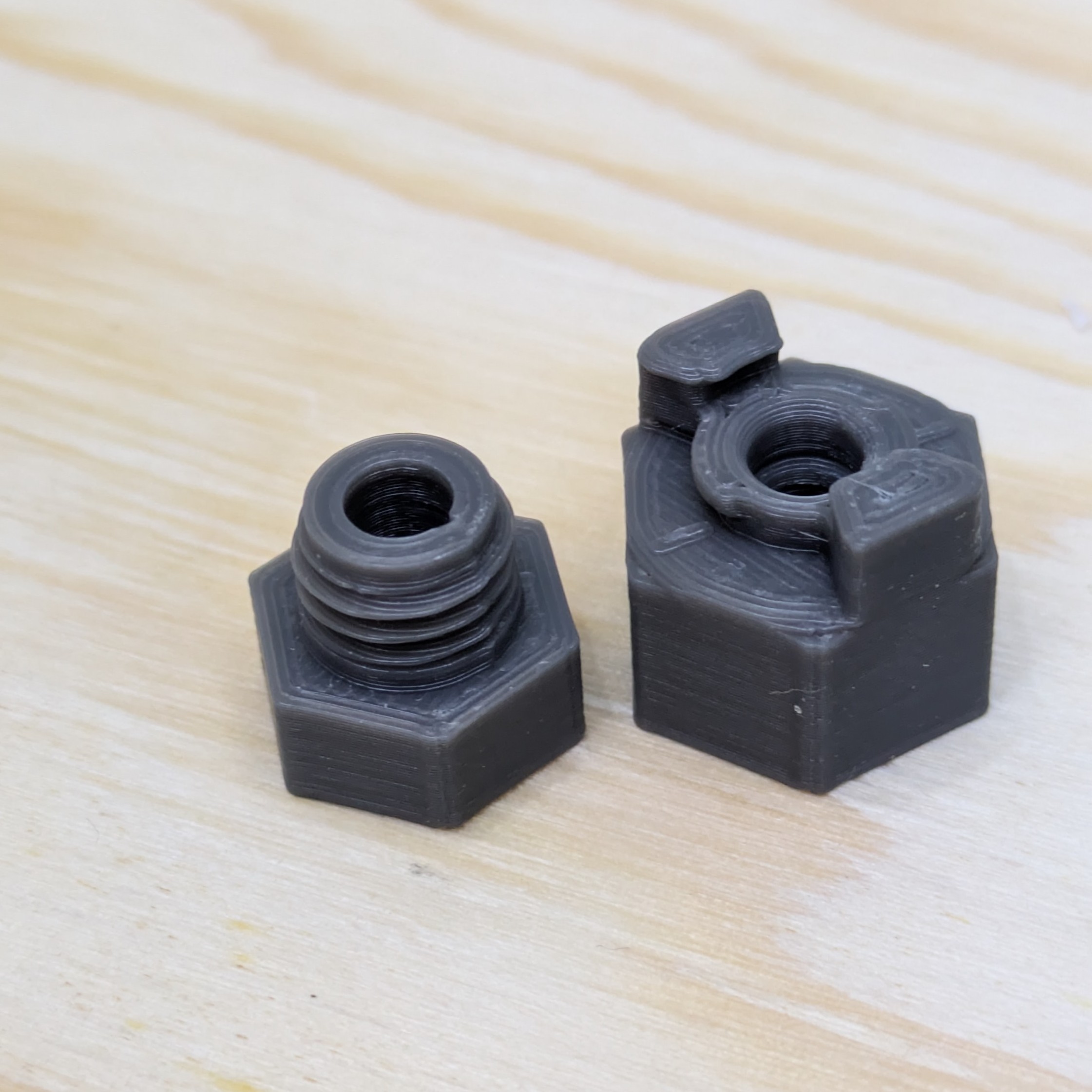

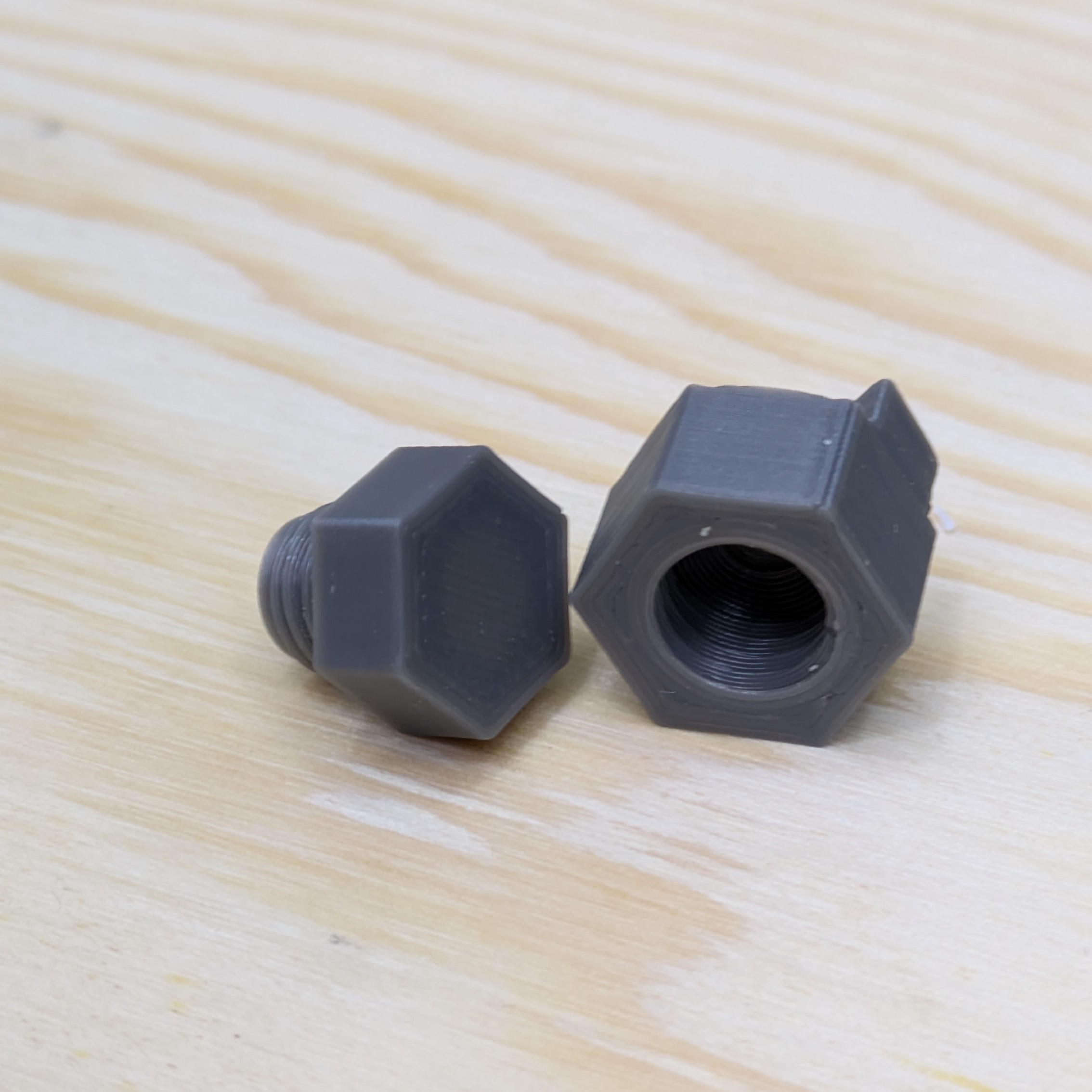

A Quick Connect nut and holder/screw that can be fixed on for example a dry box.
There is no space for filament to stick out in the PTFE-plug-quick-connect design, so I ended up redoing it as a more general solution for any dry box.

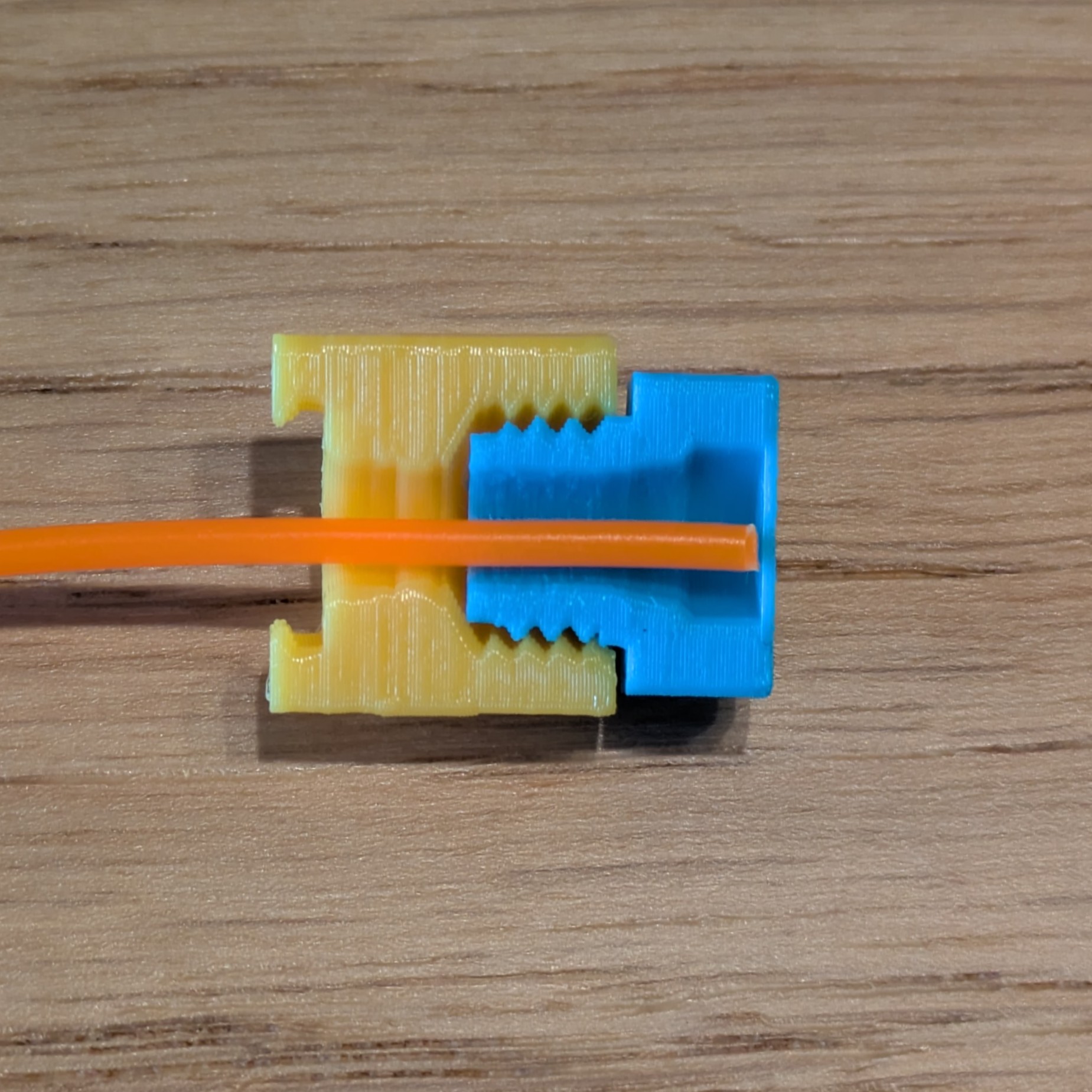

The enclosed PTFE holder has space for some filament but is enclosed so even if the quick connect is removed, no additional outside air should pass through. If you still want to allow the PTFE tube and filament to pass through you can use the original holder design here (drybox-ptfe-holder) together with the passthrough_ptfe_nut.
Recommended print settings:
enclosed_ptfe_holder
Material: PETG
Perimeters: 3
Fill density: 0%
Layer height: 0.15mm
passthrough_ptfe_nut
Material: PETG
Perimeters: 3
Fill density: 5%
Fill pattern: Rectilinear
Layer height: 0.15mm
