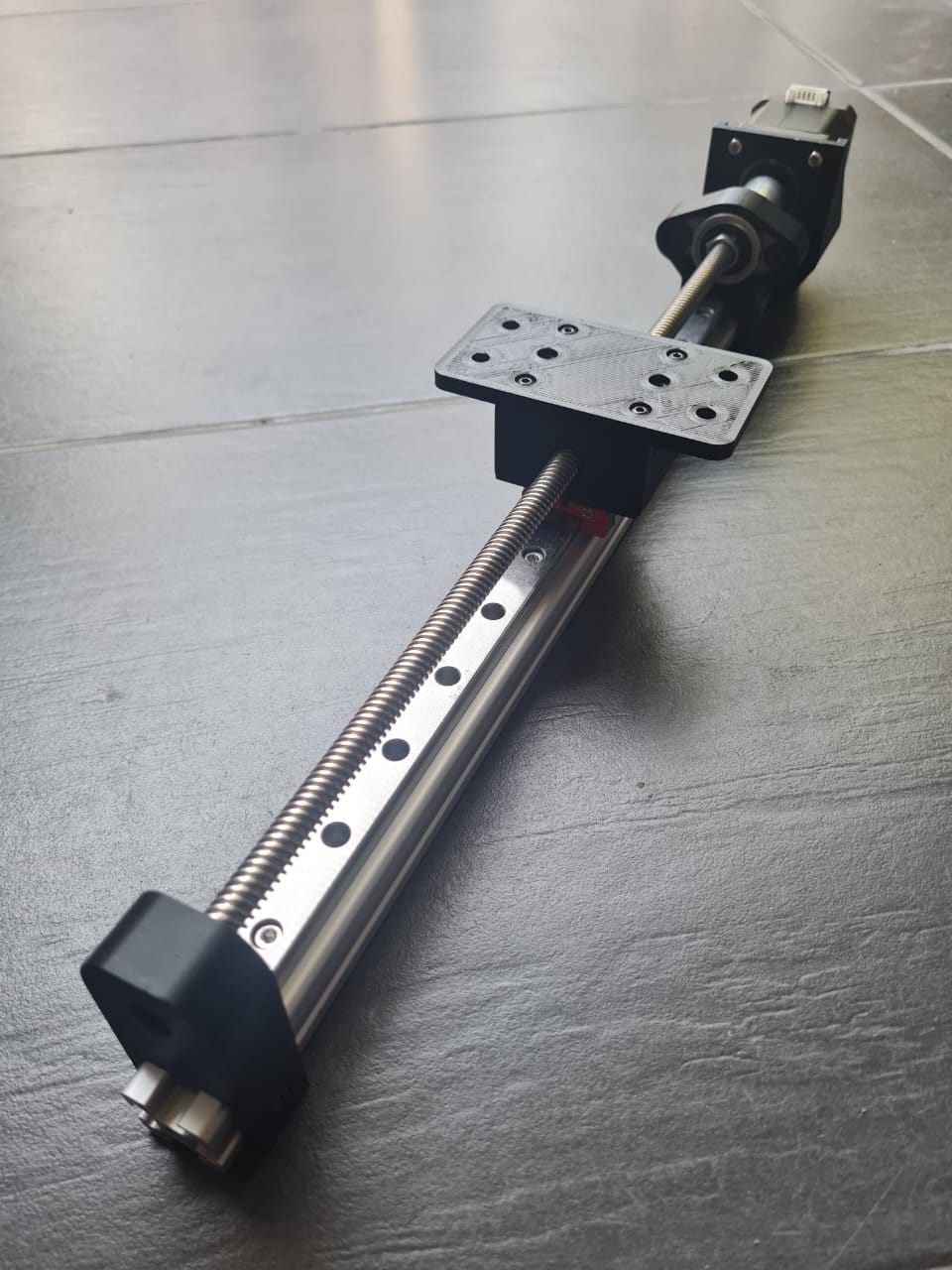

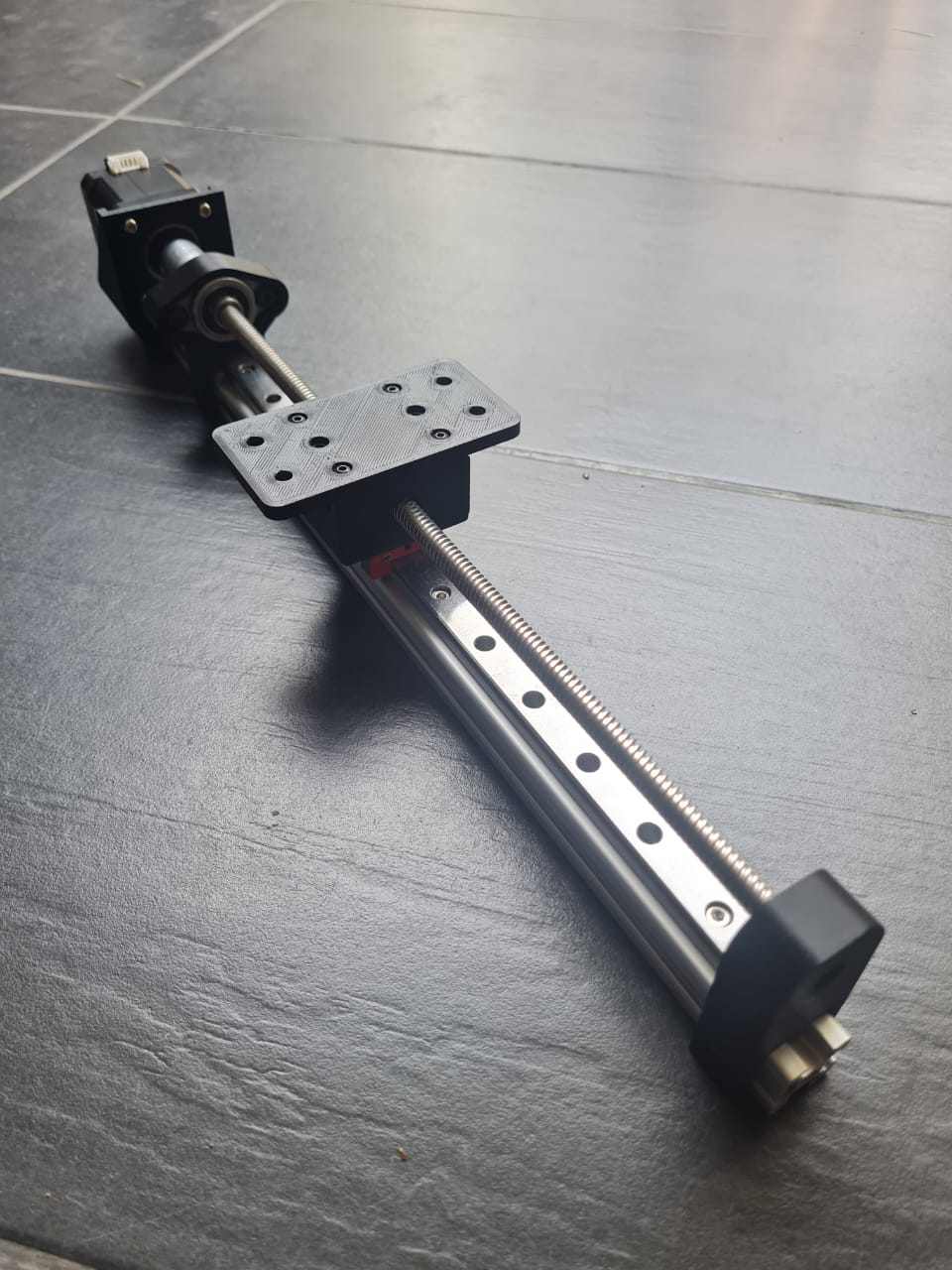

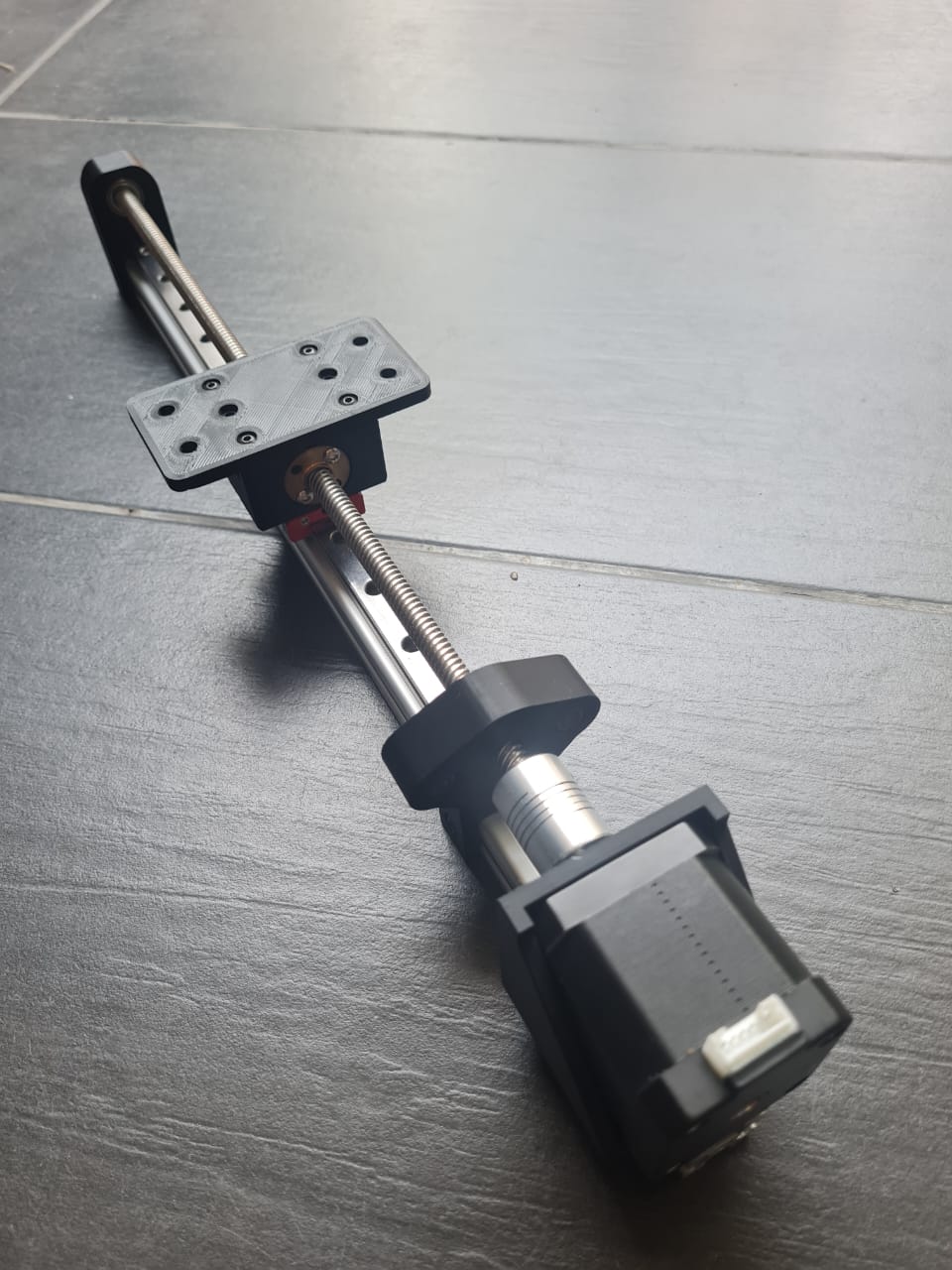

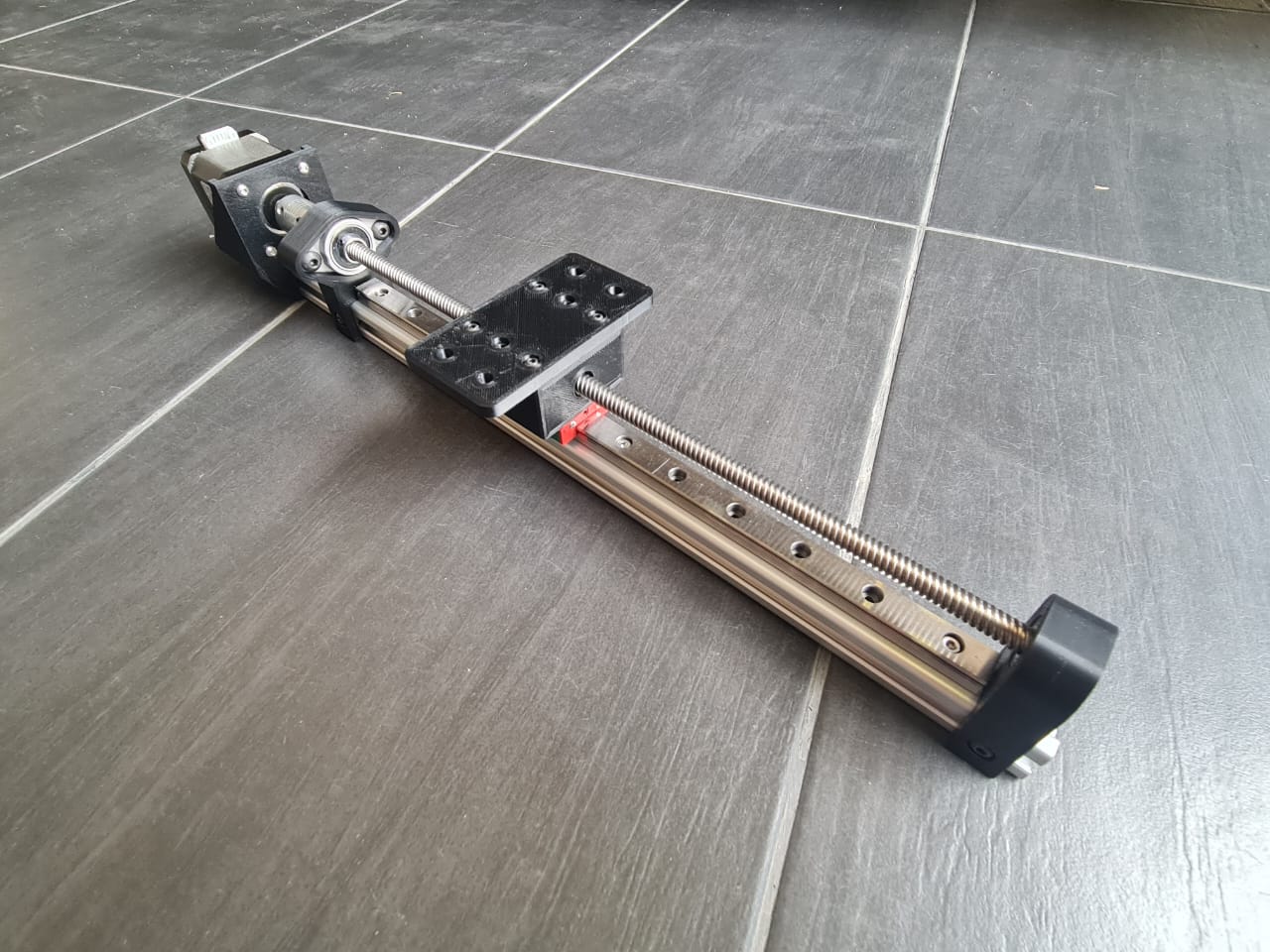

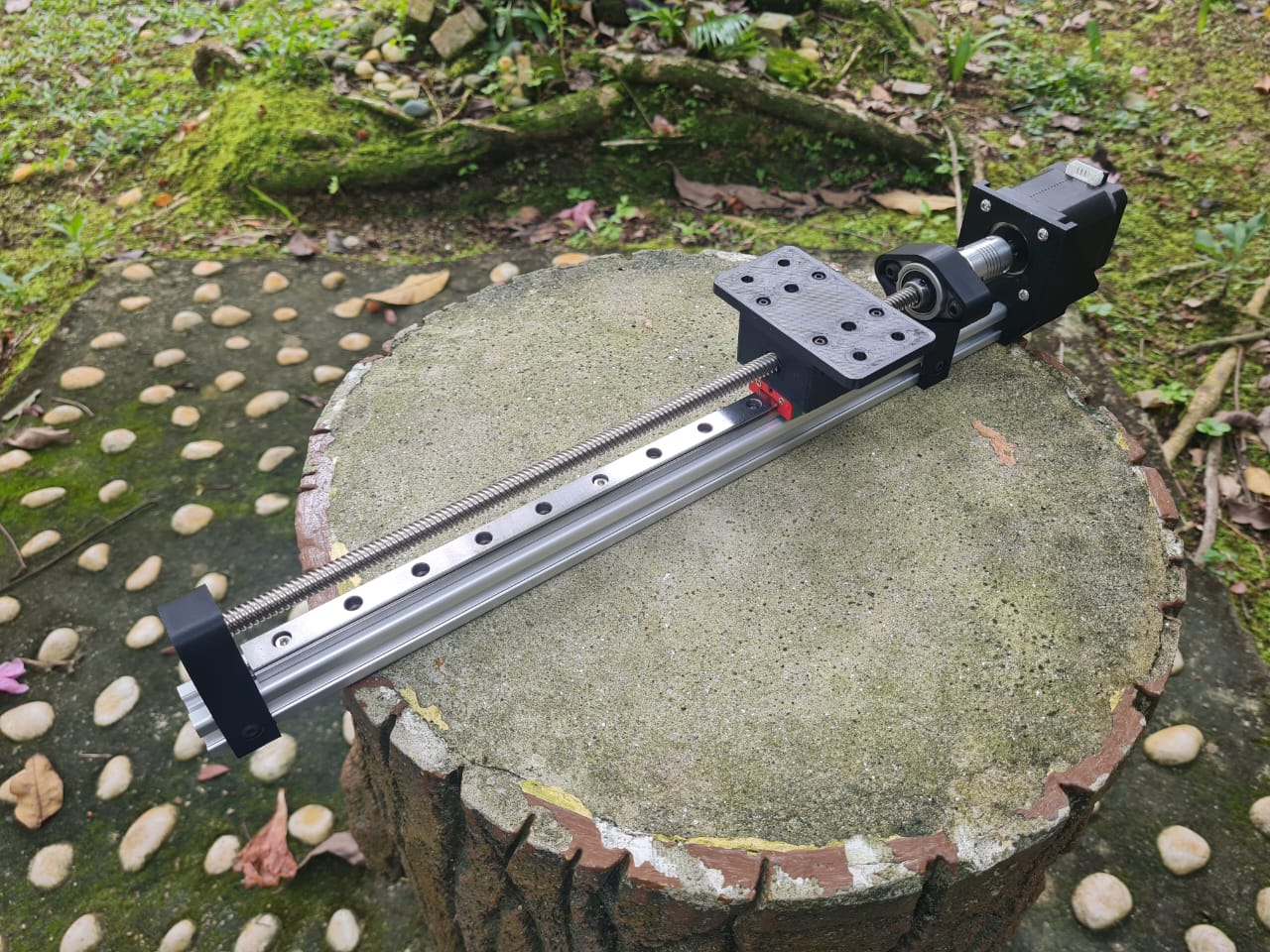

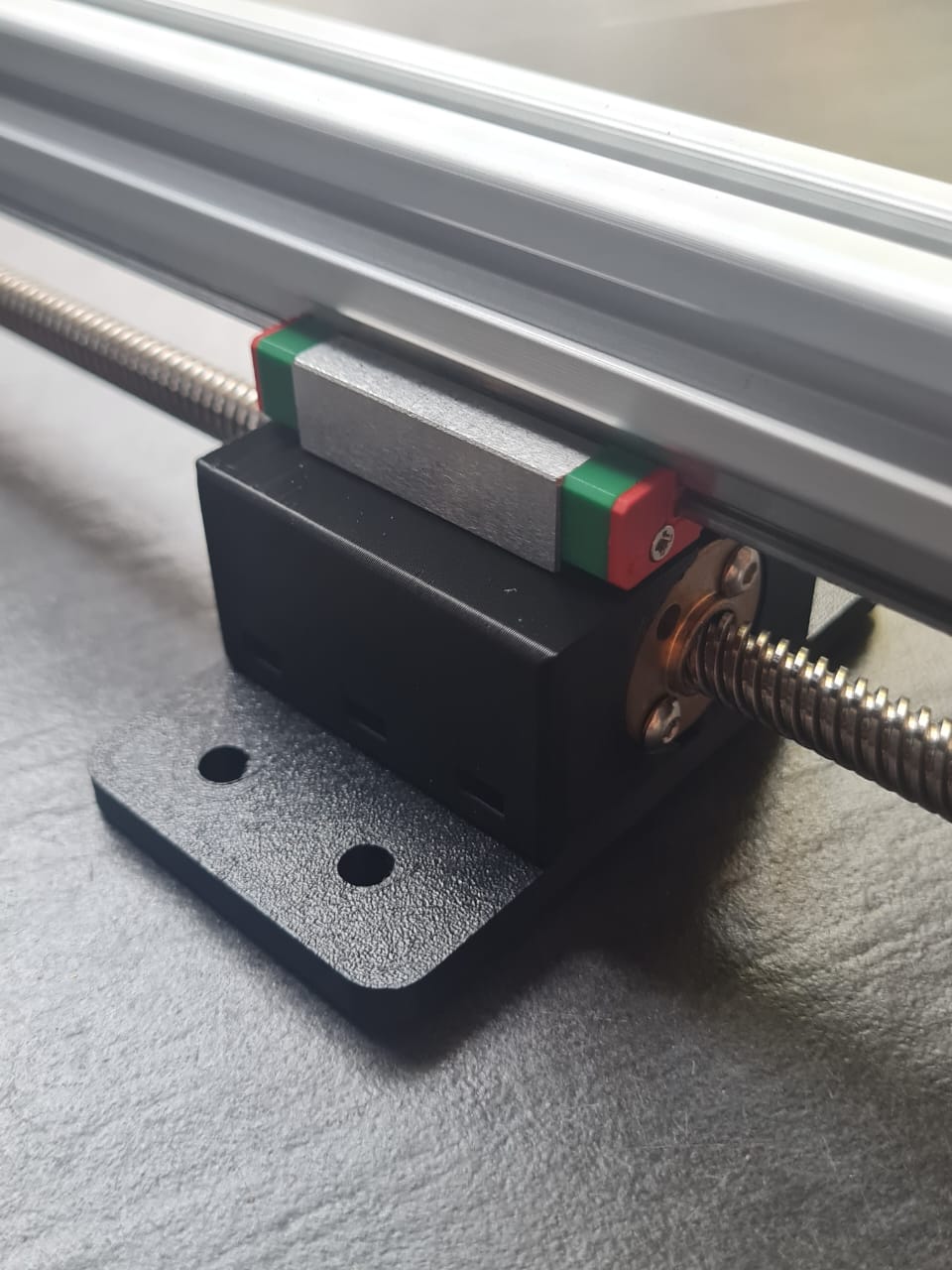

Lead-Screw-Driven Linear Actuator V3
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Mechanical Parts
- License
- Creative Commons — Public Domain
Demo:
BOM:
No | Item | Quantity |
|---|---|---|
1 | MGN12H 300mm Linear Rail | 1 |
2 | T8 8mm 350mm Lead Screw with Brass Nut | 1 |
3 | 400mm 2020 aluminium profile | 1 |
4 | NEMA17 Stepper Motor | 1 |
5 | 5mm-to-8mm Spring Coupler | 1 |
6 | KFL08 Bearing | 1 |
7 | 688-2RS 8*16*5 (mm) Bearing | 1 |
8 | M3 10mm hex screws | 10 |
9 | M3 8mm hex screws | 4 |
10 | M3 20mm hex screws | 4 |
11 | M3 brass heat inserts (3x4x4.5)mm (ID, OD, length) | 4 |
12 | M3 hex nuts | 6 |
13 | M3 T-nuts | 3 |
14 | M4 8mm hex screws | 8 |
15 | M4 T-nuts | 8 |
16 | M5 12mm hex screw | 2 |
17 | M5 hex nuts | 2 |
18 | 3D Printer parts | 5 |
