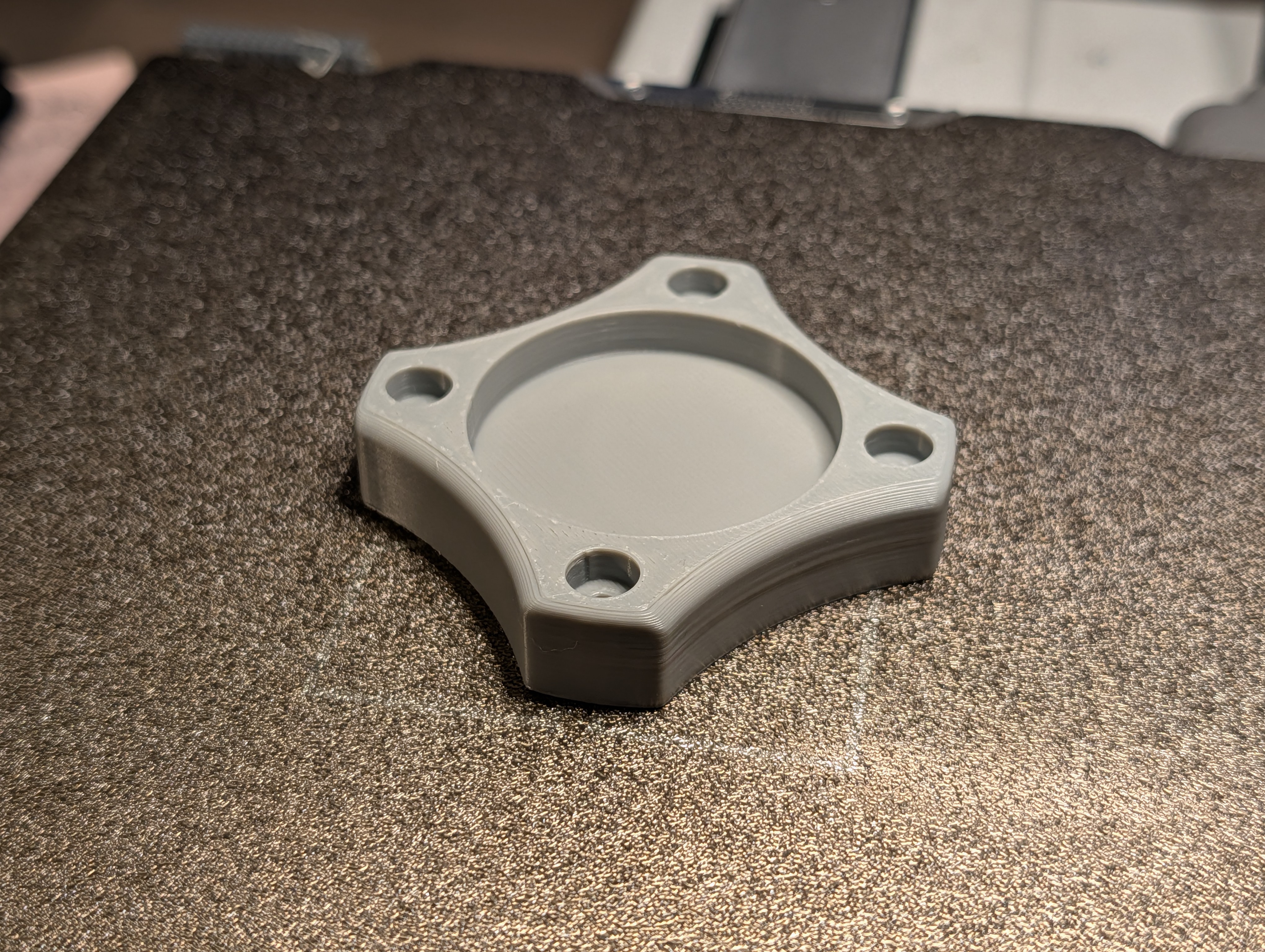

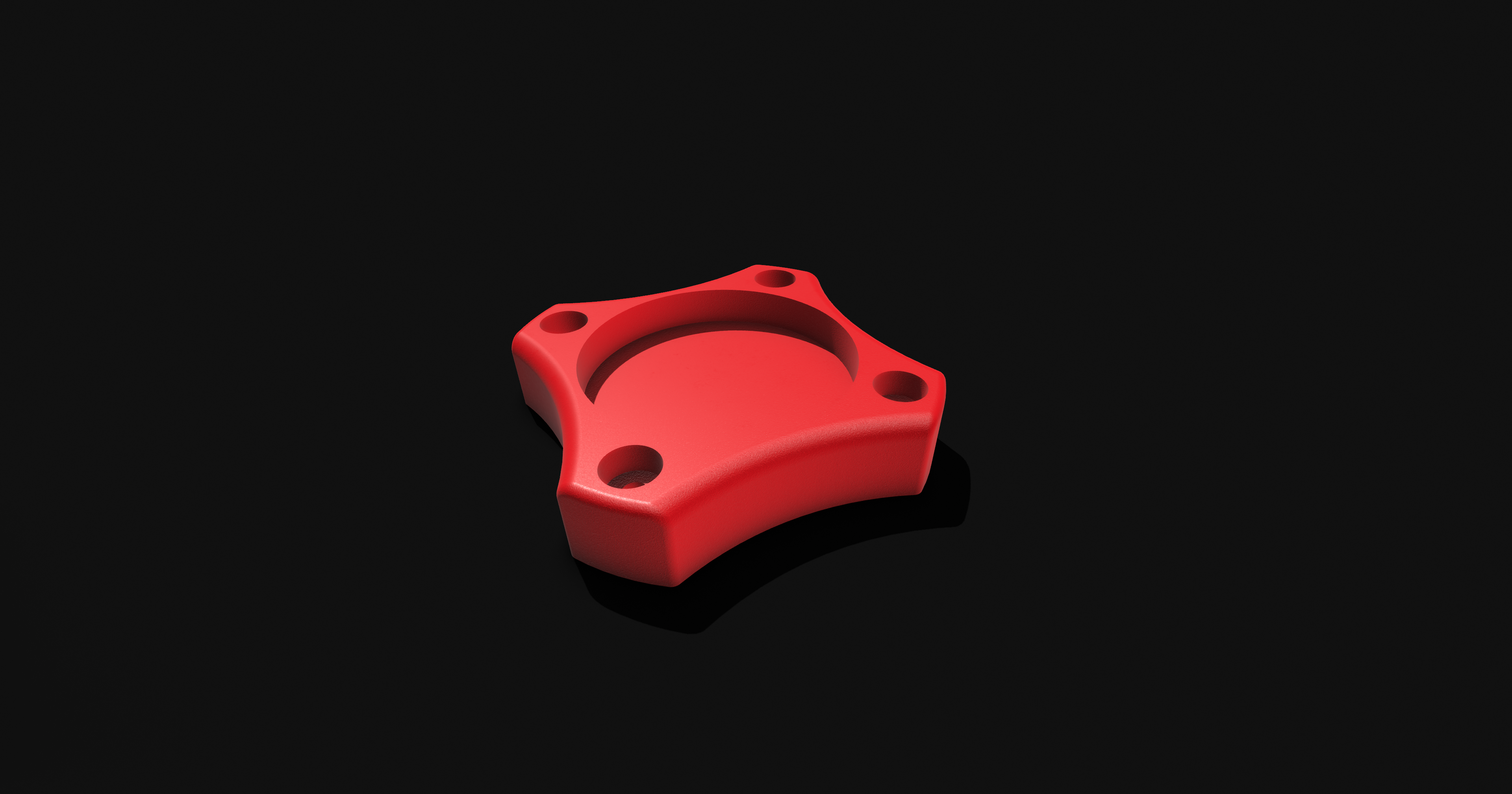

A small bracket to provide additional grip for the Logitech RS50 table clamp. It also helps with keeping your wheel in a consistent location on your desk when removing and reinstalling it between uses. It also reduces the clamping pressure required to provide a secure fit to the desk but limited lateral movement thereby lower the strain on the plastic parts of the clamp.
Designed to be screwed to the underside of a desk with 3.5mm screws. I use 25mm length, but that will depend on the thickness of your desk. The screw hole is 8mm deep with a further 4mm wider counter sink section. My desk is 22mm for reference.
Prints in about 40 minutes at high strength settings (1mm top and bottom, 6 walls, 20% triangle infill), and uses about 19g of filament. I printed in PLA+ but any filament should be fine.
