NFC Reader Raspberry PI Zero WH Case

Hey Folks,

I like NFC and I like magnets and I also like Spotify so I like magnetic NFC Tags which trigger Spotify to play on Speakers in the room in which the NFC-Reader is located.

Turns out just having an NFC-Reader and a Raspberry doesnt look that good without being in a case.

So I have designed this Case which holds a magnet to hold the NFC-Tag which is an case with a magnet.

IMPORTANT: please make sure that everything is working and installed before you add the brackets. The Pins would break if you try to remove the brackets. They are too fragile. Maybe I will use a different way to hold everything in place next time in a possible Version 2 but I dont had enough time to overengineer it.

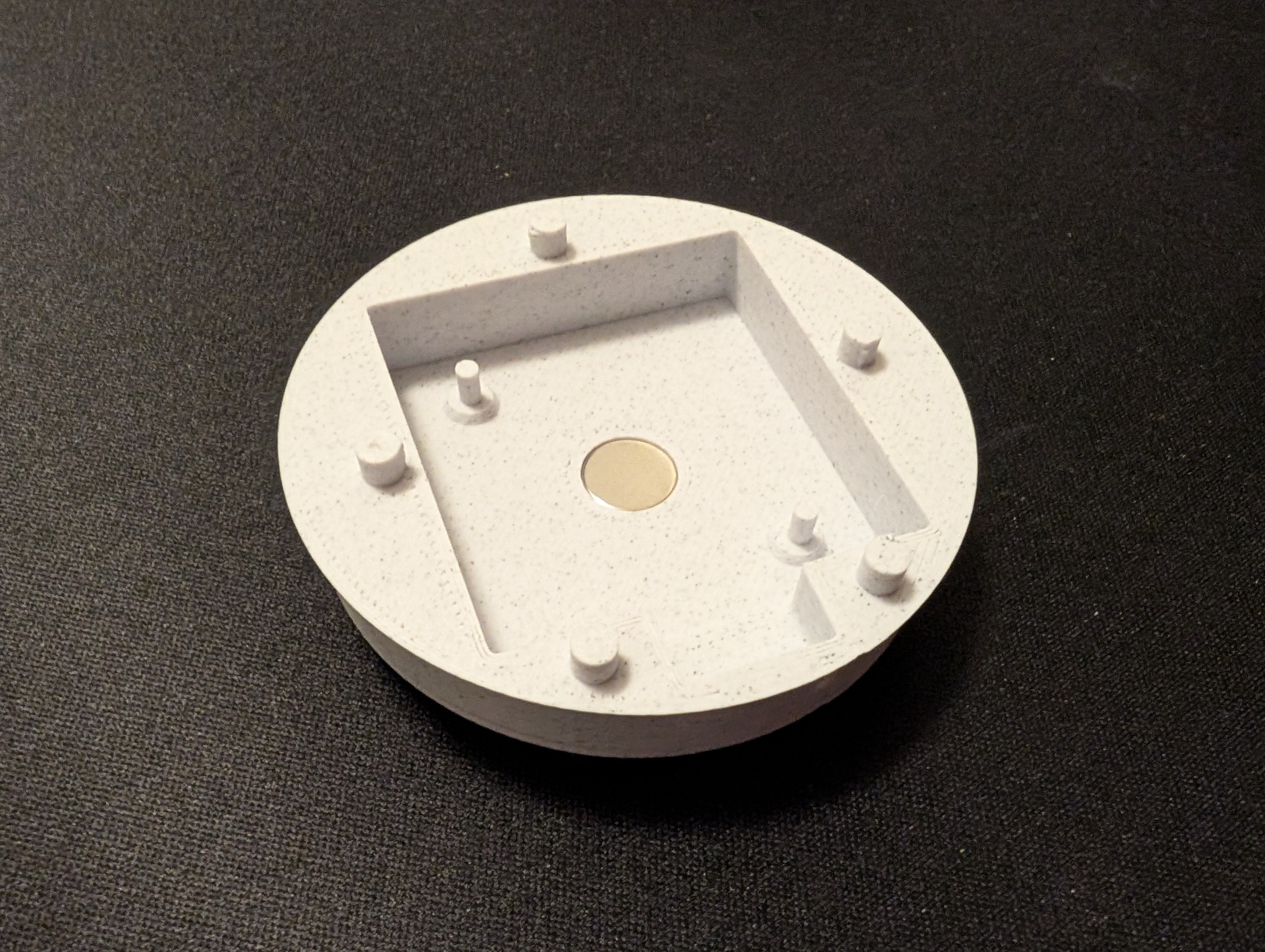

1. place the magnet in the top hat

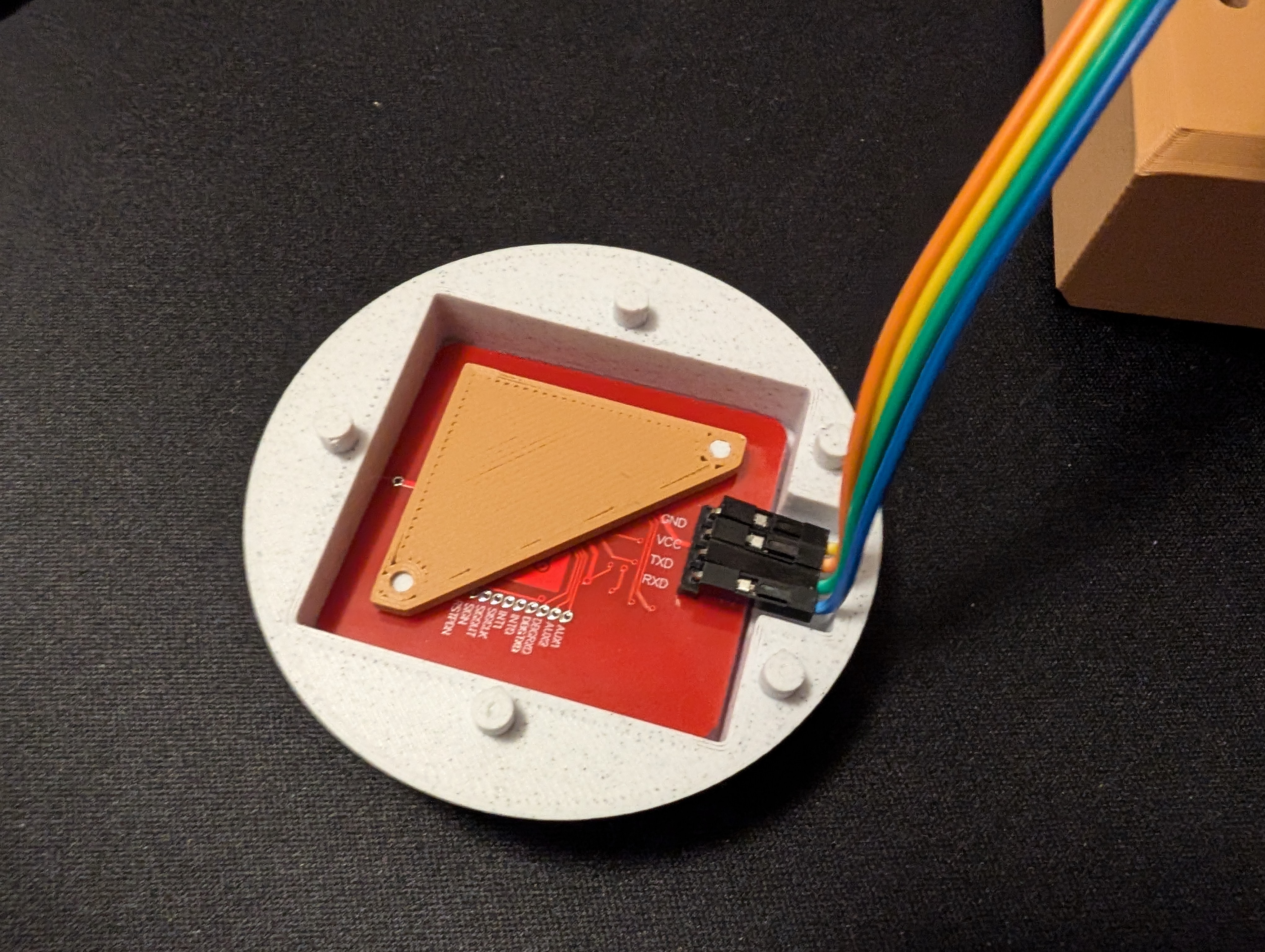

2. put the PN532 in the top hat

3. add the top hat bracket

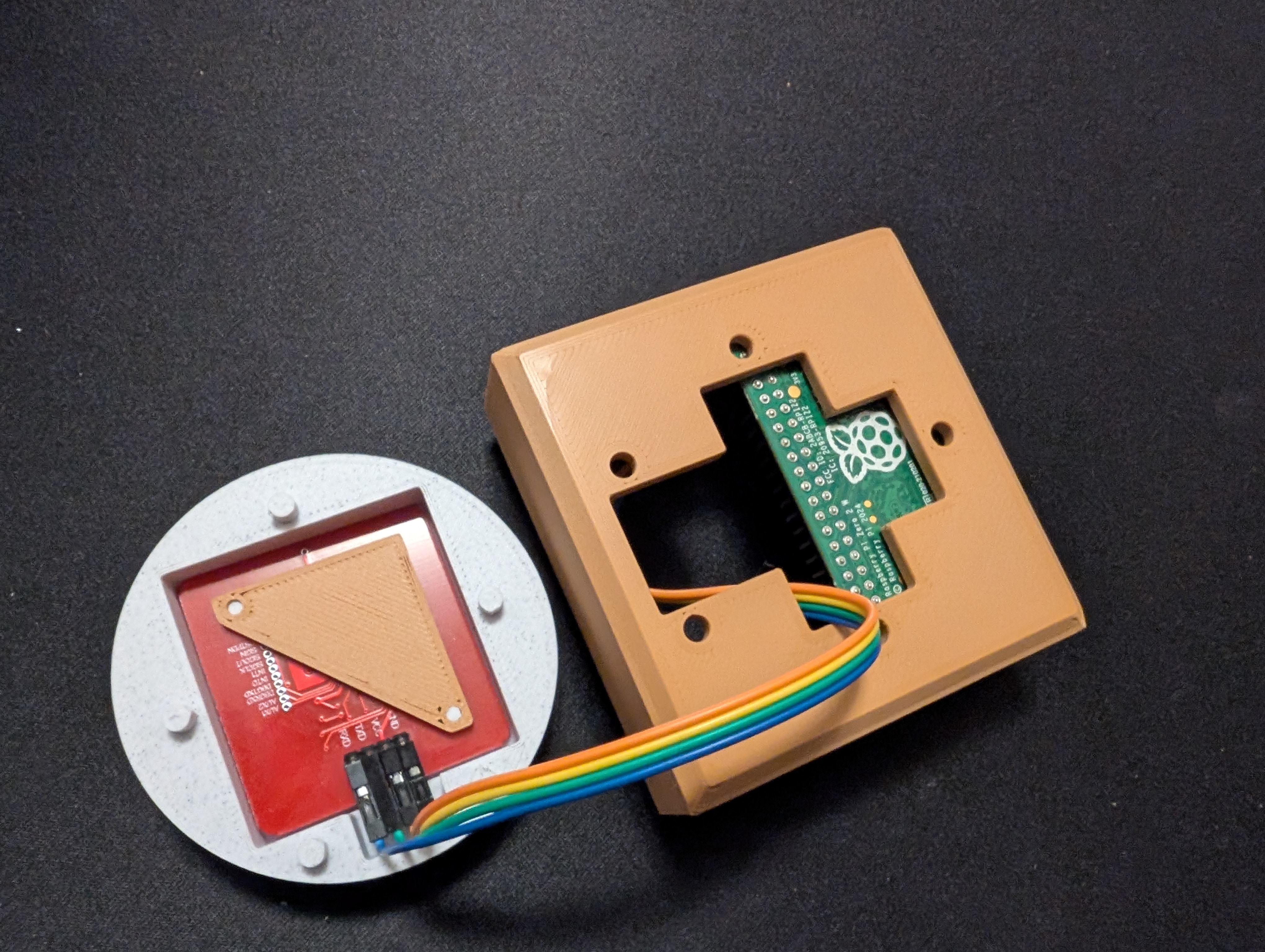

4. cable everything (through the cross in the Base)

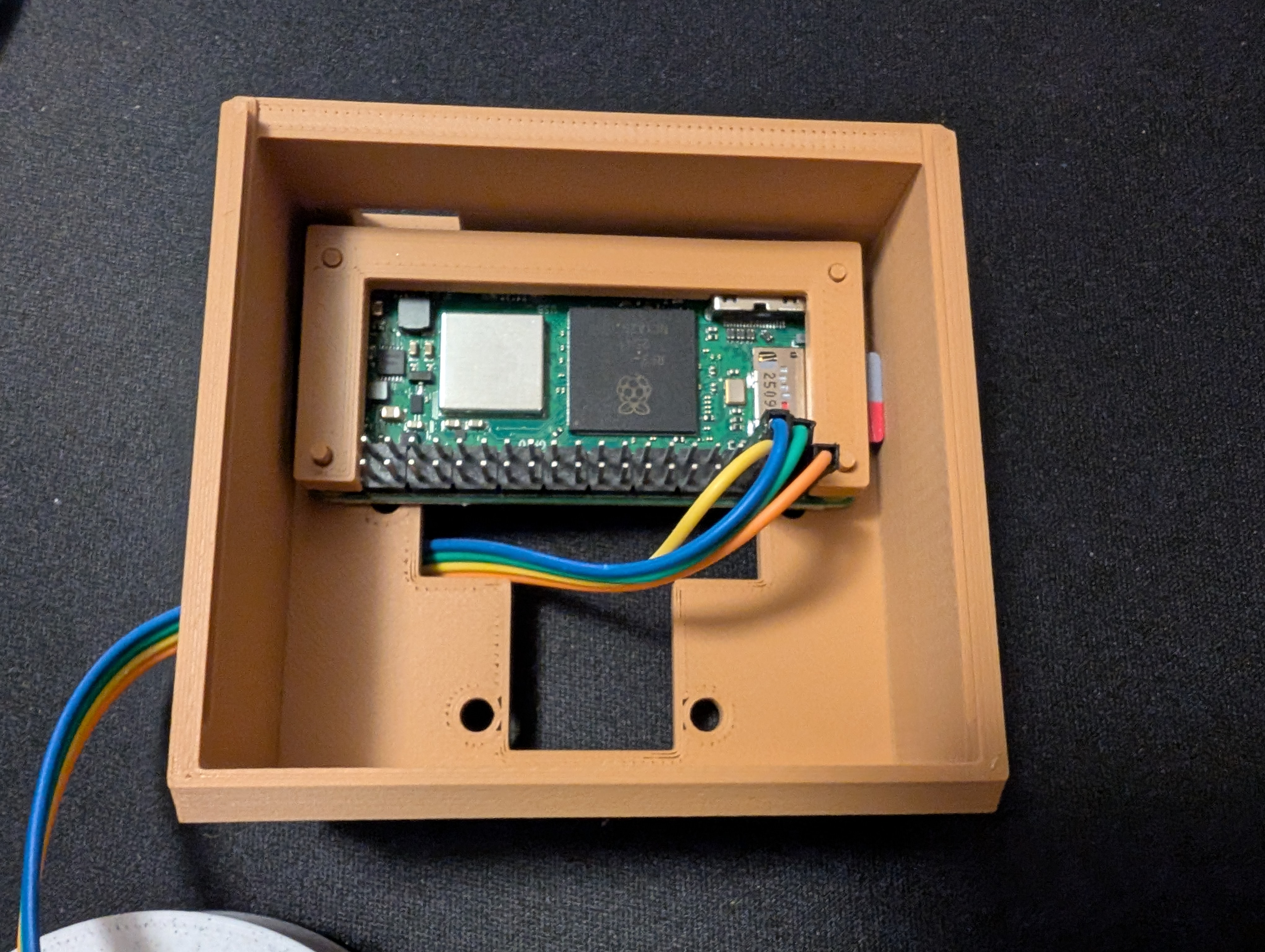

5. put the Raspberry in the base

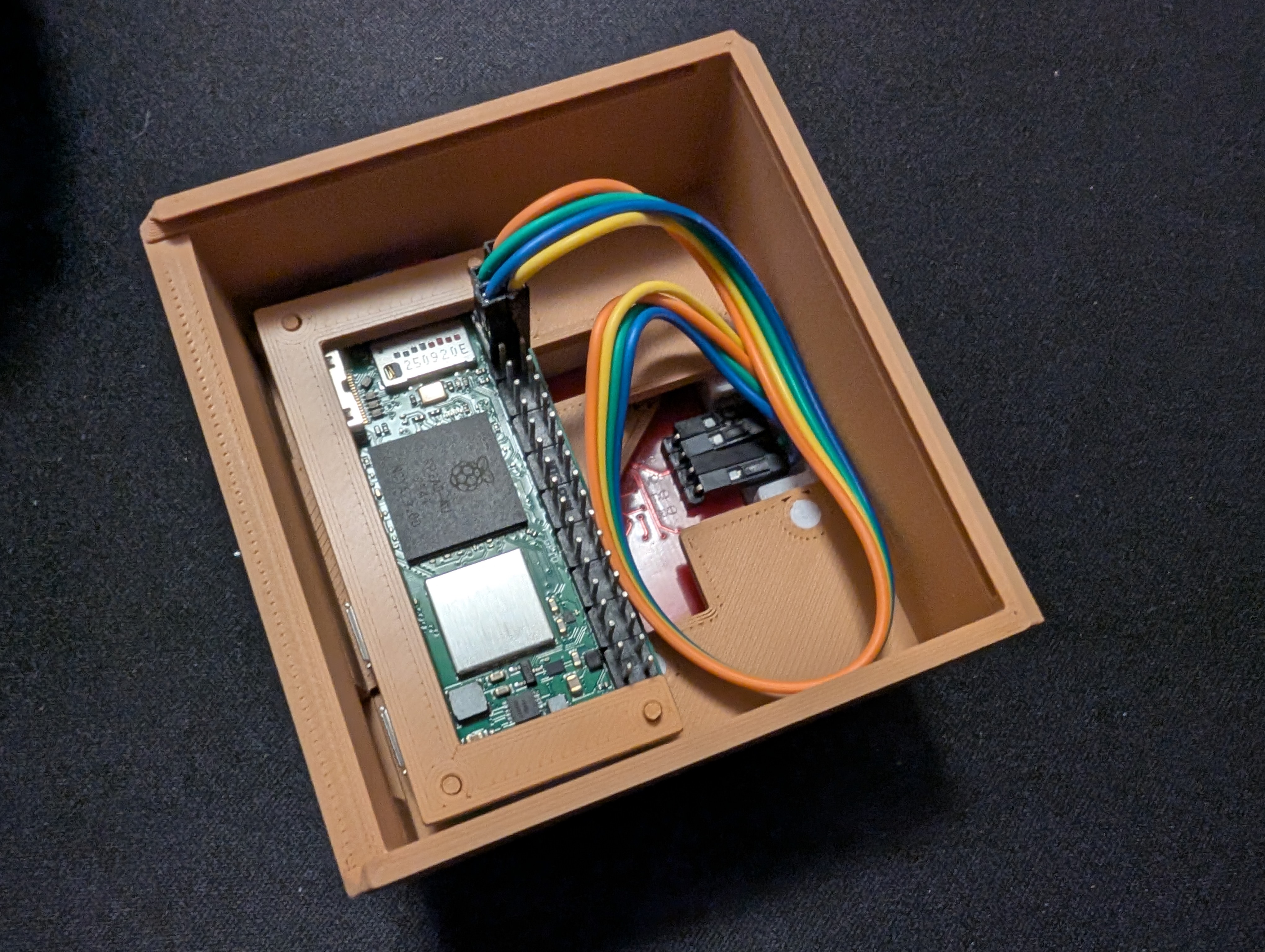

6. add the raspberry bracket

7. put the top hat on the base (maybe push them harder together)

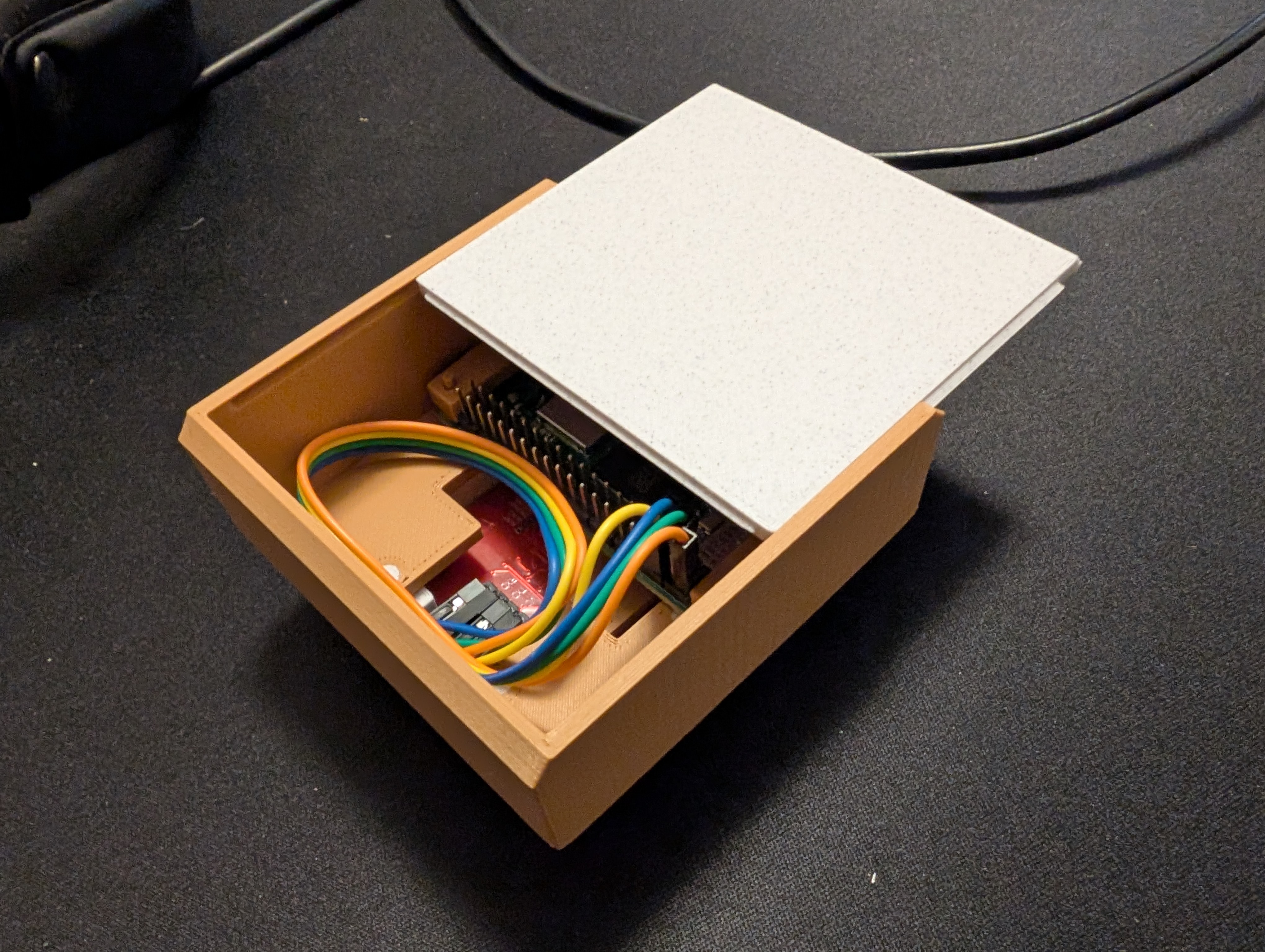

8. slide the bottom plate into the lid

9. done

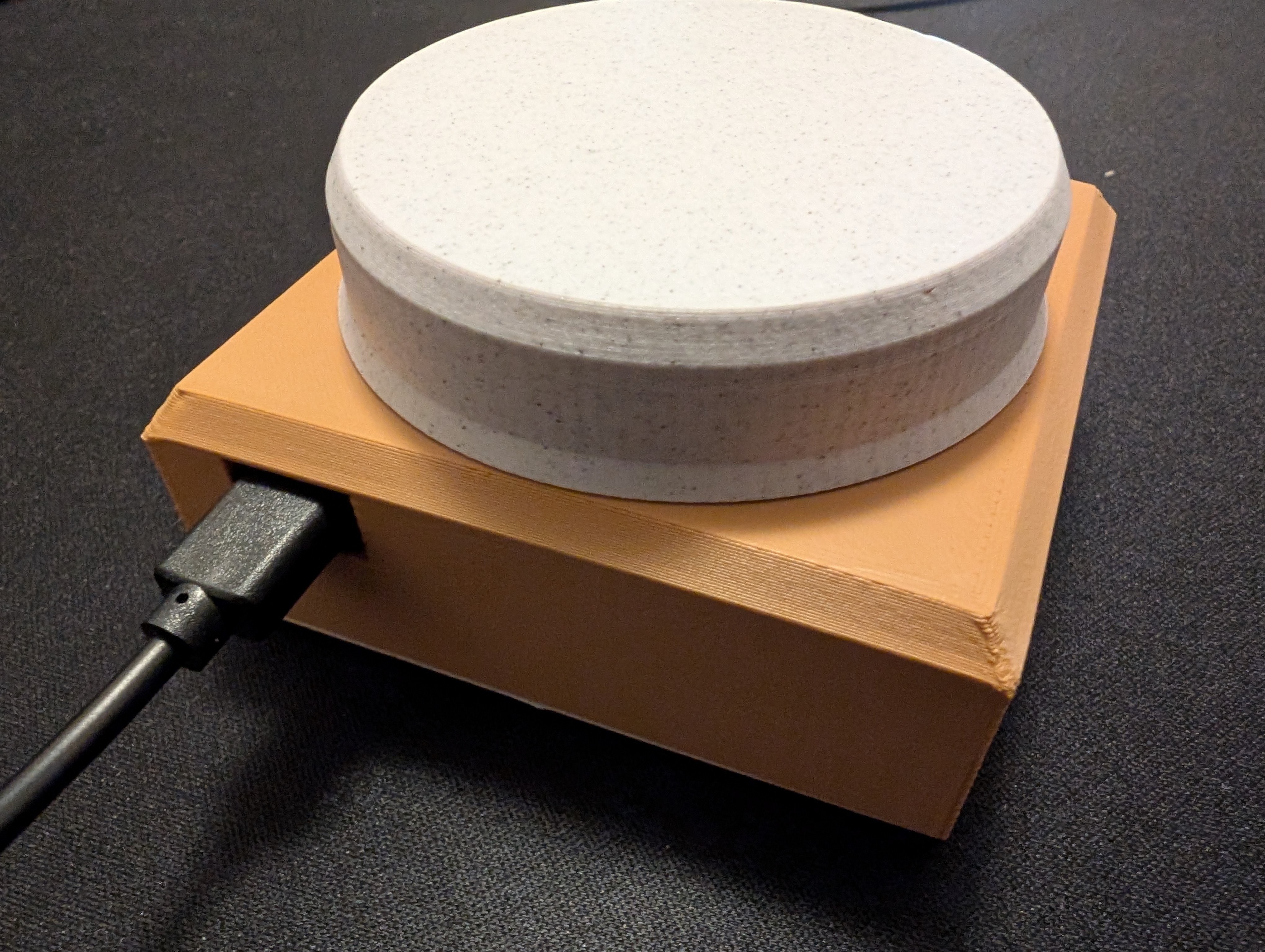

Remark, it is correct that the USB cable is a little bit angled. I dont want to waste more space and make the base higher. So I have lifted the raspberry a little bit at one side.

Print instruction:

Support: Not needed
Nozzle: 0.4
Layer height: I used 0.15mm but 0.2mm should also work

Could help if you use Brim as you can see, I had some warping.

Have fun :)
