Chitu E1 Display Relocation
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Accessories
- License
- Creative Commons — Attribution — Share Alike

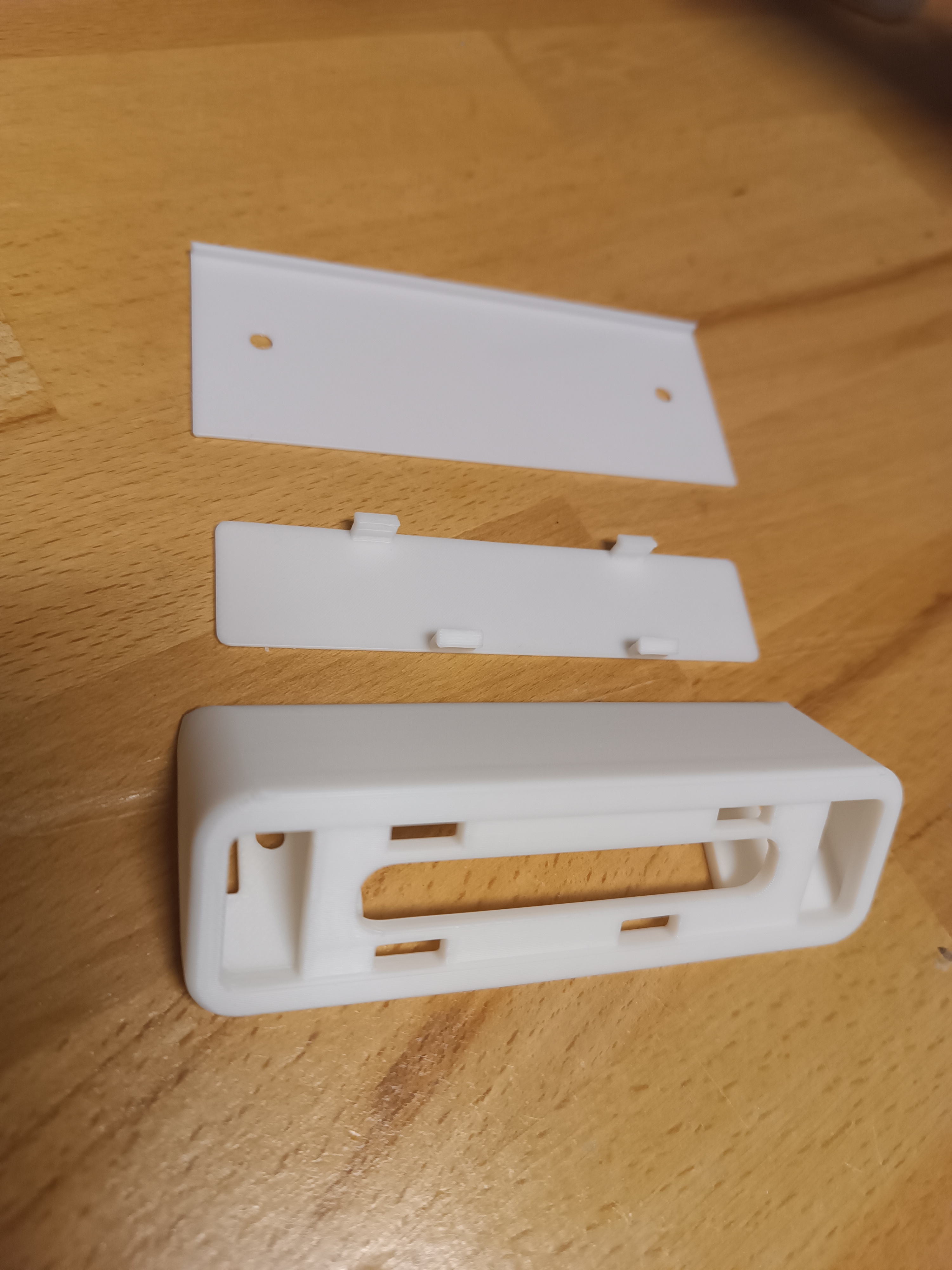

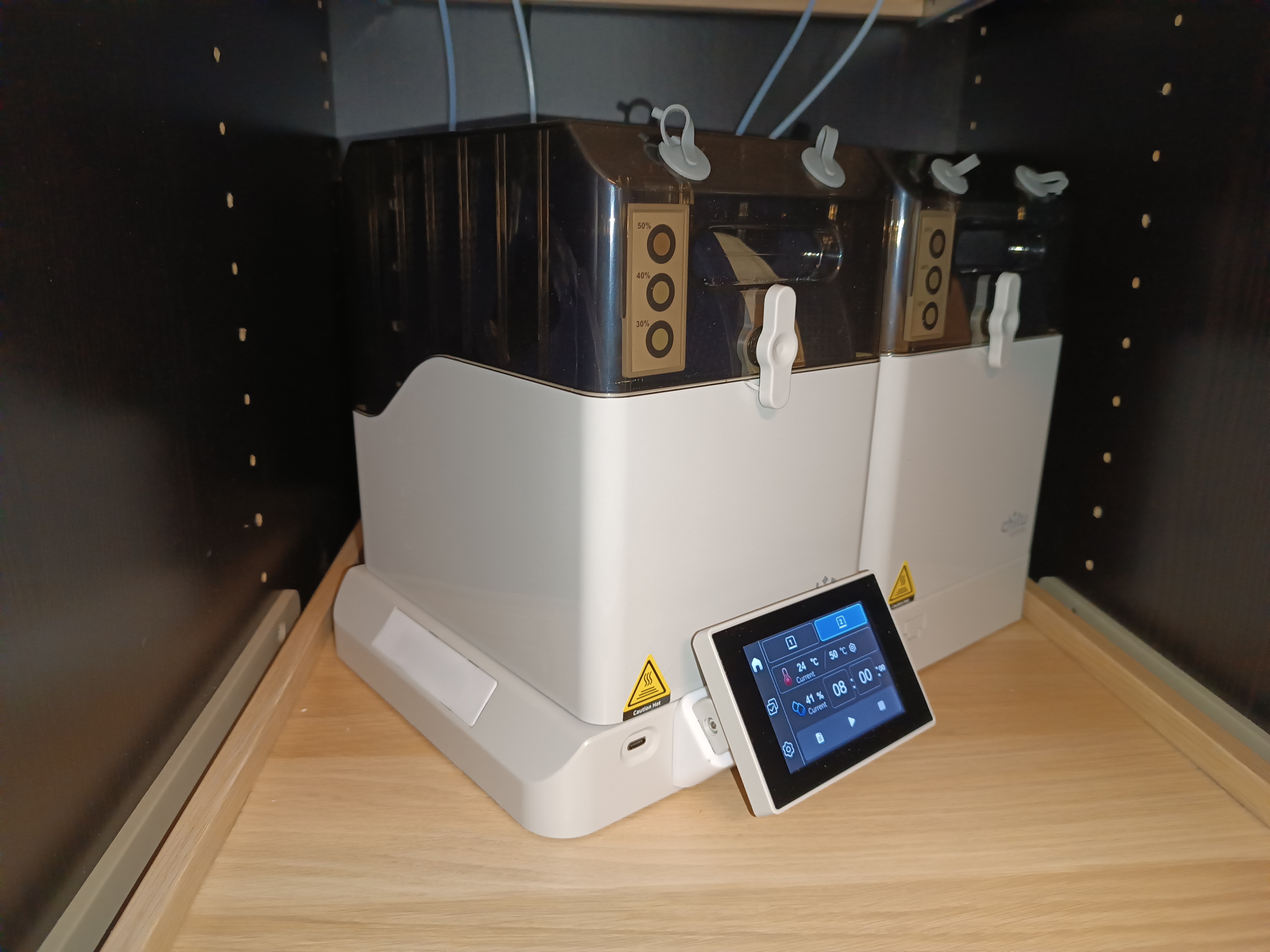

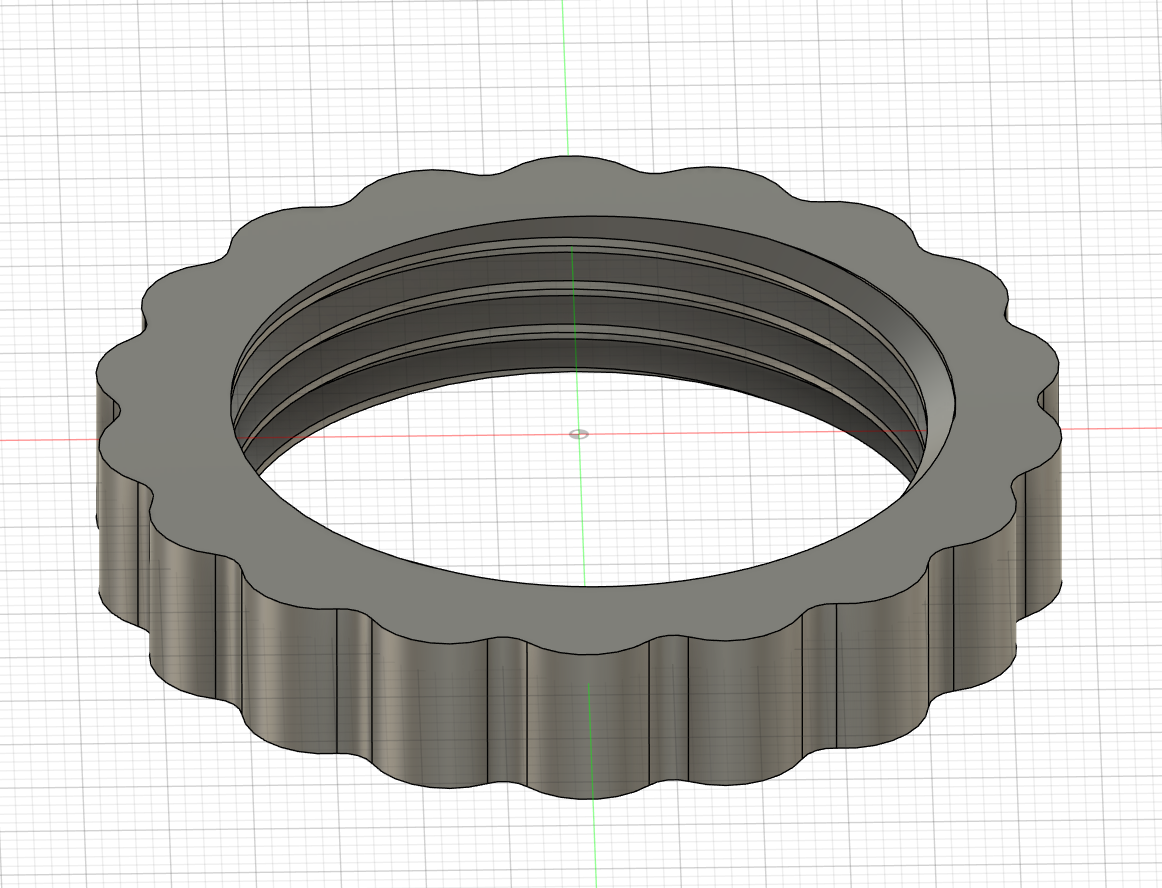

I mainly provide an adapter here that allows you to relocate the display of the Chitu E1 filament dryer from the narrow side to the wide side. It also includes a cover for the original mounting location and a drilling template. For the dry boxes, I also designed a flexible PTFE connector.
For the modification, the flat ribbon cable needs to be extended. The cable is a 40-pin, 0.5 mm ptich, labeled AWM 20624 80C 60V VW-1.
I ordered this one, including an adapter board, from Amazon:
It’s probably cheaper on AliExpress. If you also disassemble the small display housing, you can use a longer cable without an adapter. I estimate it needs to be at least 300 mm long — 400 mm would be better.
I’ve put together a tutorial on YouTube that might help.
I’m happy to receive comments and suggestions.
Janzi
