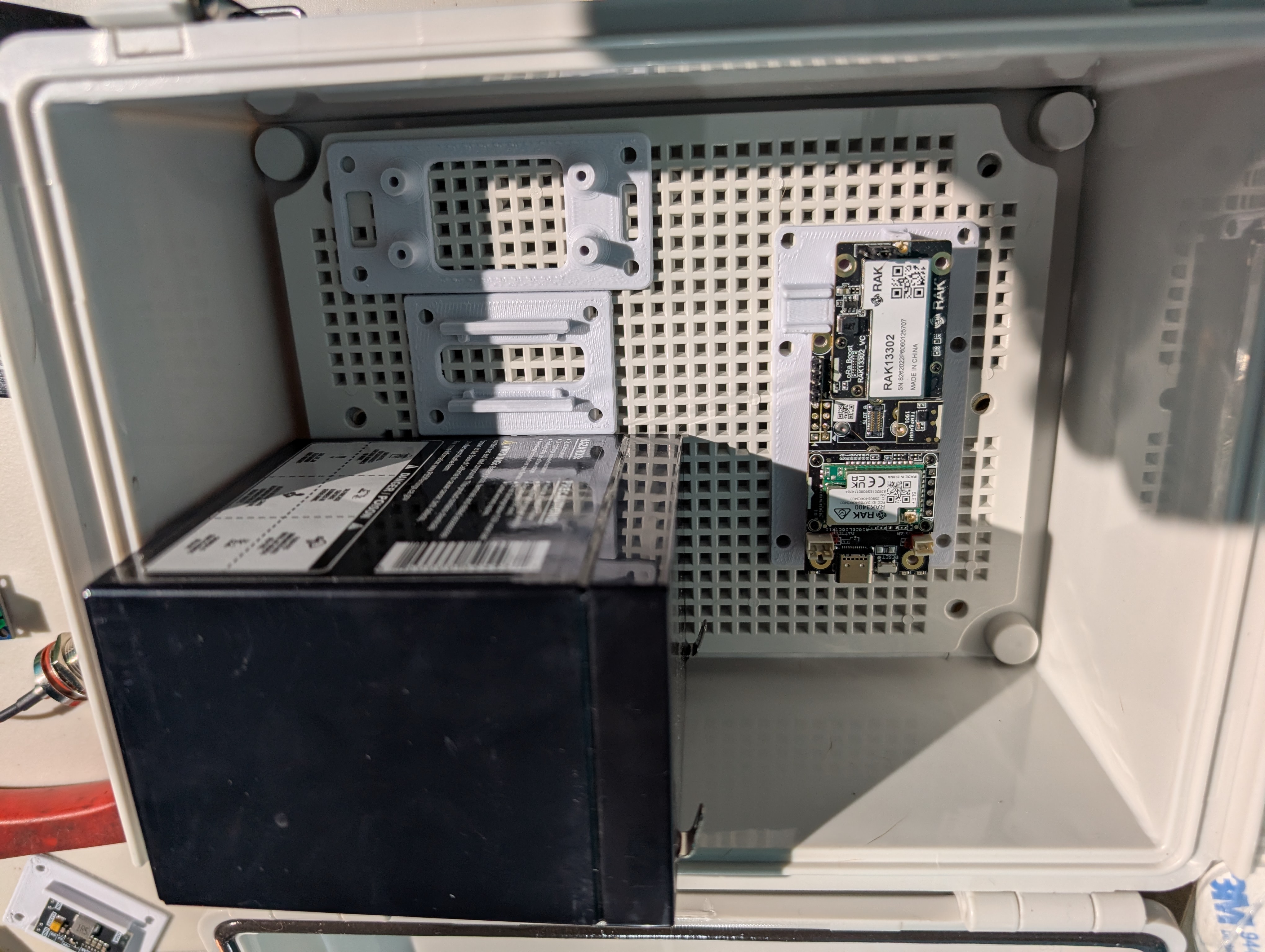

Rak 1w booster 3401 - 19007 13302 1w booster electrical enclosure mount + other electronics mounts

New added some new rev files that should allow for stacking of support electronics using standoffs between layers, and slimmer rak 3401 mount  and a clip to hold the antenna on tight. 4/26/26

Mounting brackets for electrical enclosures with 5mm spaced grid.
3mm screws. * New Files 3/23/26 2.5mm screws

*Coax Guide is not tested yet but might fit fine forgot to save separately

Print in ASA or your choice of material

1w booster mount has bosses for the 13302 5v_ex cable support and added support under the LoRa connector for added support when connecting the ufl connection.   5mm of clearance under the board for other sensors/modules + Air flow.  can be used with the regular RAK Wisblock as well

I plan to add:

• enclosure vents

• wire guide/routing pieces for a clean build

• 18650 mounting

• universal mounting

• SLA/AMG battery separator/cover so it can vent separately


Also included are electronics mounts for a 12v lead acid MPPT charger https://a.co/d/0bRq4xK2
16x42mm hole spacing

and a 5v buck/boost module https://a.co/d/0gG8mchl
30x16mm compression fit

a guide for the antenna wire again have not tested fitment yet if version higher than v3 its probably good will update as I can. Use wire ties zip ties to hold coax in place.    Removed

designed to fit in this 8.6"x6.6"x4.3" box https://a.co/d/04BoXOnX

with this battery https://a.co/d/0dsPyut4  turned sideways

* Will add photos later
