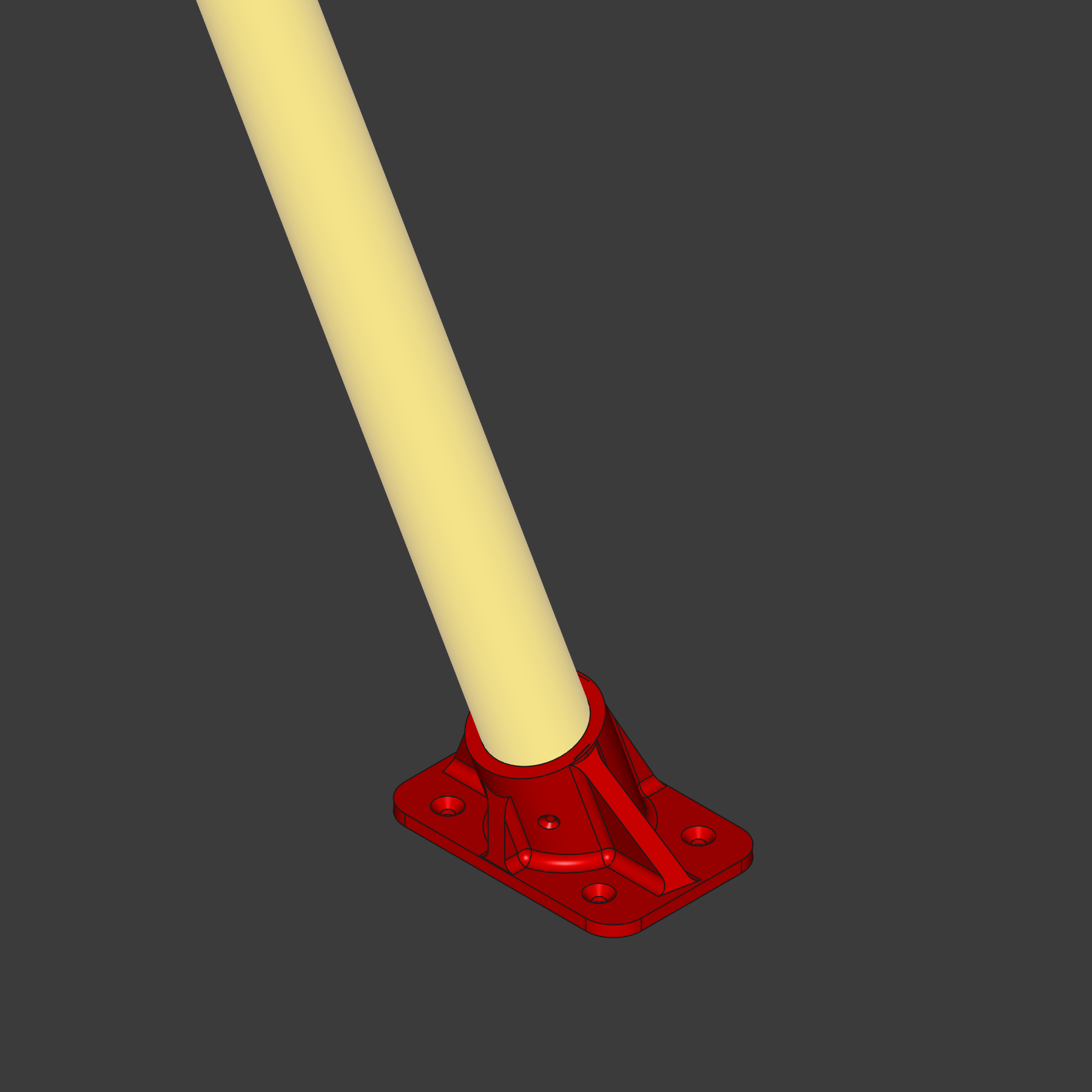

Socket/mount for broom handles with a size of 85 × 56 mm and a handle diameter of 28 mm.

You can use FreeCAD to customize measurements. If you ask nicely, I might add your size for download.

Keep in mind that the handle will change its diameter depending on its humidity and/or temperature. You might want to keep it warm and dry for a while before measuring or installing it.

+++ UPDATE +++ After standing in the sun for an extended period of time, my broom handle shrunk down considerably. Thus, I added a slightly narrower variant to compensate for the shrinkage.

If you like this design, please consider leaving a ♥heart. Thanks!

----------

Printing

With the default 0.4 mm nozzle:

  • Filament material: PETG

  • Resolution: 0.25 mm

  • Infill: 60 % Grid

  • Perimeters: 4

  • Supports: No

I also printed one with a 0.6 mm nozzle and a layer height of 0.32 mm.
