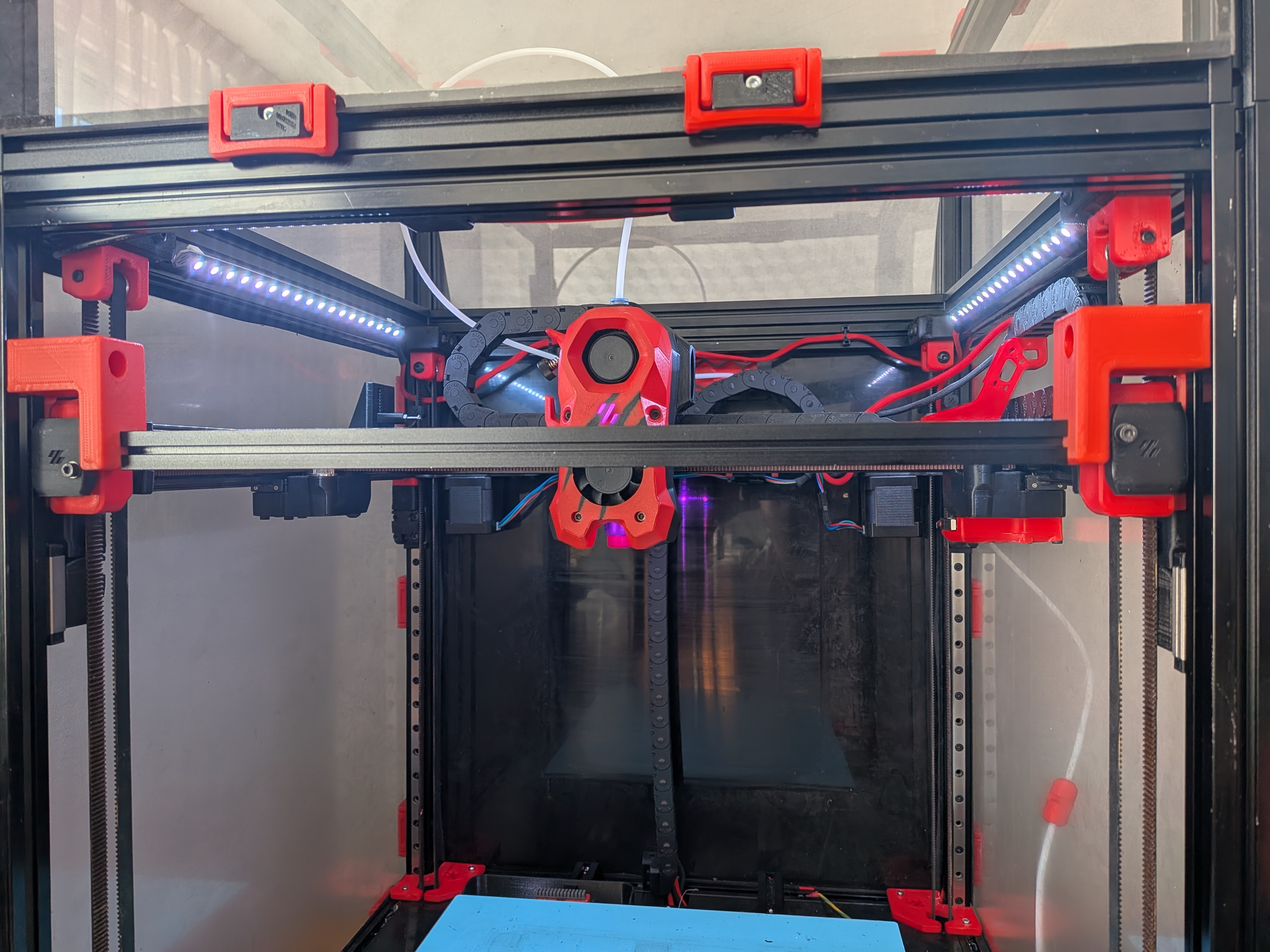

I wanted to mount my tools for the Bondtech INDX toolchanger at the top, like the Stealthchanger and Tapchanger toolchangers do. Because I want a nice unobstructed view of the work-piece being made. Also this gives better access to the work-piece and the toolhead.
The bracket indexes on the mgn9 Z-rails and goes around the standard Voron idlers so it doesn't limit the max z height. Beefy Front Idlers (BFI) should work as well. Because you can go underneath the bar it doesn't limit Y depth either on the bottom 2/3.
Hardware needed:
1x 1515 aluminum extrusion (Makerbeam XL) M3 tapped at both ends. 290mm (250 spec), 340mm (300 spec) or 390 mm (350 spec) length.
2x M5 8mm BHCS
2x M5 12mm BHCS
2x M3 10mm SHCS
4x M5 2020 T-nut (any type will do)
Standard Voron Print settings. Best material is ABS or ASA.
V 1.0 published 15-04-2026
