🛠 Forward 92 V2 – 92mm Open-Prop Micro Frame
The Forward 92 V2 is a lightweight, durable 92mm micro frame designed for modern 1S HD builds. This second iteration improves rigidity, crash resistance, and overall flight performance while maintaining high efficiency.
🔥 Key Features
92mm true X wheelbase
Open-prop design for improved efficiency
Forward-extended front for added crash protection
Reinforced 2.8mm arm structure
Lightweight (~43g dry / ~55g AUW builds)
Designed for compact HD setups (O4 Lite compatible)
M2 hardware
PLA-CF (Recommended)
🧠 Design Highlights

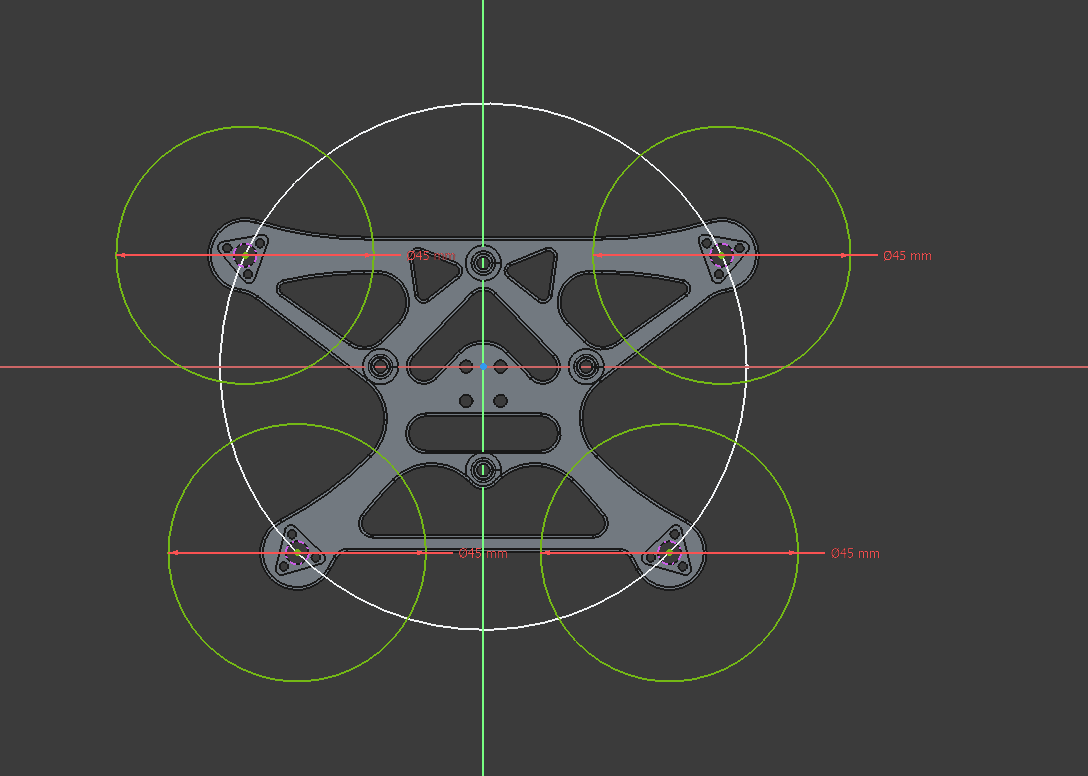

The Forward 92 V2 uses a forward-biased layout, where the front of the frame extends further than the rear. This is intentional and serves multiple purposes:
absorbs frontal impacts (most common crash direction)
protects the camera and electronics
helps reduce the chance of props appearing in the camera view
Material is removed only in low-stress areas while maintaining strong load paths between the arms and center structure. This results in a frame that is both rigid and lightweight.
⚙ Recommended Setup
Motors: 1102 22000KV
Props: ~2” (45mm)
Battery: 1S 450–550mAh
Typical AUW: ~50–60g
💪 Performance
Increased stiffness compared to typical printed frames
Reduced flex for a more “locked-in” flight feel
Improved crash durability, especially in front impacts
More efficient than ducted frames
⚠ Note
This is a 3D printed frame. Strength and durability will depend on material choice and print quality.

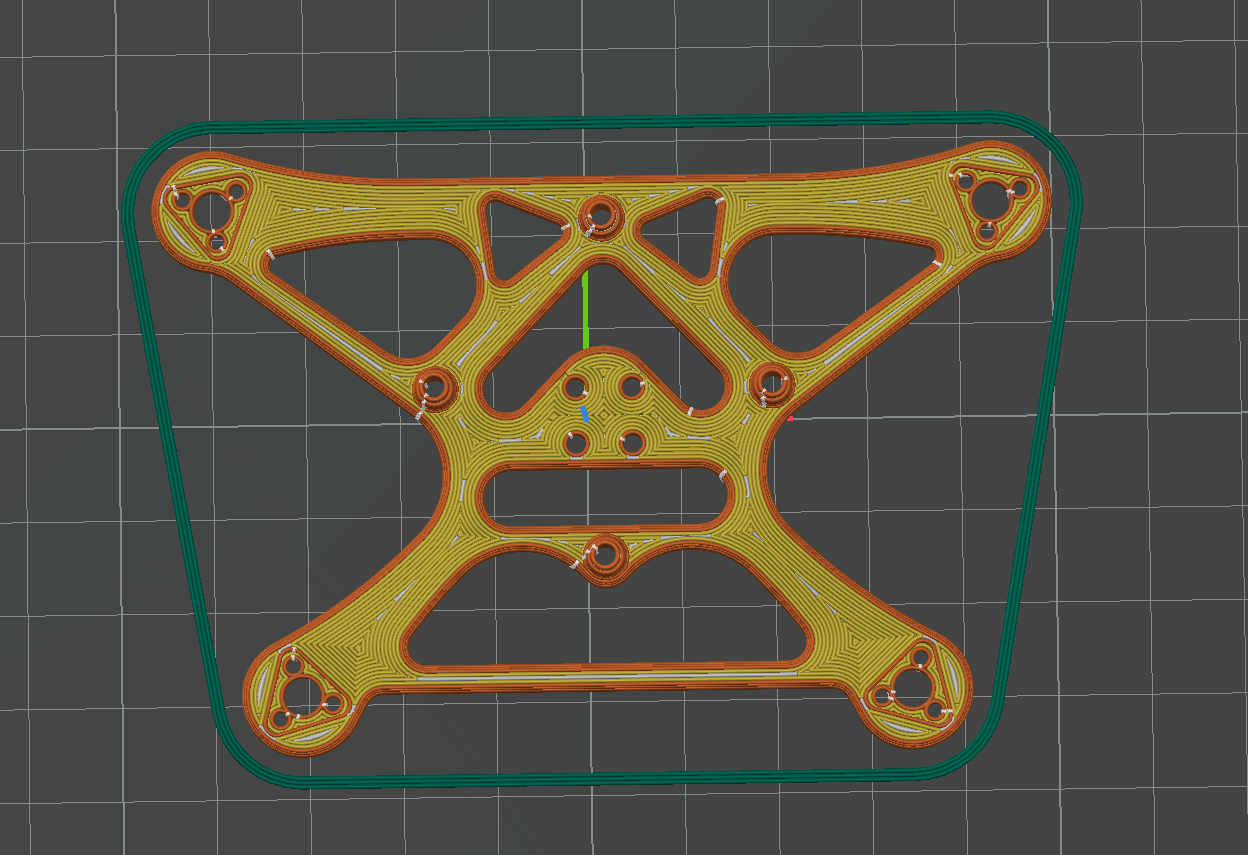

🖨 Print Notes
This frame is designed to be printed fully solid using walls only for maximum strength and clean surface finish.
⚙ Key Settings
Layer height: 0.22mm
First layer height: 0.24mm
Line width:
Default: 0.45mm
First layer: 0.50mm
Top surface: 0.44mm
🧱 Structure
Wall loops: 14
Infill: 0% (not used)
This ensures the frame is made entirely from continuous walls, which improves:
strength
layer bonding
surface consistency (especially on arms)
🪶 Top / Bottom
Top layers: 5
Bottom layers: 5
Top/Bottom density: 100%
Pattern: Monotonic
