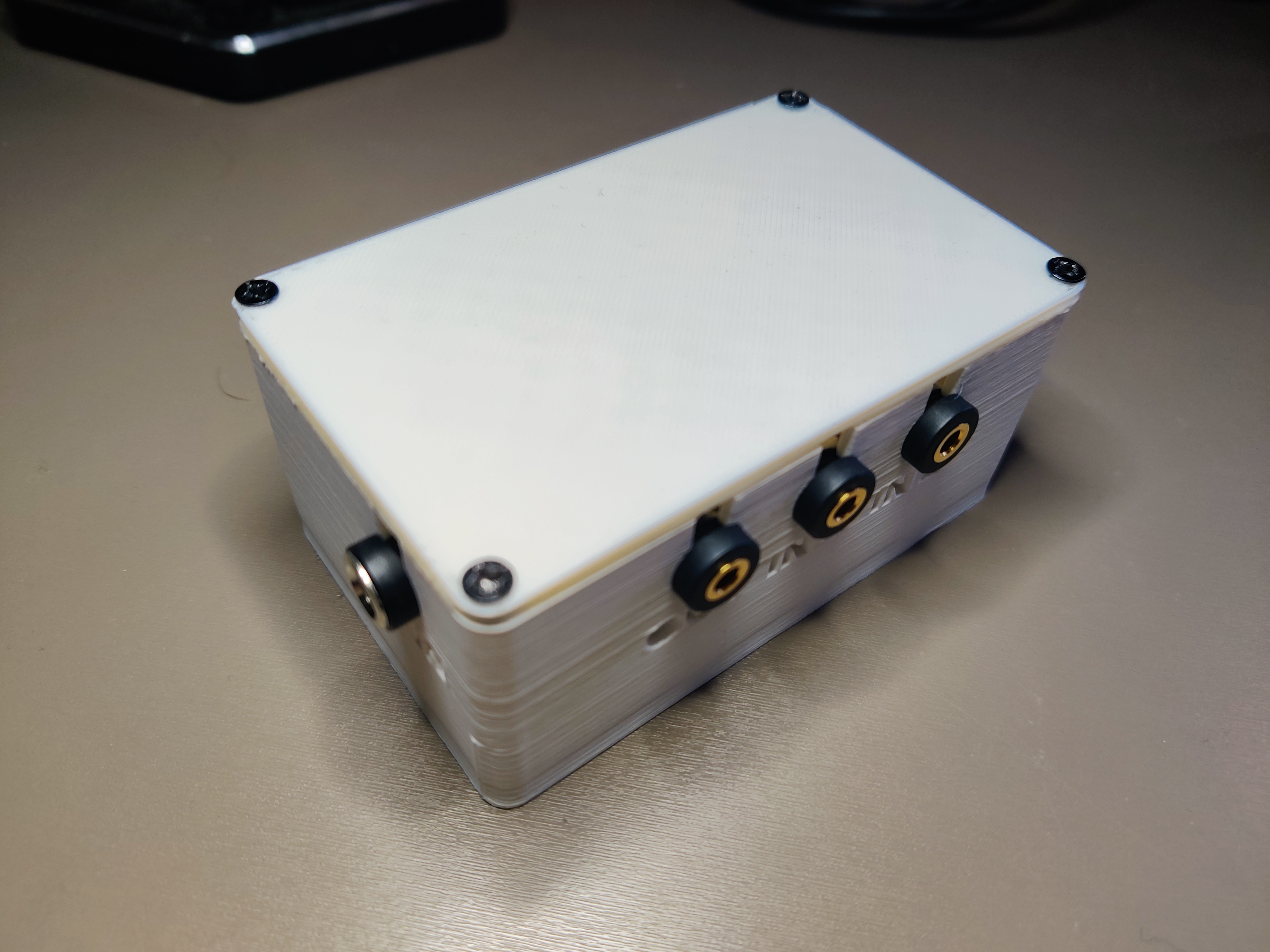

Small enclosure box for NE5532 mixer boards, which you can get for cheap from Aliexpress.

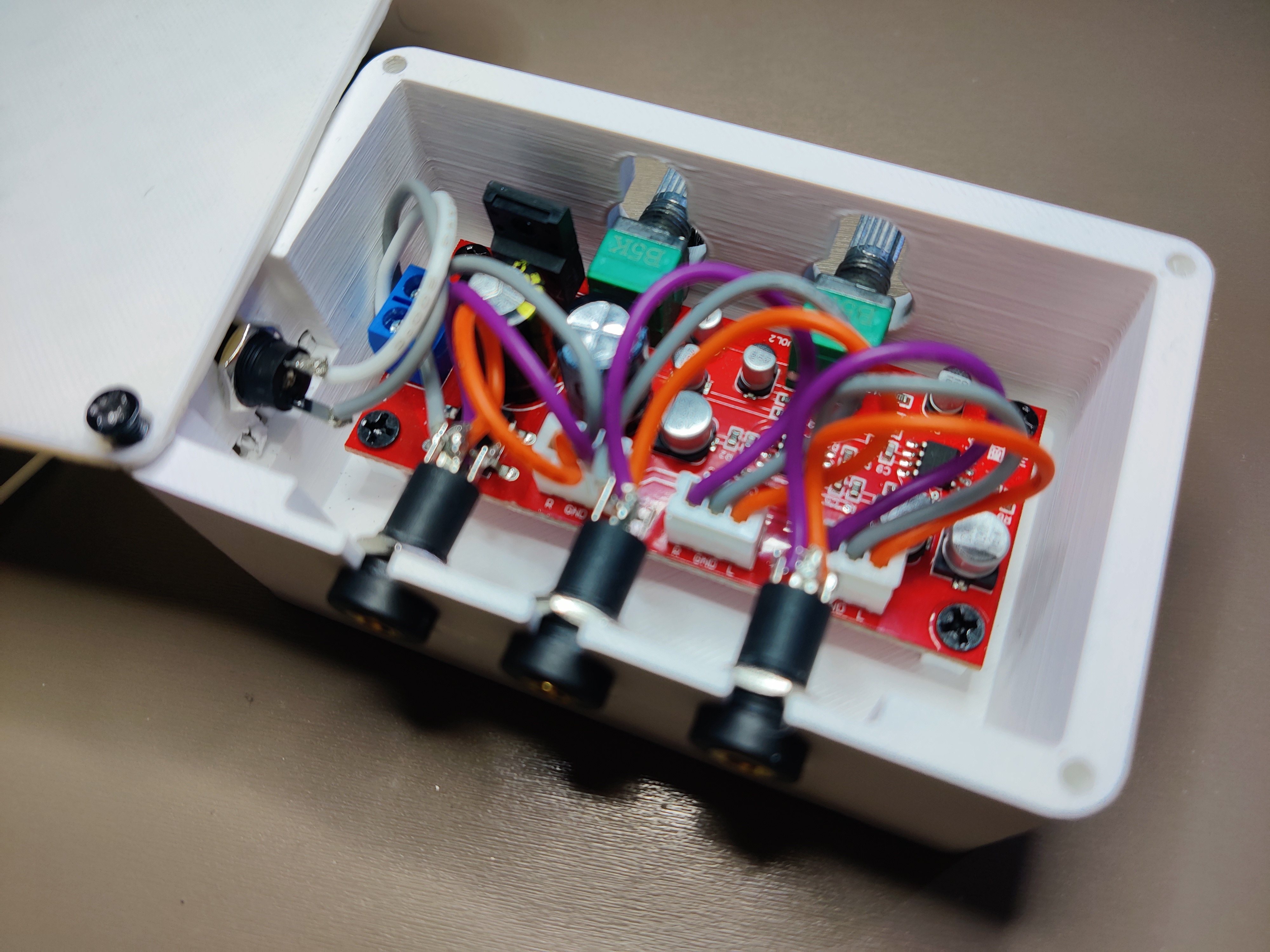

The lid is really simple and has to be put with M3 screws. For keeping the board itself in place I made some 3mm holes to also fit M3 screws. All screw holes were made to fit M3x10 screws since it was what I had lying around, but it could be virtually any length of M3 screws, up to 10mm.
Can be perfectly powered up with a 12V 1A power supply. For soldering each component I used AWG 22 wire but for the audio a smaller gauge could be used.
Materials used:
M3x10 screws
DC Male Terminal Connector 2pin DC Power Adapter 2.1 x 5.5mm
XH2.54 JST 3-pin and 2-pin connectors (kit with connectors and terminals)
